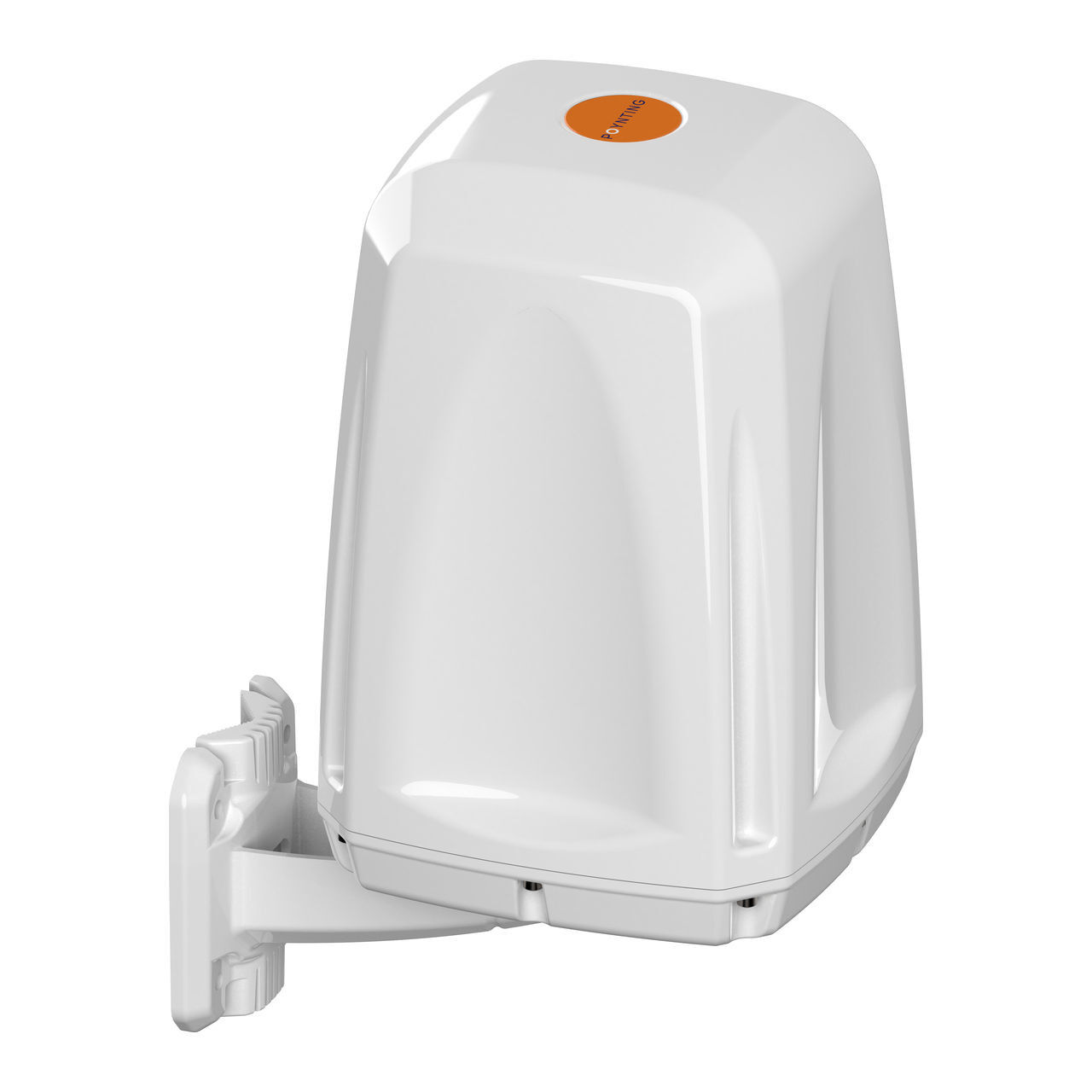

Advanced multi-band antenna system delivering robust high-performance wireless connectivity

The unit integrates wideband cellular, dual-band Wi-Fi, and GPS antennas in a single weatherproof enclosure, providing stable, high-gain coverage for demanding installations. Designed for reliable performance across major 5G/LTE frequencies and extended Wi-Fi bands, it delivers enhanced signal quality, improved throughput, and consistent connectivity when paired with a compatible router.

Key Features

  • Wideband cellular coverage: 4×4 MIMO design operating from 617–4200 MHz to support strong 5G/LTE performance and multi-carrier aggregation.
  • Backward compatibility: Fully supports legacy 2G, 3G, and 4G networks for versatile deployment.
  • Dual-band Wi-Fi capability: 2×2 MIMO antennas covering 2.4 GHz and 5–7.2 GHz bands with stable peak gain.
  • Cross-polarised antenna elements: Enhances signal diversity and maintains reliable performance across varied environments.
  • Integrated GPS receiver: Provides accurate positioning support for advanced networking applications.

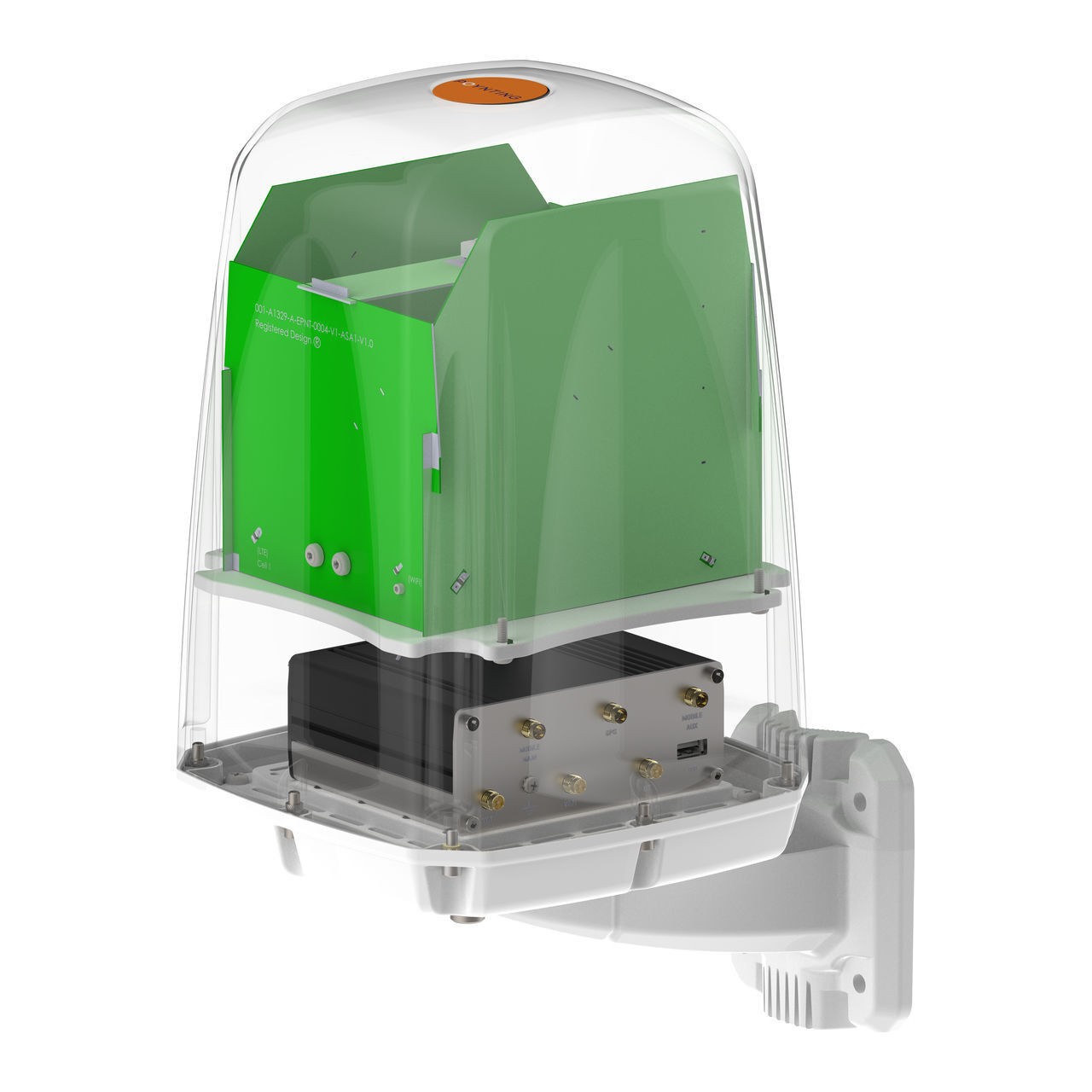

  • Router-ready enclosure: Accommodates internal router hardware up to 140 × 120 × 50 mm for a compact, all-in-one CPE solution.
  • Durable environmental protection: IP67 and IK10 construction with UV-stable ASA material for saltwater, chemical, and outdoor exposure.

This solution delivers dependable high-performance connectivity, combining strong multi-band reception with a rugged enclosure suited for harsh environments.

Product Specifications
Technology Cellular (LTE/2G/3G/4G/5G), GPS/GLONASS, Wi-Fi
Industry Application Commercial and Industrial Antennas, Farming and Agricultural Antennas, Urban and Rural Cellular Antennas
Frequency Range 617–4200 MHz
Frequency Bands 617–698 MHz, 698–803 MHz, 791–894 MHz, 868–915 MHz, 880–960 MHz, 1700–1900 MHz, 1900–2200 MHz, 2300–2400 MHz, 2400–2500 MHz, 2500–2700 MHz, 3400–3800 MHz, 3800–4200 MHz, 5000–6000 MHz, 6000–7200 MHz
Gain 3 dBi
Directionality Omni-directional
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Mounting Type Pole Mount, Marine Mount, Surface Mount, Wall Mount
LTE Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Connectors RA-SMA (m)
Wi-Fi Standard Wi-Fi 3, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
MIMO Configuration 4×4
Polarisation X-Polarised
Environmental Rating IP67
Enclosure Name Penguin
Enclosure Size Medium
LTE Ports 4
Wi-Fi Ports 2
GNSS/GPS Ports 1
Router Housing Dimensions 140 × 120 × 50 mm
SKU POY.A-EPNT-4
Model # A-EPNT-0004-V1-17
Brand Poynting
Shipping Weight 3.0000kg
Shipping Width 0.410m
Shipping Height 0.200m
Shipping Length 0.280m
Shipping Cubic 0.022960000m3
Unit Of Measure Each
