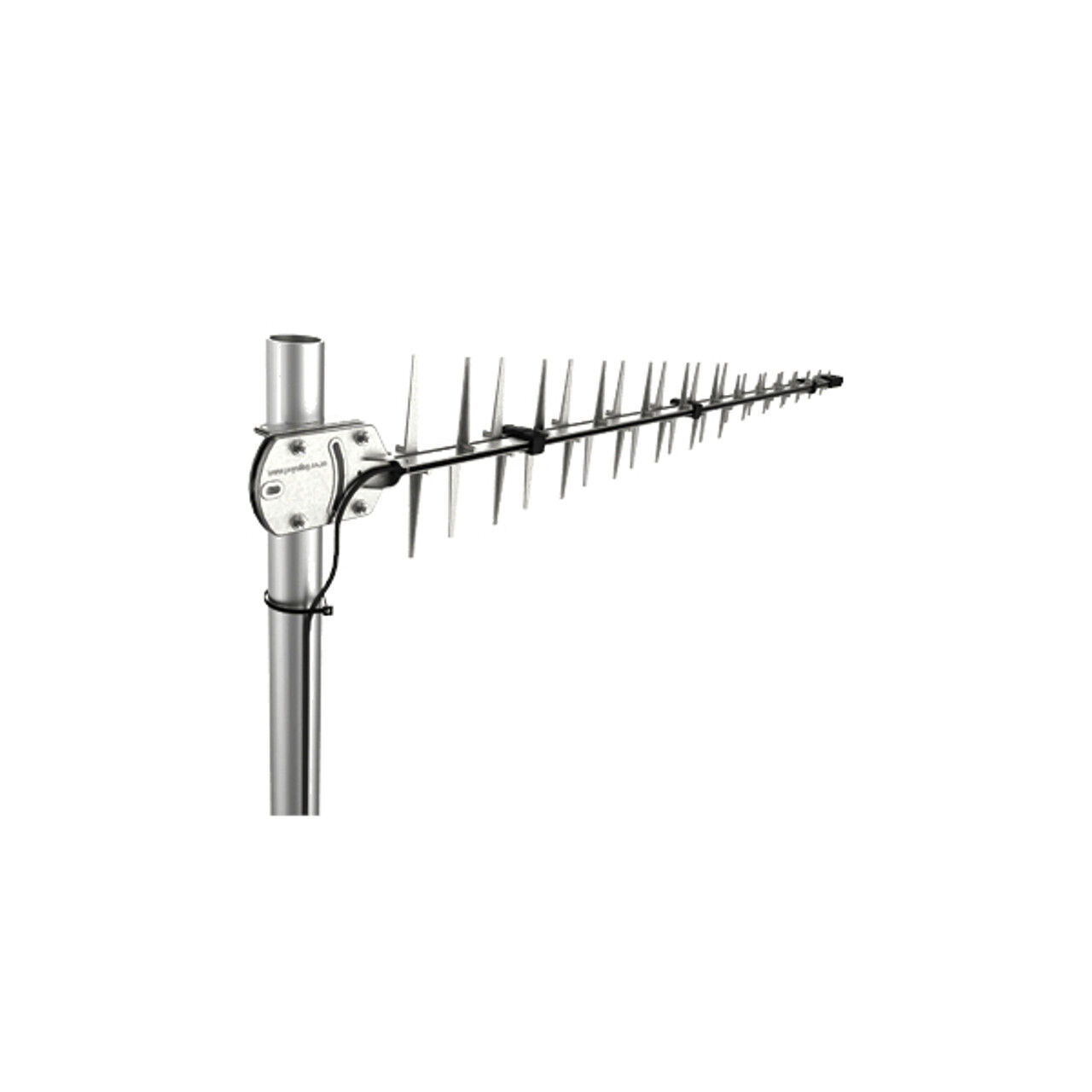

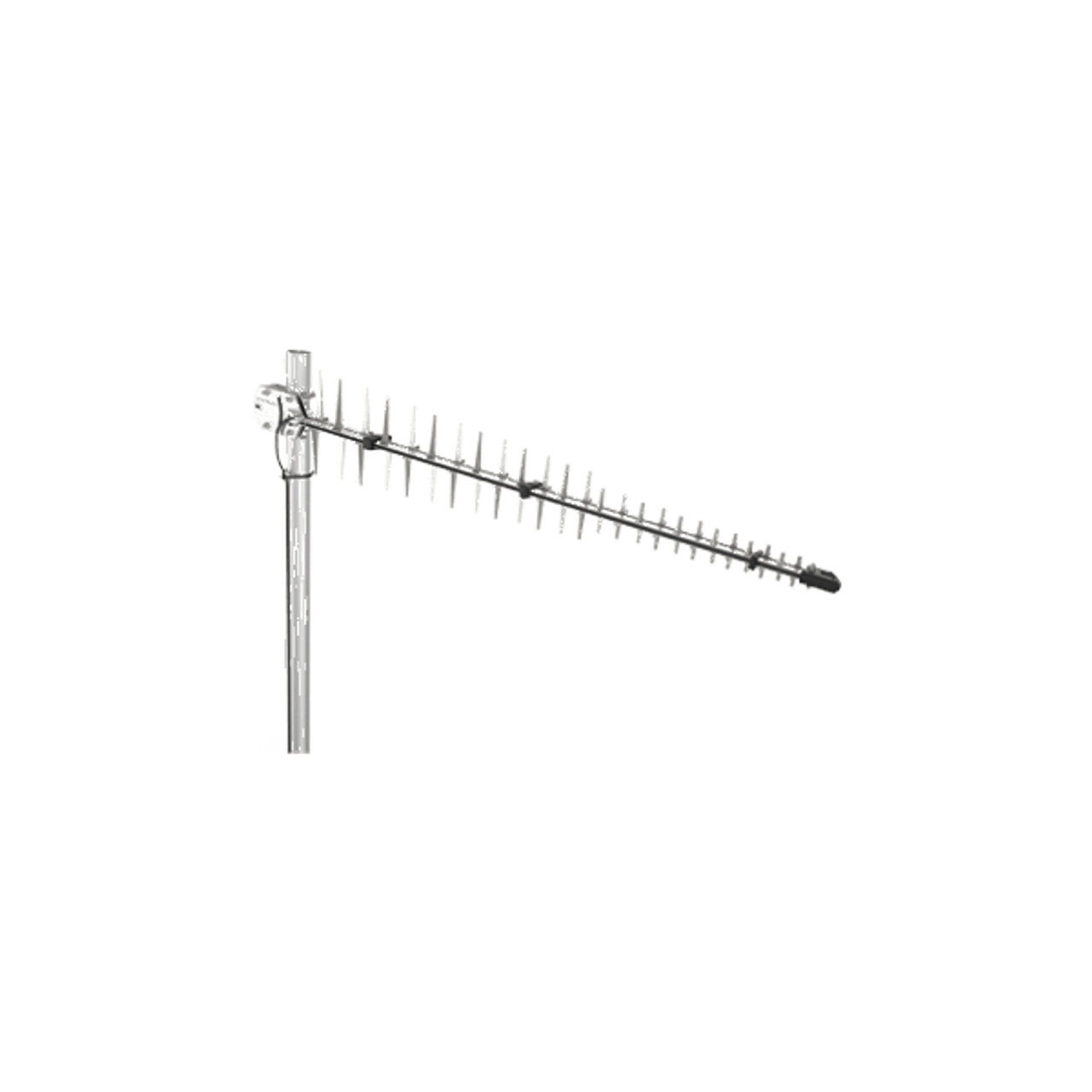

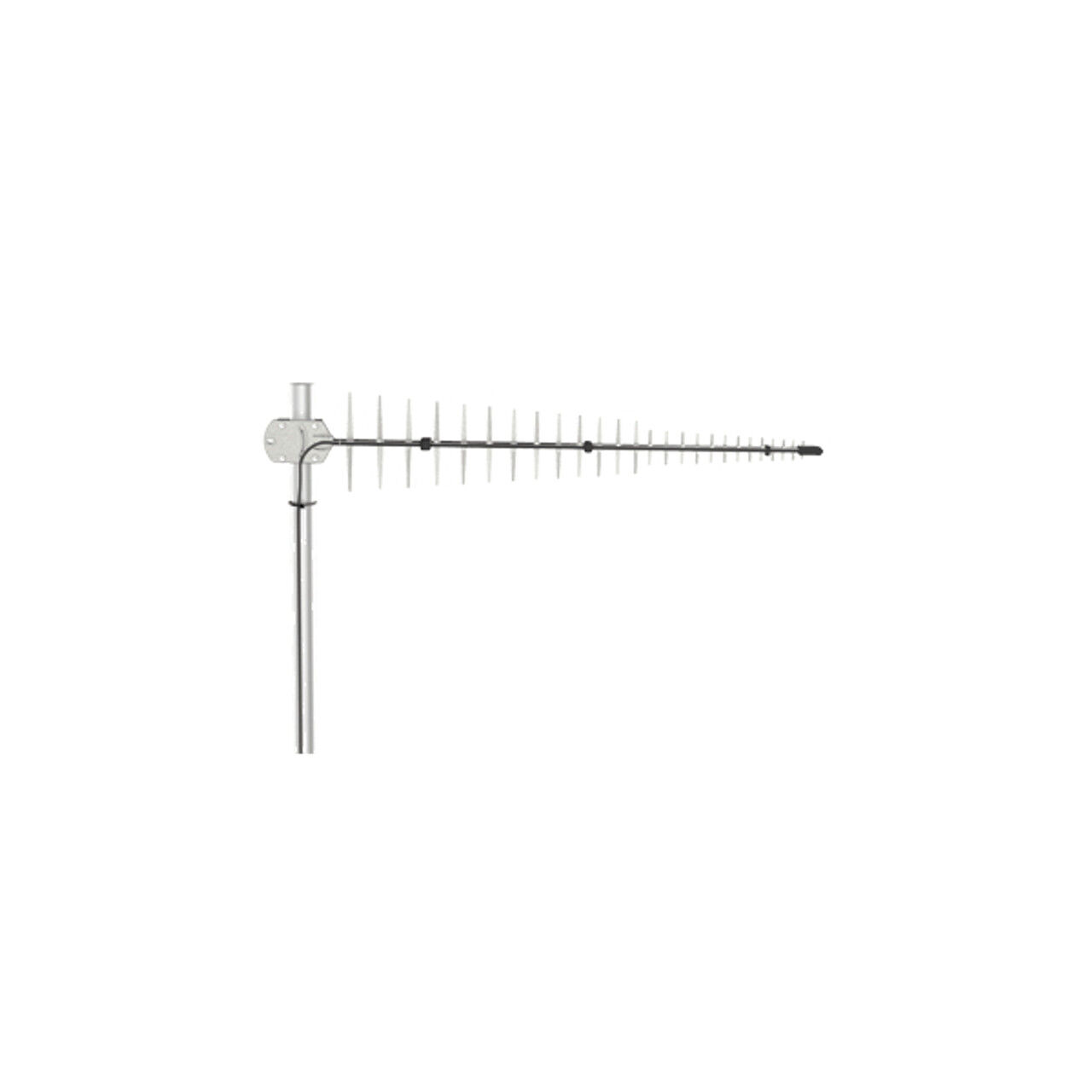

Poynting LPDA-92, Wideband Antenna, 698 to 3800 MHz, 7 m SMA Male
Directional wideband antenna with high LTE gain, 5G mid-band support, weatherproof design and easy mounting for reliable long-range connectivity in rural and obstructed areas.
SKU: POY.LPDA-92 | MPN: A-LPDA-0092
SAVE $32.80 (14%)
Available at Supplier
In Stock at our Suppliers Warehouse
Typically ships same/next business day
High-gain directional antenna delivering stable long-range LTE and 5G mid-band performance
This rugged directional antenna provides reliable connectivity across a wide 690–3800 MHz range, making it suitable for 3G, 4G and mid-band 5G applications. With up to 11 dBi gain across standard LTE bands, it performs well in rural, hilly or obstructed environments where signal penetration and long-distance coverage are essential. Its robust construction ensures dependable operation outdoors, while support for mid-band 5G (3.2–3.8 GHz) offers future-ready compatibility.
Key Features
- Wideband frequency performance: Supports 690–3800 MHz for LTE, Wi-Fi and mid-band 5G deployments.
- High gain for LTE bands: Delivers up to 11 dBi across 700–2700 MHz for improved range in challenging terrain.
- 5G mid-band support: Operates on 3.2–3.8 GHz CBRS frequencies with low-gain coverage for future 5G applications.
- Directional beam pattern: Approximately 50° main beam simplifies alignment and improves link reliability.
- Multi-generation compatibility: Suitable for 3G, 4G, LTE and emerging 5G networks.
- Durable weatherproof build: Water- and dust-resistant materials support long-term outdoor operation.
- Rugged for harsh conditions: Designed for performance in extreme weather, including wind, rain and temperature fluctuations.
- Easy installation: Supplied with adjustable bracket, U-bolts and fasteners for secure pole mounting.
- Reliable rural performance: Ideal for remote sites, hilly areas and locations obstructed by vegetation.
Built for long-distance, directional performance, this antenna provides robust LTE coverage and future-proof 5G readiness for demanding outdoor installations.
| Specification | Description |
|---|---|
| Industry (Application) | Farming & Agricultural Antennas, Urban & Rural Cellular Antennas |
| Technology | Cellular (LTE/2G/3G/4G/CBRS/5G) |
| Frequency Band | 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz |
| Frequency Range | 698-3800 MHz |
| Gain | 11dBi |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| Directionality | Uni-Directional |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B74, B85, B103, B106 |
| Mounting Type | Pole Mount |
| Wi-Fi Standard | Wi-Fi 3 (802.11g) |
| Connectors | N-Type, SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP65 |
| Enclosure Name | LPDA |
| Enclosure Size | Large |
| LTE Ports | 1 |
| LPDA-92 | |
|---|---|
| Category | Details |
| Electrical Specifications | |
| Frequency Bands | 698 – 960 MHz, 1427 – 1517 MHz, 1710 – 2700 MHz, 3400 – 3800 MHz |
| Gain (Max) | 10.8 dBi @ 698 – 960 MHz 10 dBi @ 1427 – 1517 MHz 11 dBi @ 1710 – 2700 MHz 2.3 dBi @ 3400 – 3800 MHz |
| VSWR | <1.5:1 across 95% of the bands |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Directional Linear |
| Coax Cable Loss | 0.385 dB/m @ 900 MHz 0.507 dB/m @ 1500 MHz 0.565 dB/m @ 1800 MHz 0.666 dB/m @ 2400 MHz 0.788 dB/m @ 3000 MHz |
| DC Short | Yes |
| Product Box Contents | |
| Antenna | A-LPDA-0092 |

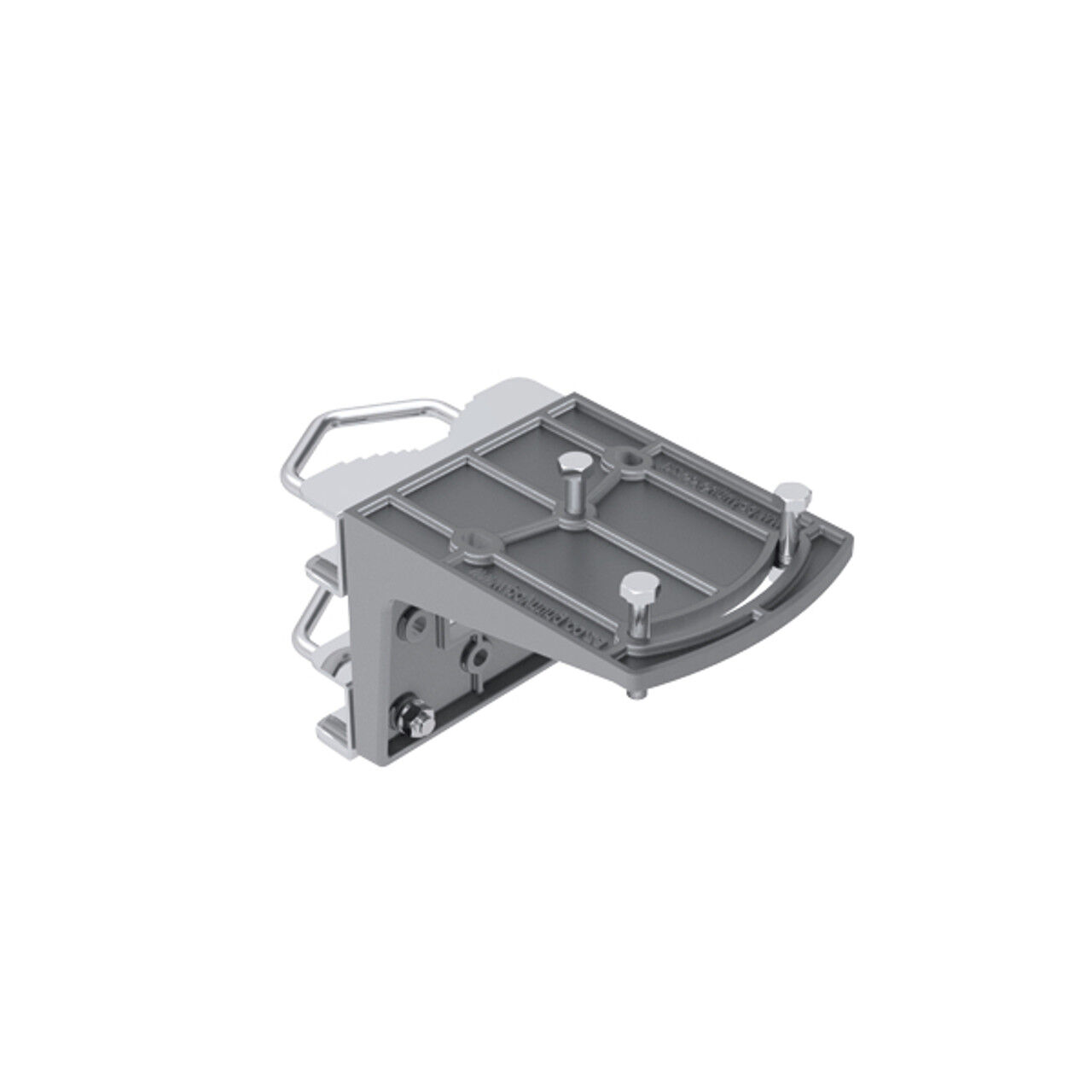

| Mounting Bracket | Econo brackets, U-bolts, and fasteners suitable for pole mounting |
| Mechanical Specifications | |
| Plastics Material | Nylon 6 |
| Plastics Colour | Black |
| Frame Material | Passivated ADC12 |
| Frame Colour | Aluminium grey |
| Mounting Type | Pole Mount |
| Environmental Specifications, Certification & Approvals | |
| Wind Survival | ≤160 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP 65 |
| Salt Spray | MIL-STD 810G/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB |
| Impact Resistance | IK 08 |
| Product Safety & Environmental | Complies with CE and RoHS standards |
| SKU | POY.LPDA-92 |
| Model # | A-LPDA-0092 |
| Brand | Poynting |
| Shipping Weight | 2.0000kg |
| Shipping Width | 1.120m |
| Shipping Height | 0.060m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.014112000m3 |
| Unit Of Measure | Each |
