High-performance Multi-frequency Antenna for Transport and Industrial Use

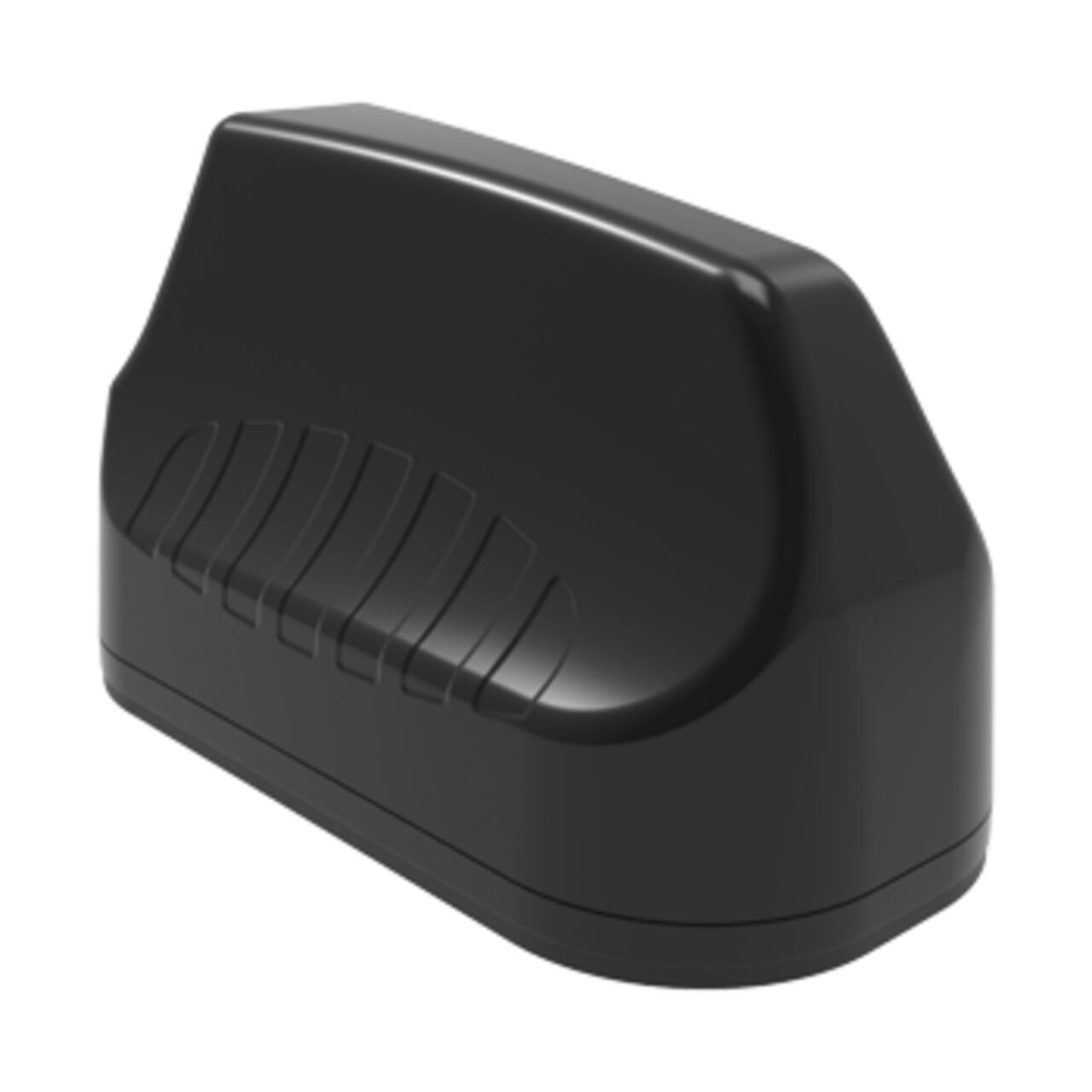

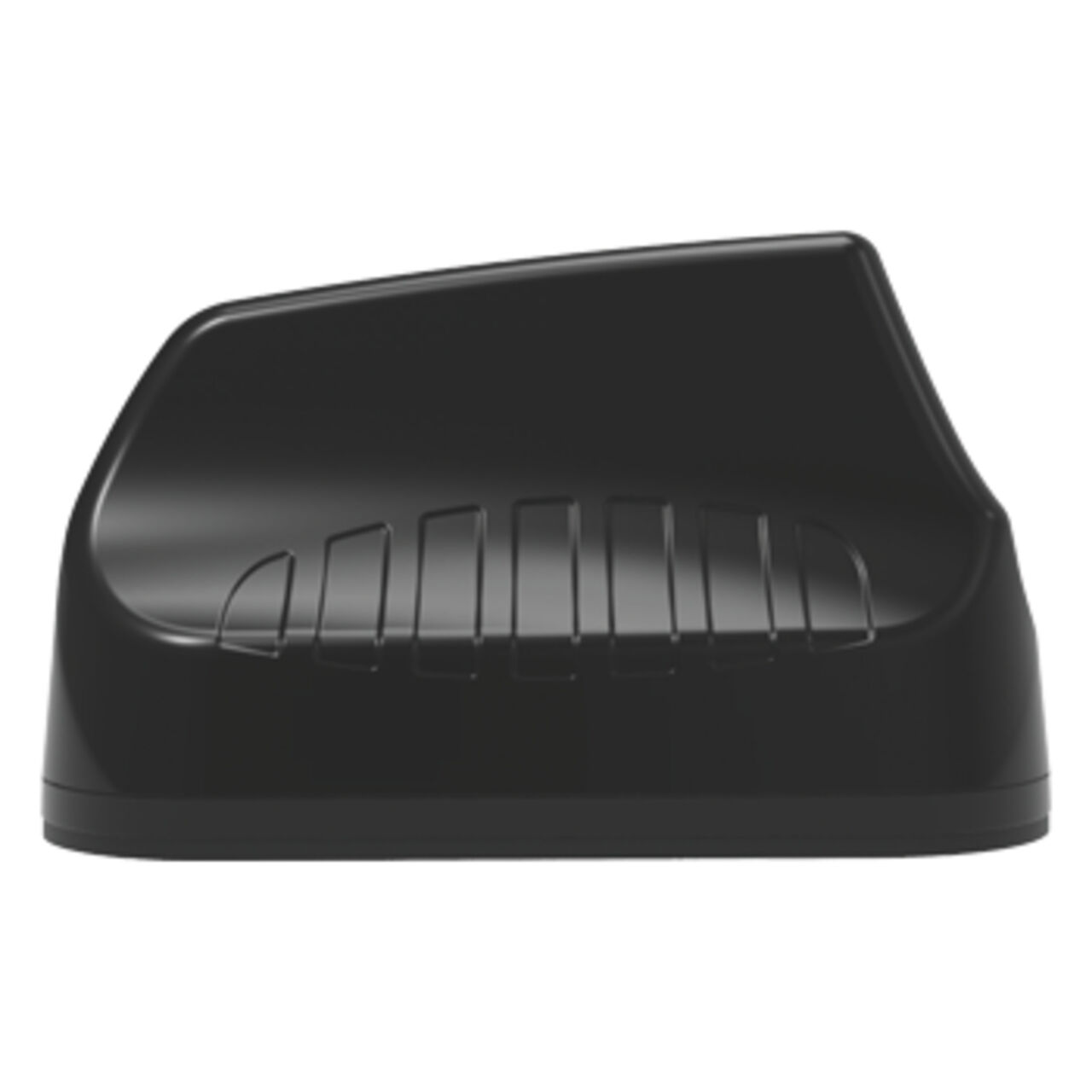

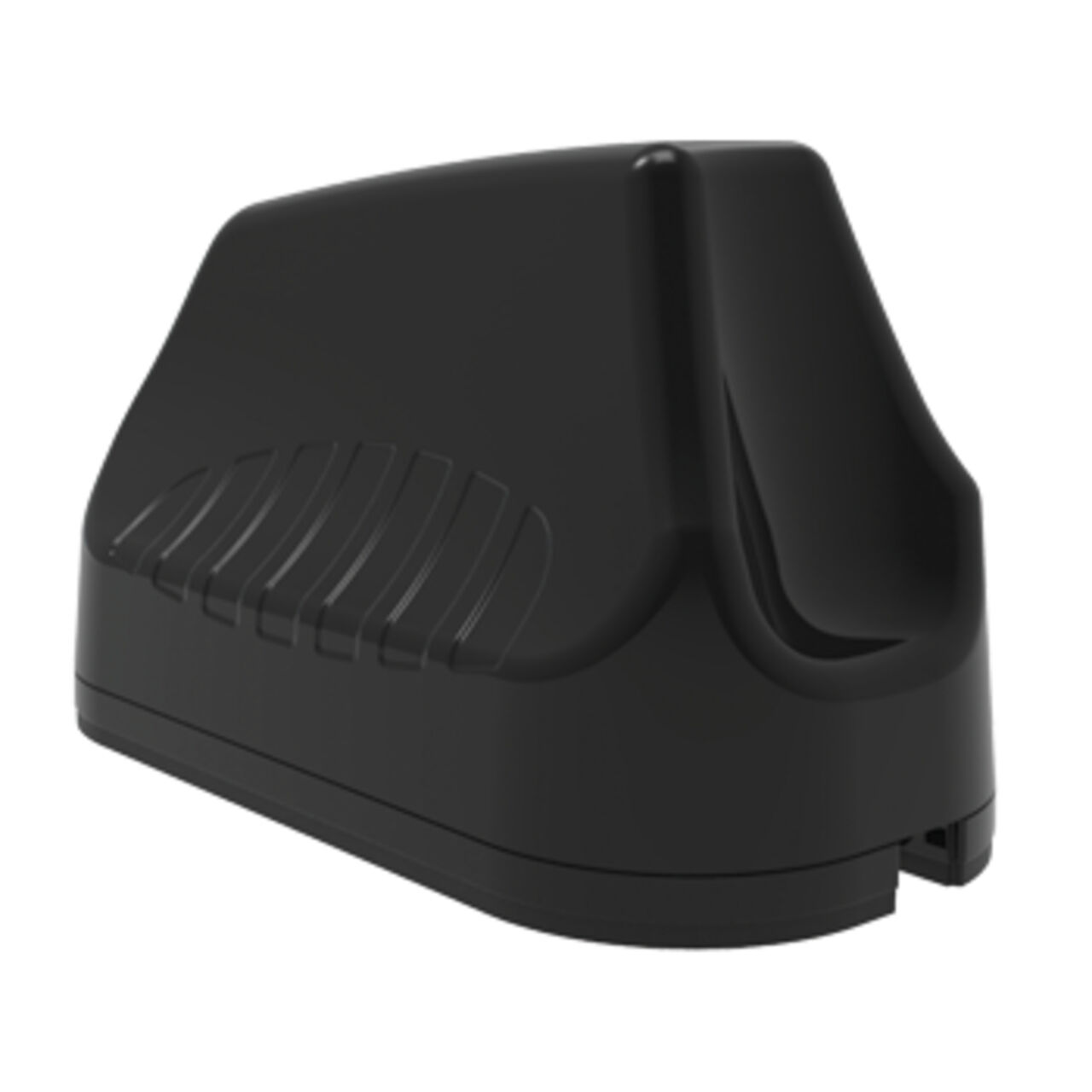

The MIMO-3-15 is a 5-in-1 antenna that integrates two LTE, two Wi-Fi, and one GPS/GLONASS element into a single compact housing. Covering frequencies from 410 MHz to 3800 MHz, it supports 2G, 3G, 4G, and 5G, including CBRS bands, ensuring broad compatibility with current and future networks. Dual-band Wi-Fi operates at 2.4 GHz and 5–7.2 GHz with 2×2 MIMO capability, while the GPS/GLONASS system provides precise positioning even in extreme conditions. With rugged IP69K protection, multiple mounting options, and futureproof design, it is ideal for transport, marine, industrial, and IoT applications.

Key Features

  • 5-in-1 design: Combines 2×2 LTE MIMO, 2×2 Wi-Fi MIMO, and GPS/GLONASS in one antenna.
  • Wideband coverage: Operates across 410–470 MHz, 617–2700 MHz, and 3400–3800 MHz for LTE/5G.
  • Dual-band Wi-Fi: Provides 2.4 GHz and 5–7.2 GHz concurrent operation with peak 7 dBi gain.
  • High GPS performance: Active GPS/GLONASS antenna delivers up to 21 dBi gain.
  • Rugged construction: IP69K-rated, UV-stable radome, corrosion and impact resistant.
  • Ground-plane independent: Internal ground plane ensures reliable use on any surface.
  • Mounting flexibility: Supports spigot, surface, adhesive, and optional magnetic base.
  • Harsh environment ready: Operates from -40 °C to +80 °C with wind survival up to 220 km/h.

Engineered for demanding environments, this antenna provides dependable connectivity, durability, and future-ready performance for vehicles, marine, and industrial systems.

Product Specifications
Antenna Type 5-in-1 multi-frequency (LTE, Wi-Fi, GPS/GLONASS)
Frequency Range – Cellular 410–470 MHz, 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, 3400–3800 MHz
Frequency Range – Wi-Fi 2400–2500 MHz, 5000–7200 MHz
Frequency Range – GPS 1575.42 / 1600 MHz
Gain Cellular up to 5.8 dBi, Wi-Fi up to 7 dBi, GPS 21 dBi
Impedance 50 Ω
VSWR ≤2.5:1 across 90–95% of bands
Power Handling 10 W (cellular & Wi-Fi), 50 W max GPS
Connector Type SMA Male (LTE, Wi-Fi, GPS)
Cable Length 2 m (HDF195 for LTE/Wi-Fi, RTK-031 for GPS)
Dimensions 253 × 128 × 144 mm
Weight 1.36 kg (1.46 kg packaged)
Ingress Protection IP69K
Operating Temperature -40 °C to +80 °C
Wind Survival ≤220 km/h
Mounting Options Spigot, surface, adhesive, optional magnetic mount
Radome Material UV stable ASA
Compliance RoHS 2011/65/EU, ISO 9001:2015, CE certified
SKU POY.A-MIMO-0003-V2-15-B
Model # A-MIMO-0003-V2-15-B
Brand Poynting
Shipping Weight 1.7500kg
Shipping Width 0.270m
Shipping Height 0.210m
Shipping Length 0.220m
Shipping Cubic 0.012474000m3
Unit Of Measure ea
