Reliable omni antenna delivering strong connectivity for IoT and M2M applications

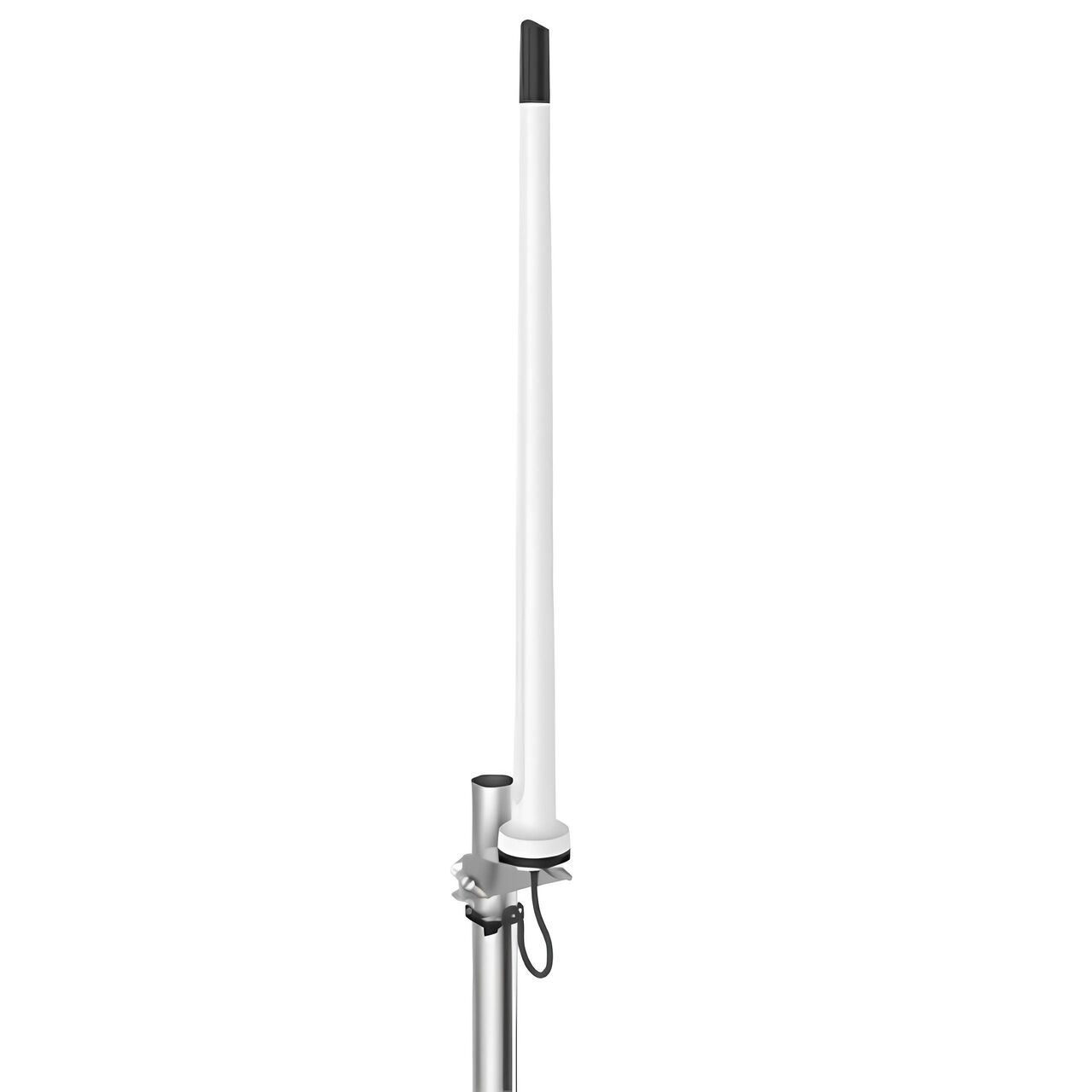

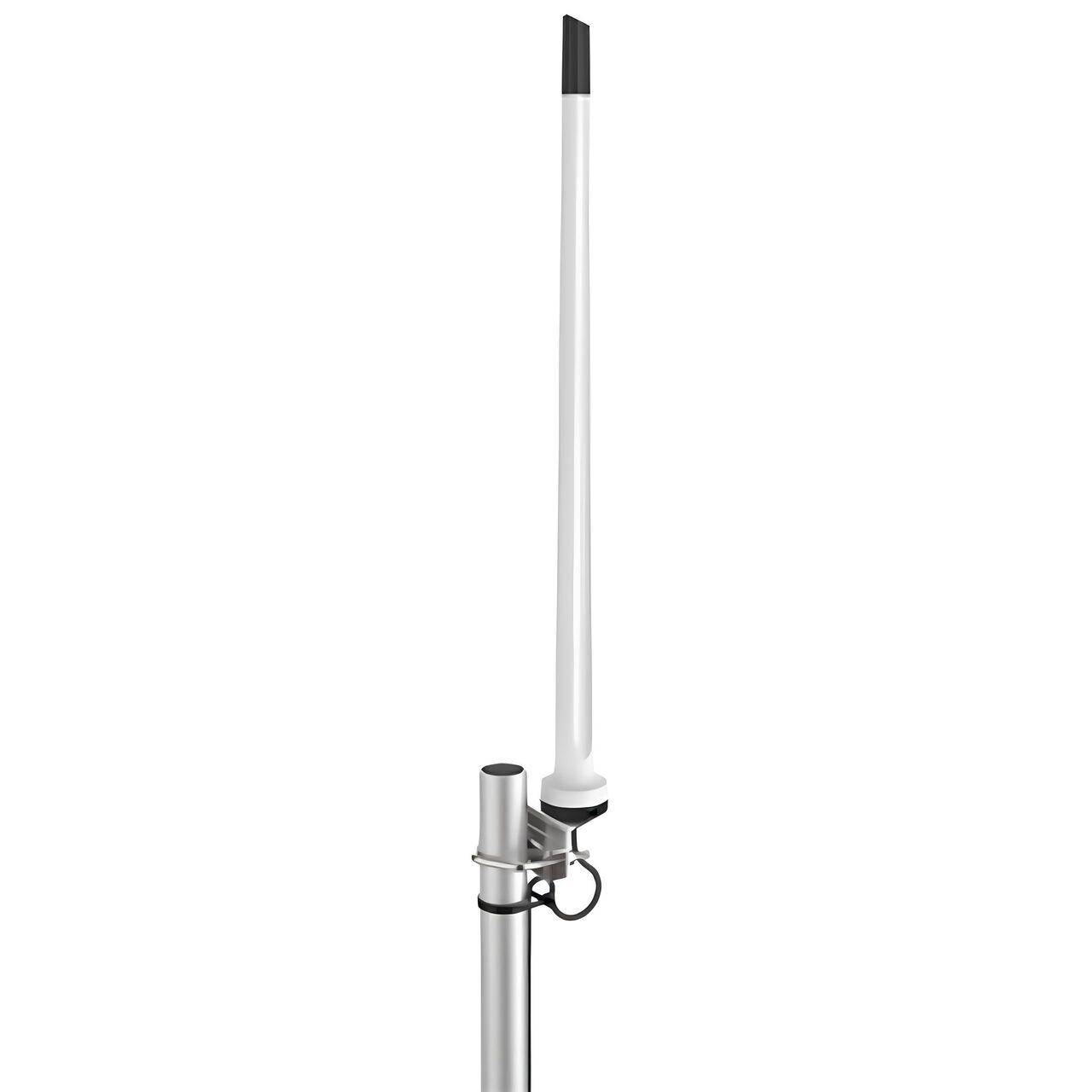

The OMNI-300 is a specialized omni-directional antenna designed to enhance communication in the Internet of Things (IoT) and Machine to Machine (M2M) sectors. This antenna is particularly tailored for LoRa, Helium, and other IoT technologies, operating within the 868 to 930 MHz frequency range.

Features

  • Medium Gain Omni-Directional Antenna: Provides a stable 4.5dBi gain, ensuring consistent signal strength over its coverage area.
  • Specific Frequency Coverage: Targets the 868 MHz to 930 MHz band, ideal for IoT/M2M deployments and covering LoRa and ISM frequency bands.
  • Versatile Installation: Can be easily mounted on both walls and poles, providing flexibility for various installation environments.
  • Robust Design: Comes with an IP65-rated enclosure, making it dust and water-resistant, suitable for outdoor use.
  • Connectivity Options: Equipped with N-Type and RP-SMA connectors, accommodating a wide range of device connections.
Specification Description
Industry (Application) IoT M2M & Smart Meter Antennas, Mining & Tunnelling Antennas
Technology Helium/LoRa/Sigfox, LoRa, NB-IoT
Frequency Band 868-915MHz, 880-960MHz
Frequency Range 868 – 930 MHz
Gain 4.5dBi
5G Bands n81, n100
Directionality Omni-Directional
Mounting Type Pole Mount, Wall Mount
Connectors N-Type, RP-SMA
MIMO SISO
Polarisation Linear Polarised
Environmental IP65
Enclosure Name Mamba
Enclosure Size Medium
LTE Ports 1
SKU POY.OMNI-300
Model # A-OMNI-0300-V2-01
Brand Poynting
Shipping Weight 1.0000kg
Shipping Width 0.600m
Shipping Height 0.070m
Shipping Length 0.130m
Shipping Cubic 0.005460000m3
Unit Of Measure Each
