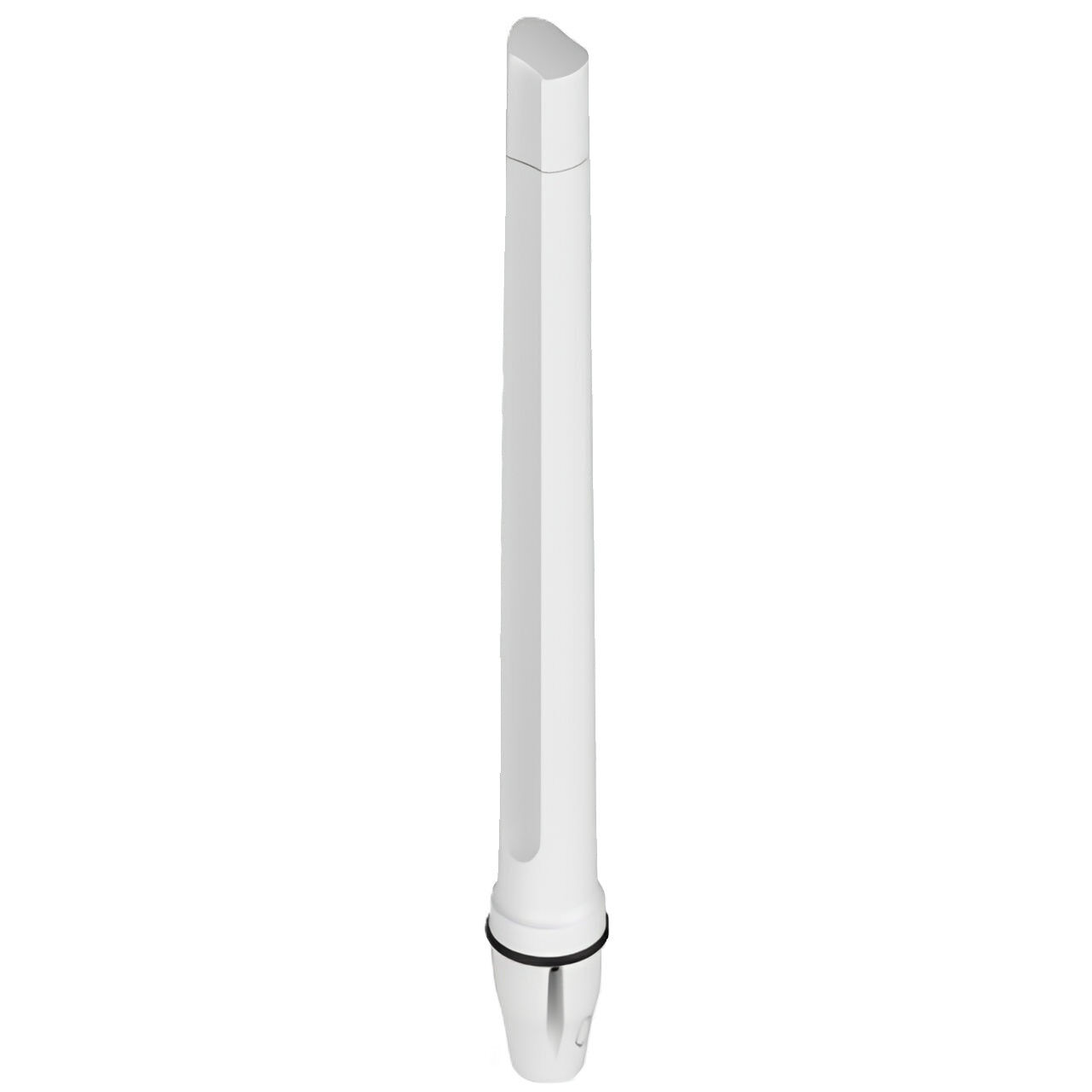

Marine omni antenna providing ultra-wideband 4G and 5G coverage

The OMNI-402-5G is a rugged omni-directional antenna designed for marine and coastal applications, delivering wideband connectivity from 410 to 4200 MHz. With 2x2 MIMO support and up to 5.8 dBi gain, it enhances 4G LTE and 5G performance across global frequency bands. Its UV-stable ASA housing, IP68 rating, and stainless steel mounting options ensure long-lasting operation in harsh saltwater environments.

Key Features

  • Ultra-wide frequency range: Operates across 410–470 MHz, 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, and 3400–4200 MHz for comprehensive 4G and 5G coverage.
  • Medium gain performance: Provides balanced gain up to 5.8 dBi, optimised for stable signal reception across multiple bands.
  • 2x2 MIMO support: Features dual vertically separated elements to improve throughput and connection reliability.
  • Marine-grade durability: Built with UV-stable ASA radome, IP68 ingress protection, and IK08 impact resistance for extreme environments.
  • Saltwater and UV resistance: Designed to withstand prolonged marine exposure with MIL-STD 810G salt spray compliance.
  • Flexible mounting options: Supplied with 1”-14 TPI marine adapter and stainless steel L-bracket for wall or pole installations.
  • Future-proof connectivity: Supports both the lower 450 MHz LTE frequency and upper 4.2 GHz 5G band.
  • Reliable global operation: Engineered for yachts, ferries, and offshore vessels requiring consistent high-speed communications.

Purpose-built for demanding maritime conditions, this antenna ensures dependable broadband access and robust connectivity at sea.

Product Specifications
Frequency Bands 410–470 MHz, 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, 3400–4200 MHz
Gain -5 dBi @ 410–470 MHz, 2 dBi @ 617–960 MHz, 4.2 dBi @ 1427–1517 MHz, 5.8 dBi @ 1710–2700 MHz, 5.8 dBi @ 3400–4200 MHz
MIMO Configuration 2x2 MIMO
Polarisation Linear vertical
Connector 2 × SMA Male (factory mounted, 2 m HDF 195 cable)
VSWR < 3:1 across 90% of the band
Input Impedance 50 Ohm nominal
Power Handling 10 W
Dimensions 750 mm × Ø75 mm (incl. BRKT-40)
Weight 0.86 kg (1.72 kg packaged)
Radome Material/Colour UV-stable ASA, Brilliant White (Pantone P 179-1C)
Ingress Protection IP68
Operating Temperature -40 °C to +80 °C
Wind Survival < 160 km/h
Impact Resistance IK08
Mounting Options 1”-14 TPI marine adapter, stainless steel L-bracket for Ø30–50 mm pole
Compliance CE, RoHS, ISO 9001:2015
Warranty 2 Years
SKU POY.OMNI-402-5G
Model # A-OMNI-0402-V2-01
Brand Poynting
Shipping Weight 2.0000kg
Shipping Width 0.710m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.010650000m3
Unit Of Measure Each
