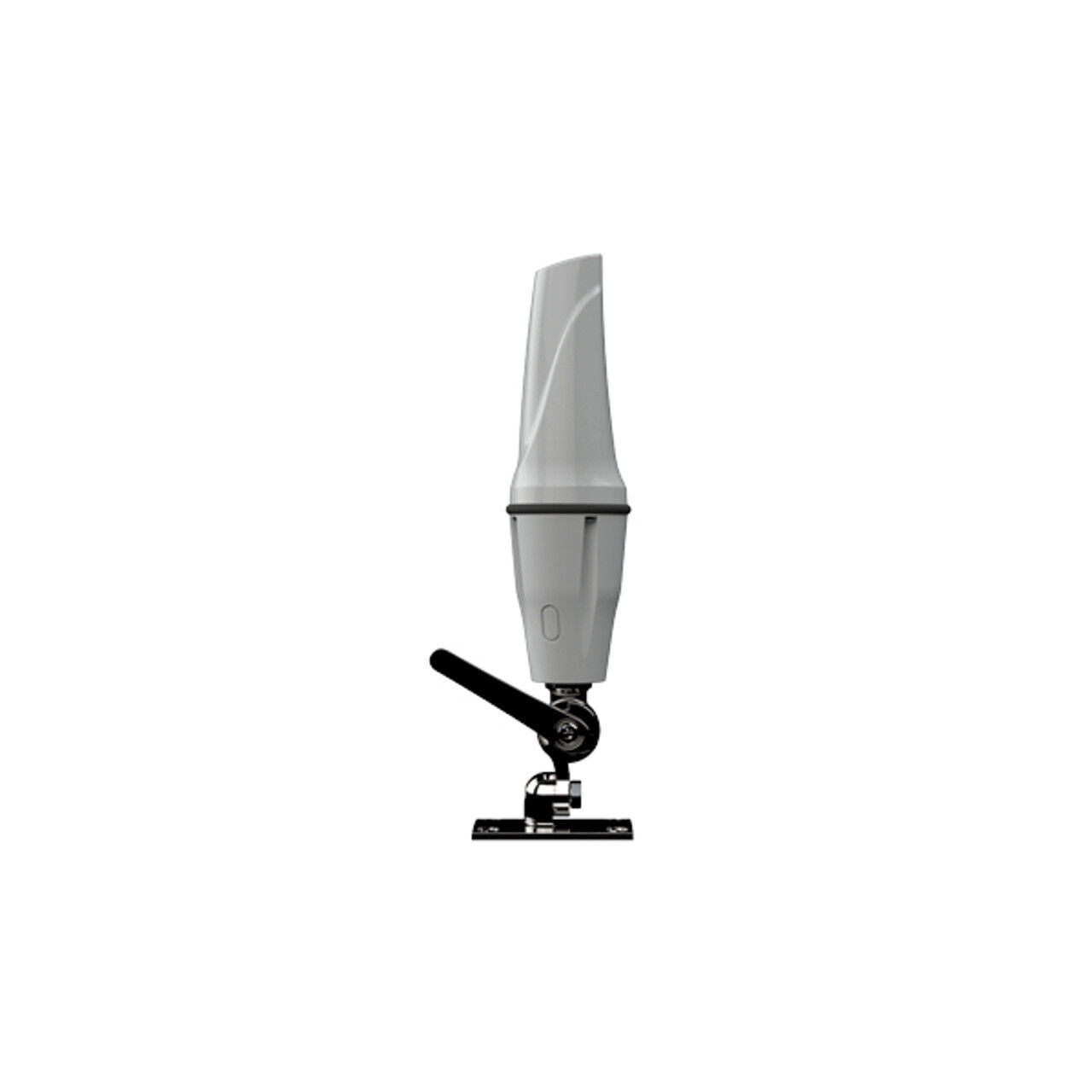

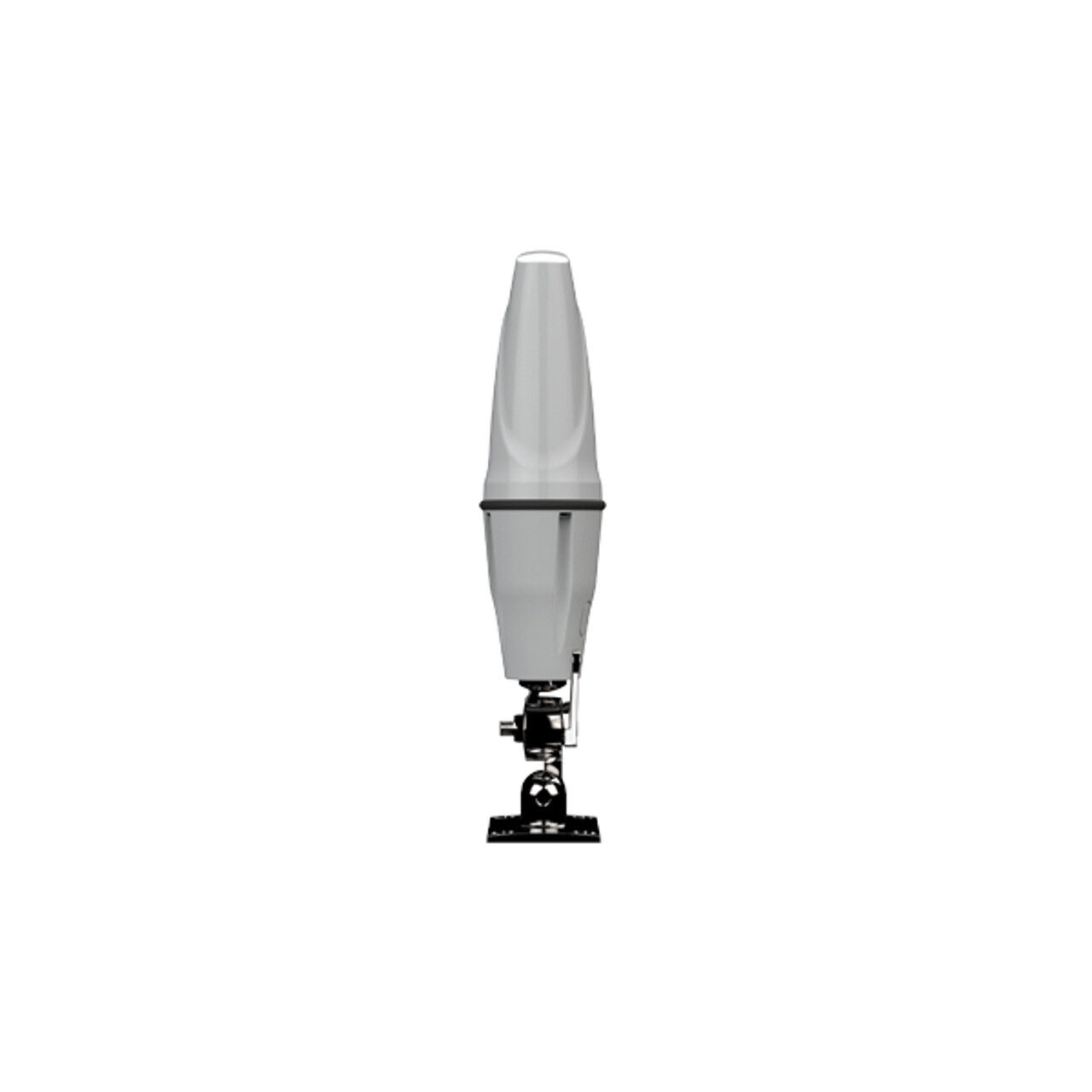

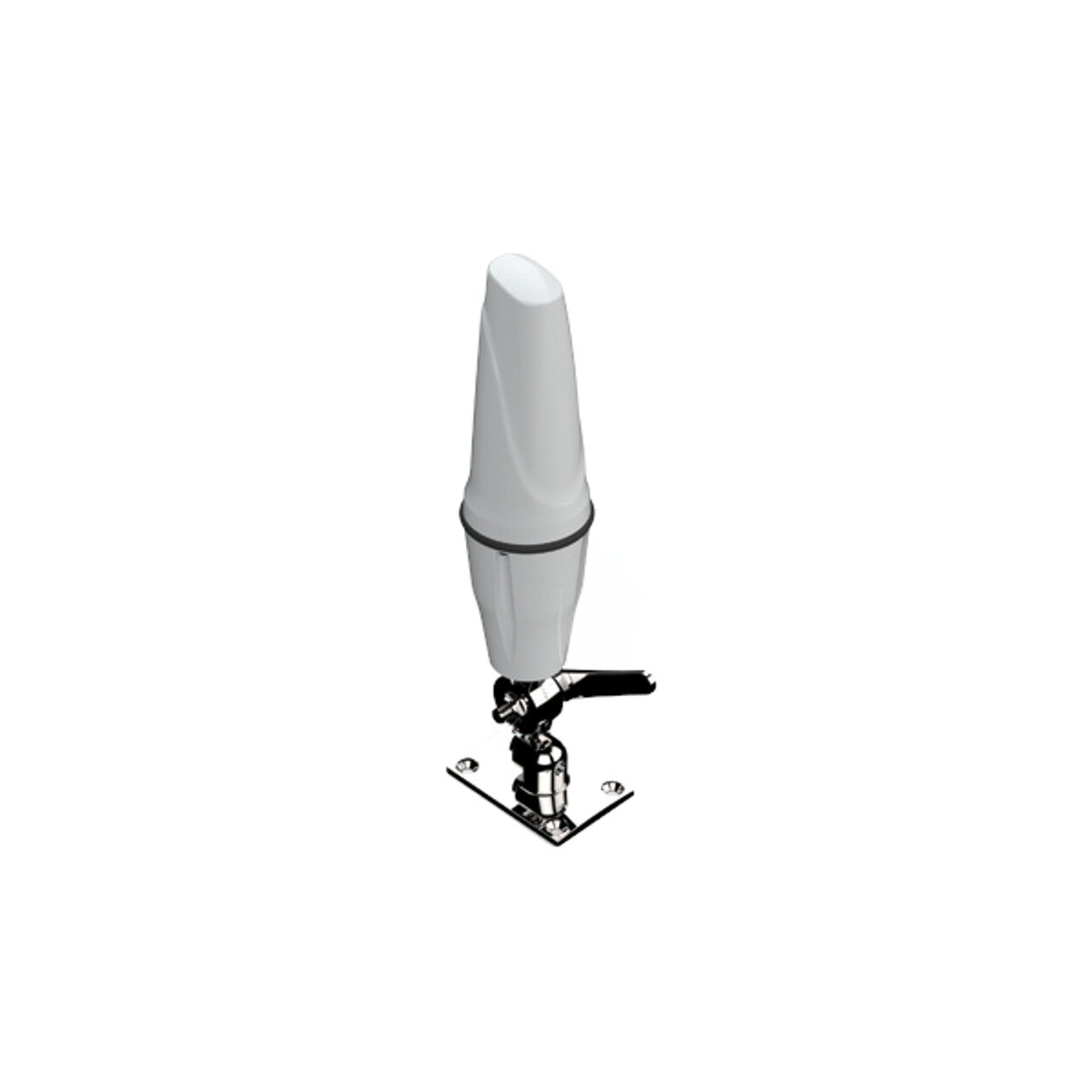

The Poynting OMNI-404 Omni-Directional Marine and Coastal LTE-5G Ready Antenna is a wide band LTE/5G antenna with a smaller profile radome specifically designed for adverse marine & coastal environments. This antenna covers all contemporary LTE operating frequencies, from 617 to 3800 MHz, with excellently balanced gain across all frequencies, enhancing LTE performance features, such as multi carrier aggregation (CA). This antenna is also suitable on all 5G networks up to 3800 MHz.

Features:

  • Medium gain omni-directional antenna
  • The antenna is purpose-built for marine and coastal applications
  • Fits directly to standard 1 inch (14 TPI) marine mount
  • UV and salt-water resistant
  • Robust and weather resistant with IP 69K rating

APPLICATIONS:

  • Marine applications / Yachts / Boasts / Ferries
  • Enhanced LTE Reception
  • IoT and M2M
  • Poor data signal reception
  • Improve data transmission connection reliability and stability



Specification Description
Industry (Application) Marine & Coastal Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Frequency Range 617 – 3800 MHz
Gain 2.5dBi
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Mounting Type Marine Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors N-Type
MIMO SISO
Polarisation Linear Polarised
Environmental IP69K, Marine Grade, Salt Spray Protected
Enclosure Name Barnacle
Enclosure Size Small
LTE Ports 1
SKU POY.OMNI-404-V1-01
Model # A-OMNI-0404-V1-01
Brand Poynting
Shipping Weight 0.5000kg
Shipping Width 0.290m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.002900000m3
