Reliable Connectivity for Diverse Applications

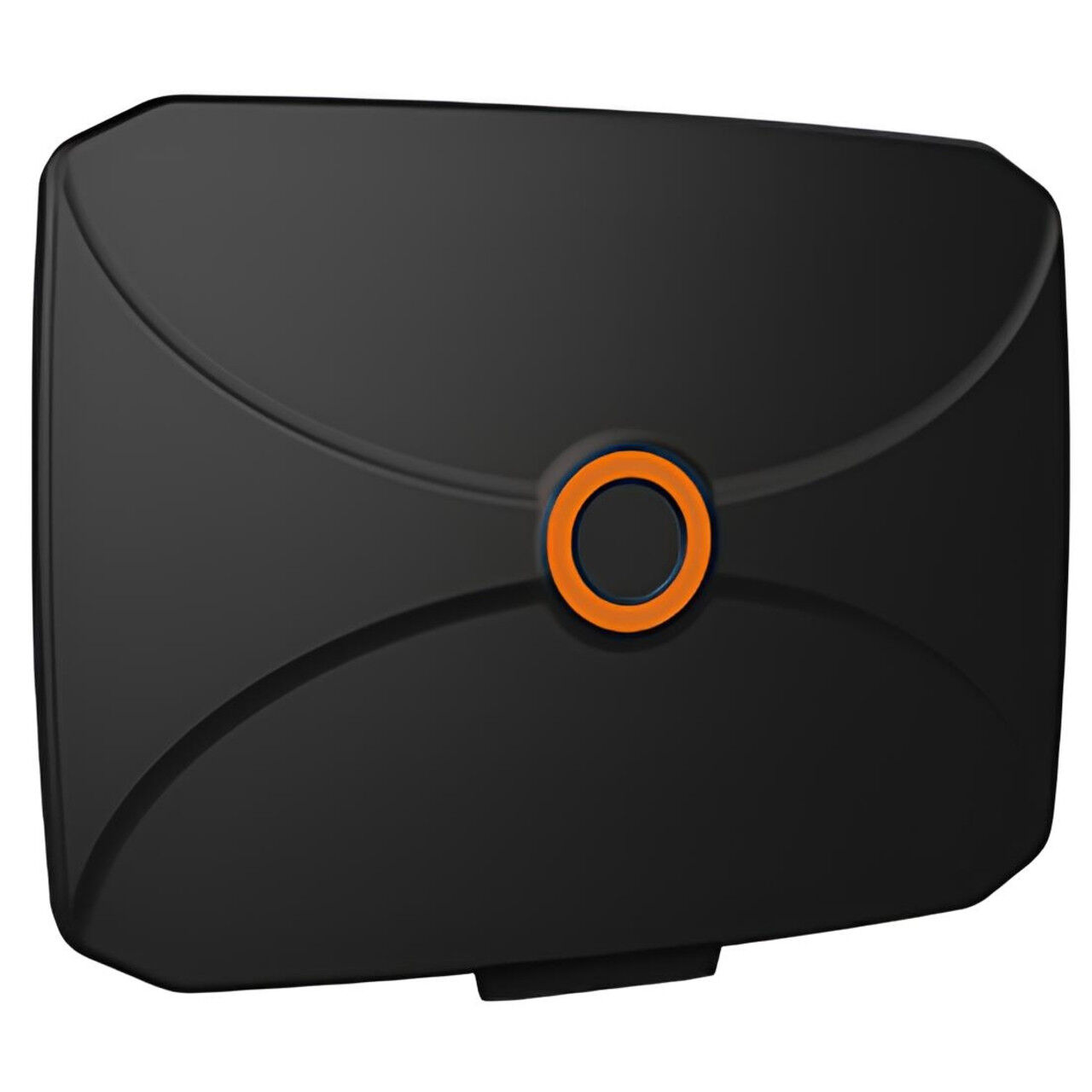

Designed for seamless 4G and 5G performance, this high-performance 5-in-1 omni-directional panel antenna delivers wideband coverage from 410 to 6000 MHz. Engineered for industrial, transportation, and enterprise environments, it ensures stable and efficient connectivity across various frequency bands.

Key Features

  • 5-in-1 Omni-Directional Design: This antenna integrates five separate antennas within a single enclosure, supporting multiple-input multiple-output (MIMO) technology and GPS for enhanced signal stability and improved data rates. Its omni-directional radiation pattern ensures consistent performance across a broad coverage area.
  • Wideband Frequency Coverage: Operating across a frequency range of 410 to 6000 MHz, this antenna supports all major 4G LTE and 5G bands. Its extensive bandwidth ensures reliable connectivity across diverse network environments, making it suitable for global deployments.
  • Rugged and Weatherproof Build: Constructed with durable materials, this antenna is designed to withstand harsh environmental conditions, including extreme temperatures, rain, and dust. Its robust design makes it ideal for industrial and outdoor applications where reliability is crucial.
  • SMA Male Connectors: Equipped with SMA male connectors, this antenna ensures a secure and stable connection to a wide range of networking equipment, including routers, modems, and communication devices. This standardised connector type enhances compatibility and ease of installation.
  • Versatile Mounting Options: Designed for flexible installation, this antenna supports multiple mounting configurations, including wall and pole mounting. Its adaptable design allows for easy integration into different setups, ensuring optimal positioning for maximum signal performance.

Optimised for demanding applications, this omni-directional panel antenna delivers reliable, high-performance 4G and 5G connectivity across a wide range of frequencies.

Product Specifications
Frequency Bands 410 – 470 MHz, 617 – 960 MHz, 1427 – 1517 MHz, 1710 – 2700 MHz, 3300 – 4200 MHz, 4400 – 6000 MHz
Gain (Max) 0.5 dBi @ 410 – 470 MHz, 4 dBi @ 617 – 960 MHz, 4 dBi @ 1427 – 1517 MHz, 5 dBi @ 1710 – 2700 MHz, 7.8 dBi @ 3400 – 4200 MHz, 7 dBi @ 5000 – 6000 MHz
VSWR ≤2:1 across 85% of the bands
Polarisation Cross Polarised (Linear Vertical & Horizontal)
Number of Ports 4 x Cellular, 1 x GNSS
MIMO Support 4x4 MIMO (Cellular)
GNSS Frequency Bands L1: 1575.42 MHz ± 25 MHz, L5: 1176.45 MHz ± 25 MHz
GNSS Gain 20±2 dB (LNA Gain)
Connector Type SMA Male
Coax Cable Type RTK-031
Coax Cable Length 2m
Mounting Options Adhesive Mount and Suction Cups
IP Rating IP65
Wind Survival ≤160 km/h
Temperature Range -40°C to +80°C (Operating), -40°C to +70°C (Storage)
Humidity Up to 98% (Operating), 5% to 95% non-condensing (Storage)
Enclosure Material UV Stable ASA
Enclosure Flammability UL 94-HB
Impact Resistance IK08
Compliance RoHS 2011/65/EU, ISO 9001:2015, CE
Product Code A-PANL-0401-V1-01
EAN Number 6009710928837
SKU POY.PANL-401
Model # A-PANL-0401-V1-01
Brand Poynting
Shipping Weight 2.0000kg
Shipping Width 0.380m
Shipping Height 0.070m
Shipping Length 0.280m
Shipping Cubic 0.007448000m3
Unit Of Measure Each
