Compact Dual-Band Wi-Fi Antenna for Versatile Connectivity

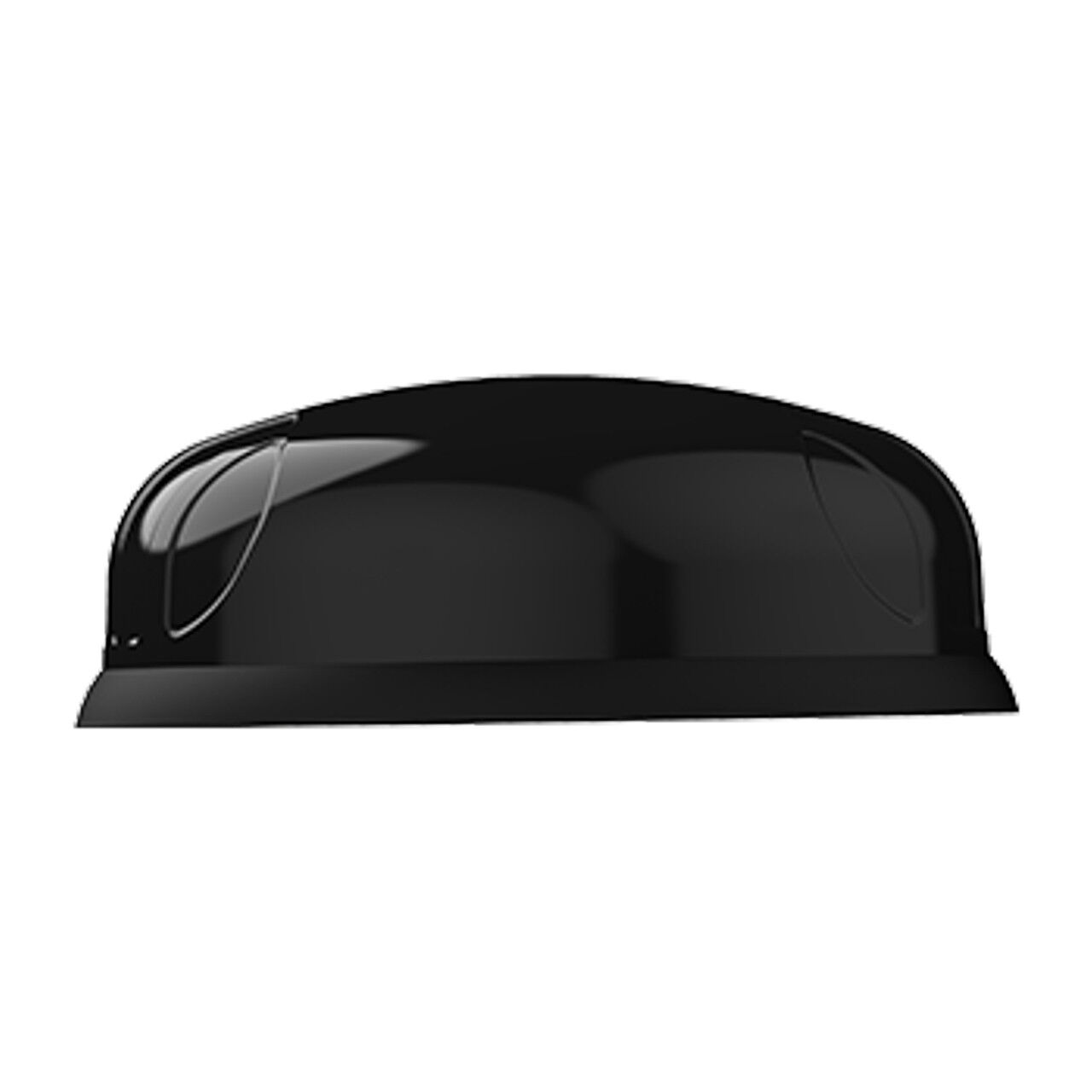

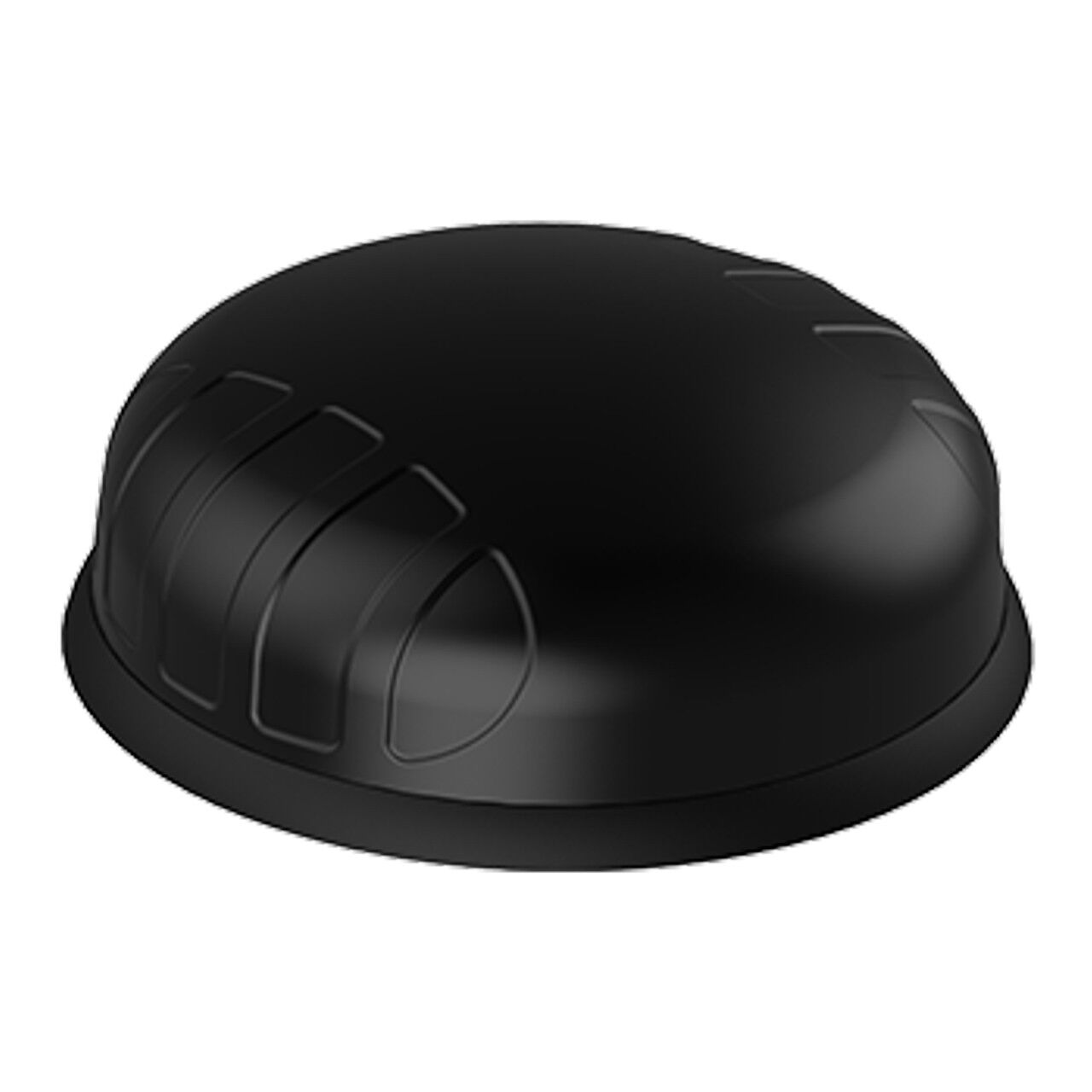

The PUCK-12 is a compact, high-performance omni-directional antenna designed for demanding industrial, marine, vehicle, and IoT/M2M environments. It delivers exceptional performance across both 2.4 GHz and 5 GHz frequency bands, supporting Wi-Fi 6E, Wi-Fi 7, and Bluetooth. Despite its small 100 mm profile, it provides strong signal stability and reliable throughput, even at higher frequencies. Its rugged, IP69K-rated housing ensures long-term protection from water, dust, and impact, making it ideal for outdoor and mobile applications.

Key Features

• Dual-Band Wi-Fi Performance: Operates from 2400 – 2500 MHz and 5000 – 7200 MHz, delivering up to 7.5 dBi gain for reliable high-speed data transmission.
• Advanced 2×2 MIMO Technology: Enhances signal strength and stability with multi-stream transmission for improved throughput and range.
• Rugged Weatherproof Design: IP69K-rated enclosure ensures resistance against water, dust, UV, vibration, and impact for reliable outdoor performance.
• Flexible Mounting Options: Supports spigot, magnetic, adhesive, wall, and pole mounts, allowing installation across vehicles, vessels, and infrastructure.
• Compact Low-Profile Build: Measures just Ø99.3 mm × 36 mm, ideal for applications with space constraints while maintaining full performance.
• Fire- and Chemical-Resistant Materials: Built with UV-stable PC + ABS housing compliant with RoHS 2011/65/EU and ISO 9001:2015 standards.
• Wide Environmental Tolerance: Performs from –40 °C to +80 °C and withstands winds up to 220 km/h, ensuring durability in extreme conditions.

Engineered for reliability and versatility, this compact antenna ensures seamless wireless connectivity across harsh and mobile environments.
