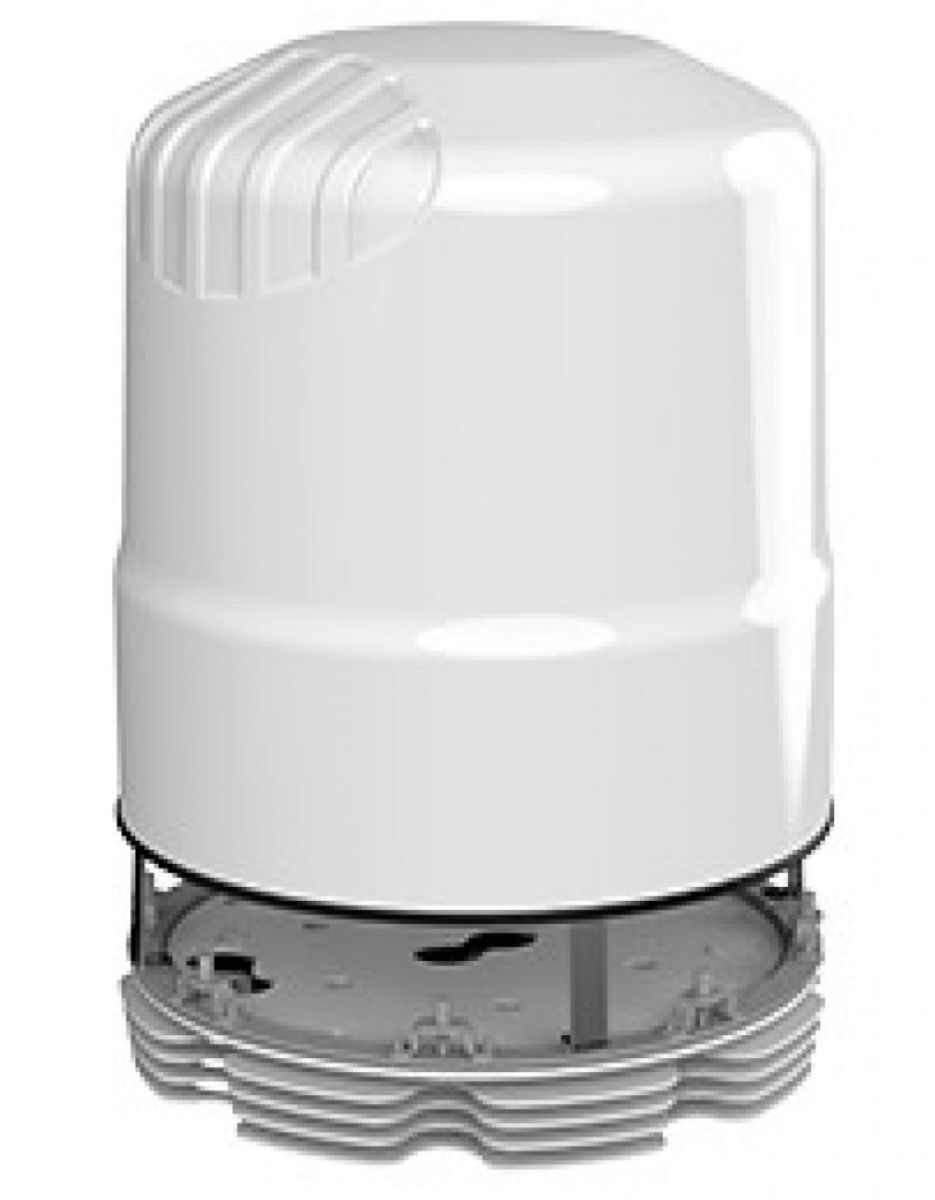

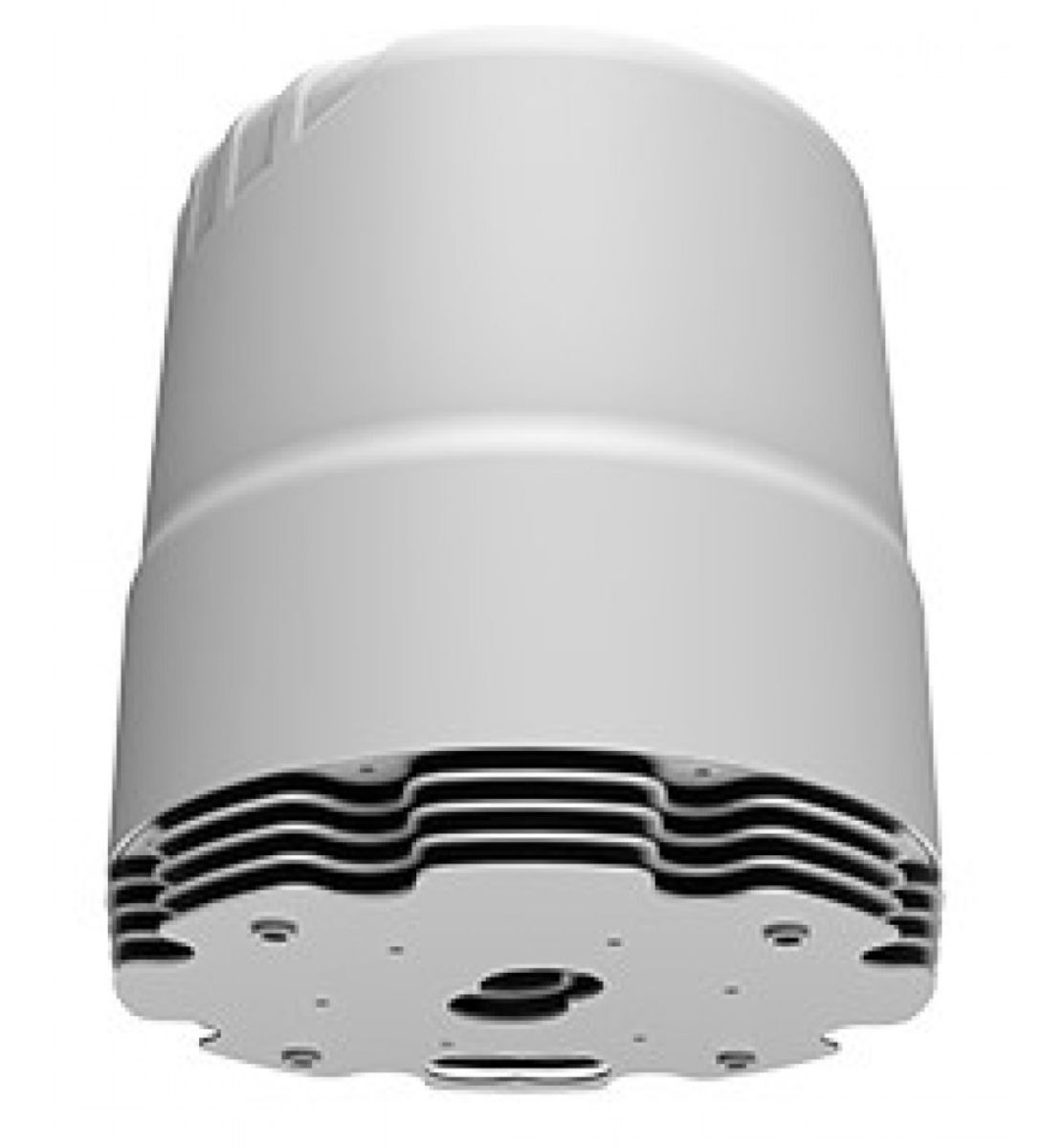

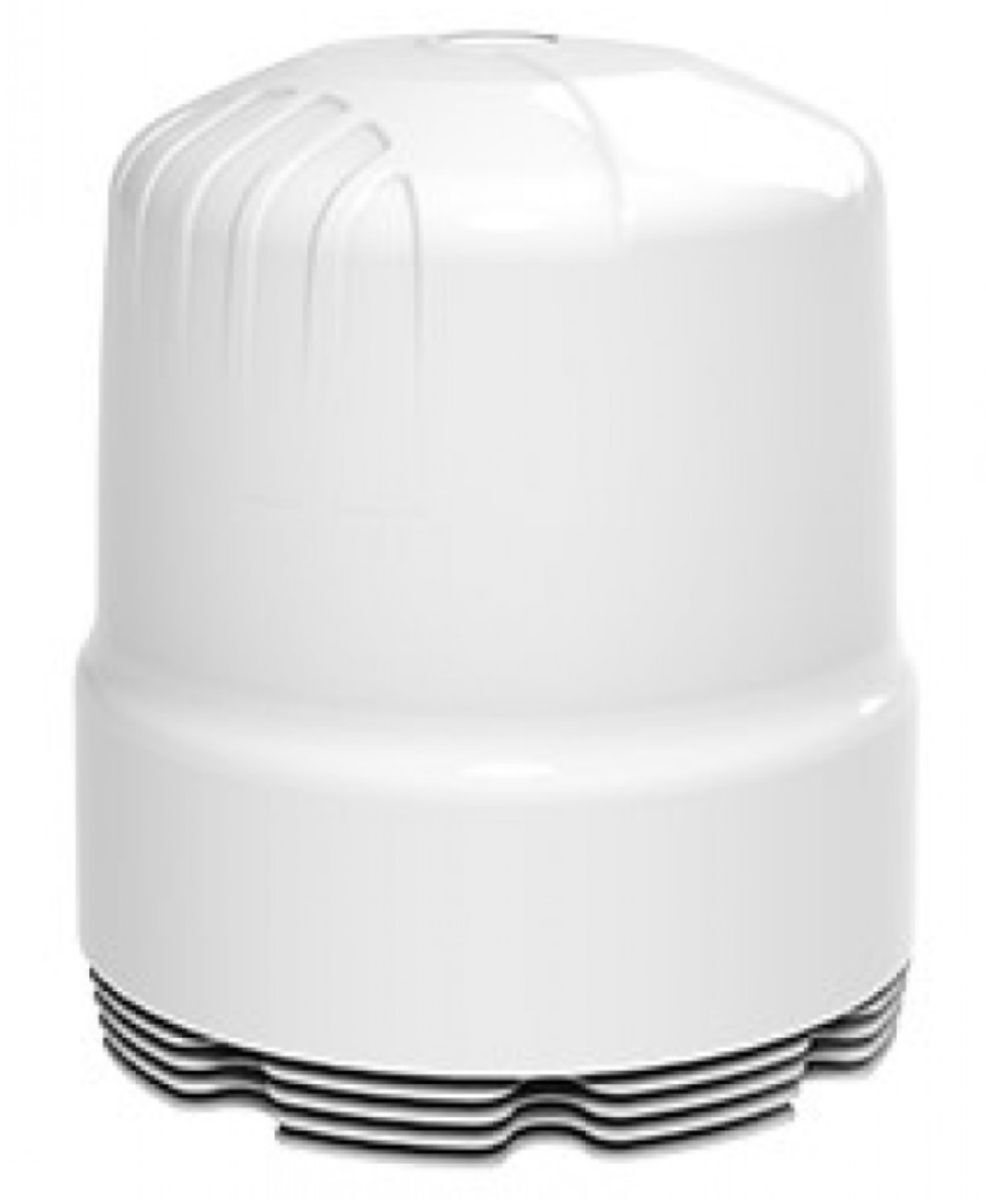

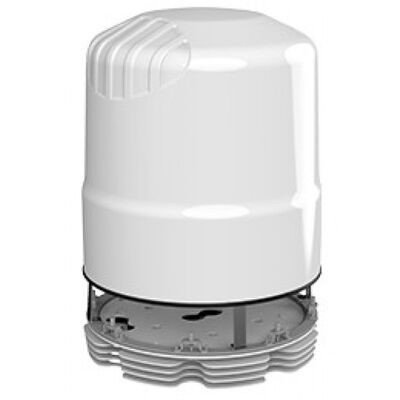

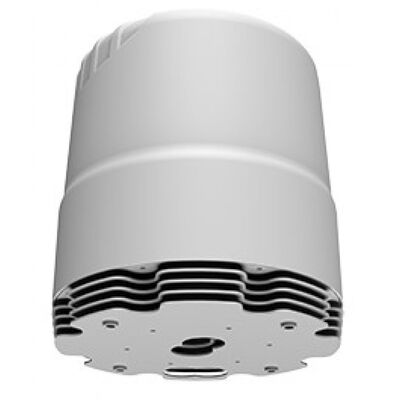

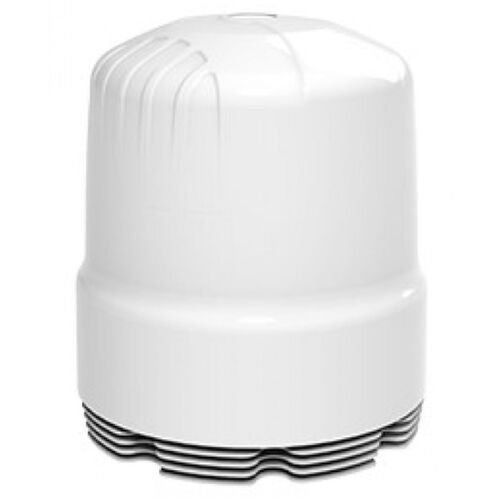

The Ripple antenna enclosure is designed to fit a variety of router and networking modules, transforming the antenna enclosure into a CPE (Customer Premises Equipment) device – just add your own LTE/5G routers. The Ripple enclosure can accommodate routers up to the size of 300 x 200 x 50 mm³, which can be mounted directly onto the base.

This unit consists of 8 cross-polarised, omni-directional antennas arranged in a cross-polarised orientation with 4 x vertically and 4 x horizontally polarised, for improved performance. The antenna offers wideband coverage from 617 to 7200 MHz, with a peak gain of 9.5dBi, making it ideal for multi-router LTE & 5G bonded and aggregated deployments. The enclosure was designed to withstand adverse weather conditions, making the antenna weatherproof with an IP65 rating. The antenna enclosure was designed specifically for marine & coastal applications.

FEATURES:

  • 2x (4x4 MIMO 5G LTE)
  • Ultra-wideband coverage from 617-7200 MHz
  • 4x4 MIMO Dual Band WiFi
  • WiFi coverage 2400 - 2500 MHz & 5000 - 7200 MHz
  • 2x GPS/Glonass
  • High gain directional antennas, with a peak gain of 9.5 dBi
  • Cross-polarised antennas for improved performance
  • Purpose built antenna for marine and coastal applications
  • Connectors: 14 x SMA (F)
  • IP65 Weatherproof and water-resistant enclosure
  • UV and saltwater resistant
  • Innovative heat sink design for improved temperature regulation
SKU POY.RIPL-8
Model # RIPL-8
Brand Poynting
Shipping Weight 10.0000kg
Shipping Width 0.410m
Shipping Height 0.490m
Shipping Length 0.410m
Shipping Cubic 0.082369000m3
Unit Of Measure ea
