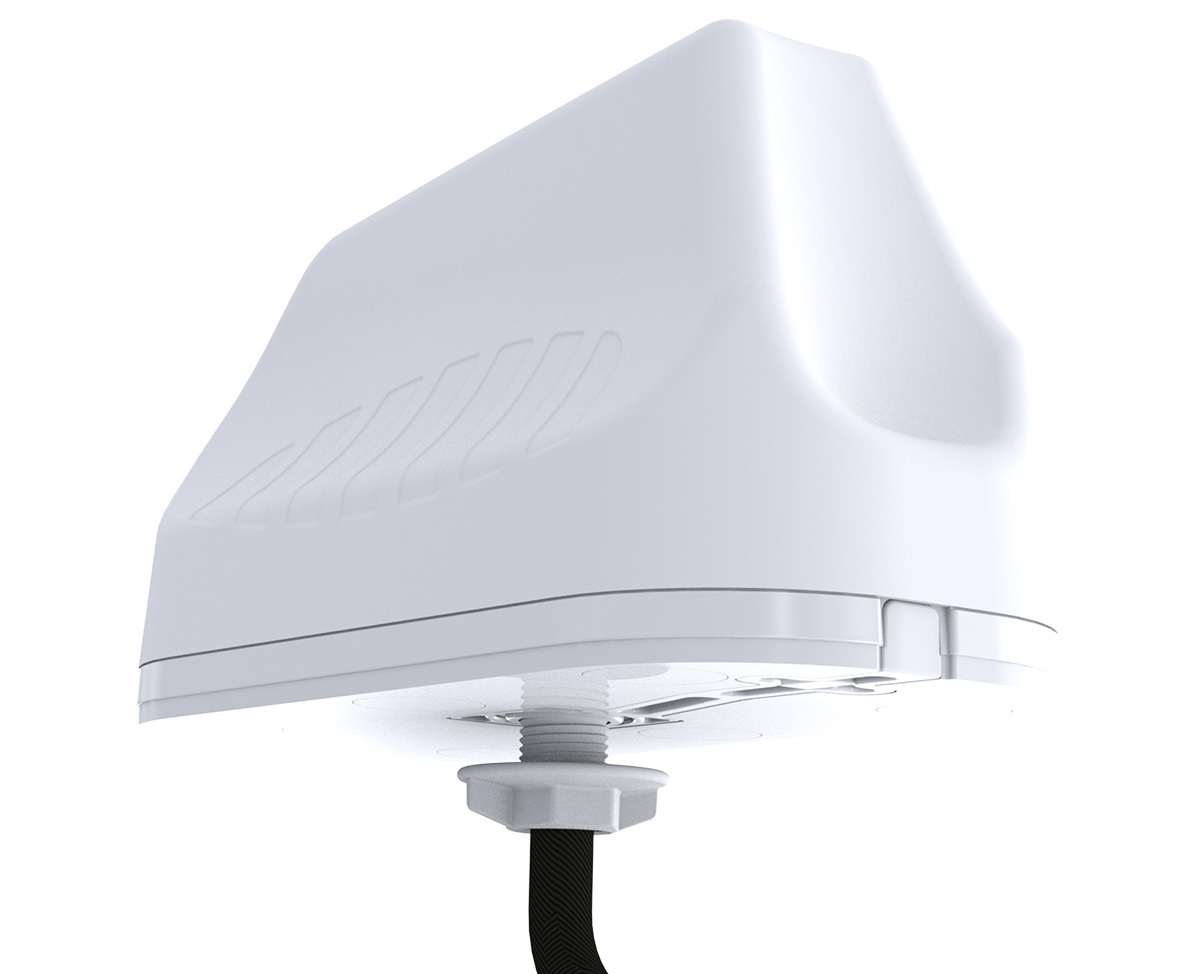

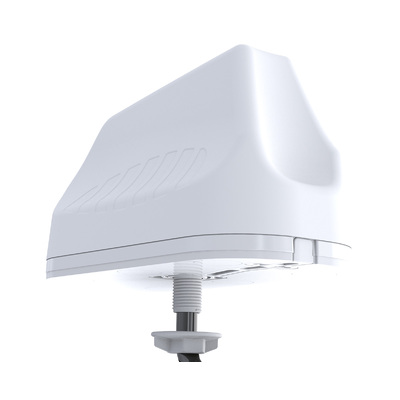

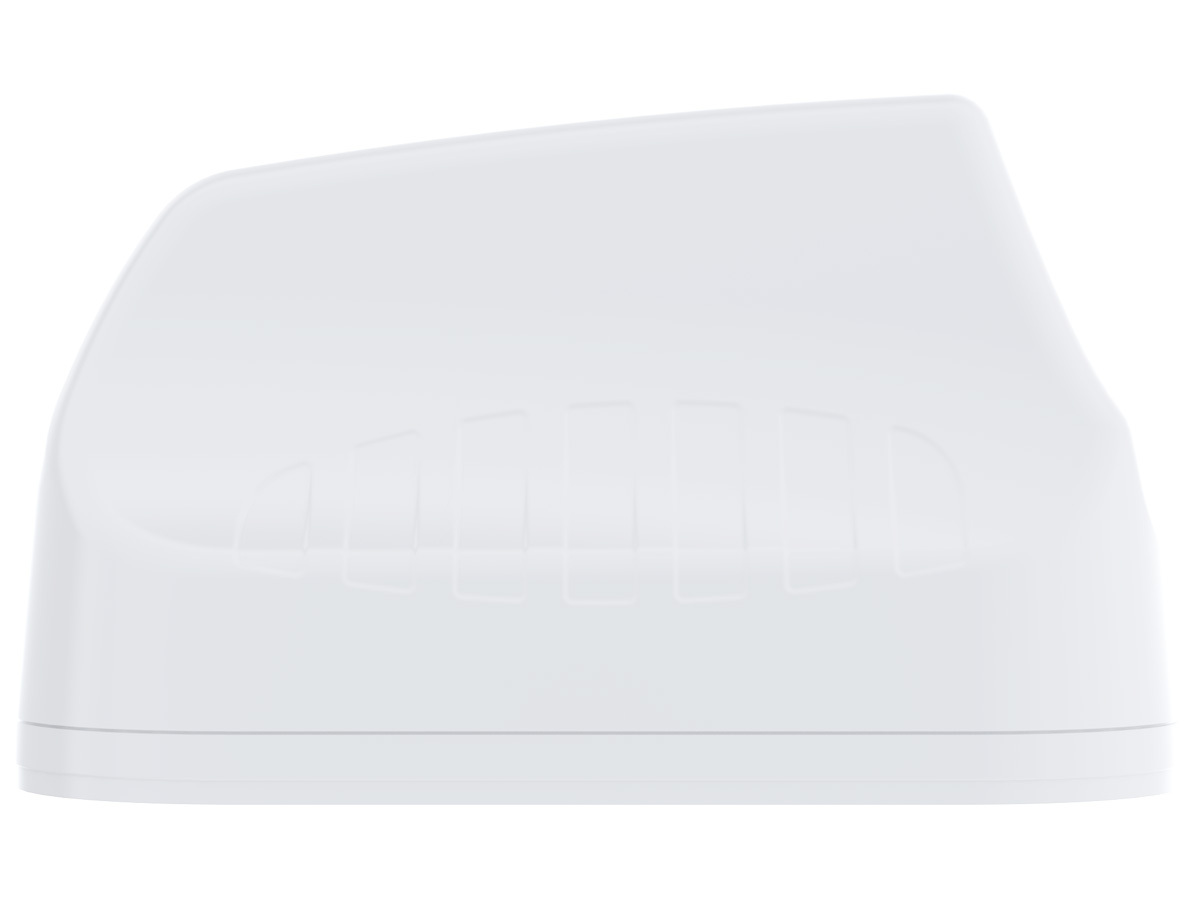

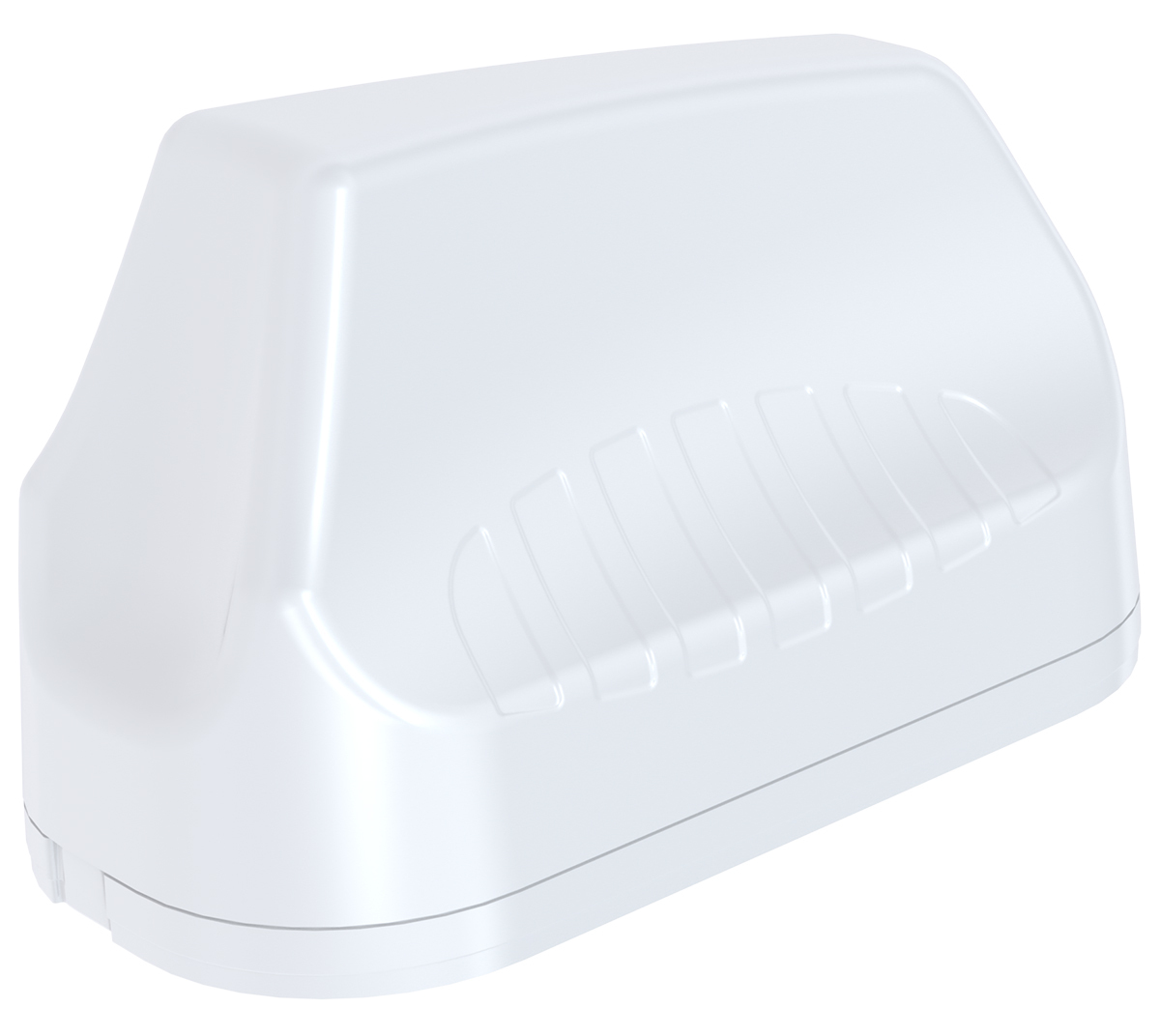

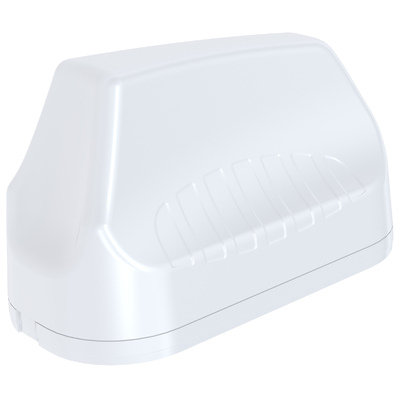

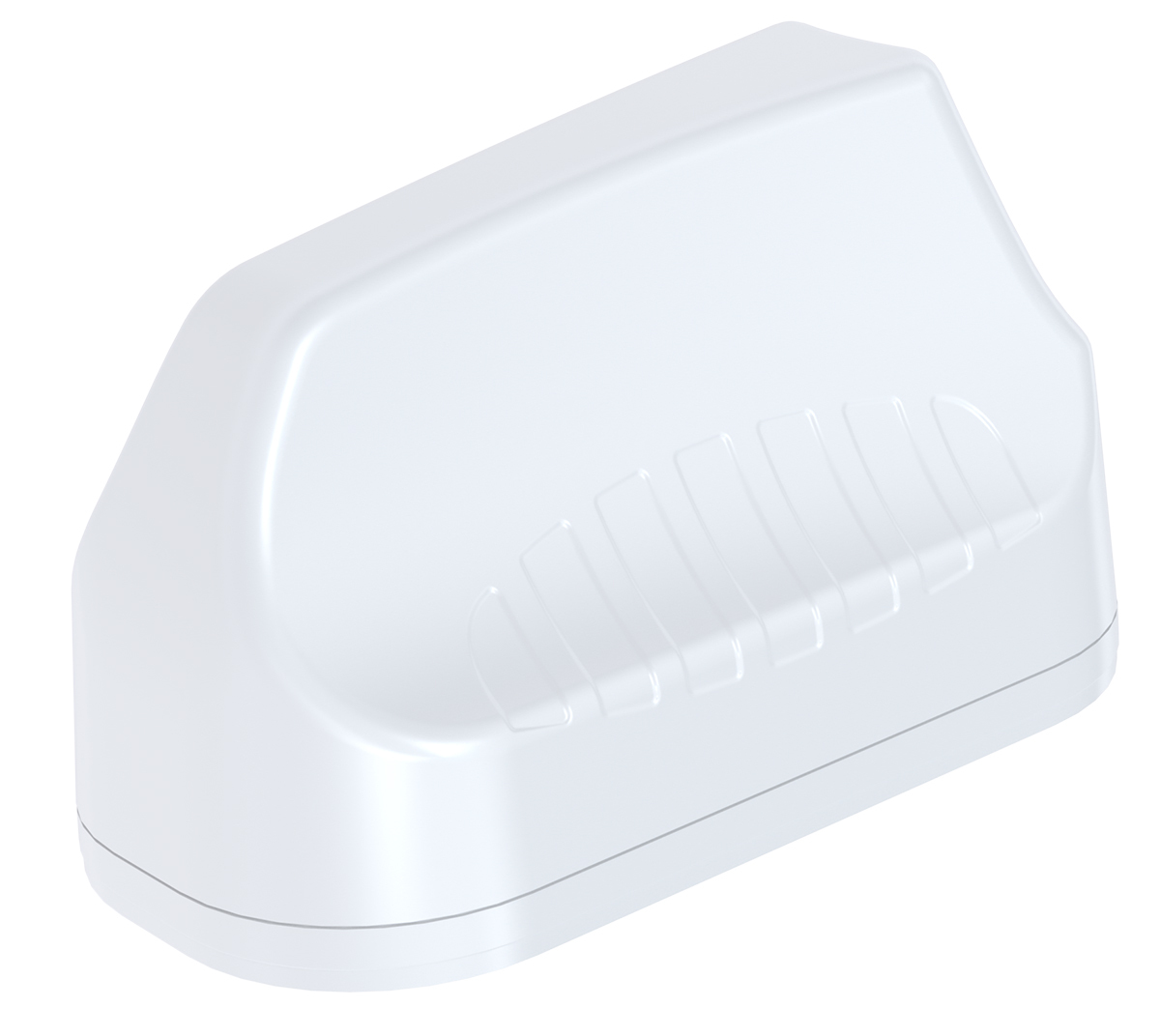

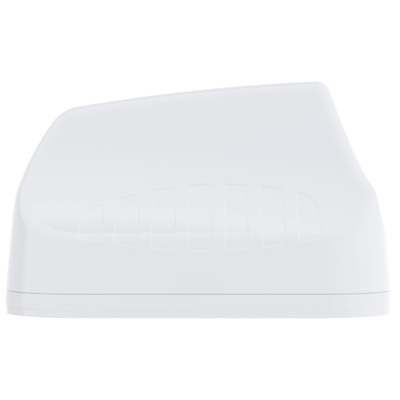

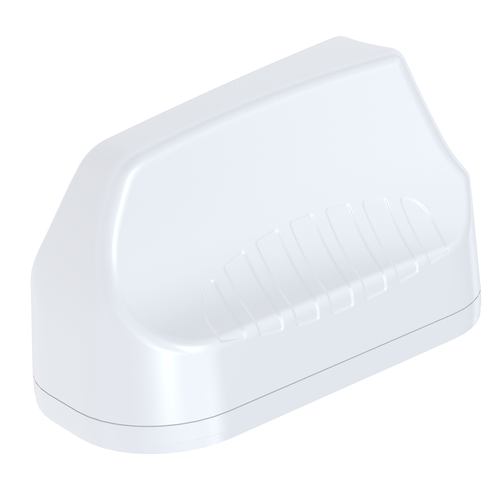

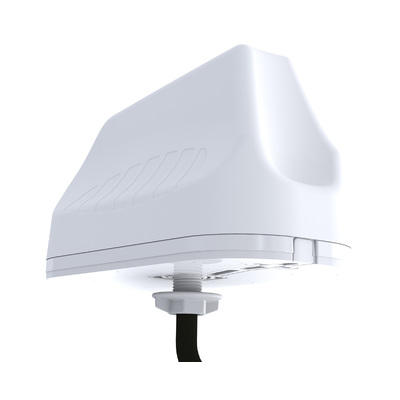

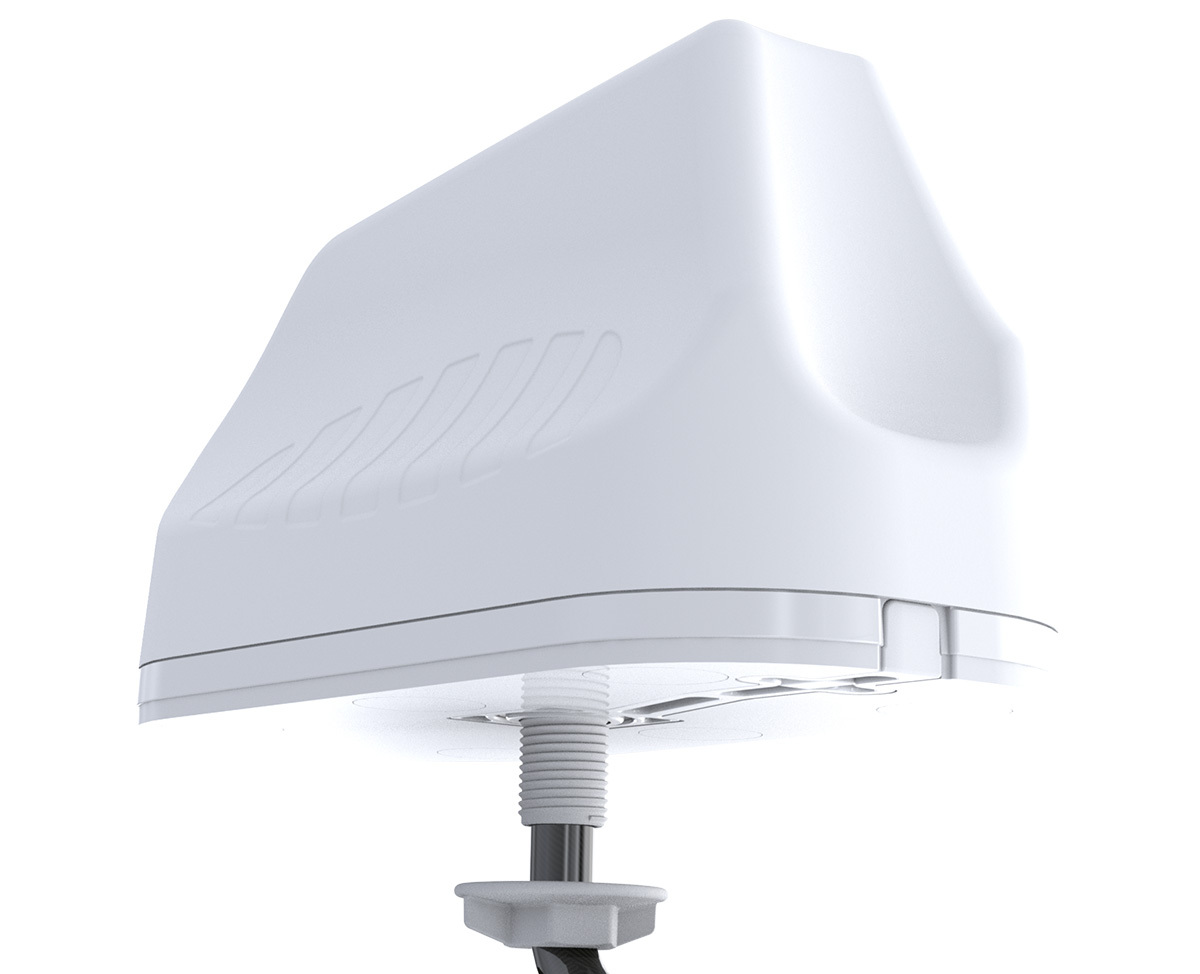

The MIMO-3-12 is a high performance 2×2 MIMO Ultraband antenna within a single housing. The two cellular MIMO antennas cover the contemporary 690 MHz to 2700 MHz bands (for 2G/3G/4G), as well as the new emerging LTE and 5G spectrum for 450 MHz and 3.5 GHz CBRS bands, which is becoming popular across the various international cellular network operators for 5G.

The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.

The antenna connects by its 2 metre HDF-195 cables which are supplied pre-terminated with SMA Male connectors.


  • 2-in-1 High-performance multi-frequency 3G/4G/5G antenna
  • 2×2 MIMO
  • Ultra-wideband includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP68)
  • Ideal for transportation and marine use

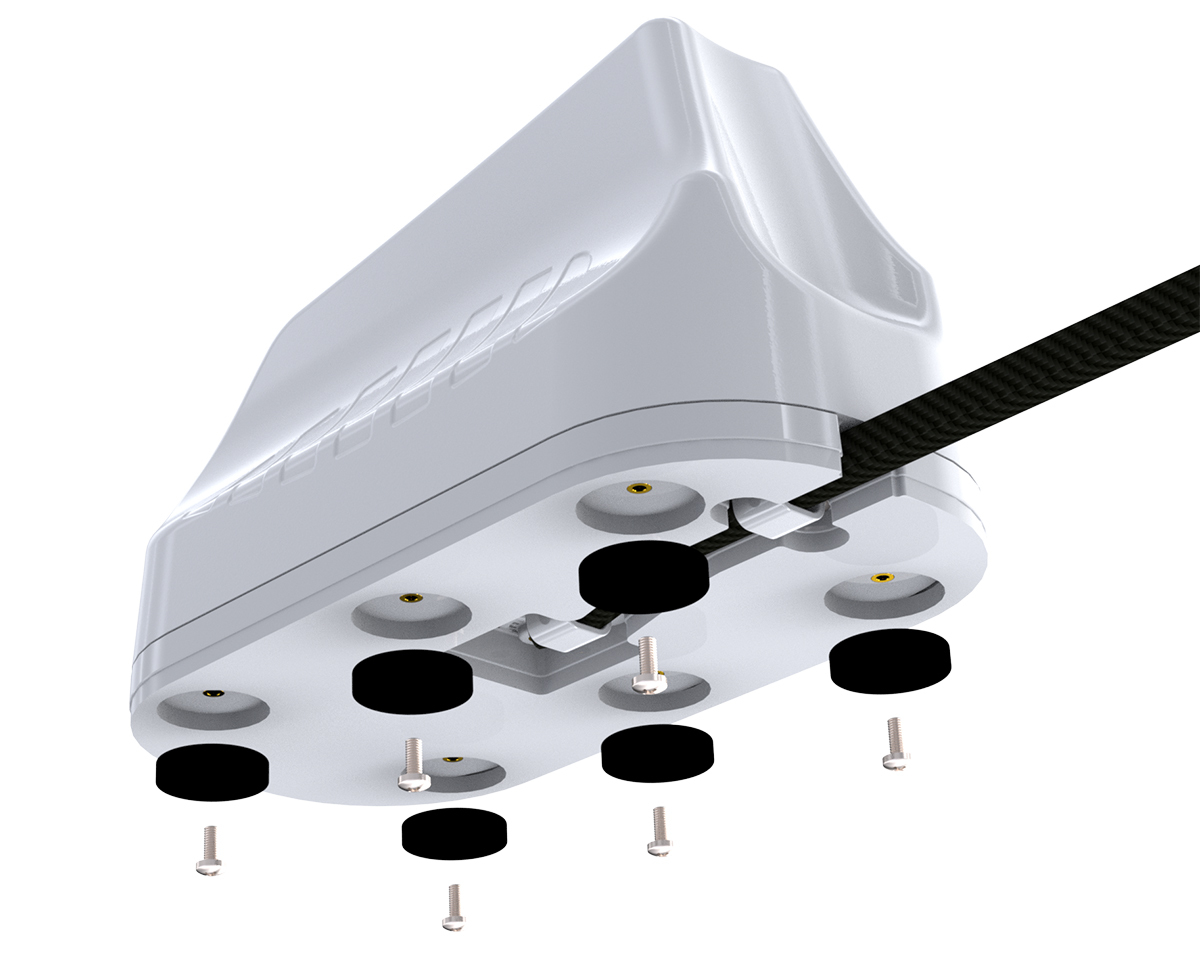

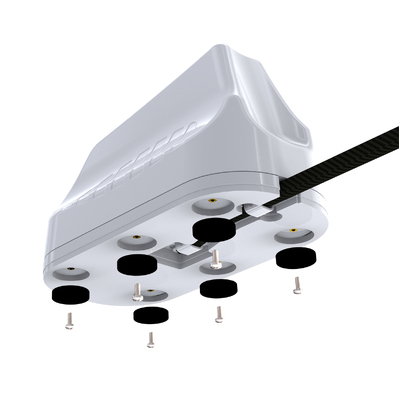

  • Multi mounting options for easy installation


Electrical Specifications
Frequency Bands 410-470 690-960 1710-2700 3400-3800
Gain 1 dBi 3.5 dBi 5.8 dBi 4 dBi
VSWR ≤ 2.5:1 across 90% of the bands
Feed power handling 10 W
Input Impedance 50 Ohm
Polarisation Linear Vertical
DC Short Yes
Mechanical Specifications
Product Dimensions 253 x 128 x 144 mm
Packaged Dimensions 265 x 211 x 204 mm
Weight 1.10 kg
Packaged Weight 1.21 kg
Radome material UV stable SAN marine ASA
Radome colour Brilliant White
Model # A-MIMO-0003-V2-12
UPC/EAN 6009710923689
Brand Poynting
Shipping Weight 1.2500kg
Shipping Width 0.265m
Shipping Height 0.204m
Shipping Length 0.211m
Shipping Cubic 0.011406660m3
Unit Of Measure ea
