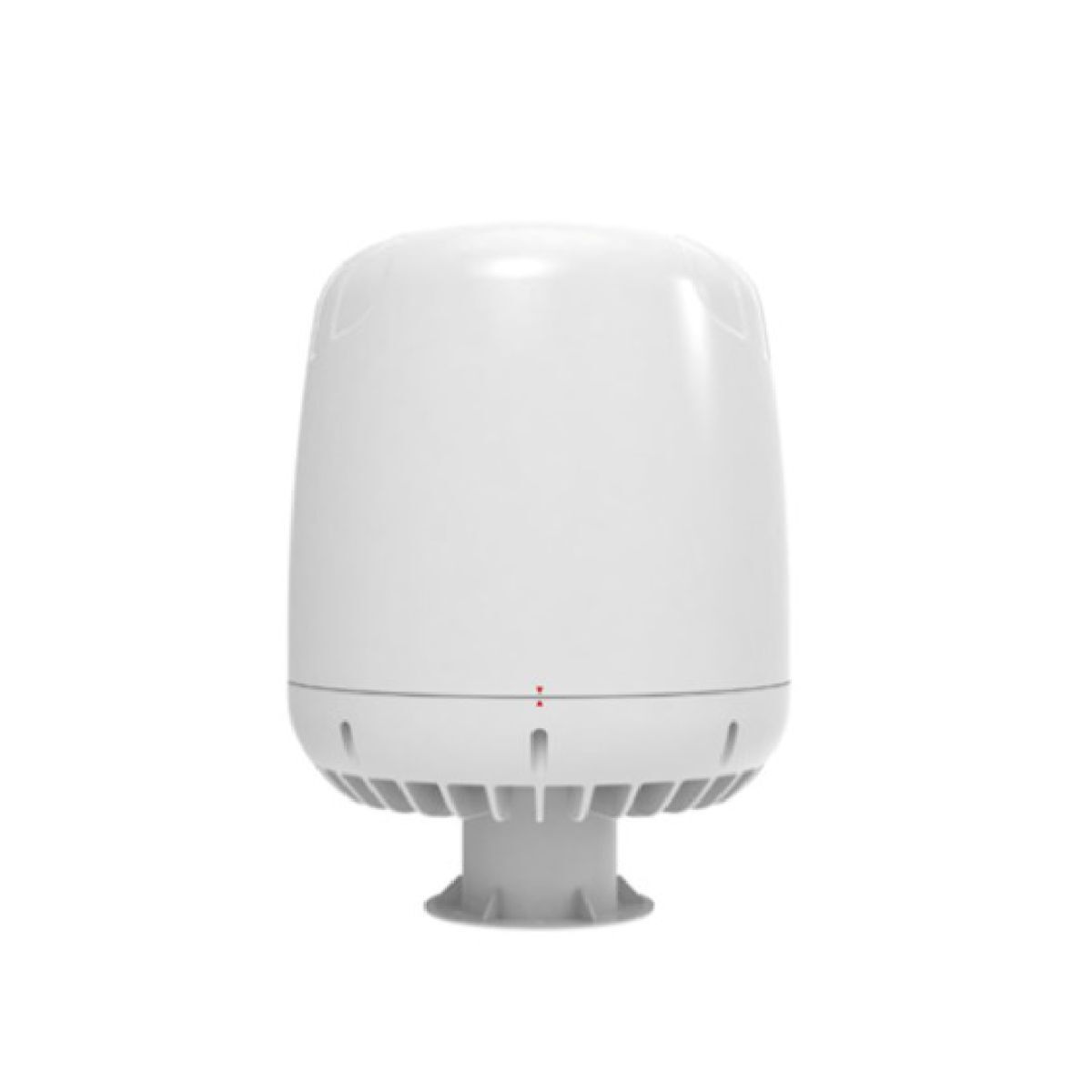

Poynting Antennas introduces its all-new antenna enclosure range, the WaveHunter™ series. The WaveHunter™ enclosure is designed to fit a variety of router and networking modules, transforming the antenna enclosure into a CPE (Customer Premises Equipment) – just add your own LTE/5G routers and networking equipment. The WaveHunter™ enclosure can accommodate two routers up to the size of 250 x 150 x 50 mm³ mounted directly to the base. Additional equipment can be added within a stacked customised user supplied frame. The WaveHunter™ antenna enclosure uses our world renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. The antenna array consists of 12 cross-polarised, high gain, 2x2 MIMO directional antennas arranged in two stacked arrays offset at 60° increments. This provides 360° wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, with a peak gain of 11 dBi, making it ideal for Multi-router LTE & 5G bonded and aggregated deployments. The enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP65 rating.

•Ultra-wideband coverage from 617- 960 & 1710 - 4200 MHz

• High gain directional antennas, with a peak gain of 11 dBi

• Dual-band Wi-Fi

• Can accommodate up to 6 routers for optimal throughput

• Purpose built antenna for marine and coastal applications

• Weatherproof and water-resistant enclosure (IP65)

• UV and saltwater resistant

• Aluminium heatsink base with excellent thermal properties for devices integrated within the WaveHunter™

Frequency bands: 617 – 960 MHz 1710 – 2700 MHz 3400 – 4200 MHz

Gain (max): 11 dBi

VSWR: <2.5:1 Over 90% of the band

Feed power handling: 10 W

Input impedance: 50 Ohm (nominal)

Polarisation: Vertical, Horizontal & ±45°

Coax cable loss: N/A

DC short: Yes

SKU POY.WAveHunter-101
Model # A-WHUNTER-001-V3-101
