Ultra-wideband external antenna enhancing strong, stable multi-generation wireless connectivity

This high-performance wideband antenna provides reliable 4G and 5G connectivity across an extensive frequency range from 617 to 4200 MHz. Designed for consistent signal quality and strong throughput, it supports modern 5G networks while remaining fully compatible with legacy 2G, 3G and 4G technologies. Its precision-engineered radiator design and advanced metamaterial enhancements ensure excellent gain, stable performance, and consistent coverage in demanding environments.

Key Features

• Wideband frequency support: Operates across 617–960 MHz, 1710–2700 MHz and 3400–4200 MHz to enhance signal reliability.
• Cross-polarised architecture: ±45° dual-element layout improves signal diversity and link stability.
• 2×2 MIMO technology: Supports multi-stream data paths for improved speed and responsiveness.
• Advanced metamaterial design: Integrates AMC structures and a next-generation radiator for increased bandwidth and gain.
• High-gain performance: Provides up to 11 dBi in upper 5G bands, with strong gain across all lower and mid-band frequencies.
• Durable outdoor construction: IP65-rated enclosure with UV-stable ASA radome for long-term environmental resilience.

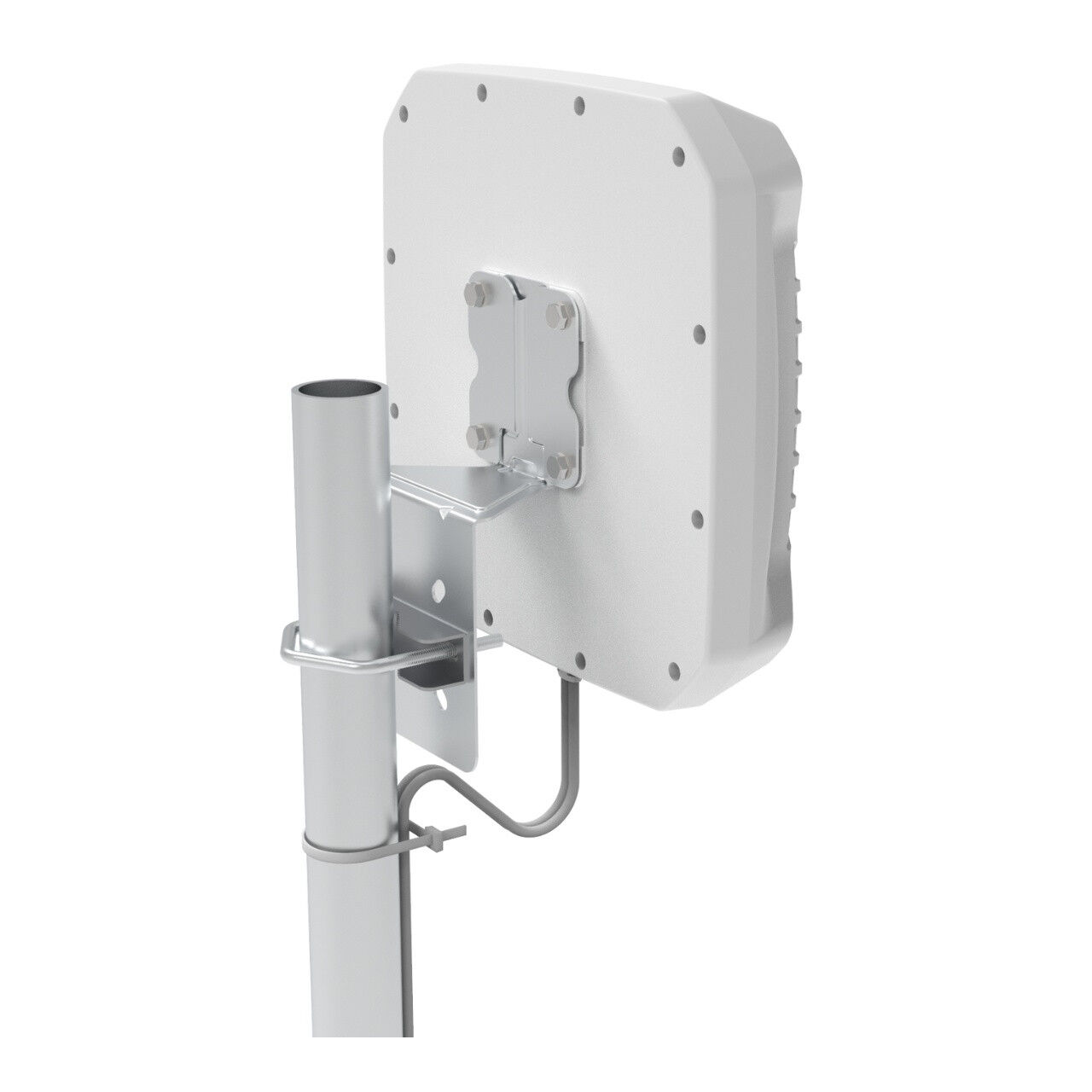

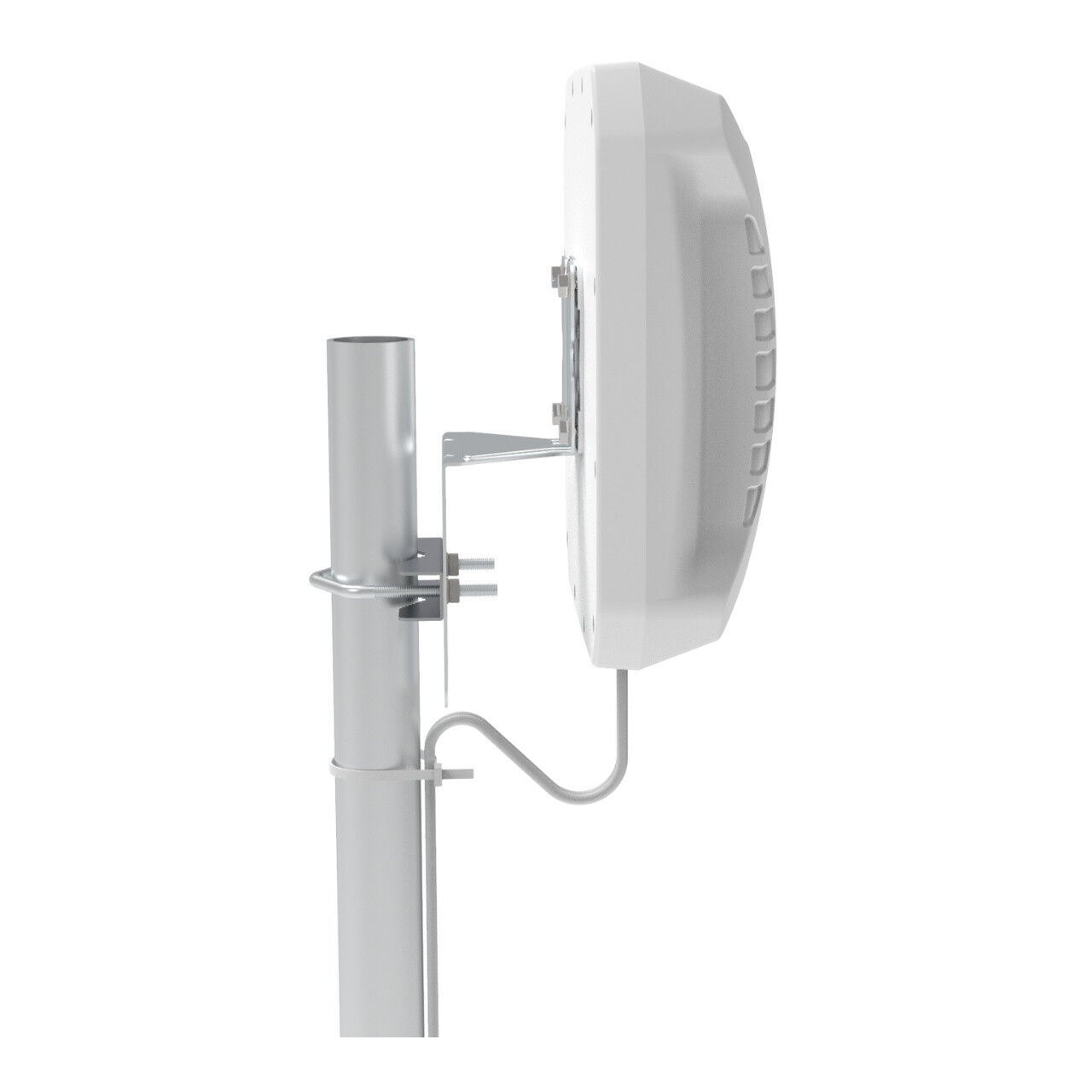

• Flexible mounting options: Supplied bracket supports both wall and pole installations for versatile deployment.
• Wide operating temperature range: Designed for reliable performance from –40 °C to +80 °C.
• Standards compliant: Manufactured in accordance with RoHS and ISO 9001 quality requirements.

This antenna delivers improved coverage, higher throughput and enhanced stability, making it ideal for fixed wireless access, LTE/5G installations, agricultural networks, industrial communication systems and carrier-aggregation environments.
