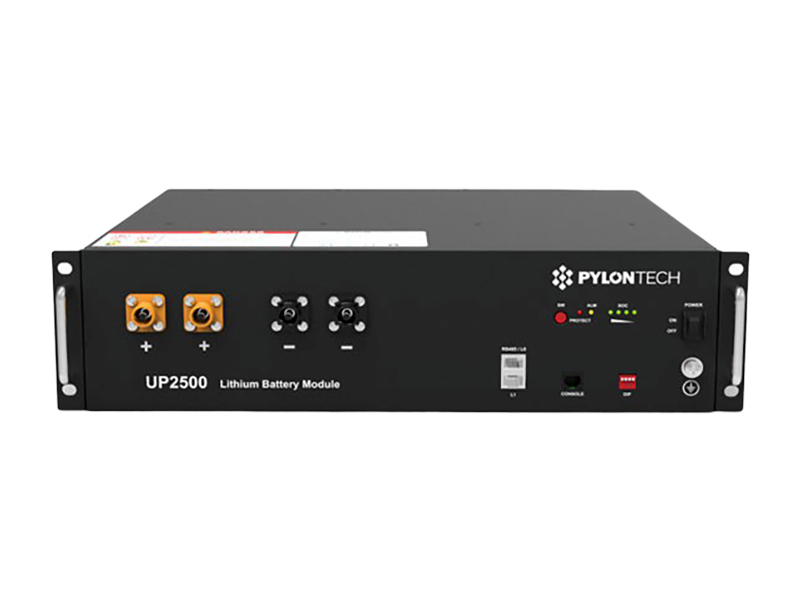

The Pylontech UP2500 is geared towards general backup systems that can be used for office lighting, computer systems and/or data centres. These lower voltage units can be deployed in various environments such as banks, hospitals, schools, railway stations, airports and throughout the telecommunications industry.

Note that a Pylontech cable kit will be required to connect a single battery or battery bank to a inverter charger.


Features and benefits

  • The expected design life is up to 10+ years
  • Warrantee of 10 years (>6000 cycles with 80% end-of-life capacity)
  • Greater depth of discharge (DOD 90%)
  • Usable capacity of 2.55kWh @ 25.6VDC
  • Working temperatures of between 0°C to 50°C
  • The internal molecular structure of the LFP batteries is more stable and therefore safer, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO
  • Cell Balance Function
  • Soft Start Function
  • Protection - Voltage / Over Charge / Over Discharge / Over Current / Short Circuit / Temperature


Brand Pylontech
Shipping Weight 32.0000kg
Shipping Width 0.450m
Shipping Height 0.120m
Shipping Length 0.420m
Shipping Cubic 0.022680000m3
Unit Of Measure ea
