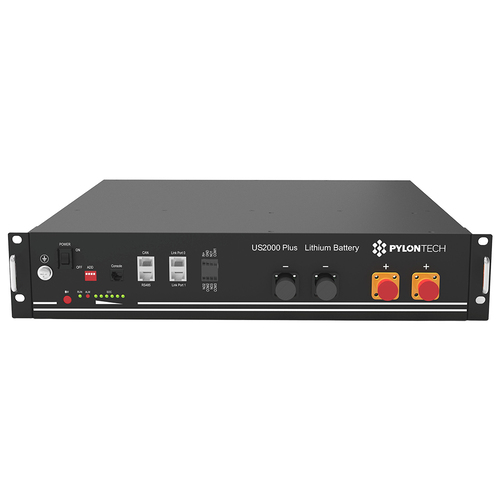

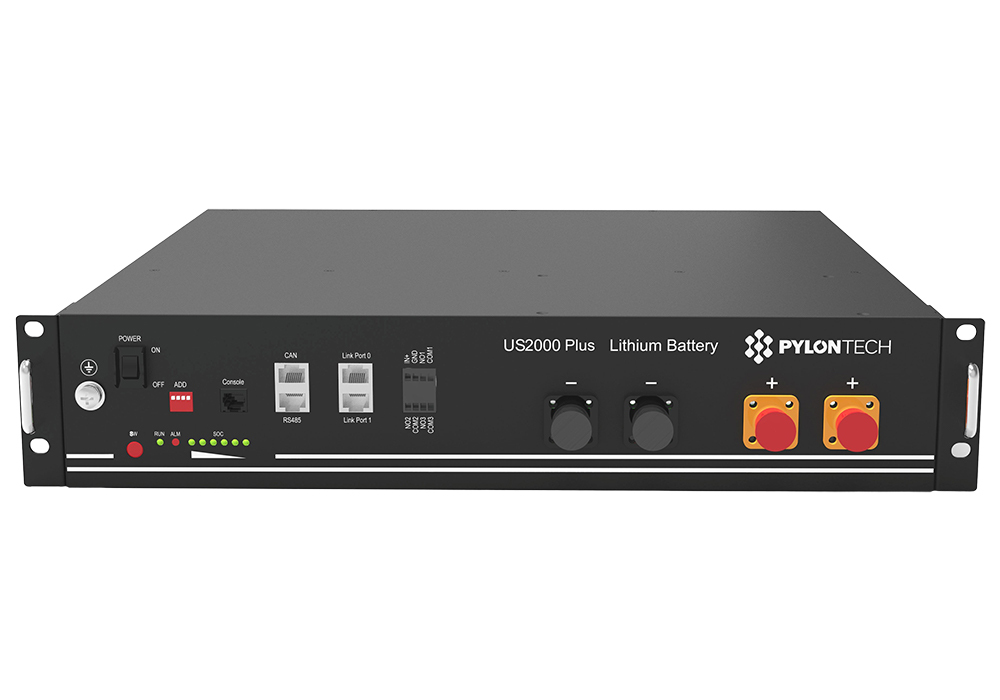

Pylontech US2000 is the latest generation lithium battery module. The simplicity in modulating the battery makes it possible to create storage systems of small or large capacities. The initial installation can be expanded, depending on the change in energy requirements, by adding additional modules to the system.



Features and benefits



  • The expected design life is up to 15+ years
  • Warrantee of 10 years (>6000 cycles with 80% end-of-life capacity)
  • Greater depth of discharge (DOD 90%)
  • Usable capacity of 2.2kWh @ 48VDC
  • Working temperatures of between 0°C to 50°C
  • The internal molecular structure of the LFP batteries is more stable and therefore safer, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO
  • Advanced BMS that allows you to report alarms in real-time
  • Ships with interconnect battery and data cables for parallel module connections



Note that a Pylontech cable kit will be required to connect a single battery or battery bank to a inverter charger.

Nominal Voltage(V) 48
Nominal Capacity (Wh) 2400
Usable Capacity (Wh) 2200
Dimension(mm) 442x410x89
Weight(Kg) 24
Discharge Voltage(V) 45 ~ 53.5
Charge Voltage(V) 52.5 ~ 53.5
Charge / Discharge Current
(A)
25(Recommend)
50 (Max)
100 (Peak@15s)
Communication Port RS485ˈCAN
Single string quantity(pcs) 8
Working Temperature/ć 0~50
Shelf Temperature/ć -20~60
Humidity 5%~85%
Altitude (m) <2000
Design life 15 + Years (25ć/77̧)
Cycle Life >6000, 25℃
Authentication Level UL/IEC62619/CE /UN38.3
SKU PYL.US2000
Model # US2000
Brand Pylontech
Shipping Weight 28.0000kg
Shipping Width 0.580m
Shipping Height 0.220m
Shipping Length 0.530m
Shipping Cubic 0.067628000m3
Unit Of Measure ea
