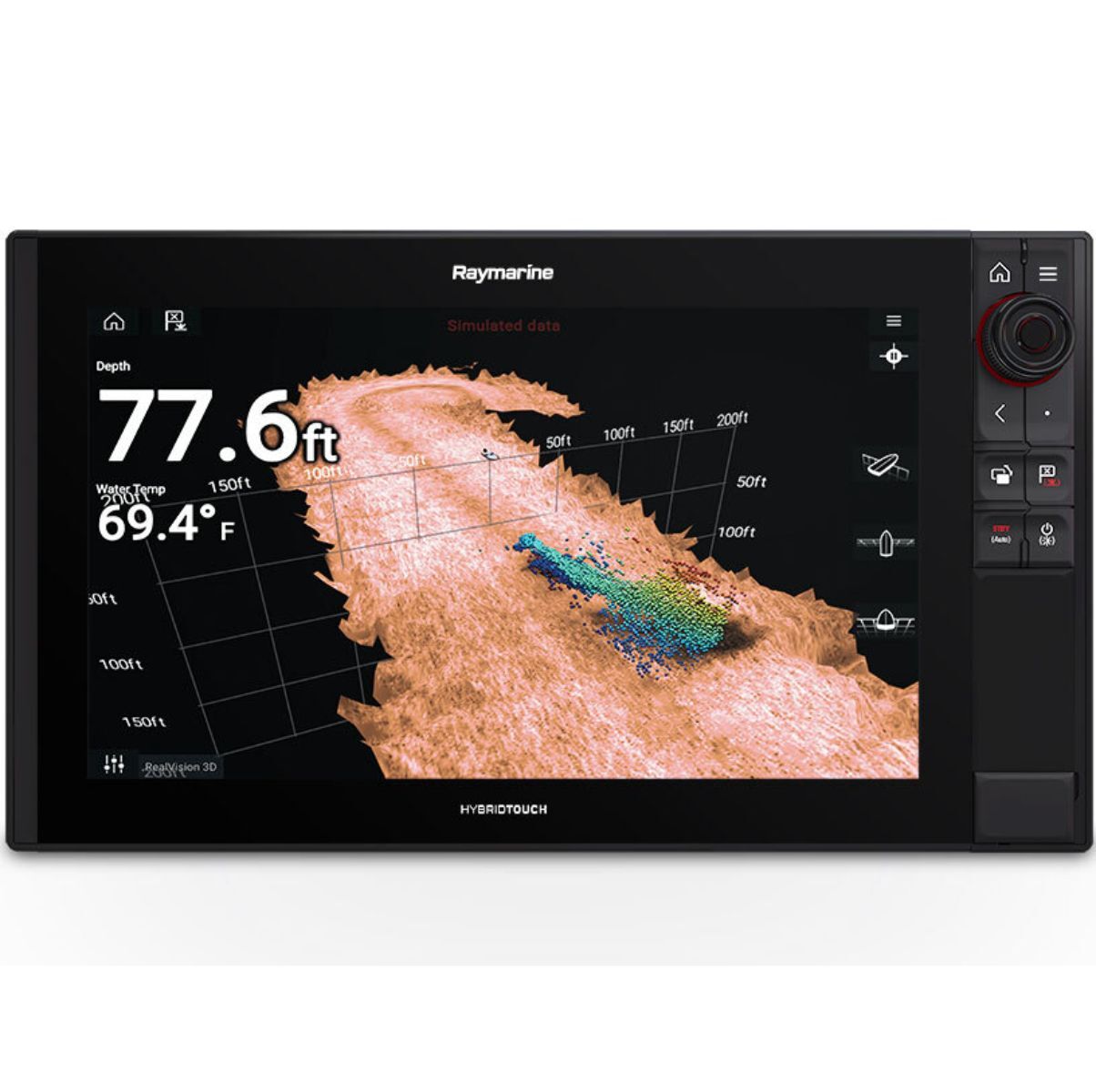

AXIOM 16 Pro-RVX, HybridTouch 16" Multi-function Display with integrated 1kW Sonar, DV, SV and RealVision 3D Sonar and Australia & New Zealand LightHouse Chart

The Raymarine AXIOM PRO RVX Series chartplotters are a high-end range of multifunction displays designed for professional mariners and serious boating enthusiasts. Available in 9, 12, and 16-inch screen sizes, these devices are built with Raymarine's advanced technology to provide an unparalleled navigation experience.

Key Features:

  • Display Options:

    Choose from three screen sizes: 9, 12, or 16 inches, each featuring HybridTouch control for ease of use in any condition.

  • High-Performance Sonar:

    The series comes with RealVision 3D and 1kW CHIRP Sonar capabilities, offering superior fish and structure identification.

  • Advanced Navigation:

    With the fast, quad-core processor and LightHouse OS, the chartplotters deliver a fluid and intuitive experience. They are compatible with a wide range of cartography options.

  • Versatile Connectivity:

    Featuring Ethernet, NMEA 0183, and NMEA2000 ports, these devices can be easily integrated into a broader navigation network, including additional Axiom displays, CHIRP radar, and FLIR thermal night vision cameras.

  • Robust Build:

    The devices are designed for durability with waterproofing rated at IPX6 and IPX7, and they can operate in temperatures ranging from -25ºC to +55ºC.
Physical
Dimensions (Trunnion mounted)

Axiom Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)

Axiom Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)
Accessory connection

USB Micro B
Ethernet connection

2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 0183 connection

Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate
External storage

2 front mounted MicroSDXC card slots
NMEA 2000 connection

DeviceNet connector
Wireless connections

Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n
Internal storage

16GB Solid State
Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
LCD
Size (diagonal)

Axiom Pro 9: 9.0"

Axiom Pro 12: 12.1"

Axiom Pro 16: 15.6"
Ratio

Axiom Pro 9: 16:9

Axiom Pro 12: 16:9

Axiom Pro 16: 16:10
Resolution

Axiom 2 Pro 9: 1280 x 720 HD

Axiom 2 Pro 12: 1280 x 800 WXGA

Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle

Top 88° / Bottom 88° / Left 88° / Right 88°
Type

IPS (In-Plane Switching)
Color depth

24-bit
Illumination

Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches

1 to 16
Power
Power consumption @ 12 V dc

Axiom Pro 9: 33.12 W

Axiom Pro 12: 29.88 W

Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc

Axiom Pro 9: 30.96 W

Axiom Pro 12: 28.8 W

Axiom Pro 16: 40.8 W
Operating voltage range

8 V dc to 32 V dc
Off current @ 24 V dc

18 mA (0.43 W)
Nominal supply voltage

12 V dc / 24 V dc
Off current @ 12 V dc

11 mA (0.13 W)
LEN (NMEA 2000 Load Equivalency Number)

1
Current

5 A
Fuse rating

15 A
Sonar
RealVision Depth range

25 pin RealVision type connector: High CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)
1 kW Depth range

11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
Sonar
RealVision Depth range

25 pin RealVision type connector: High CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)
1 kW Depth range

11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
GNSS (GPS)
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels

Track up to 28 satellites simultaneously
Antenna

Internal - Ceramic chip mounted near top of unit
GNSS compatibility

GPS, Galileo, GLONASS, Beidou
Almanac Update

Automatic
Signal Acquisition

Automatic
Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency

1574 MHz to 1605 MHz
Refresh rate

10 Hz (10 times per second)
Time to first fix from cold start

< 2 minutes
SKU RAY.E70373-00-ANZ
Model # E70373-00-ANZ
Brand Raymarine
Shipping Weight 11.9990kg
Shipping Width 0.447m
Shipping Height 0.069m
Shipping Length 0.258m
Shipping Cubic 0.007957000m3
Unit Of Measure ea
2 Years
