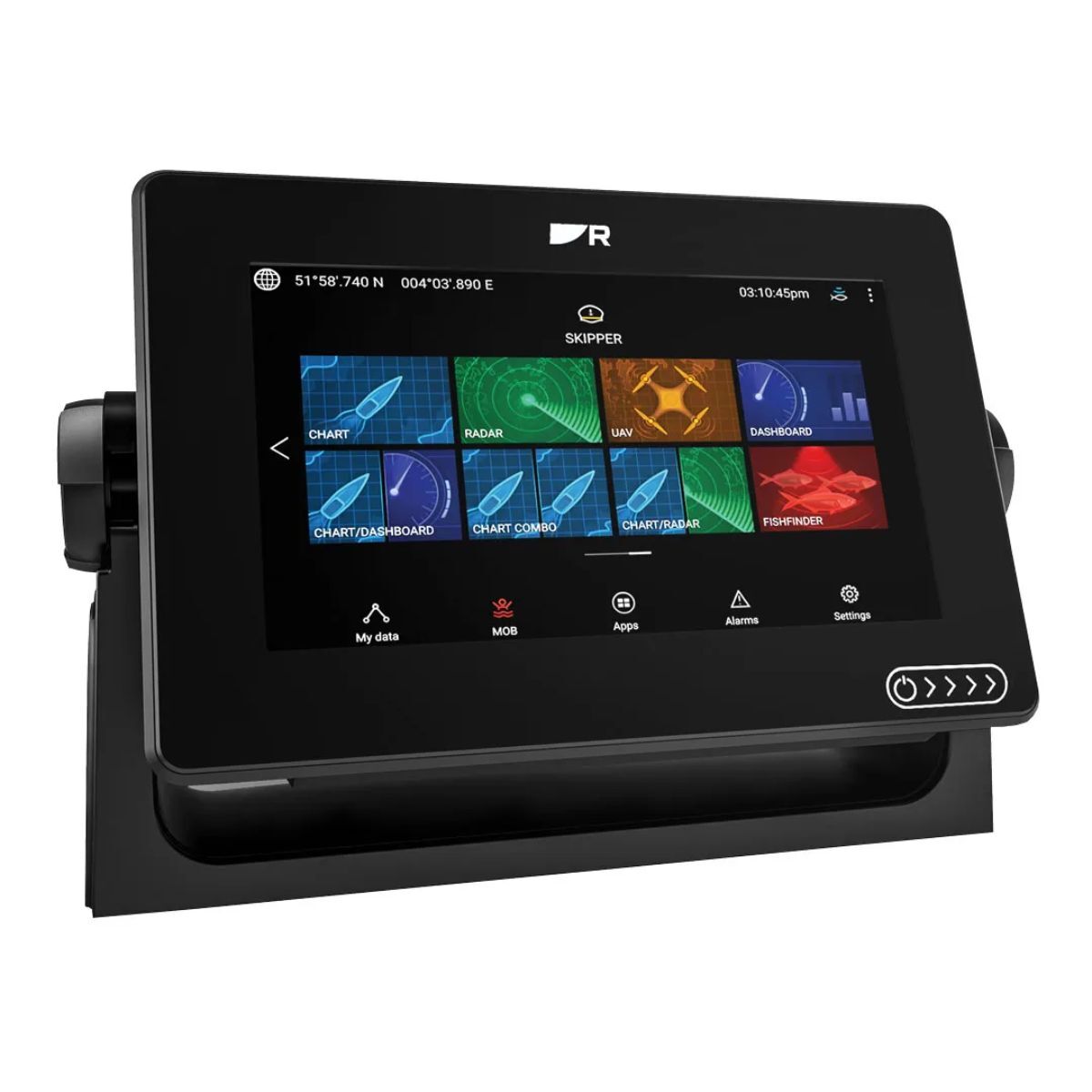

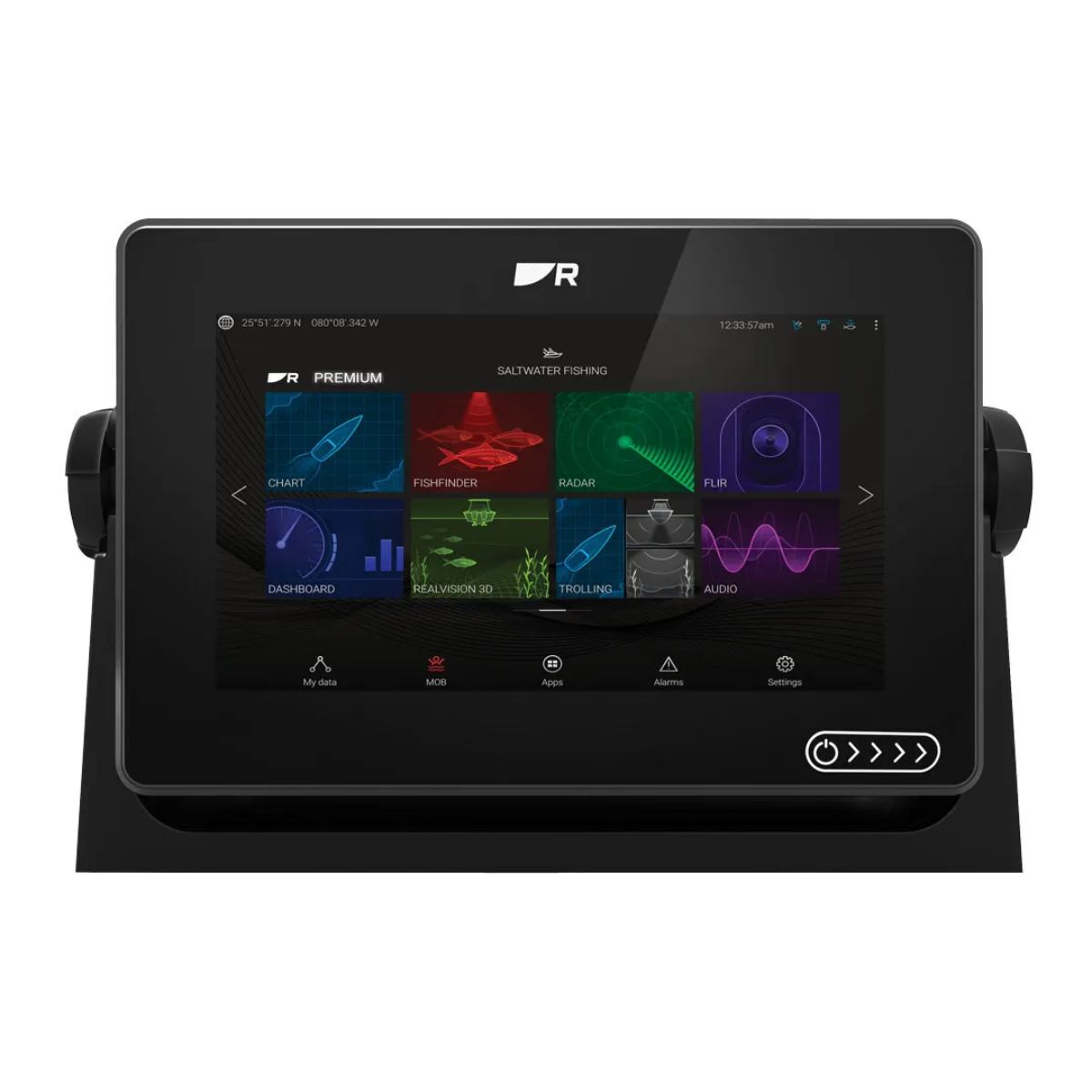

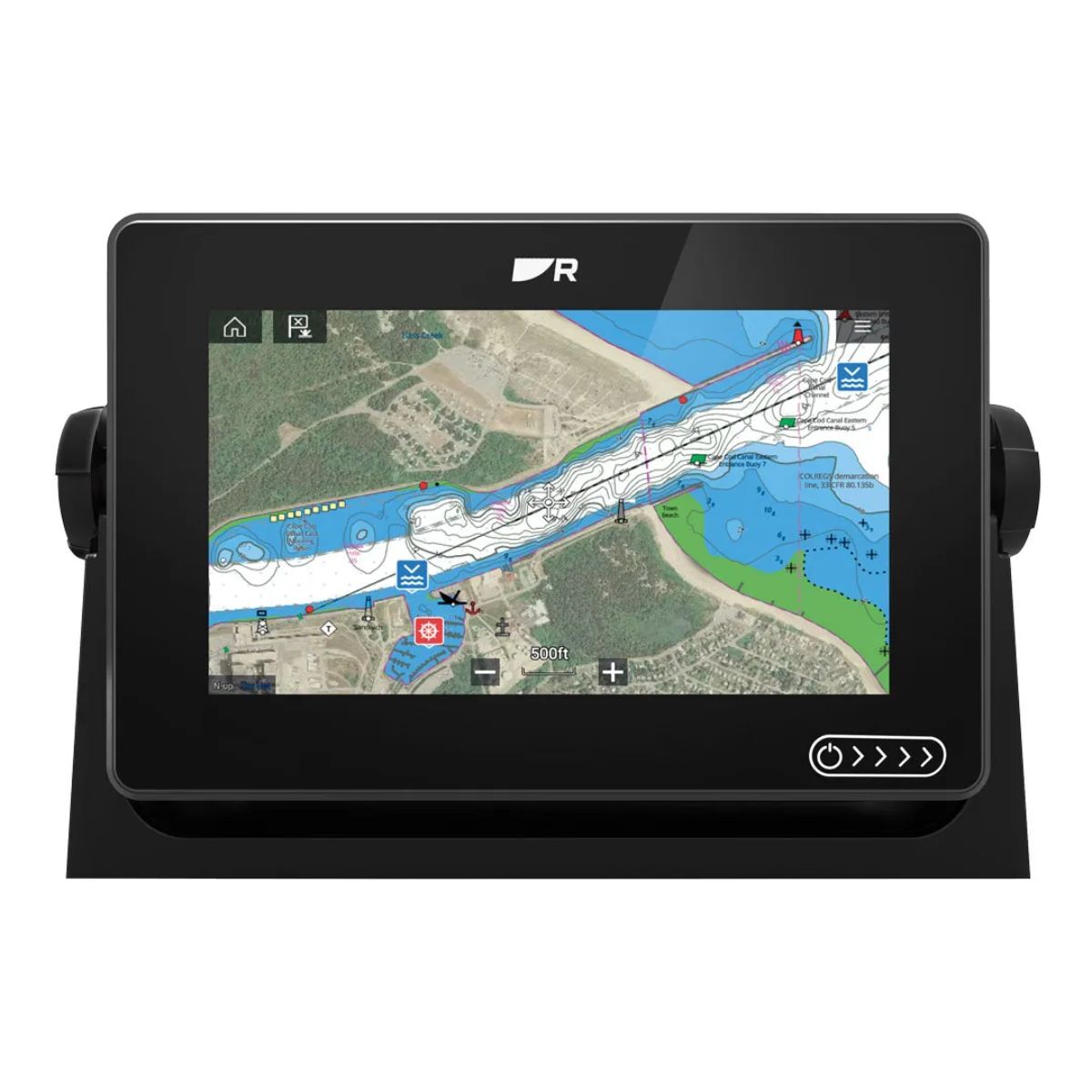

Raymarine AXIOM+ 7 RV, Multi-function 7" Display, RealVision 3D, 600W Sonar, no transducer with Australia & New Zealand LightHouse Chart
Navigate and fish with precision using the AXIOM+ RV chartplotters, featuring RealVision 3D™, high-resolution touchscreens, advanced sonar, and HydroTough™ technology.
SKU: RAY.E70635-00-ANZ | MPN: E70635-00-ANZ
SAVE $225.69 (11%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
AXIOM+ 7 RV, Multi-function 7" Display with integrated RealVision 3D, 600W Sonar, no transducer with Australia & New Zealand LightHouse Chart.
The AXIOM+ RV Series brings cutting-edge technology to marine navigation and fishfinding, available in 7, 9, and 12-inch touchscreen displays. This series elevates your marine experience with its advanced features and intuitive design.
Advanced Sonar Capabilities:
- RealVision 3D™ Sonar: Offers a gyro-stabilized, GPS-locked bathymetric model for a detailed understanding of the underwater environment.
- High-Frequency CHIRP Sonar: Ideal for targeting fish and assessing bottom density.
- CHIRP DownVision and SideVision: Provides high-definition views of structures, fish habitats, and submerged objects.
- Powerful 600W Digital Sonar: Compatible with 50 kHz and 200 kHz frequencies. Option to connect an AIRMAR transducer for deeper depth fishing.
Enhanced Display and Performance:
- Upgraded IPS Display: Delivers charts, sonar, radar, and video in vibrant color, 25% brighter than previous models (up to 1,800 nits).
- LightHouse Colour Themes: Offers improved viewing in various lighting conditions with Day, Dusk, and Night modes.
- Quad-Core Processor: Ensures fast and fluid chart redraws and increased onboard storage for personal data and apps.
- LightHouse Operating System: Provides a smart and intuitive interface for easy navigation.
Ready for Expansion:
- Seamlessly network with multiple displays, radars, engines, marine cameras, and more.
- Compatible with solid-state radar and FLIR thermal cameras, and marine cameras for ClearCruise Augmented Reality.
HydroTough™ Technology:
- Features nano-coated, impact-resistant screens that dispel water, oil, and smudges, ensuring clear visibility and accurate touch controls in all weather conditions.
What's in the box?
1. MFD (Chartplotter)
2. Trunnion bracket
3. Trunnion knobs x 2
4. Suncover
5. Documentation
6. Panel mount gasket
7. Rear mounting brackets for 9" display
8. Rear mounting brackets for 12" display
9. Threaded studs (M5x58) x 4
10. Thumb nuts (M5) x 4
11. Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
12. DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
Physical | |
---|---|
Dimensions (Trunnion mounted) |
Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
Dimensions (Surface/Flush mounted) |
Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
Accessory connection |
USB Micro B |
Ethernet connection |
RayNet (10/100 Mbits/s) |
External storage |
MicroSDXC card slot x 1 |
NMEA 2000 connection |
DeviceNet (male connector built into power cable) |
Wireless connections |
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
Internal storage |
16 GB Solid State (14 GB usable) |
Transducer connection |
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
LCD | |
Size (diagonal) |
Axiom+ 7: 7" Axiom+ 9: 9" Axiom+ 12: 12" |
Resolution |
Axiom+ 7: WSVGA 1024 x 600 Axiom+ 9: Widescreen HD 1280 x 720 Axiom+ 12: WXGA 1280 x 800 |
Viewing angle |
Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88° |
Illumination |
Axiom+ 7: 1800 nits / 1800 cd/m2 Axiom+ 9:1500 nits / 1500 cd/m2 Axiom+ 12: 1800 nits / 1800 cd/m2 |
Protective coating |
HydroToughTM Oleophobic |
Type |
IPS (In-Plane Switching) |
Color depth |
24-bit |
Number of simultaneous touches |
2 |
Power | |
Power consumption |
Axiom+ 7: 9.84 W Axiom+ 9: 11.98 W Axiom+ 12: 18.96 W |
Operating voltage range |
8 V dc to 16 V dc |
Fuse rating |
7 A |
Nominal supply voltage |
12 V dc |
LEN (NMEA 2000 Load Equivalency Number) |
1 |
Sonar | |
Depth range |
CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft) |
Environmental | |
Operating temperature |
-25°C to +55°C (-13°F to 131°F) |
Storage temperature |
-30°C to +70°C (-22°F to 158°F) |
Relative humidity |
Up to 93% @ 40°C (104°F) |
Waterproof rating |
IPx6, IPx7 |
GPS | |
Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
Satellite Differential Type (SBAS) |
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
Channels |
Track up to 28 satellites simultaneously |
Antenna |
Internal - Ceramic chip mounted near top of unit |
GNSS compatibility |
GPS, GLONASS, Beidou |
Almanac Update |
Automatic |
Signal Acquisition |
Automatic |
Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
Operating frequency |
1574 MHz to 1605 MHz |
Refresh rate |
10 Hz (10 times per second) |
Time to first fix from cold start |
< 2 minutes |
SKU | RAY.E70635-00-ANZ |
Model # | E70635-00-ANZ |
Brand | Raymarine |
Shipping Weight | 3.4010kg |
Shipping Width | 0.210m |
Shipping Height | 0.077m |
Shipping Length | 0.142m |
Shipping Cubic | 0.002296000m3 |
Unit Of Measure | ea |
