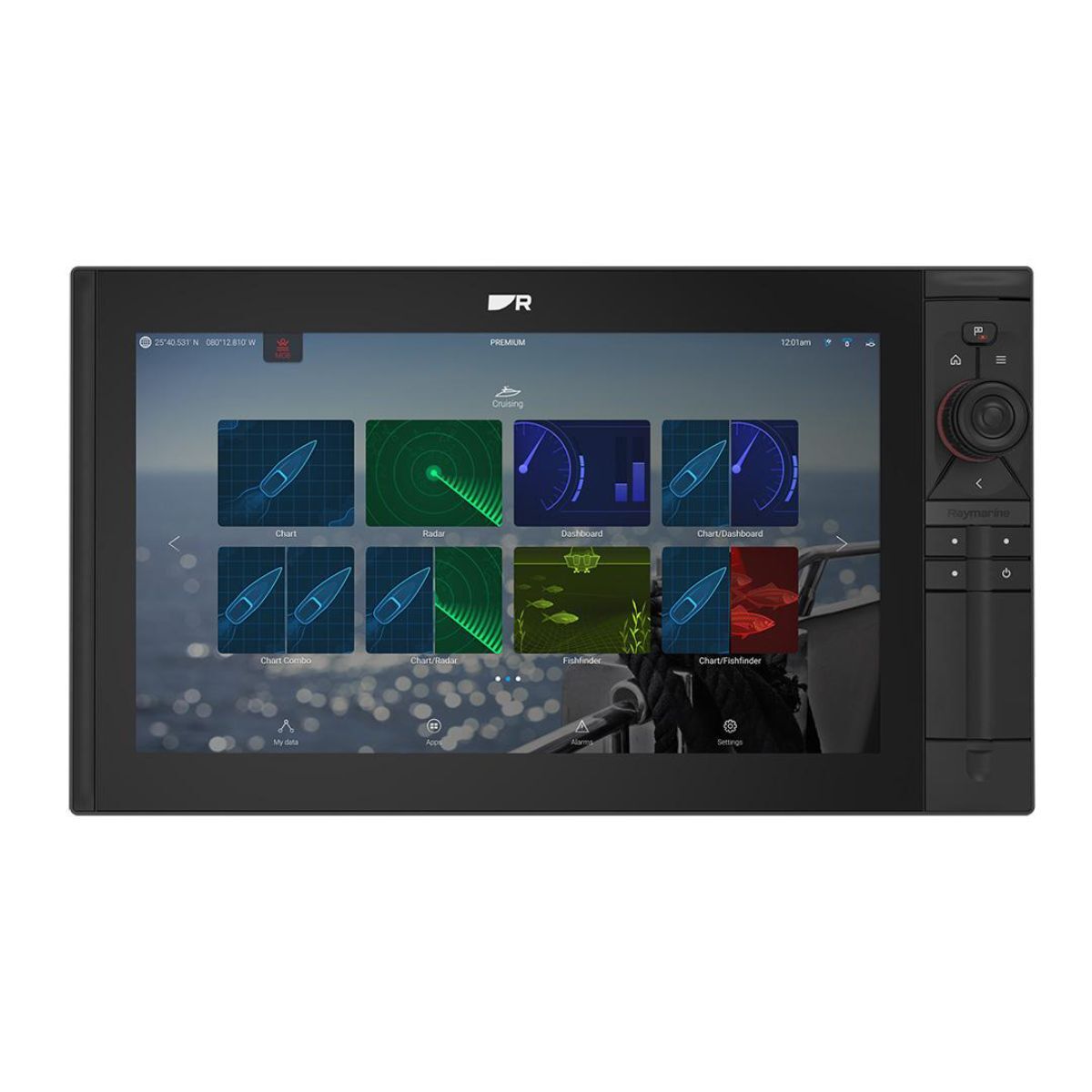

AXIOM 2 PRO RVM: Your Offshore Adventure Guide
The Axiom 2 Pro RVM is a groundbreaking chartplotter and fish finder system designed to enhance your fishing and boating experience. Combining advanced navigation features with high-definition sonar technology, the Axiom 2 Pro RVM offers unparalleled performance for serious anglers and mariners. Available in 9, 12, and 16-inch HybridTouch displays, this system integrates seamlessly into any boating setup.
Key Features:
-
HybridTouch Control
Offers both touchscreen and keypad navigation, ensuring ease of use in any condition. -
RealVision MAX CHIRP Sonar
Delivers increased range, resolution, and clarity for identifying fish and underwater structures. -
Powerful 6-core Processor
Ensures swift and efficient operation of GPS, radar, fish finder, and video functionalities. -
HydroTough Nano-coating
Repels water for reliable touchscreen use, enhanced colour, and visibility in sunlight. -
Smart Backlighting
Automatically adjusts for optimal viewing at any time of day. -
Expandable System
Customize with interchangeable keypads, LightHouse Charts, Quantum 2 radar, FLIR thermal imaging, and more for a tailored navigation experience. -
Comprehensive Connectivity
Features built-in Wi-Fi, HDMI output, and compatibility with a wide range of marine audio systems and engines.
Advanced Capabilities:
-
Versatile Fish Finding
Integrated CHIRP DownVision, SideVision, RealVision 3D, and traditional CHIRP sonar, along with a 1kW dual-channel CHIRP for deep-water exploration. -
Enhanced Navigation
Upgrade with LightHouse Charts for detailed mapping, and add radar for safer navigation and target tracking. -
Night Vision and Augmented Reality
FLIR thermal cameras and ClearCruise AR technology provide superior awareness and safety. -
Engine Integration and Entertainment
Connects with NMEA2000-compatible engines, streams entertainment apps, and supports marine audio system control.
Expand Your System:
-
Networking
Utilize two RayNet Ethernet ports and NMEA2000 for integrating multiple Axiom displays, radar, autopilot, cameras, and more. -
Stay Connected
With the YachtSense Link router and Raymarine mobile App, your system remains accessible on and off the boat.
The Axiom 2 Pro RVM is not just a chartplotter; it's a comprehensive marine technology platform that brings smart boating into the 21st century. Whether you're navigating unfamiliar waters or searching for the next big catch, the Axiom 2 Pro RVM provides the tools you need for a successful voyage
Connections | |
---|---|
Ethernet connection | 2 RayNet (10/100/1,000 Mbits/s) ports |
NMEA 2000 connection | DeviceNet connector |
Wi-Fi | Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
Bluetooth | v4.0 |
Accessory connection | USB Micro B |
Internal storage | 64GB Solid State |
External storage | 2 front mounted MicroSDXC card slots |
Digital Video and Audio | HDMI Out Micro connector type D |
Analog video connections | BNC Analog video input (on power cable) |
Analog audio connections | RCA connectors via power cable |
External GPS antenna | TNC connector |
Physical | |
Dimensions (Trunnion mounted) |
Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) |
Dimensions (Surface/Flush mounted) | Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
Power | |
Power consumption @ 12 V dc | Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W |
Power consumption @ 24 V dc | Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W |
Operating voltage range | 8 V dc to 32 V dc |
Nominal supply voltage | 12 V dc / 24 V dc |
Off current @ 12 V dc | 11 mA (0.13 W) |
Off current @ 24 V dc | 18 mA (0.43 W) |
LEN (NMEA 2000 Load Equivalency Number) | 1 |
Current | 5 A |
Fuse rating | 15 A |
Environmental | |
Operating temperature | -25°C to +55°C (-13°F to 131°F) |
Storage temperature | -30°C to +70°C (-22°F to 158°F) |
Relative humidity | Up to 93% @ 40°C (104°F) |
Waterproof rating | IPx6, IPx7 |
LCD | |
Size (diagonal) | Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6" |
Ratio | Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10 |
Resolution | Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
Type | IPS (In-Plane Switching) |
Color depth | 24-bit |
Illumination | Axiom 2 Pro 9 1300 nits / 1300 cd/m2 Axiom 2 Pro 12 1200 nits / 1200 cd/m2 Axiom 2 Pro 16 1200 nits / 1200 cd/m2 |
Number of simultaneous touches | 1 to 16 |
GPS (GNSS) | |
Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
Channels | Track up to 28 satellites simultaneously |
Antenna | Internal - Ceramic chip mounted near top of unit |
GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
Almanac Update | Automatic |
Signal Acquisition | Automatic |
Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
Operating frequency | 1574 MHz to 1605 MHz |
Refresh rate | 10 Hz (10 times per second) |
Time to first fix from cold start | < 2 minutes |
Sonar | |
Power output | RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS |
Sonar channels | RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent) |
RealVision MAX Depth range | 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) |
1 kW Depth range | 11 pin 1kW connector: 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) |
Connections | 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector |
SKU | RAY.E70658 |
Model # | E70658 |
Brand | Raymarine |
Shipping Weight | 9.1800kg |
Shipping Width | 0.533m |
Shipping Height | 0.203m |
Shipping Length | 0.381m |
Shipping Cubic | 0.041224000m3 |
Unit Of Measure | ea |
