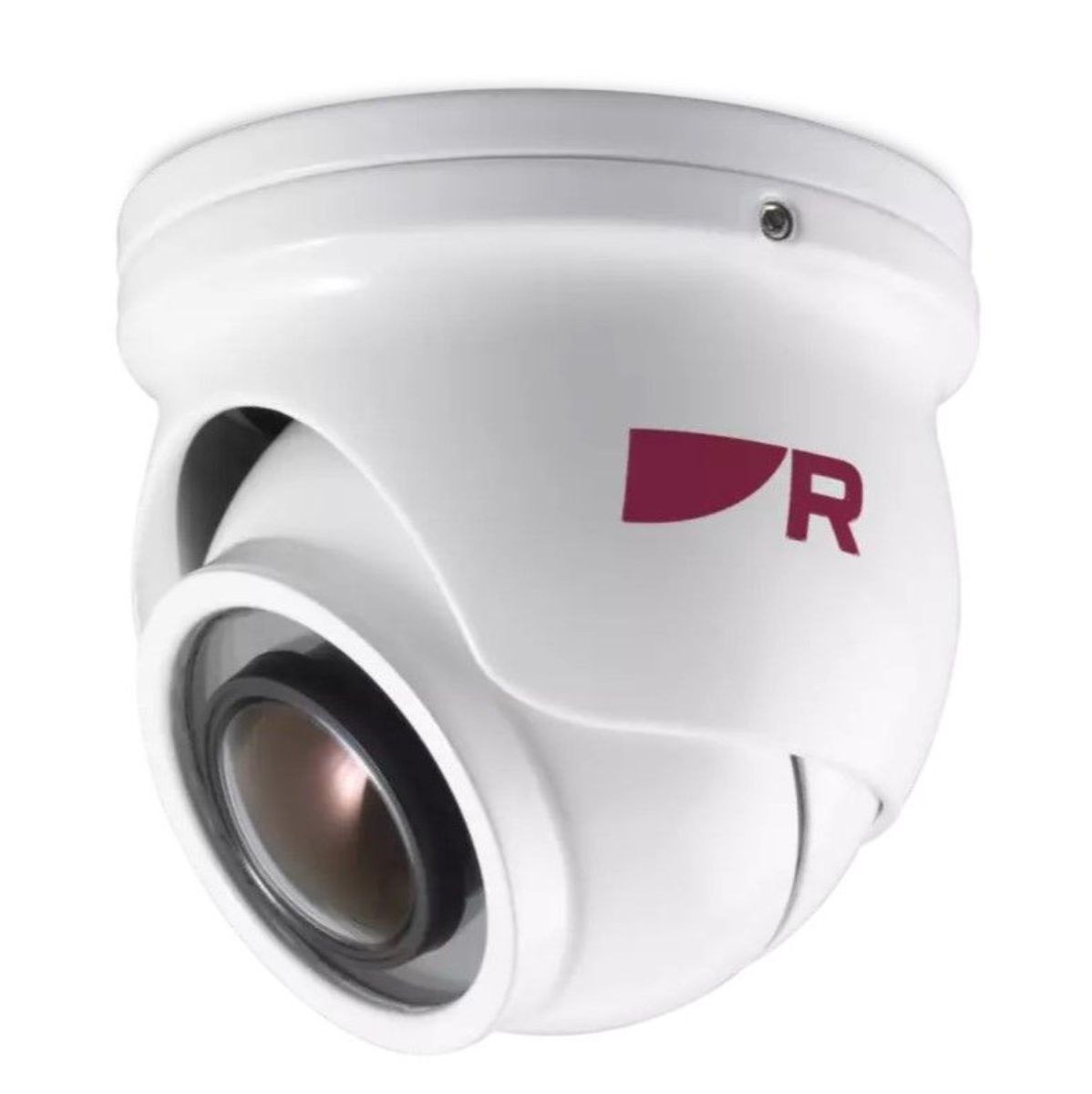

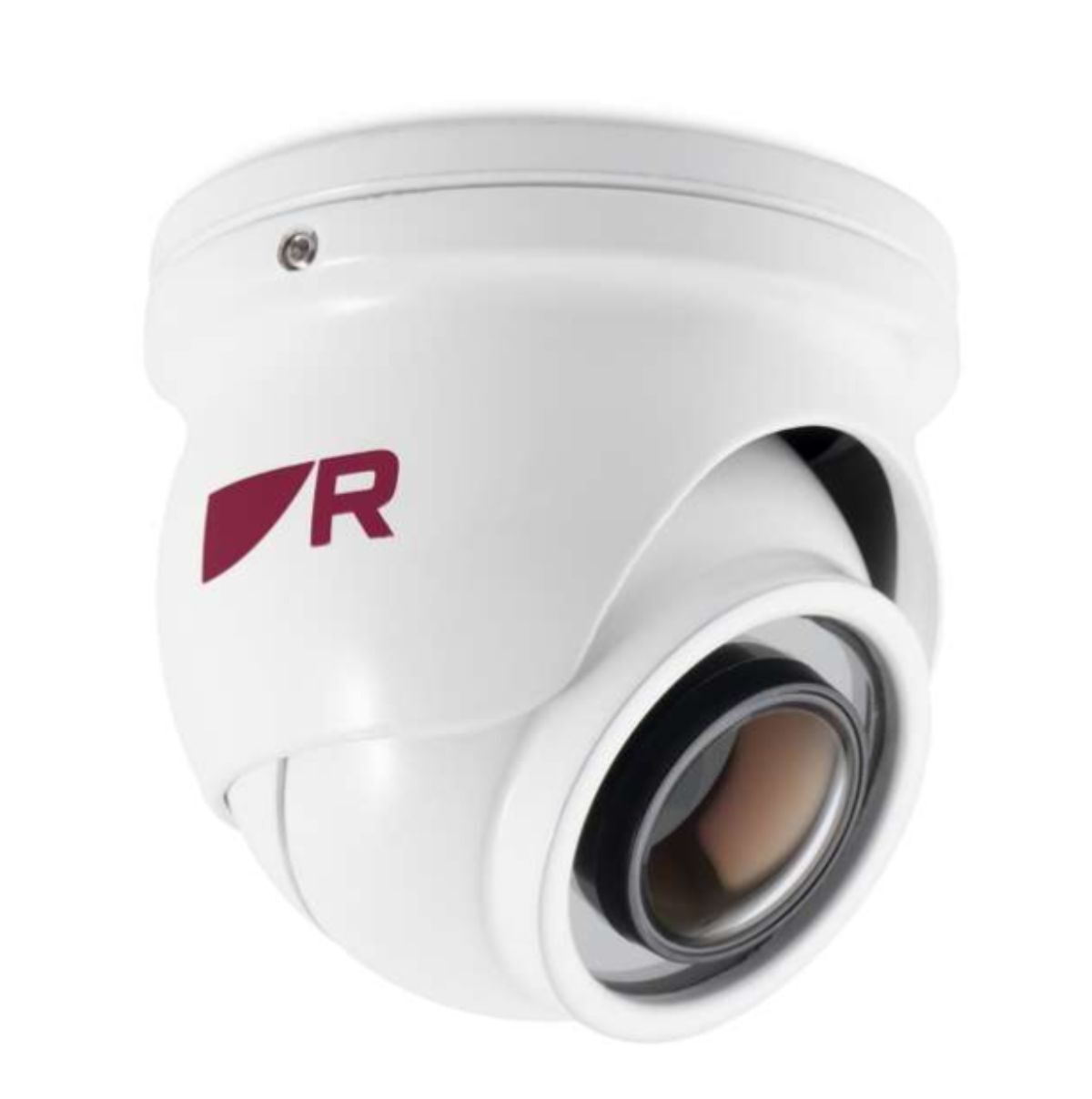

Raymarine CAM300

The Raymarine CAM300 is a compact, high-definition IP camera designed to integrate seamlessly with Raymarine Axiom chartplotters. Its ultra-wide field of view and advanced imaging capabilities make it an essential tool for any boating enthusiast, whether for navigation, security, or capturing the excitement of a day at sea.

Key Features:

  • High-Definition Video Quality

    Features a 3MP CMOS sensor delivering crystal clear HD video imagery up to 1080p resolution.

  • Night Vision Capability

    Equipped with built-in infrared emitters providing excellent low-light visibility up to 33 ft (10 meters), perfect for night navigation and security monitoring.

  • Ultra-Wide Field of View

    The camera's wide lens covers a broad area, ideal for monitoring blind spots, crew activities, or fishing action.

  • Versatile Monitoring

    View up to 4 CAM300 video streams simultaneously on a single Axiom display.

  • Flexible Installation

    The camera's ultra-compact design (just over 2 inches tall) allows for flexible mounting solutions, with image flip and invert functions for versatile installation options.

  • Power Options

    Easy to install with direct 12-volt connection or single cable Power over Ethernet (POE).

  • Durable Construction

    Housed in a rugged IP66 enclosure, making it suitable for both below and above-deck marine installations.

Enhanced Navigation with ClearCruise:

  • Combine with Raymarine AR200 sensor for ClearCruise augmented reality, overlaying AIS targets, waypoints, and chart objects on the Axiom video display for smarter navigation decisions.

Compatibility and Integration:

  • ONVIF Profile S compatibility allows integration with third-party security systems.

Technical Specifications:

Feature Specification
Sensor Type 3MP CMOS
Resolution Up to 1080p
Night Vision Range Up to 33 ft (10 meters)
Size Over 2 inches (58mm) tall
Power Options 12V DC or POE
Enclosure IP66 Rated
Compatibility Raymarine Axiom Chartplotters
Augmented Reality With AR200 Sensor

The Raymarine CAM300 is more than just a camera; it's an integral part of your boat's navigation system, providing enhanced visibility, security, and situational awareness

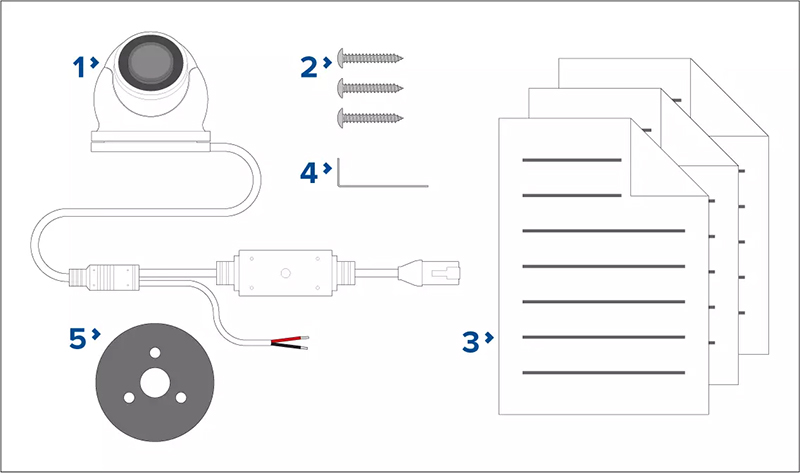

Package contents:

Package contents

Item No. Contents
1 CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector
2 Mounting screws (3 x)
3 Documentation
4 Hex wrench (Allen key)
5 Waterproof gasket
Conformance
Product markings UKCA, RoHS, CE, Australian RCM C-Tick
Standards RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002, FCC Part 15.19, FCC Part 15.105 (b), ISEDC ICES-003
Video
Day / Night True day / night operation with mechanical IR cutout filter
Automatic Gain Control Supported / Multiple Levels
Scanning system Progressive scan
Mirroring Horizontal & Vertical
Video Processing H.264 Codec / Dual Stream
Bit Rate Control Capped Bit Rate / Variable Bit Rate
Compression H.264
Illumination 6 x 850nm Infrared - 10 meter range
Frame Rate 25 fps
ONVIF version 21.06 master version
Sensor / DSP 1/4" CMOS Sensor
Field of View 1.8mm Standard (125° HFOV x 70° VFOV)
Power
Power over Ethernet PoE Class 1 (1.8 W Max) device (IEEE802.3af)
Nominal supply voltage 12 V dc
Operating voltage range 10.8 V dc to 15.6 V dc
Power consumption 1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Current < 150 mA (Maximum) @ 12 V dc
Environmental
Relative humidity Max. 85%
Waterproof rating IP66
Storage temperature -30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature -20 °C to +65 °C (-4 °F to 149 °F)
Physical
Dimensions Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight 0.420 kg (0.926 lbs)
SKU RAY.E70660
Model # E70660
Brand Raymarine
Shipping Weight 0.5250kg
Shipping Width 0.059m
Shipping Height 0.053m
Shipping Length 0.059m
Shipping Cubic 0.000184000m3
Unit Of Measure ea
2 Years
