Raymarine Element 12 S -12" Chart Plotter with Wi-Fi & GPS, Australia & New Zealand LightHouse Chart & No Transducer
Navigate with ease using Raymarine Element 12 S, featuring a 12" chart plotter, Wi-Fi, GPS, and Australia & New Zealand LightHouse Charts. No transducer, perfect for custom setups.
SKU: RAY.E70535-00-ANZ | MPN: E70535-00-ANZ
SAVE $225.69 (11%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable

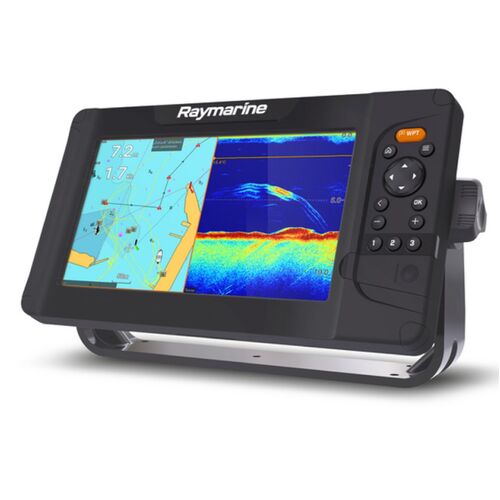

Element 12 S -12" Chart Plotter with Wi-Fi & GPS, Australia & New Zealand LightHouse Chart & No Transducer.
The Raymarine ELEMENT S series represents a breakthrough in the realm of marine navigation, offering a suite of chartplotters that combine performance, simplicity, and affordability. Available in 7, 9, and 12-inch display sizes, these devices are designed to be the perfect cruising companion for boaters and fishing enthusiasts.
Key Features:
-
Versatile Chart Compatibility:
Supports Raymarine LightHouse™ charts, Navionics, and C-MAP, allowing users to choose the best nautical charts for their journey. -
High CHIRP Sonar Integration:
Built-in sonar provides clear depth readings and detailed images of the bottom contour, essential for safe navigation and locating fish. -
RealBathy™ Personal Sonar Mapping:
This feature enables boaters to create their own bathymetric charts of uncharted or poorly mapped waters. -
Connectivity and Integration:
Seamlessly connects with NMEA2000 compatible devices including AIS, autopilot systems, sailing instruments, engines, tanks, and VHF for a unified maritime network. -
LightHouse Sport Operating System:
Customizable and straightforward, offering easy navigation with an oversized waypoint key, three programmable quick keys, and live menus for on-the-fly adjustments. -
Exceptional Display Quality:
All-weather, sunlight-viewable displays provide clear visibility in any conditions. -
Robust Performance:
Powered by a quad-core processor for fast chart redraws and responsive overall performance. -
Precision GPS/GNSS:
Features a 10Hz GPS/GNSS sensor, ensuring rapid and accurate position updates. -
Durable and Reliable:
Rugged build quality, backed by Raymarine’s three-year warranty upon product registration.
Optional upgrades like the Quantum™ wireless radar enhance safety in busy waterways, making the ELEMENT S a truly comprehensive solution for modern boaters.
What's in the box?
- Element display
- Surface mount gasket
- Suncover
- Trunnion knobs (x 2)
- Documentation
- Trunnion bracket
- Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
- Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
Physical | |
---|---|
Dimensions (Trunnion mount) |
Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in) |
Dimensions (surface mount) |
Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in) |
Weight (display only) |
Element 7: 1.0 Kg (2.2lbs) Element 9: 1.3 Kg (2.86lbs) Element 12: 2.0 Kg (4.4lbs) |
LCD | |
Size (diagonal): |
Element 7: 7.0" Element 9: 9.0" Element 12: 12.1" |
Resolution |
Element 7: WVGA 800 x 480 Element 9: WVGA 800 x 480 Element 12: WXGA 1280 x 800 |
Ratio |
Element 7: 5:3 Element 9: 5:3 Element 12: 8:5 |
Viewing angle (T / B / L / R): |
Element 7: 50° / 60° / 70° / 70° Element 9: 50° / 70° / 70° / 70° Element 12: 89° / 89° / 89° / 89° |
Type |
Element 7: TN (Twisted Nematic) Element 9: TN (Twisted Nematic) Element 12: IPS (In-Plane Switching) |
Color depth |
24-bit |
Maximum Illumination |
1500 nits / 1500 cd/m2 |
Power | |
Operating voltage range |
8 V dc to 16 V dc (protected up to 32 V dc) |
Power consumption (Approximate @ 12 V dc) |
Element 7: 15 Watts Element 9: 20 Watts Element 12: 25 Watts |
Nominal supply voltage |
12 V dc |
Fuse requirements |
Inline fuse = 5 A, Thermal breaker = 3 A |
LEN (NMEA 2000 Load Equivalency Number) |
1 (Based on 9 V dc nominal voltage) |
Data connections | |
SeaTalkng / NMEA 2000 |
1 x DeviceNet female connector built into power cable |
2.4 GHz Wi-Fi |
1 x 802.11/b/g/n |
Transducer |
1 x 15-pin connector |
Storage | |
External |
1 x MicroSDXC card slot |
Environmental | |
Operating temperature range |
-25°C (-13°F) to +55°C (+131°F) |
Storage temperature range |
-30°C (-22°F) to +70°C (+158°F) |
Humidity |
up to 93% @ 40°C (+104°F) |
Waterproof rating |
IPx6, IPx7 |
GPS Receiver | |
Position Accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
Geodetic Datum |
WGS-84 (alternatives can be selected on the MFD) |
Channels |
Multiple - ability to simultaneously track up to 28 satellites |
Antenna |
Internal - Ceramic chip mounted near top of unit |
GNSS compatibility |
GPS, GLONASS, Beidou |
SBAS compatibility |
EGNOS, GAGAN, MSAS, QZSS, WAAS |
Signal Acquisition |
Automatic |
Almanac Update |
Automatic |
Receiver IC Sensitivity |
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
Operating frequency |
1574 MHz to 1605 MHz |
Cold start |
< 2 minutes |
Conformance | |
Standards |
EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15 |
SKU | RAY.E70535-00-ANZ |
Model # | E70535-00-ANZ |
Brand | Raymarine |
Shipping Weight | 4.8000kg |
Shipping Width | 0.240m |
Shipping Height | 0.062m |
Shipping Length | 0.135m |
Shipping Cubic | 0.002009000m3 |
Unit Of Measure | ea |
