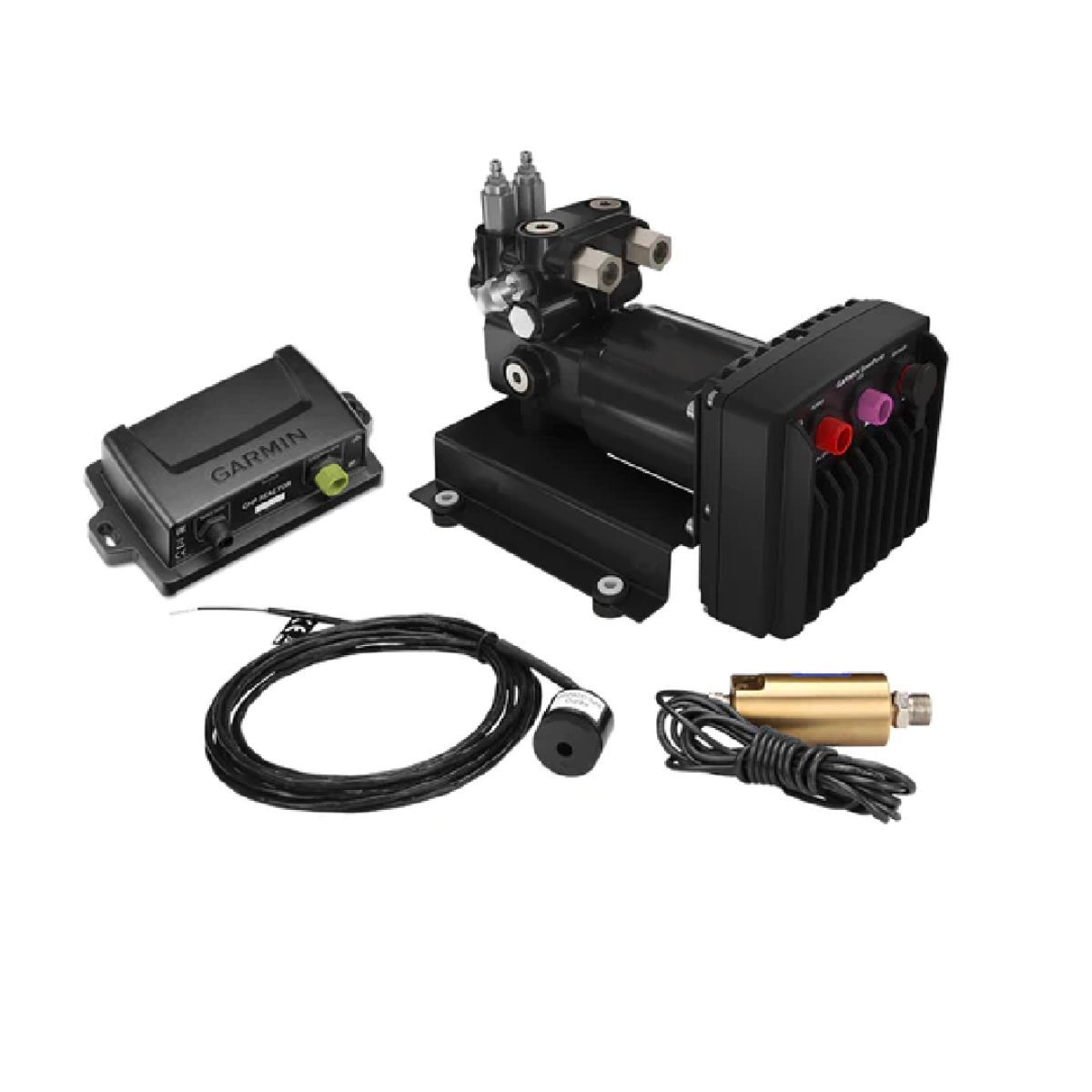

Reactor 40 Hydraulic Corepack with SmartPump v2 With GHC 50 Autopilot Instrument
Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.
SKU: GAR.010-02794-01 | MPN: 010-02794-01
SAVE $730.78 (10%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
COREPACK COMPATIBILITY
This corepack’s compact, brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.
SMARTPUMP V2
The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability and lower power consumption.
SOLID-STATE 9-AXIS AHRS
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.
REACTS TO WATER CONDITIONS
Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.
SIMPLE CALIBRATION
All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
SHADOW DRIVE™ TECHNOLOGY
Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
WIRELESS REMOTE CAPABILITIES
Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
CCU Specifications
- Dimensions: 3 19/32" diameter (91.4 mm)
- Weight: 5.6 oz (159 g)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
- CCU cable length: 9.5 ft (3 m)
- NMEA 2000 power input: 9-16 V
- NMEA 2000 LEN: 3 (150 mA)
Buzzer/Alarm Specifications
- Dimensions (L x Diameter): 29/32" x 1" (23 mm x 25 mm)
- Weight: 2.4 oz (68 g)
- Temperature range: from 5°F to 131°F (from -15°C to 55°C)
- Cable length: 10 ft (3.0 m)
- Dimensions (W x H x D): 7.5" x 7.75" x 9.625" (19 x 19.7 x 24.4 cm)
- Weight: 16.5 lbs (7.5 kg)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Material: Electronics Control Unit (ECU) - fully gasketed, aluminium alloy; bracket - carbon steel; manifold - aluminium alloy; motor - aluminium alloy
- Power cable length: 9 ft (2.7 m)
- Power input: 11.5-30 Vdc
- Fuse: 40 A, blade-type
- Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
- Flow rate: Configurable from 0 to 2.4 L per minute
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
SKU | GAR.010-02794-01 |
Model # | 010-02794-01 |
UPC/EAN | 753759302856 |
Brand | Garmin |
Shipping Weight | 7.5000kg |
Shipping Width | 0.190m |
Shipping Height | 0.244m |
Shipping Length | 0.197m |
Shipping Cubic | 0.009133000m3 |
Unit Of Measure | ea |
