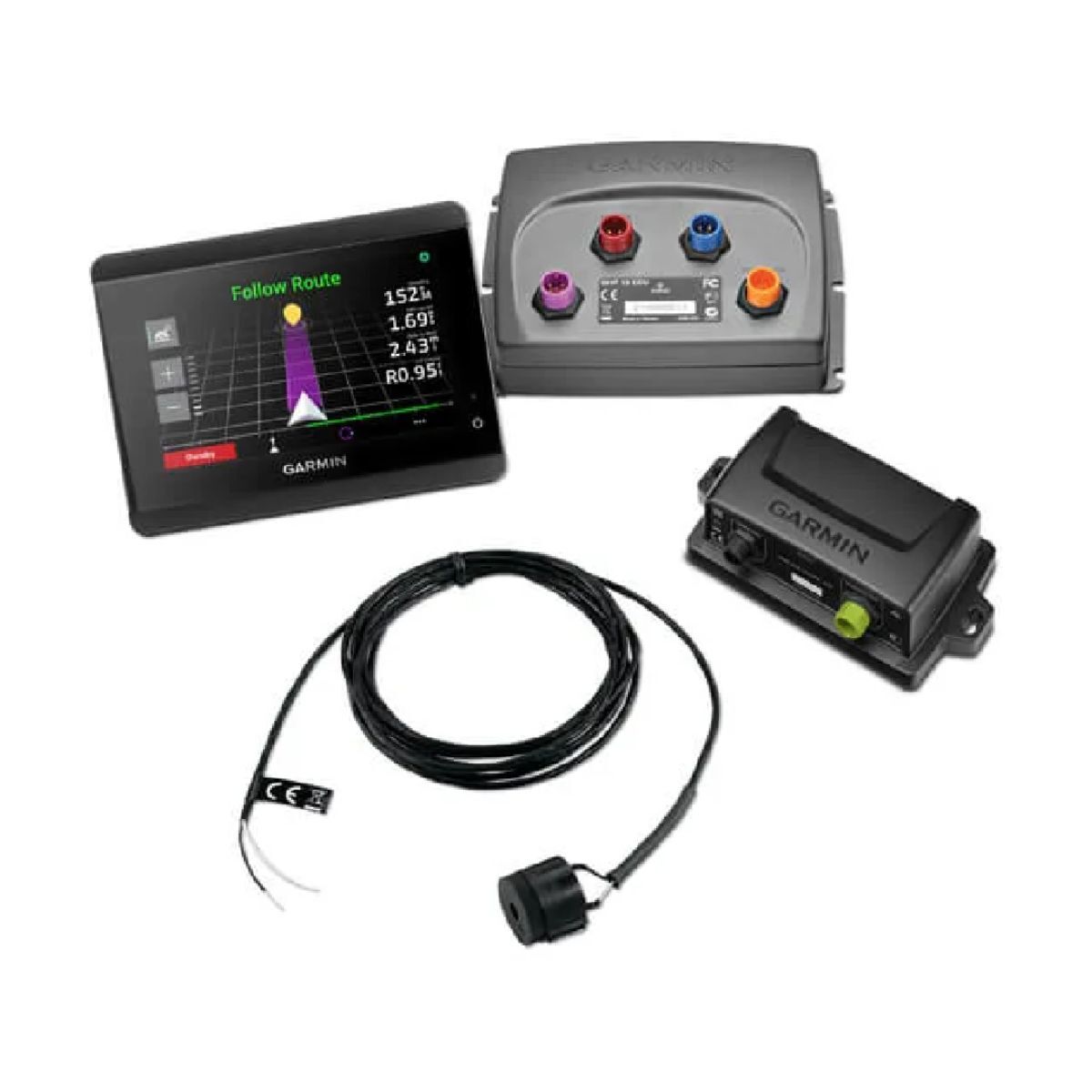

Reactor 40 Mechanical/Retrofit/Solenoid Corepack With GHC 50 Autopilot Instrument
Designed for powerboats and sailboats, the Reactor 40 autopilot gives you the extra hand you need, so you can explore paradise worry-free.
SKU: GAR.010-02794-02 | MPN: 010-02794-02
SAVE $375.79 (10%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
COREPACK COMPATIBILITY
This corepack works with direct or cable-actuated steering systems to support heading hold, wind hold, step turns and tack/jibe modes.
SOLID-STATE 9-AXIS AHRS
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.
REACTS TO WATER CONDITIONS
Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.
SIMPLE CALIBRATION
All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
SHADOW DRIVE™ TECHNOLOGY
Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
THREE CLASS DRIVES
Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.
WIRELESS REMOTE CAPABILITIES
Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
Buzzer/Alarm Specifications
- Dimensions (L x Diameter): 29/32" x 1" (23 mm x 25 mm)
- Weight: 2.4 oz (68 g)
- Temperature range: from 5°F to 131°F (from -15°C to 55°C)
- Cable length: 10 ft (3.0 m)
- CCU dimensions: 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
- ECU dimensions: 6.6" x 4.6" x 2.1" (16.8 x 11.7 x 5.3 cm)
- Supply voltage: 10 V to 30 V
- Operating temperature: -15° C to 60 C° (5° F to 140° F)
- Maximum sustained motor current: 15A
- Maximum instantaneous motor current: 40A
- Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)
SKU | GAR.010-02794-02 |
Model # | 010-02794-02 |
UPC/EAN | 753759302863 |
Brand | Garmin |
Shipping Weight | 0.0680kg |
Shipping Width | 0.260m |
Shipping Height | 0.100m |
Shipping Length | 0.220m |
Shipping Cubic | 0.005720000m3 |
Unit Of Measure | ea |
