The Renogy Black Division 100W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimising its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as Caravan, RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.

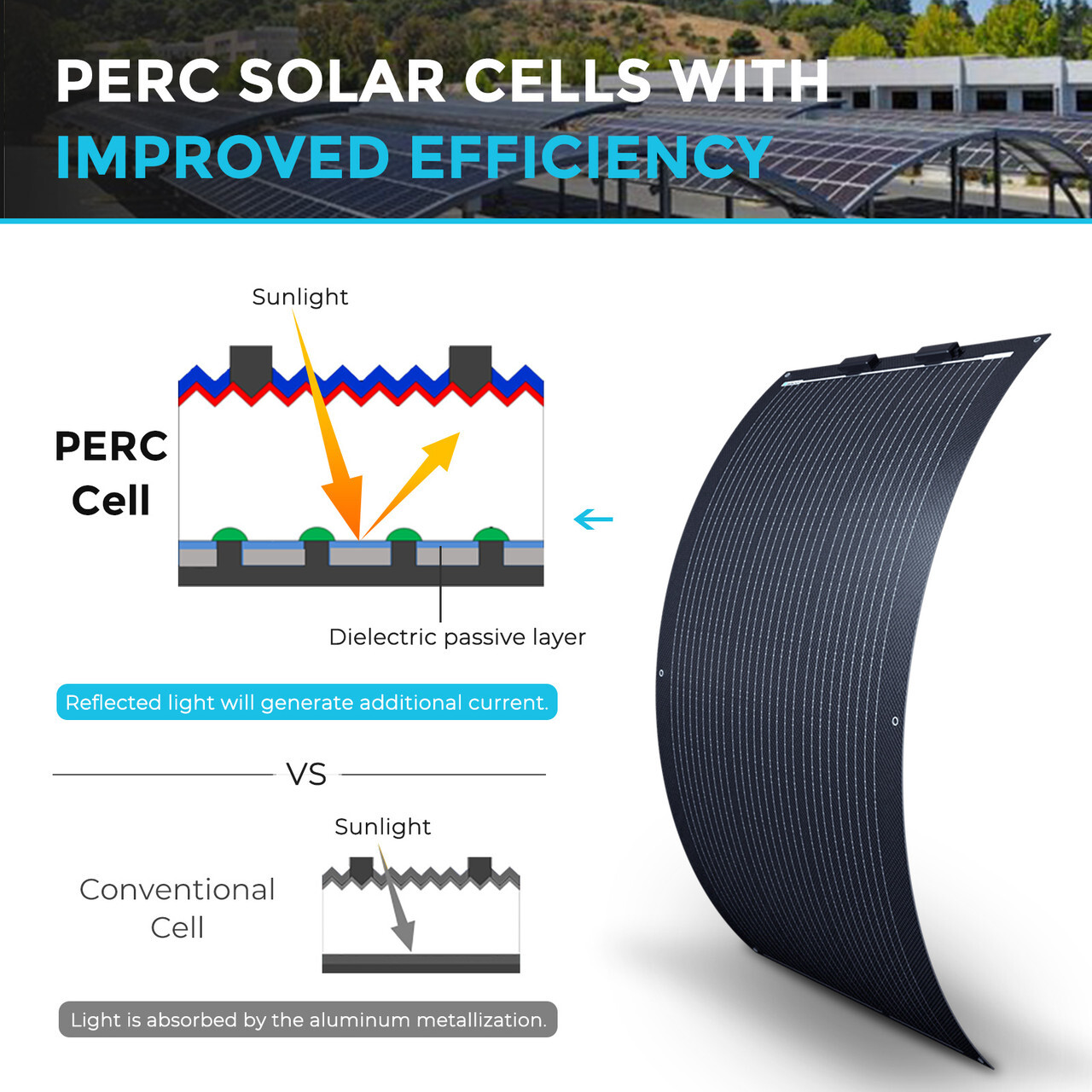

This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.

Key Features:

  • Bendable up to 240°, weighs 1/3 of rigid panels, sleek all-black design.

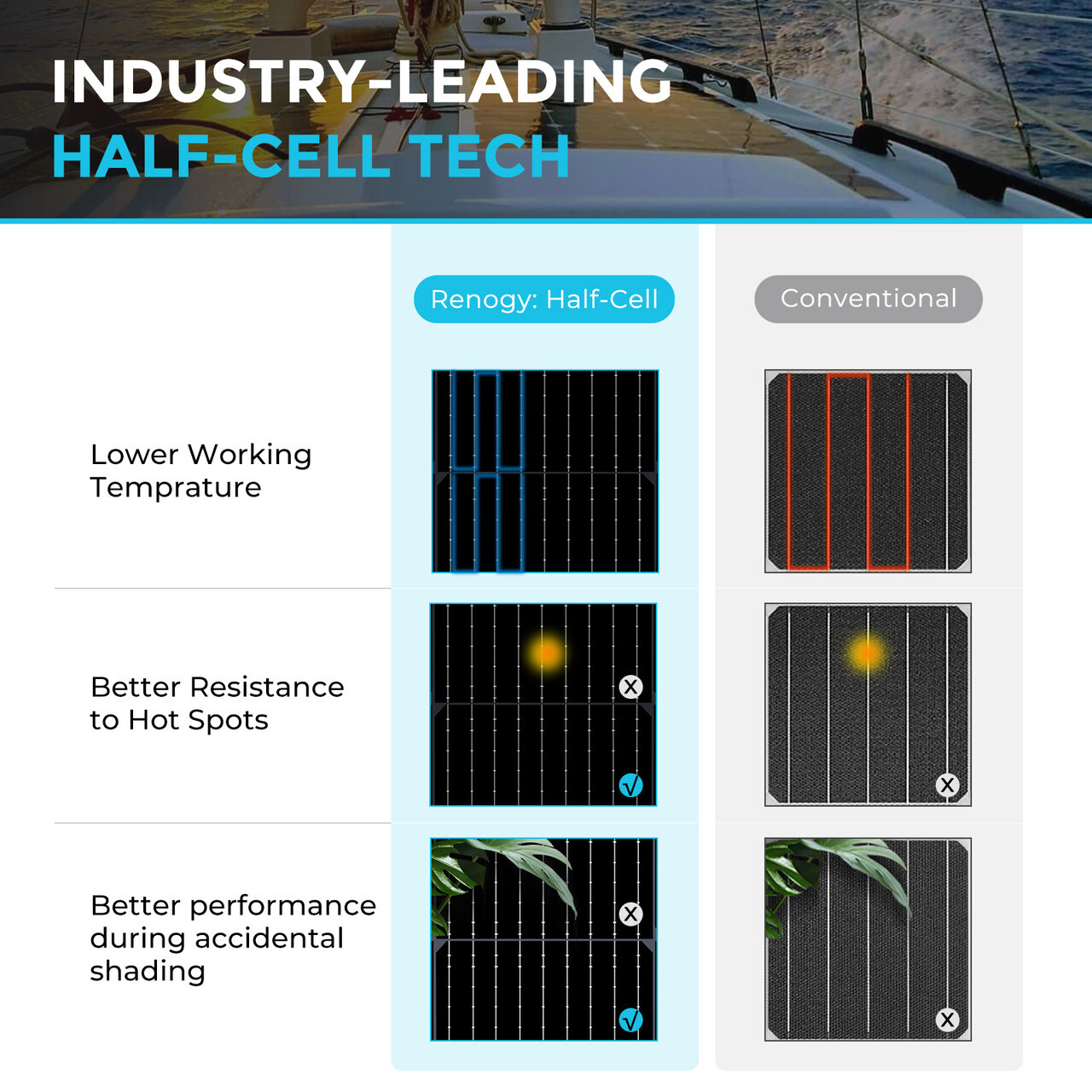

  • Features half-cut PERC cells for enhanced efficiency.
  • IP67 rating, withstands 5400Pa snow/2400Pa wind loads.
  • Pre-drilled holes, 2.3ft cables for quick set up.
  • Extremely lightweight
  • Reliable quality and durable design
  • Quick and inexpensive mounting
  • Ultra thin lamination
  • No hot spots
Renogy RSP100DL-36-AU 100W Flexible Solar Panel

Perfect for Curved Surfaces

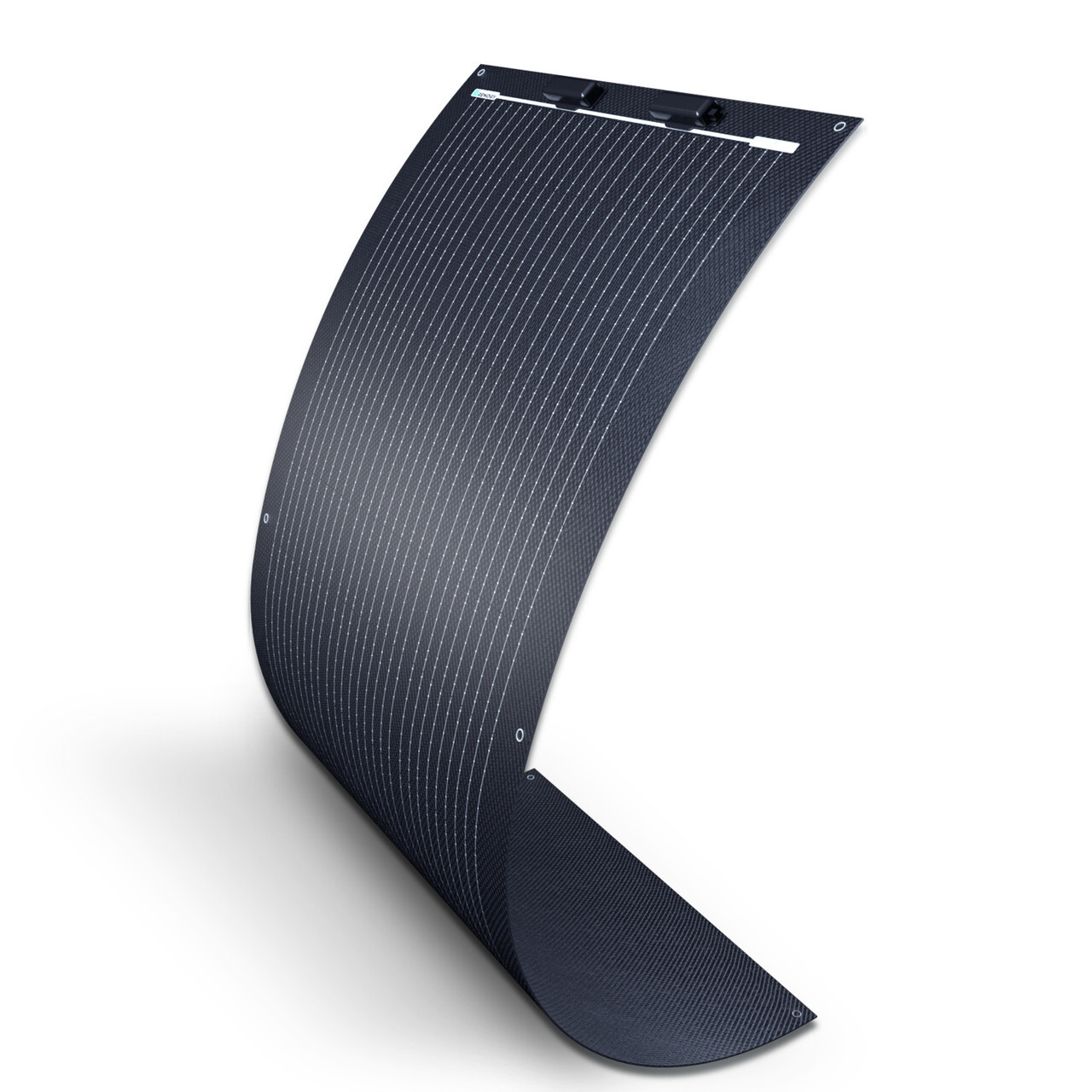

It works with most curved surfaces as it can be bent within 240 degrees. Presenting an all-black glare-free appearance.

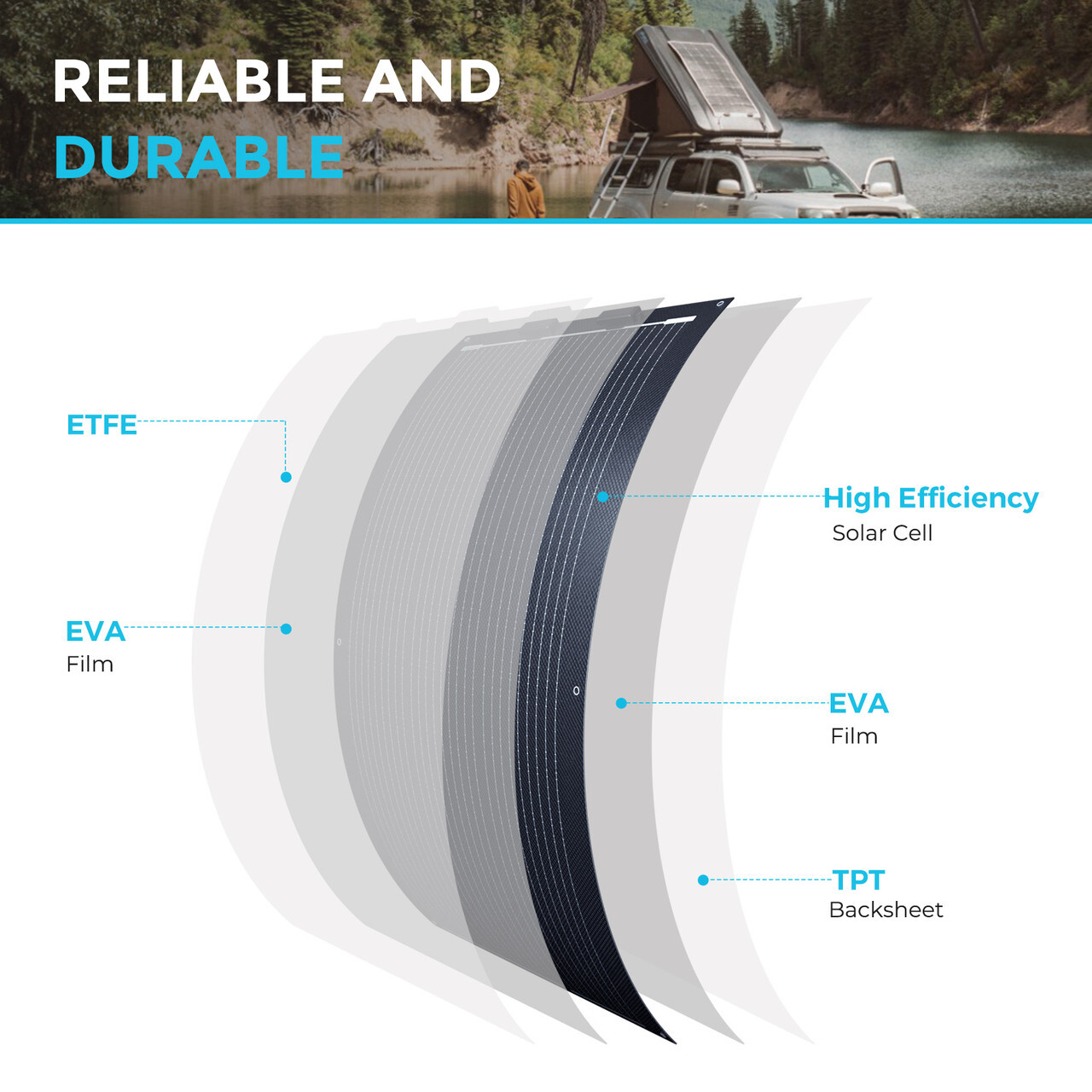

Reliable & Durable

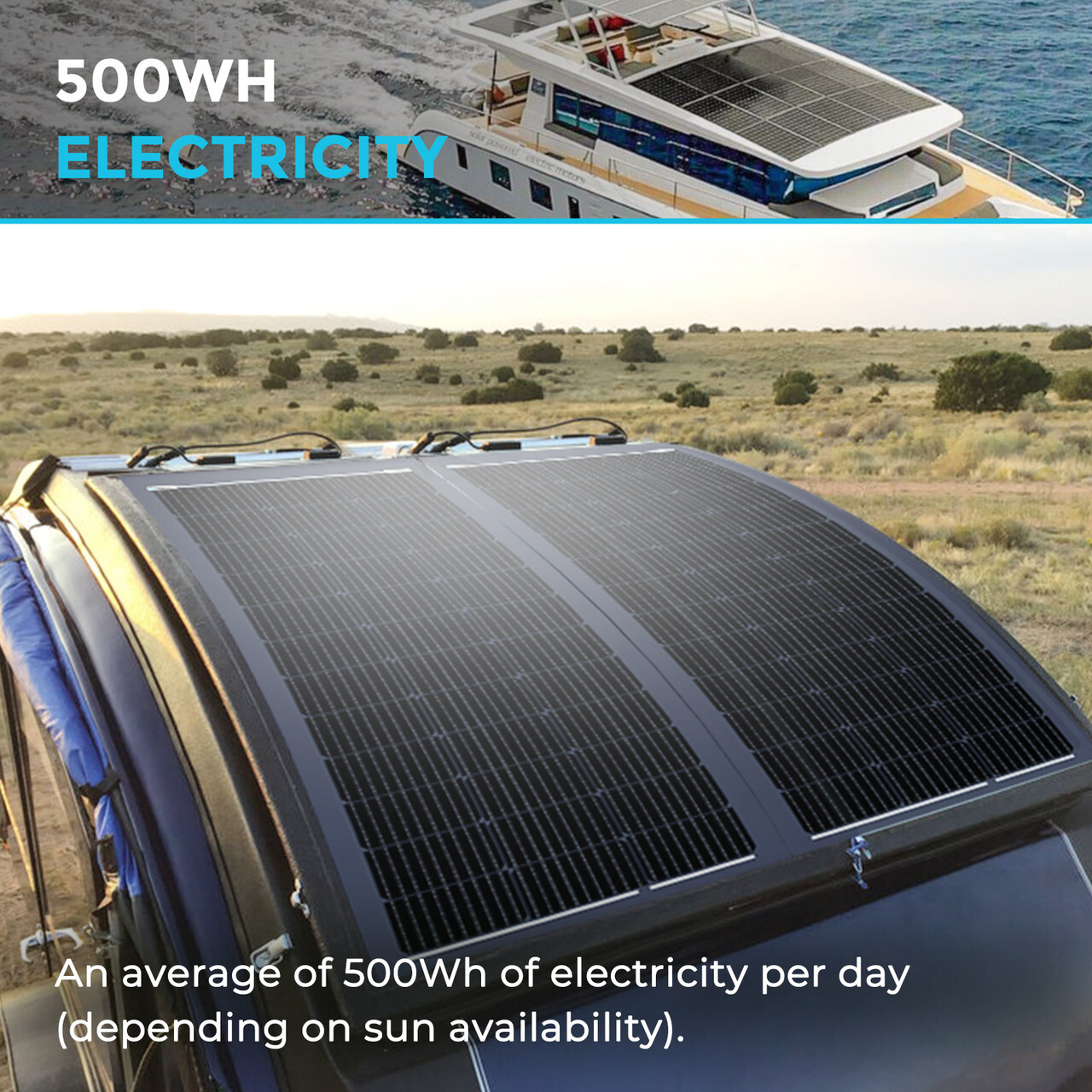

This Renogy Solar Panel can provide an average of ~500 Watt-hours of power per day (depending on sun availability). It offers 5-year material and workmanship warranty and has passed the CE test. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.

Extreme Weather Endurance

Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind load. Provides excellent durability in a harsh environment.

Renogy RSP100DL-36-AU 100W Flexible Solar Panel Mounting Holes

Ready for Installation



This Renogy solar panel comes with pre-drilled holes for quick installation. It can also be bonded to the surface by using silicone adhesive such as Sikaflex or FixTech or even velcro. The solar connector cables are 700mm long without worrying about length limitations.





RSP100DL-36 100W Lightweight Monocrystalline Solar Panel
Electrical Data
Maximum Power at STC* 100 W
Optimum Operating Voltage (Vmp) 19.4 V
Optimum Operating Current (Imp) 5.20 A
Open Circuit Voltage (Voc) 23.5 V
Short Circuit Voltage (Isc) 5.51 A
Module Efficiency 15.7 %
Maximum System Voltage 600 VDC UL
Maximum Series Fuse Rating 15 A
Mechanical Data
Solar Cell Type PERC Monocrystalline (6.5 x 3.3 in)
Number of Cells 36 (3 x 12)

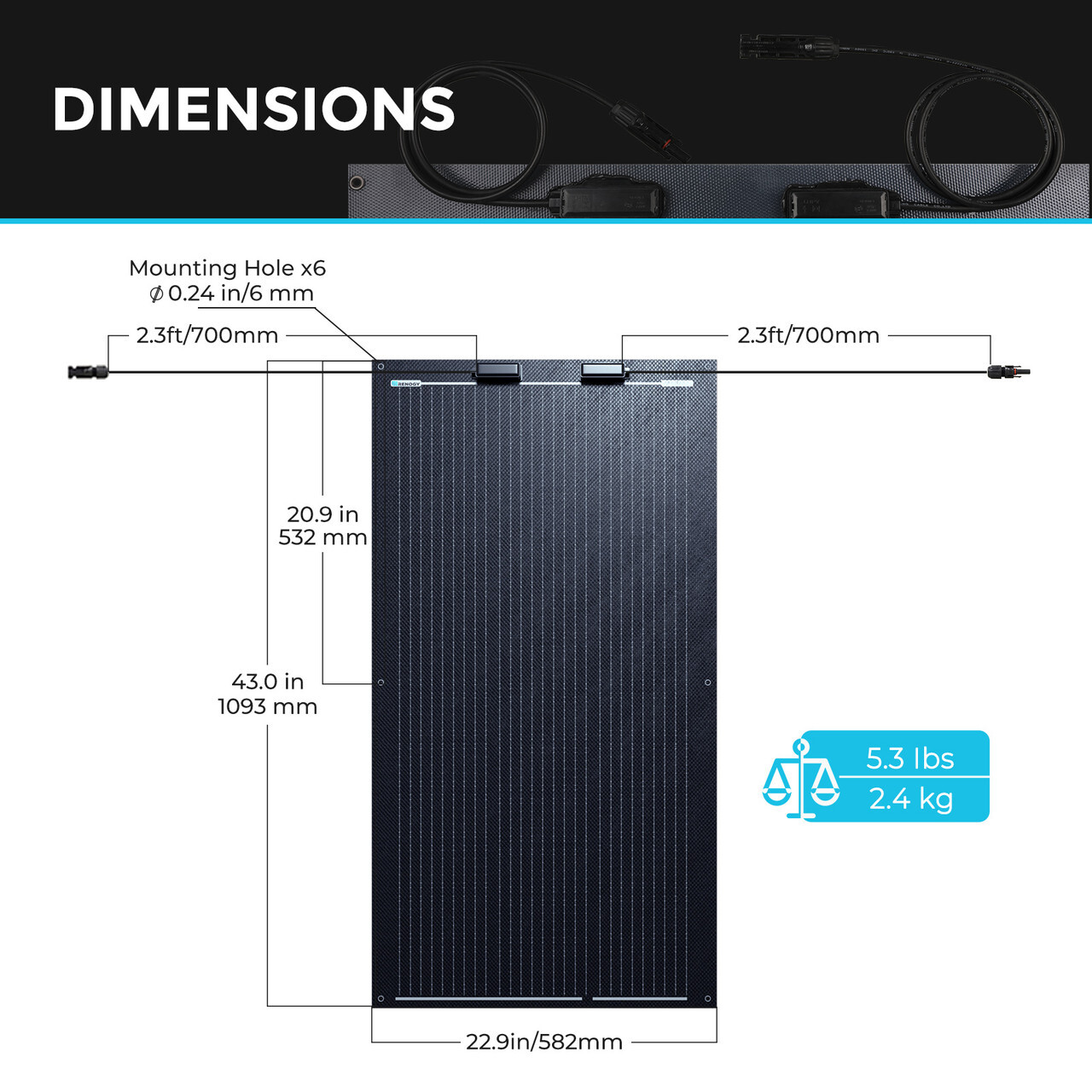

Dimensions 1093 x 582 x 30 mm (43.0 x 22.9 x 0.1 in)
Weight 2.4 kg (5.3 lbs)
Application Class II
Frame None
Connectors Solar Connectors
Fire Performance Type 1
Thermal Characteristics
Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Nominal Operating Cell Temperature (NOCT) 45°C ± 2°C
Temperature Coefficient of Pmax -0.38%/°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficient of Isc 0.05%/°C
MC4 Connectors
Rated Current 30 A
Maximum Voltage 1500 VDC
Maximum AWG Size Range 12 AWG
Temperature Range -40°C - 85°C (-40°F - 185°F)
IP Rating IP 67
Junction Box
IP Rating IP 67
Diode Type HY 10SQ050
Number of Diodes 2 Diodes
Output Cables 12 AWG 700mm (27.6 in)
Certifications
CE, ISO 9001: Quality Management System
SKU REN.RSP100DL-36-AU
Model # RSP100DL-36-G2-AU
Brand Renogy
Shipping Weight 6.5000kg
Shipping Width 1.100m
Shipping Height 0.040m
Shipping Length 0.510m
Shipping Cubic 0.022440000m3
Unit Of Measure ea
