Integrated off grid inverter charger delivering clean continuous backup power

This inverter charger is built for flexible off-grid applications, converting DC power from a battery bank into stable household AC power while also charging and maintaining batteries when connected to shore power. It supports lithium battery systems and features a low transfer time to ensure uninterrupted power when switching between shore and battery sources, delivering clean and quiet energy for connected appliances and electronics.

Key Features

  • Pure Sine Wave Technology: Generates clean AC power with minimal harmonic distortion to safely operate sensitive and delicate appliances.

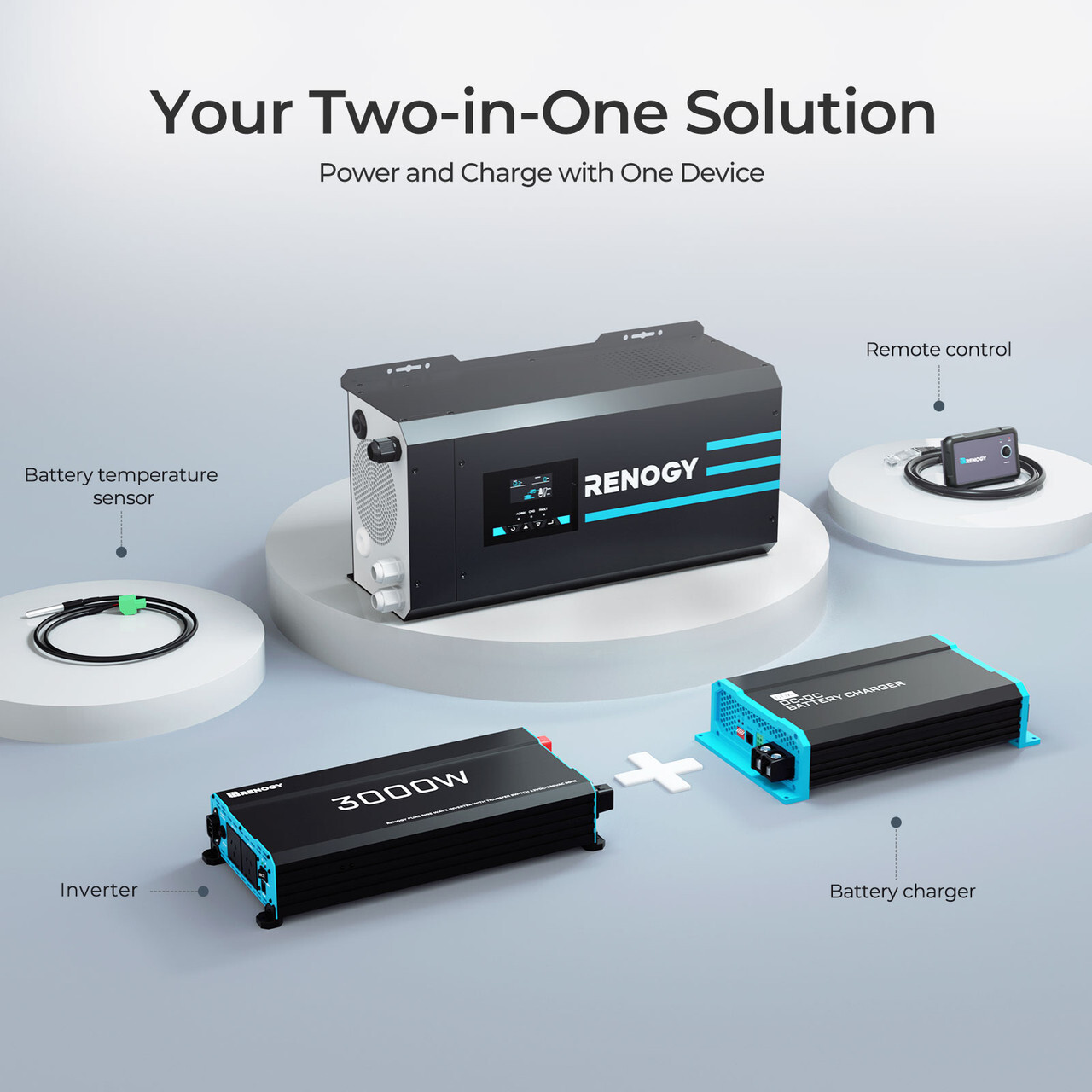

  • Integrated Inverter and Charger: Combines DC-to-AC power conversion with intelligent battery charging in a single unit for simplified system design.
  • LCD and LED Display Interface: Provides clear visibility of inverter status, operating conditions, and programmable settings.
  • Advanced Battery Charging: Utilises a four-stage charging profile with configurable charging current from 5 A to 65 A for optimised battery performance.
  • Broad Battery Compatibility: Includes eight preset battery voltage profiles, including lithium, with a user-defined option for custom configurations.
  • Low Transfer Time Operation: Maintains uninterrupted power delivery when switching between shore power and battery supply.
  • Automatic Generator Start Support: Enables seamless integration with generator systems for extended off-grid operation.
  • High Efficiency Performance: Achieves peak efficiency greater than 90 percent to maximise usable battery energy.
  • Comprehensive Electronic Protection: Incorporates multiple electronic protection mechanisms to safeguard the system and connected equipment.

Designed to deliver reliable power conversion and intelligent charging, this solution simplifies off-grid energy systems while ensuring stable, uninterrupted operation.

Model R-INVT-PCL1-20123S
Rated Output Power 2000W
Surge Power (1 second) 6000W
Surge Power (3 seconds) 3000W
Surge Power (10 seconds) 2400W
Nominal output Voltage RMS 120/230VAC ( 100 - 120VAC, 5V intervals; 200 - 240VAC 10V intervals)
Outuput Frequency 50HZ ± 0.3HZ or 60HZ ± 0.3HZ
Output Wave Form Pure Sine Wave
Output Overload 105% < Load < 120% ± 10% : Fault ( Turn off output after 10 seconds)
120% < Load < 150% ± 10% : Fault ( Turn off output after 3 seconds)
150% < Load ± 10% : Fault ( Turn off output after 1 seconds)
Nominal Input Voltage 12VDC
Input Voltage Range 10 - 16 VDC ± 0.3 VDC
Low DC Warning Voltage 10.5 VDC ± 0.3 VDC
Low DC Cut-off Voltage 10 VDC ± 0.3 VDC
Short Circuit Protection Software Protection
Nominal Efficiency > 90% Peak
No load power Consumption Normal:<20W

Power Saving:<1SW



Charger Specifications
Nominal Input Voltage 120/230VAC
Input Voltage Range 90-138 / 155-275 VAC
Input Frequency Range 40Hz - 70Hz
Input Wave Form Sine Wave (Utility or Generator)
Power Factor 0.9-1
Optimal Efficiency >85%
Output Current 5-65A
Configurable, 5A intervals
Short Circuit Protection Circuit Breaker
Output Overload 120% < Load< 150% ± 10% Fault (Turnoff output after 60 seconds) 150% < Load ± 10% : Fault ( Turn off output after 1 second)
Over Charge Protection Shutdown 16.0V for 12VDC



Transfer Switch Specifications
Transfer Time -10ms
Transfer Relay Rating 3 Legs @ 40A each (277VAC)
Line Mode Efficiency > 95%

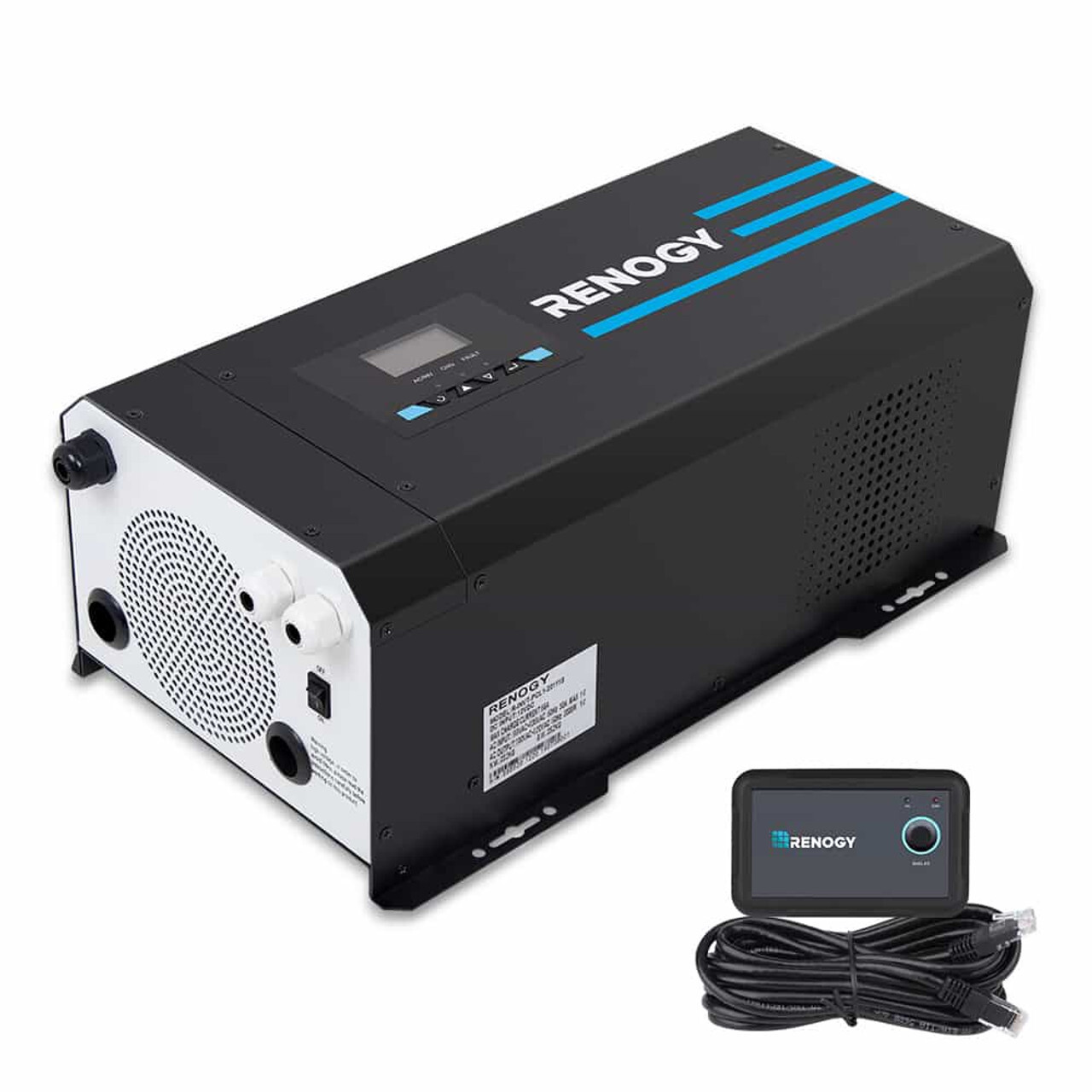

Wired Remote Control
Dimensions 70 x 110 x 31.8 mm
Cable Length Approx. 5 metres
General Specifications
Battery Types GEL, AGM, SLA, FLD, CAL, LIF, USER
Operating Temperature Range 0-40°C
Storage Temperature -30-70°C
Humidity 0% - 95% RH
Noise <50dB

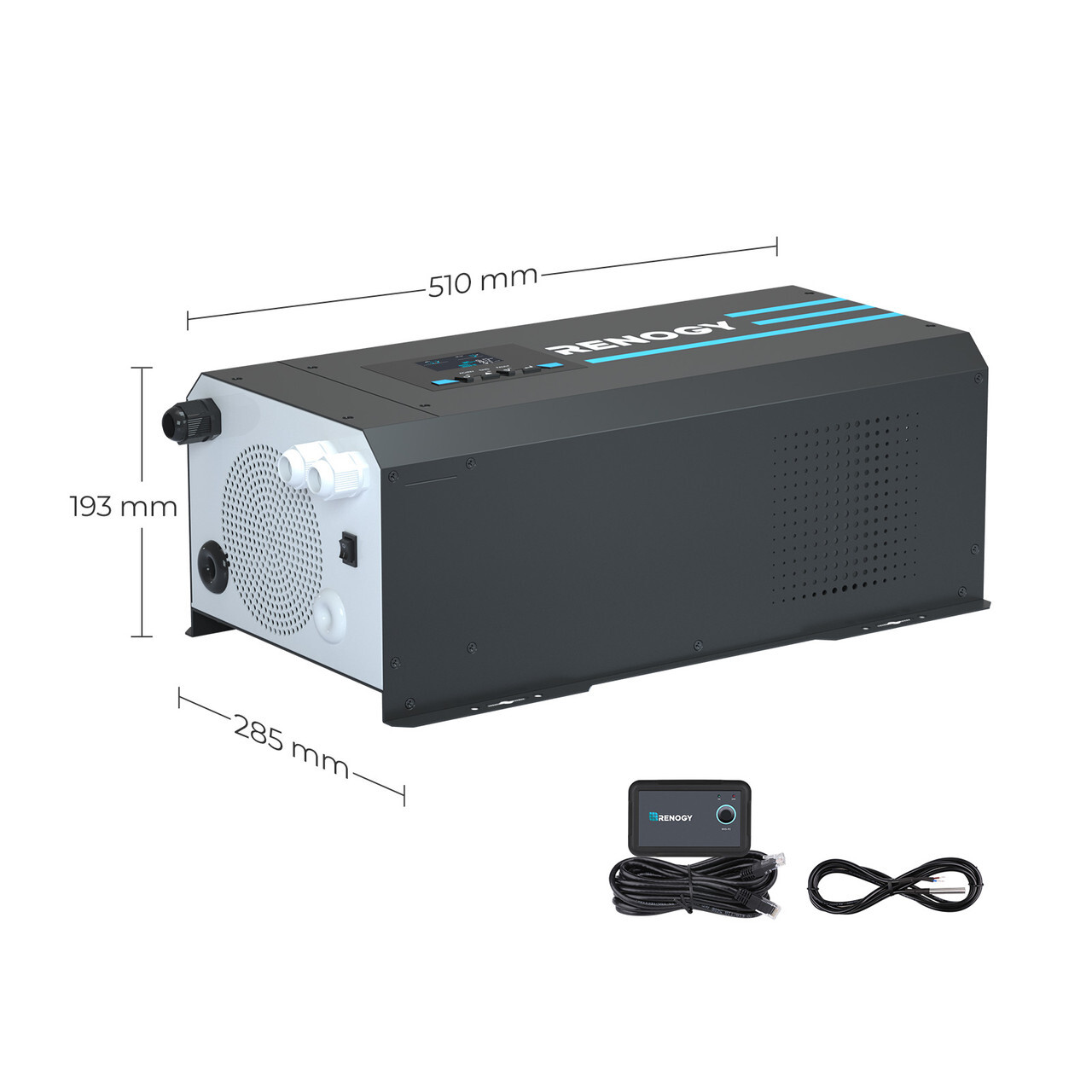

Dimensions 510 x 285 x 193 mm
Weight 28.8KG
Certifications ETL listed to CSA Standard
C22.2 No. 107.1 and UL458 with Marine Supplement
Warranty 1 Year

Product specifications are subject to change without further notice

SKU REN.R-INVT-PCL1-20123S-AU
Model # R-INVT-PCL1-20123S-AU
Brand Renogy
Shipping Weight 23.5000kg
Shipping Width 0.550m
Shipping Height 0.200m
Shipping Length 0.250m
Shipping Cubic 0.027500000m3
