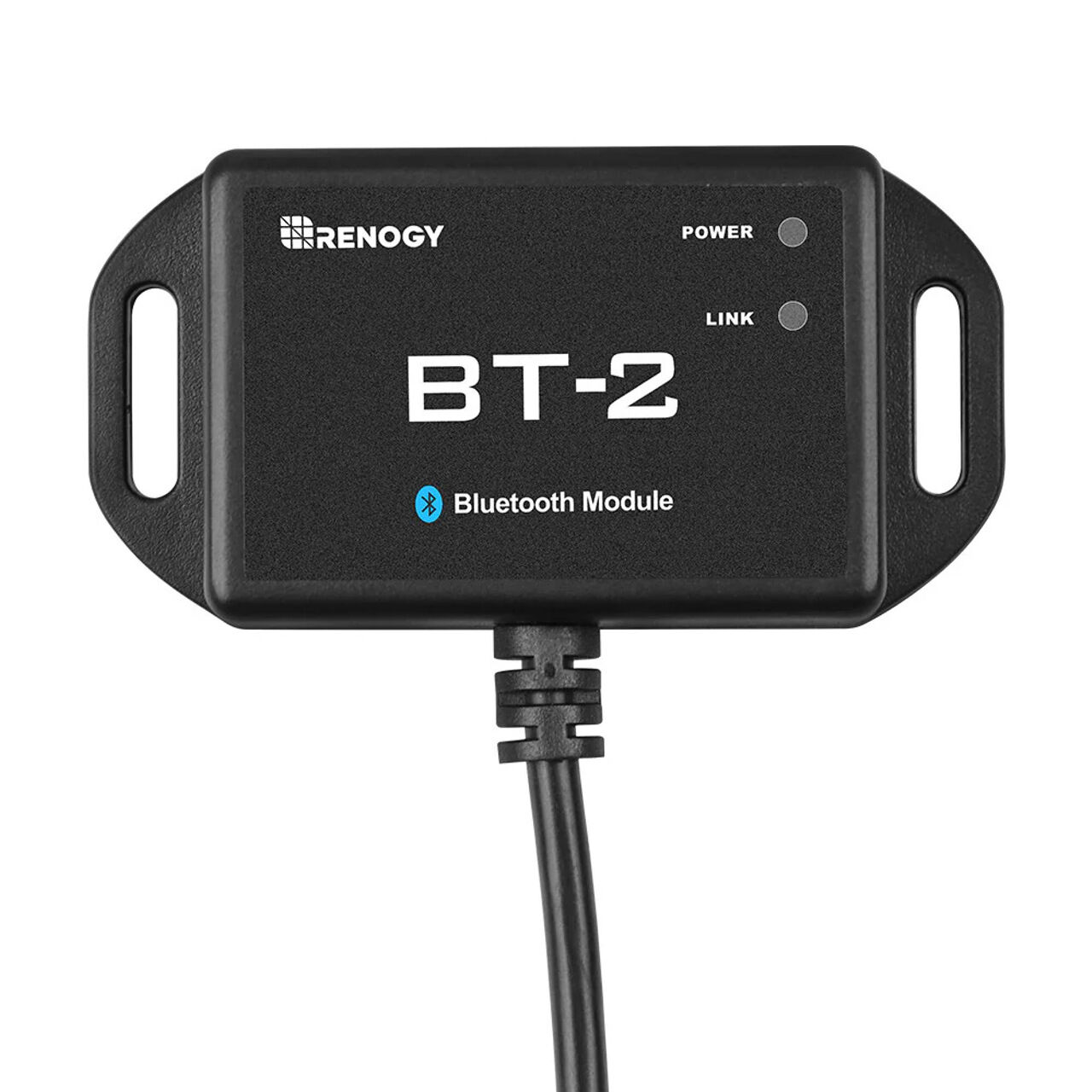

Renogy CORE BT-2 Bluetooth Module for Rs485 Port
Compact Bluetooth module for Renogy systems. Enables real-time wireless monitoring, easy setup, and efficient control through RS485 connection and DC Home app.
SKU: REN.RCM-BT2-G2-AU | MPN: RCM-BT2-G2-AU
SAVE $0.26 (1%)
Vendor Warehouse - Stock availability will need to be confirmed with vendor
Wireless Connectivity for Smarter Solar System Monitoring

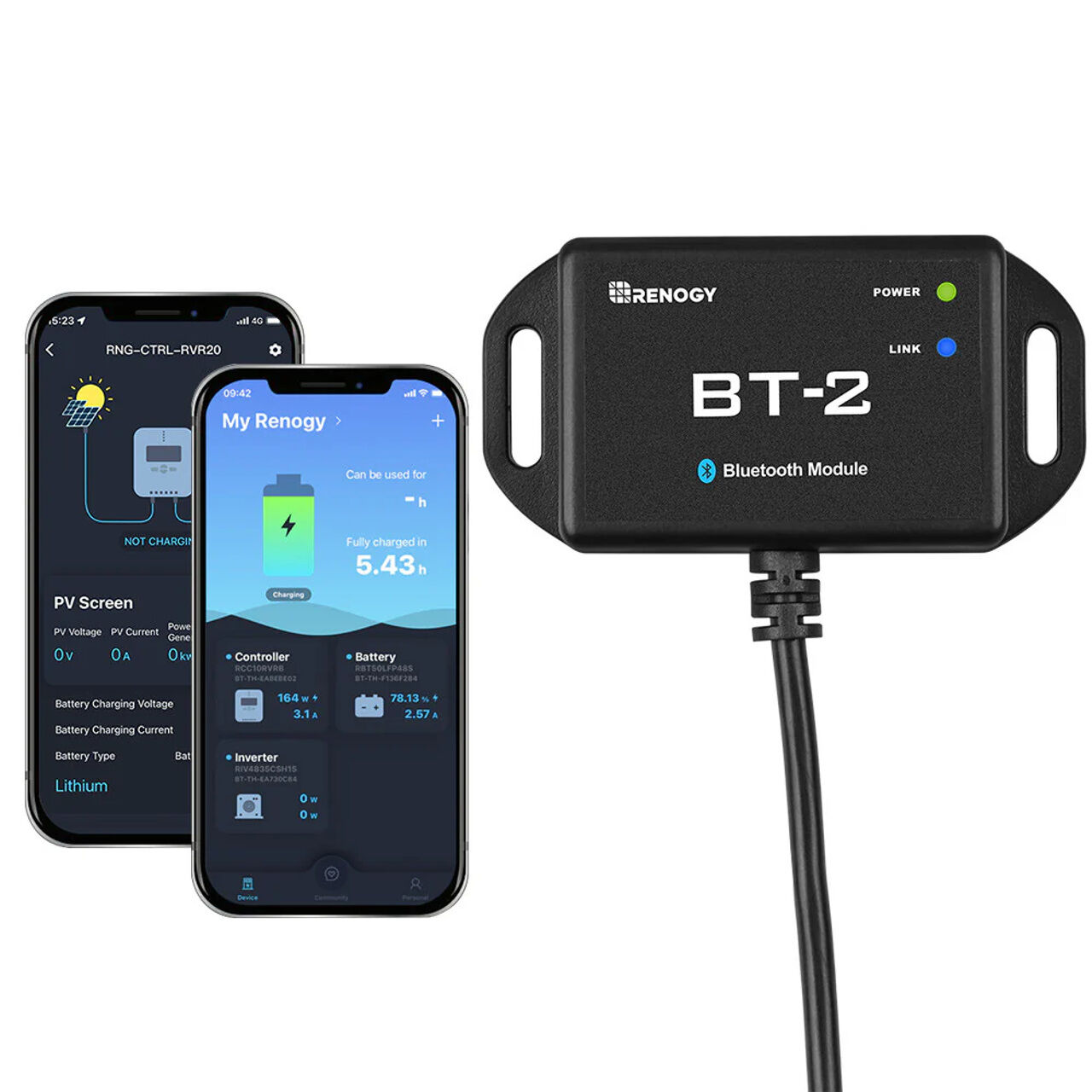

The Renogy BT-2 Bluetooth Module enables seamless wireless communication between Renogy devices and your smartphone. Designed for systems with RS485 communication ports, it provides real-time access to performance data through the Renogy DC Home app. Compact, efficient, and durable, it simplifies monitoring and control for solar systems in homes, RVs, or off-grid setups.
Key Features
- Plug-and-Play Integration: Instantly connects to Renogy devices equipped with RS485 ports for effortless installation.
- Wireless Monitoring: Provides real-time data on voltage, current, and battery status via the Renogy DC Home app.
- Low Power Consumption: Consumes less than 0.05 W, ensuring negligible impact on system energy use.
- Wide Communication Range: Offers reliable Bluetooth connectivity up to 25 metres for flexible access.
- Robust Construction: Rated IP54 for dust and splash protection, ideal for off-grid or mobile environments.
- Smart Compatibility: Works with charge controllers, inverter-chargers, and smart batteries for cohesive system monitoring.
Compact and highly efficient, this Bluetooth module delivers powerful control and convenience—making energy management simpler and smarter.
| Technical Specifications | |
|---|---|
| Communication Protocol | RS485 |
| Port Type | RJ45 |
| Input Voltage | 5 V or 12 V DC |
| Standby Power Consumption | 0.04 W |
| Operating Power Consumption | 0.05 W |
| Communication Range | Up to 25 m (82 ft) |
| Serial Baud Rate | 9600 bps (fixed) |
| Cable Length | 5.0 m (16.4 ft) |
| Dimensions | 67.3 × 35 × 14 mm (2.65 × 1.38 × 0.55 in) |
| Weight | 130 g (4.58 oz) |
| Operating Temperature | –20 °C to +85 °C (–4 °F to 185 °F) |
| Protection Rating | IP54 Dust and Splash Resistance |
| Warranty | 1 Year |
| SKU | REN.RCM-BT2-G2-AU |
| Model # | RCM-BT2-G2-AU |
| Brand | Renogy |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.067m |
| Shipping Height | 0.014m |
| Shipping Length | 0.035m |
| Shipping Cubic | 0.000033000m3 |
| Unit Of Measure | ea |
