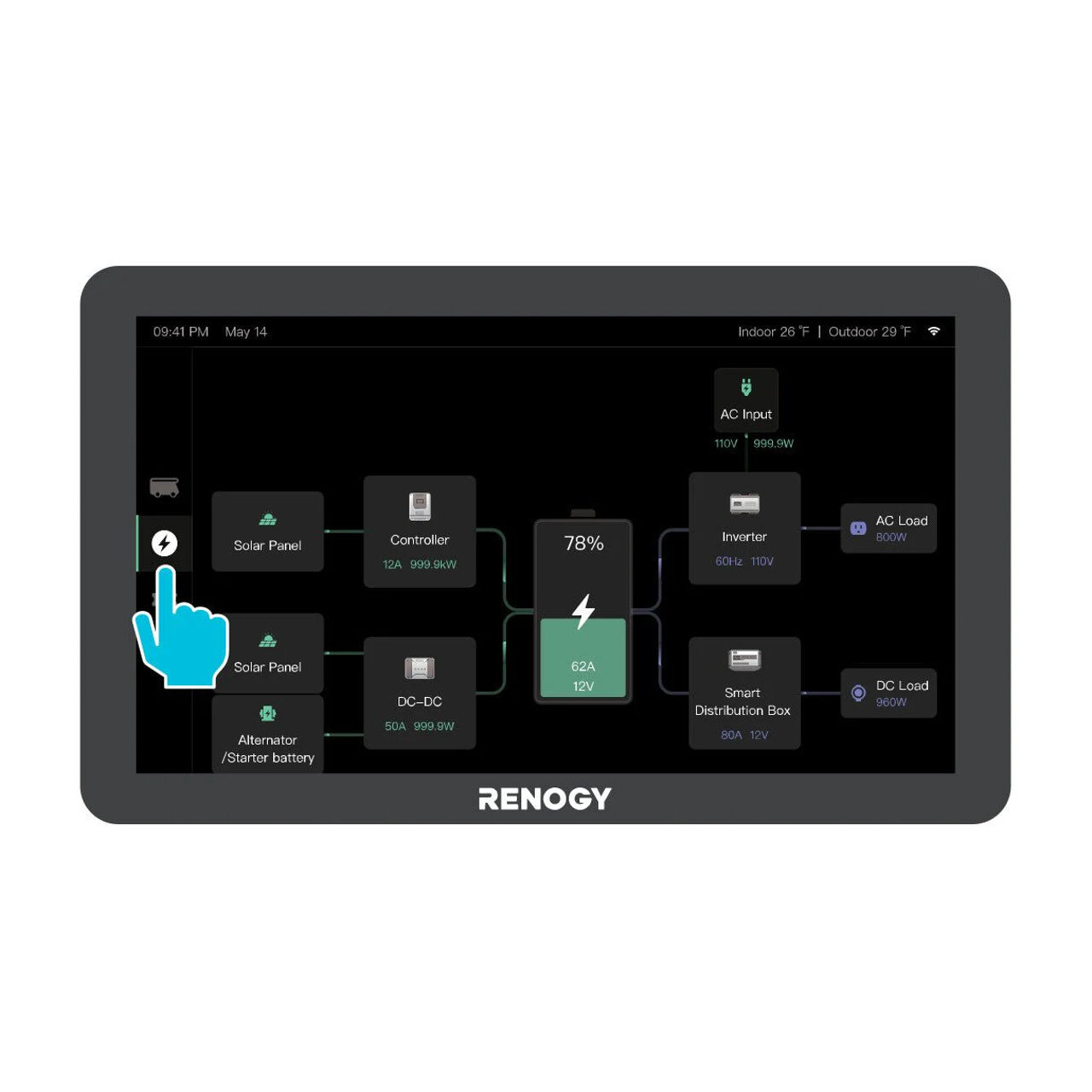

Smart Touch Display for Complete Off-Grid Power Management

The Renogy ONE Vision 7” is a centralised power management and control display designed to simplify monitoring across RVs, boats, and off-grid systems. Built to work seamlessly with the Renogy ONE Core and compatible smart devices, it provides real-time energy insights, system control, and diagnostic functions. Its intuitive 7-inch touchscreen enables easy operation, while robust wireless connectivity supports networked monitoring through Wi-Fi, Bluetooth, or Ethernet.

Key Features

  • Centralised Power Management: Monitors solar, battery, inverter, and load data to optimise power efficiency.
  • Intuitive 7-Inch Display: High-resolution touchscreen interface for easy navigation and system control.
  • Dual Wireless Connectivity: Supports 2.4 GHz Wi-Fi and Bluetooth for flexible communication with Renogy ONE Core.
  • Custom Scene Automation: Allows users to automate and personalise system settings and notification preferences.
  • Advanced Diagnostics: Provides self-diagnosis, real-time alerts, and troubleshooting guidance to reduce downtime.
  • Wide DC Input Range: Operates on 8–60 V DC for compatibility with a variety of off-grid systems.
  • Rugged Reliability: Performs consistently in extreme environments from –20 °C to +70 °C, with UL94V-0 fire rating.
  • Flush-Mount Design: Sleek installation for RV, marine, or home power systems, ensuring professional finish.

Designed as the visual hub of the Renogy ONE ecosystem, this smart display unifies monitoring, automation, and diagnostics—empowering effortless energy control anywhere.

Technical Specifications
Model Name RSHSN-W02W7-G1
Input Voltage 8 – 60 V DC (Typical 12 V DC)
Power Consumption 0.5 W @12 V (Screen Off, Wi-Fi On)
Display Type 7-inch Touch Screen, 600 × 1024 Resolution, 300 cd/m² Brightness
Processor & Memory Quad-Core Cortex-A53 64-bit, 2 GB RAM, 32 GB Storage
Operating System Android 12
Communication Interfaces Wi-Fi (2.4 GHz IEEE 802.11 b/g/n), Bluetooth Low Energy 2.4 GHz, Ethernet 100 Mbps
USB Port USB-A OTG (for Flash Drive)
Installation Flush Mount
Fire Rating UL 94V-0
Dimensions 181.4 × 118.4 × 25.2 mm (7.1 × 4.7 × 0.99 in)
Weight 0.77 lb (350 g)
Operating Temperature –20 °C to +70 °C (–4 °F to 158 °F)
Storage Temperature –30 °C to +80 °C (–22 °F to 176 °F)
Operating Humidity 10 % – 90 % RH (non-condensing)
Operating Altitude ≤ 5000 m (16,404 ft)
Certifications RCM, FCC, CE, IC, UKCA, RoHS, REACH
Warranty 2 Years
SKU REN.RSHSN-W02W7-G1-AU
Model # RSHSN-W02W7-G1-AU
Brand Renogy
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.250m
Shipping Length 0.150m
Shipping Cubic 0.007500000m3
Unit Of Measure ea
