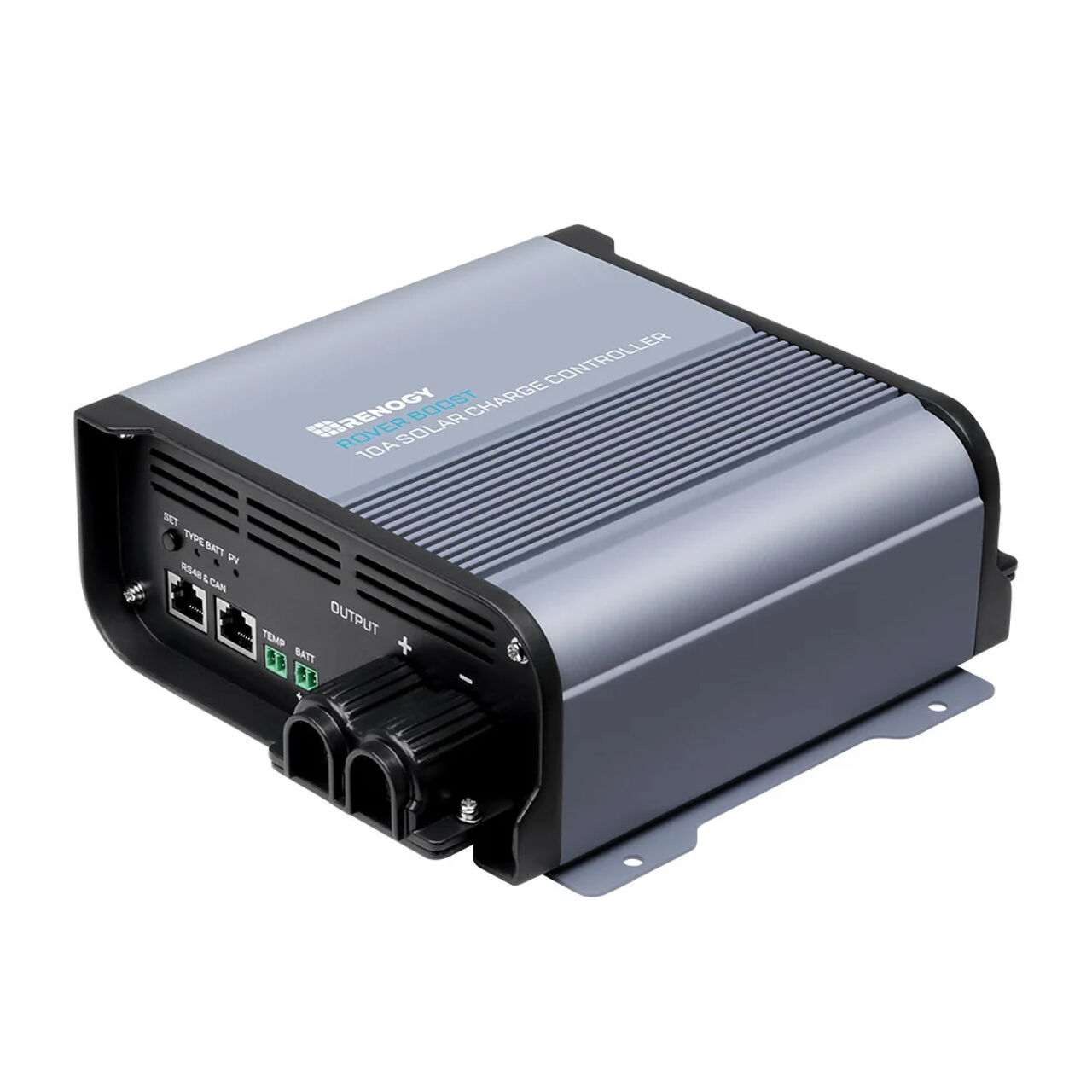

Boost MPPT Solar Charge Controller for High-Voltage Battery Charging in Compact Solar Systems

This boost MPPT solar charge controller is built for charging higher-voltage battery banks from lower-voltage solar arrays, making it suitable for installations where available panel space is limited. It uses Maximum Power Point Tracking to optimise energy harvesting and supports multiple battery chemistries with configurable charging profiles. Integrated system monitoring, electronic protection functions, communication interfaces and optional Bluetooth connectivity support controlled charging and system management across mobile, off-grid and specialised solar applications. RCC10RVRB-Datasheet SP (1)

Key Features

  • Boost charging architecture: Allows a lower-voltage solar array to charge a higher-voltage battery bank.
  • Automatic system recognition: Detects supported lead-acid battery system voltage for simplified configuration.
  • Advanced MPPT charging: Tracks the solar array operating point to maximise available charging energy.
  • Multiple battery profiles: Supports AGM, gel, flooded, lithium iron phosphate and user-configurable battery charging.
  • Multi-stage battery management: Uses staged charging to manage battery replenishment and maintenance.
  • System status indication: Integrated LEDs provide operating information and assist with identifying faults.
  • Comprehensive electronic protection: Includes protection against battery and solar polarity faults, overcharging, excessive discharge, short circuits, excessive current and temperature conditions.
  • Remote monitoring ready: Supports an optional Bluetooth module for use with Renogy's monitoring application.
  • System communication: Integrated serial and CAN connectivity supports monitoring and controller integration.
  • Parallel controller support: CAN communication allows compatible controllers to operate together within a system.

The controller combines boost conversion, MPPT regulation and configurable battery charging in a compact enclosure. Its monitoring and protection functions support installation in space-constrained solar charging systems.

Rated System Voltage 36 V / 48 V, automatic recognition for non-lithium batteries
Rated Charge Current 10 A
Battery Operating Range 30–65 V DC
Battery Types AGM, Gel, Flooded, LFP, User
PV Input Power 500 W at 36 V / 650 W at 48 V
Charging Power 450 W at 36 V / 600 W at 48 V
Maximum Input Current (Isc) 35 A
Power Limiting Protection Up to 600 W at 36 V / 800 W at 48 V
Solar Input Voltage Range (VOC) 15–25 V DC at 36 V / 15–40 V DC at 48 V
MPPT Voltage Range 15–25 V DC at 36 V / 15–40 V DC at 48 V
MPPT Tracking Efficiency ≥99%
MPPT Charge Conversion Efficiency ≥90%
Idle Consumption ≤2 W
Operating Temperature Range -35°C to +65°C
Storage Temperature Range -40°C to +80°C
Temperature Compensation -3 mV/°C per 2 V for non-lithium batteries; 0 mV/°C per 2 V for lithium batteries
Grounding Type Common negative lug, M3
Enclosure Rating IP20
Humidity 0–95% RH
Electronic Protections Battery overcharging, battery over-discharge, battery reverse polarity, PV reverse polarity, PV reverse flow, PV short-circuit, controller internal over-temperature and charging over-current protection
Communication RS485 / CAN bus signal
Dimensions 224 × 192 × 74.5 mm
Weight 1.2 kg
Terminal Range 16–2 AWG
Terminal Size M6-12 × 1
Certifications CE, FCC Part 15 Class B, RoHS
SKU REN.RCC10RVRB-G1-AU
Model # RCC10RVRB-G1-AU
Brand Renogy
Shipping Weight 1.5000kg
Shipping Width 0.224m
Shipping Height 0.750m
Shipping Length 0.192m
Shipping Cubic 0.032256000m3
Unit Of Measure ea
