The RG-POE-AT30, a 1-Port PoE Injector, offers a stable power supply for network devices in hotels, homes, and offices. It features a wide operating temperature range, high surge protection, and supports 1000Base-T Ethernet, making it ideal for powering PoE-enabled devices.

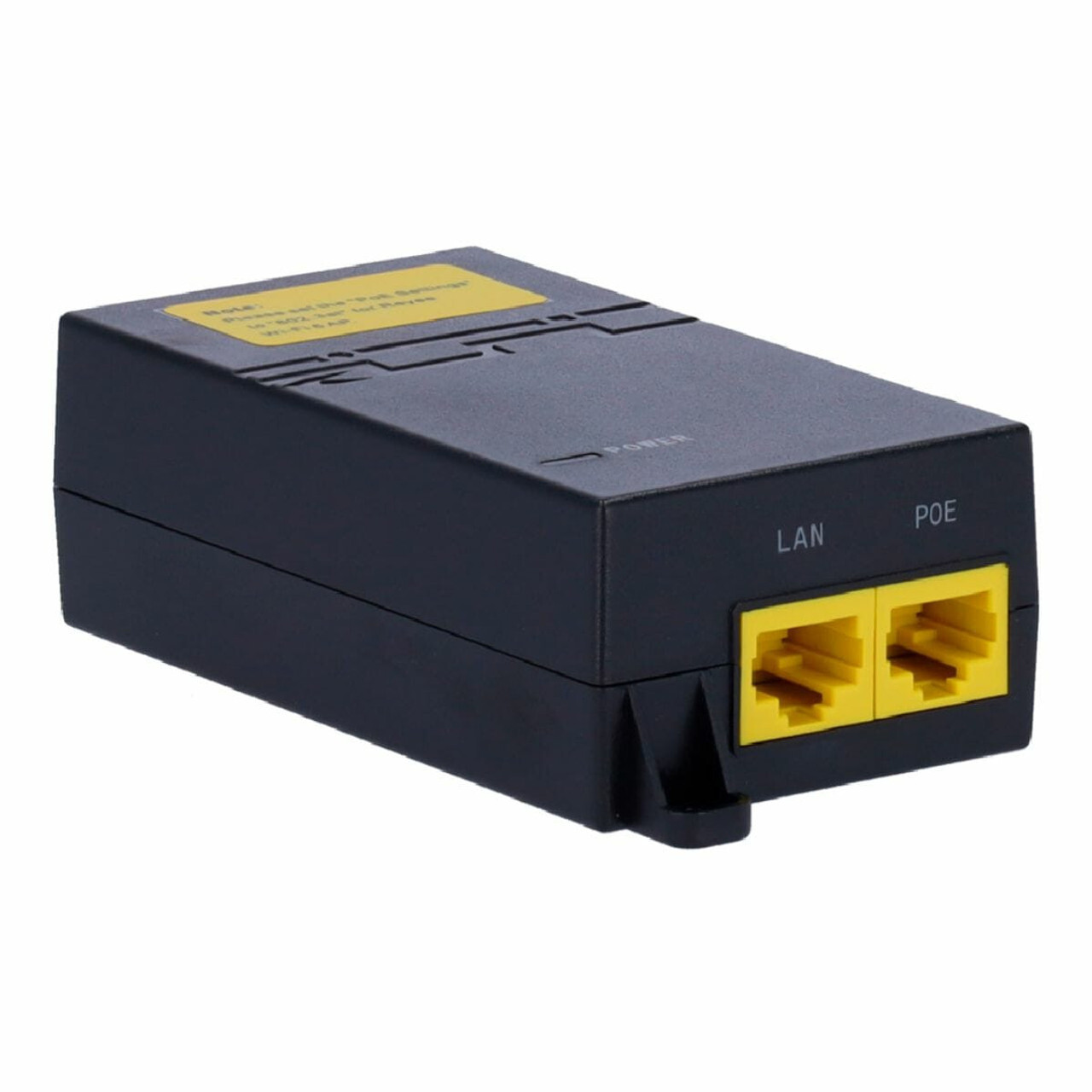

Ruijie Reyee RG-POE-AT30 AT PoE injector 31.2W

The RG-POE-AT30 is a 1-Port PoE Injector designed to enhance network connectivity in various environments such as hotels, homes, and offices. This device is essential for powering PoE-enabled devices like access points, IP cameras, and VoIP phones, providing both data and power over a single Ethernet cable.

Highlight Features:

  • Stable Power Supply:

    Delivers a stable and high-performance power supply to connected devices, ensuring reliable operation.

  • Wide Operating Temperature Range:

    Functions effectively in a temperature range from -10℃ to +45℃, suitable for various environmental conditions.

  • High Surge Protection:

    Offers a high surge protection rating, safeguarding connected equipment against voltage spikes.

The RG-POE-AT30 is an excellent solution for expanding network capabilities while ensuring the safety and efficiency of power delivery to essential devices.

RG-POE-AT30 Specifications
Dimensions 95.2 mm x 52.2 mm x 33.2 mm ± 1 mm (3.75 in. x 2.05 in. x 1.31 in.)
Weight 145±5g (5.11 Oz)
Output Voltage 52V±5% @ 0.60A
Gigabit LAN Port 1G
Remote Reset Capability No
Reset Button No
Rated Voltage 100-240V AC @ 50/60Hz
Input Current 0.7A(Max)
Inrush Current 100A @ 230V AC
Average active efficiency 89.36%
Efficiency at low load (10%) 84.34%
No-load power consumption 0.085W
Output Ripple <1%
Switching Frequency 65KHz
Line Regulation ≤5%
Load Regulation ≤5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering NA
Operating Temperature ﹣10℃ to 45℃ (14 to 113° F)
Storage Temperature -40℃ to +70℃ (-40 to 158° F)
Operating Humidity 5~95% RH, Non-condensing

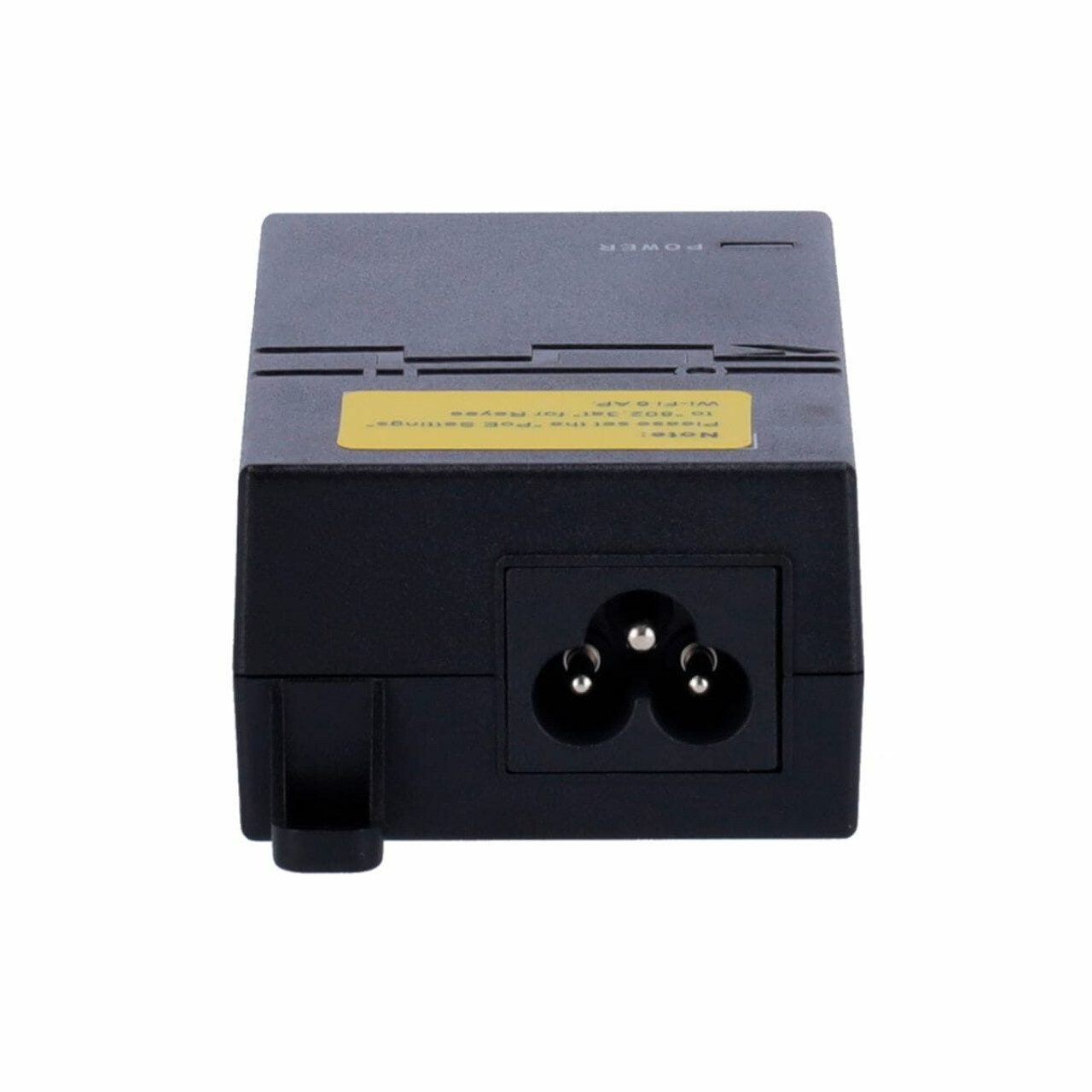

AC Connector IEC-320 C6

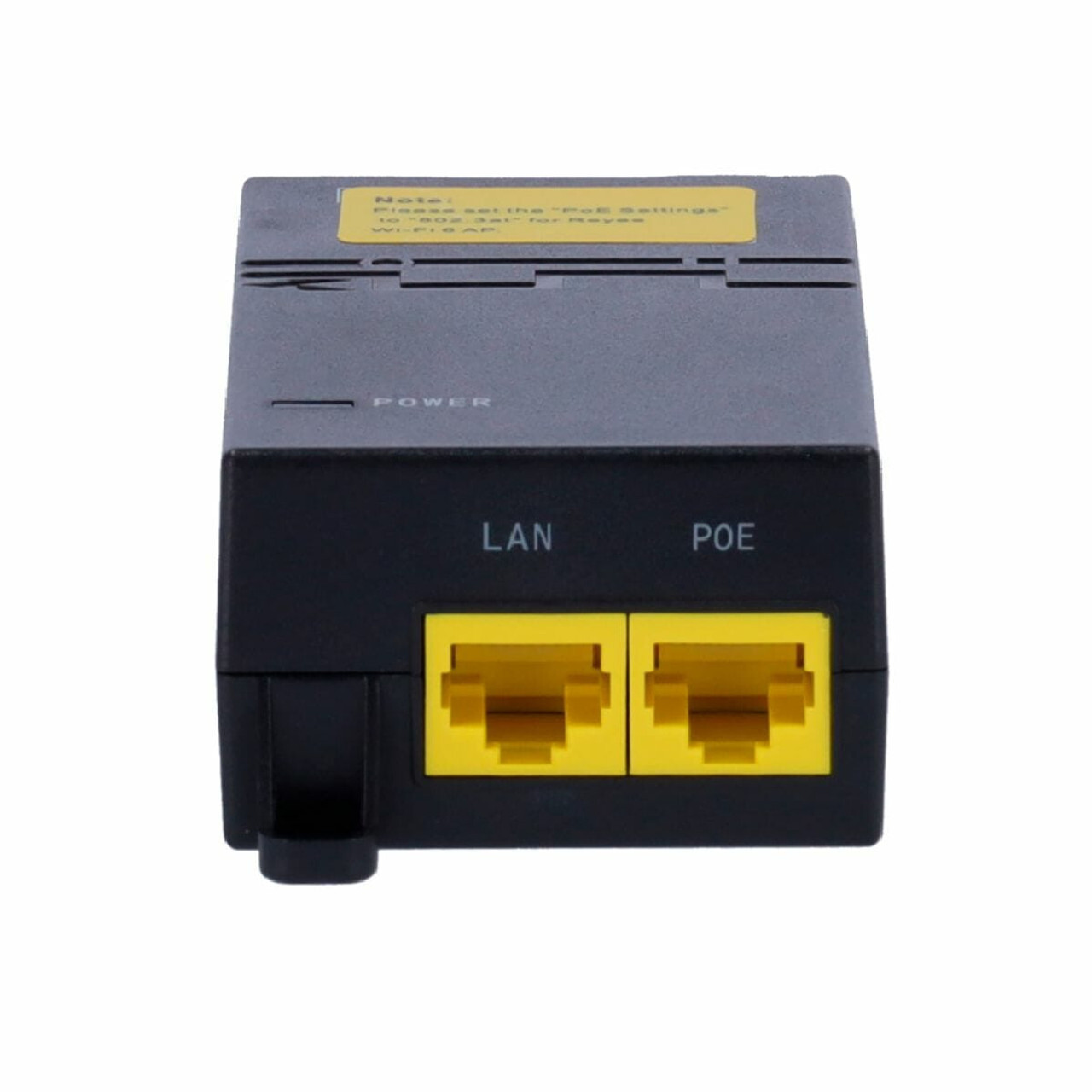

Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Max. Surge Discharge 2000A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pf data
Response Time <1 ns
Certifications CE, CB
SKU PWT.WIF-RY-00251
Model # RG-POE-AT30
Shipping Weight 0.1500kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.060m
Shipping Cubic 0.000240000m3
