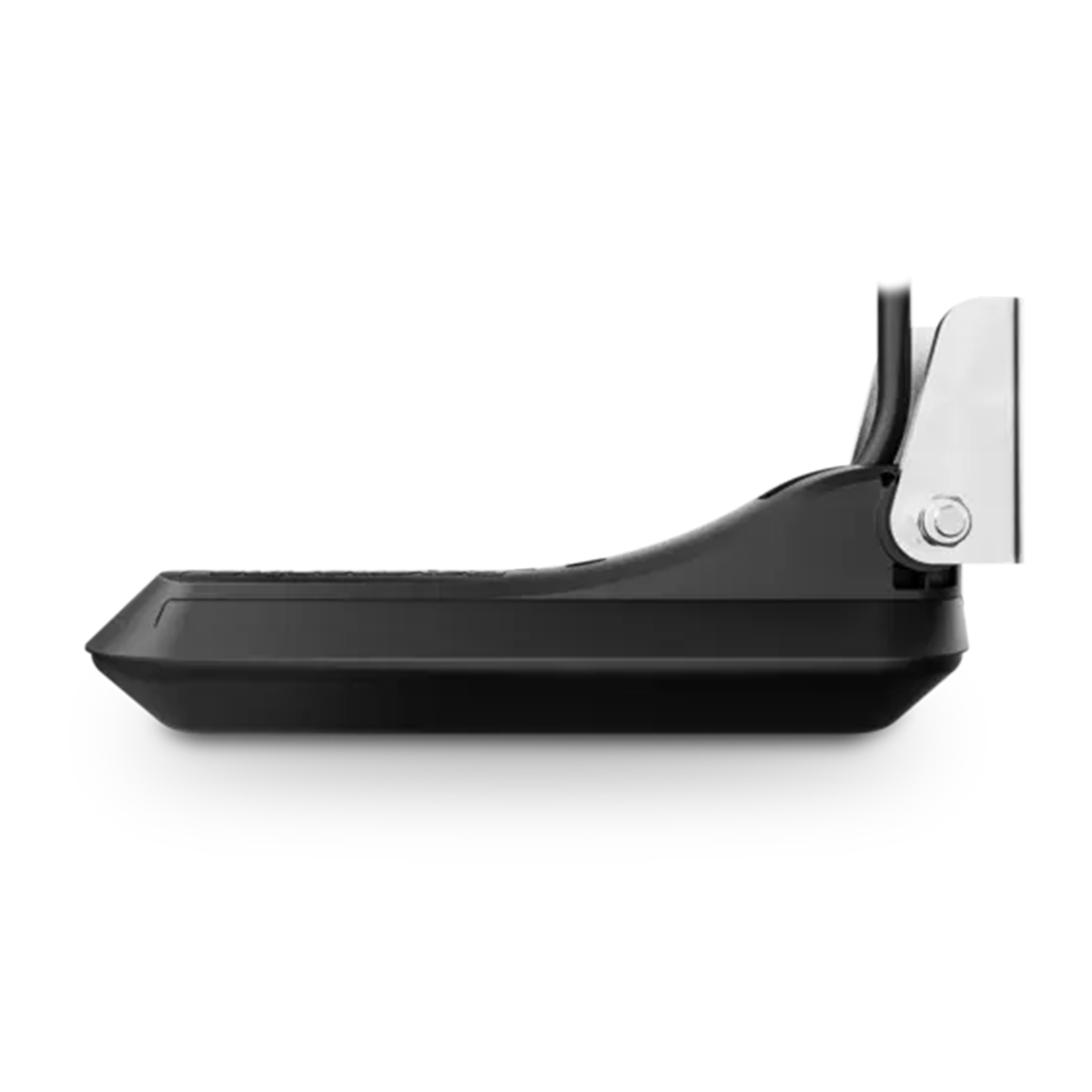

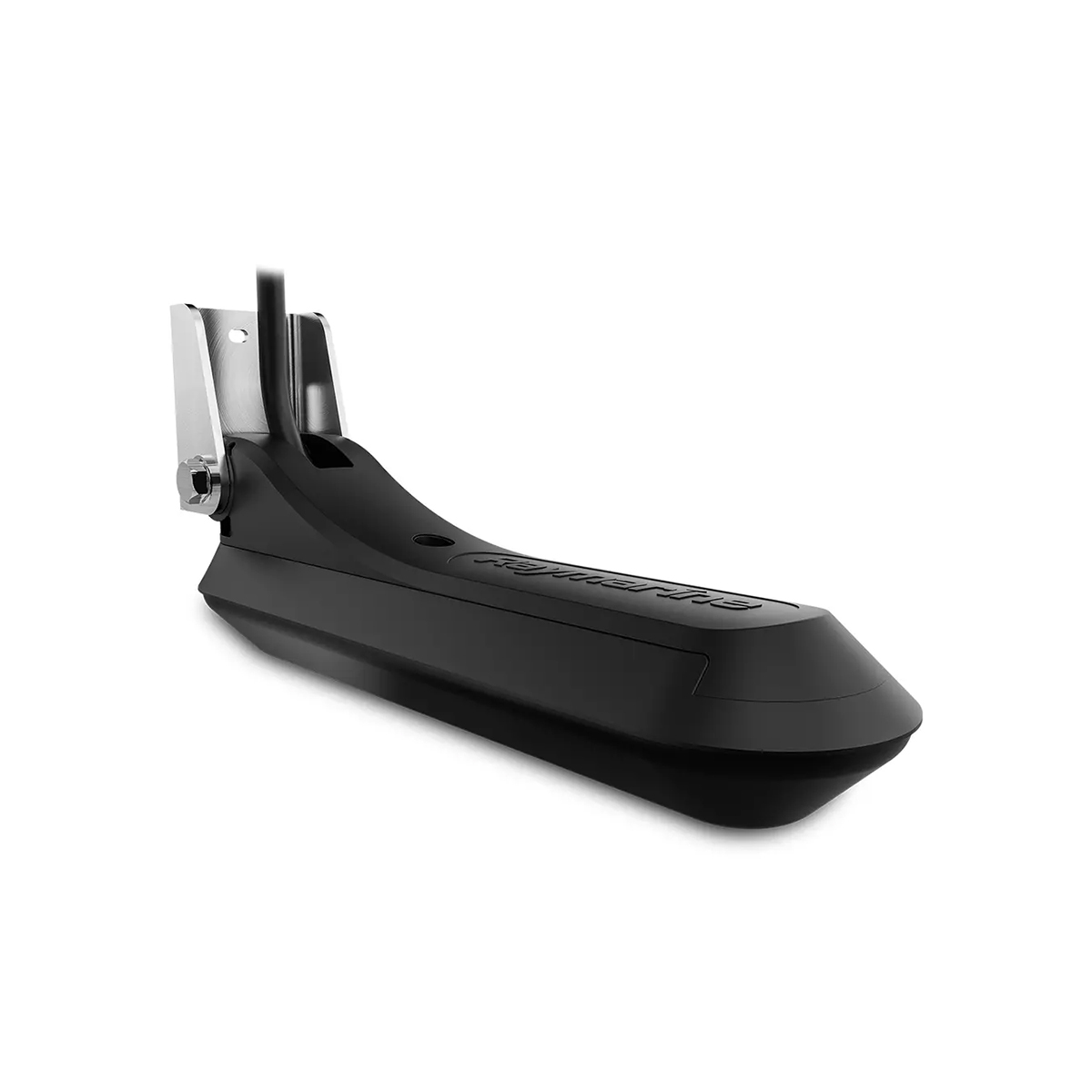

RVM-100

Designed for Raymarine RealVision MAX compatible sonar modules and chartplotters.

Advanced Technology:

4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar.

Stabilized Imagery:

Built-in attitude and heading reference system (AHRS) stabilizes 3D sonar imagery, compensating for vessel motion and eliminating distortions caused by waves or maneuvering.

Temperature Sensor:

Includes a fast-response water temperature sensor for quick and accurate readings

Mounting Options:

  • Designed for easy transom mounting on outboard-powered motor boats.
  • Rugged marine-grade stainless steel mounting bracket with integrated kick-up for durability.
  • Optional mounting brackets available for bass boats, flats boats, skiffs, and stepped hull vessels.

Versatile Installation:

Optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) for bass boats, flats boats, and skiffs. Optional stainless steel step-mounting bracket (A80479, sold separately) for stepped hull vessels.

Durable Construction:

Marine-grade stainless steel mounting bracket designed to withstand strikes with floating debris, rocks, or stumps.

RealVision Max 3D sonar
Sensors

Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
Sonar channels

RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600 W @ 200 kHz
Beam width

200 kHz: 12°
Physical
Dimensions

Length: 256.6 mm (10.10 in), Height: 120.5 mm (4.74 in)
Cable length

8 m (26.2 ft)
Weight (including brackets)

0.647 kg (1.42 lb)
Environmental
Waterproof rating

IPx6 (surfaces exterior to hull only), IPx7, IPx8
Storage temperature range

-20°C (23°F) to + 70°C (158°F)
Operating temperature range

-2°C (28.4°F) to + 55°C (131°F)
Conformance
Standards

EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
RealVision Max 3D sonar range
Sonar range

CHIRP sonar = 0.6 M (2 ft) to 365 m (1,200 ft), DownVision = 0.6 M (2 ft) to 182 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision Max 3D = 0.6 M (2 ft) to 91 m (300 ft)
SKU RAY.A80703
Model # A80703
Brand Raymarine
Shipping Weight 2.0000kg
