Three Phase Circuit Distribution for Commercial Electrical Systems

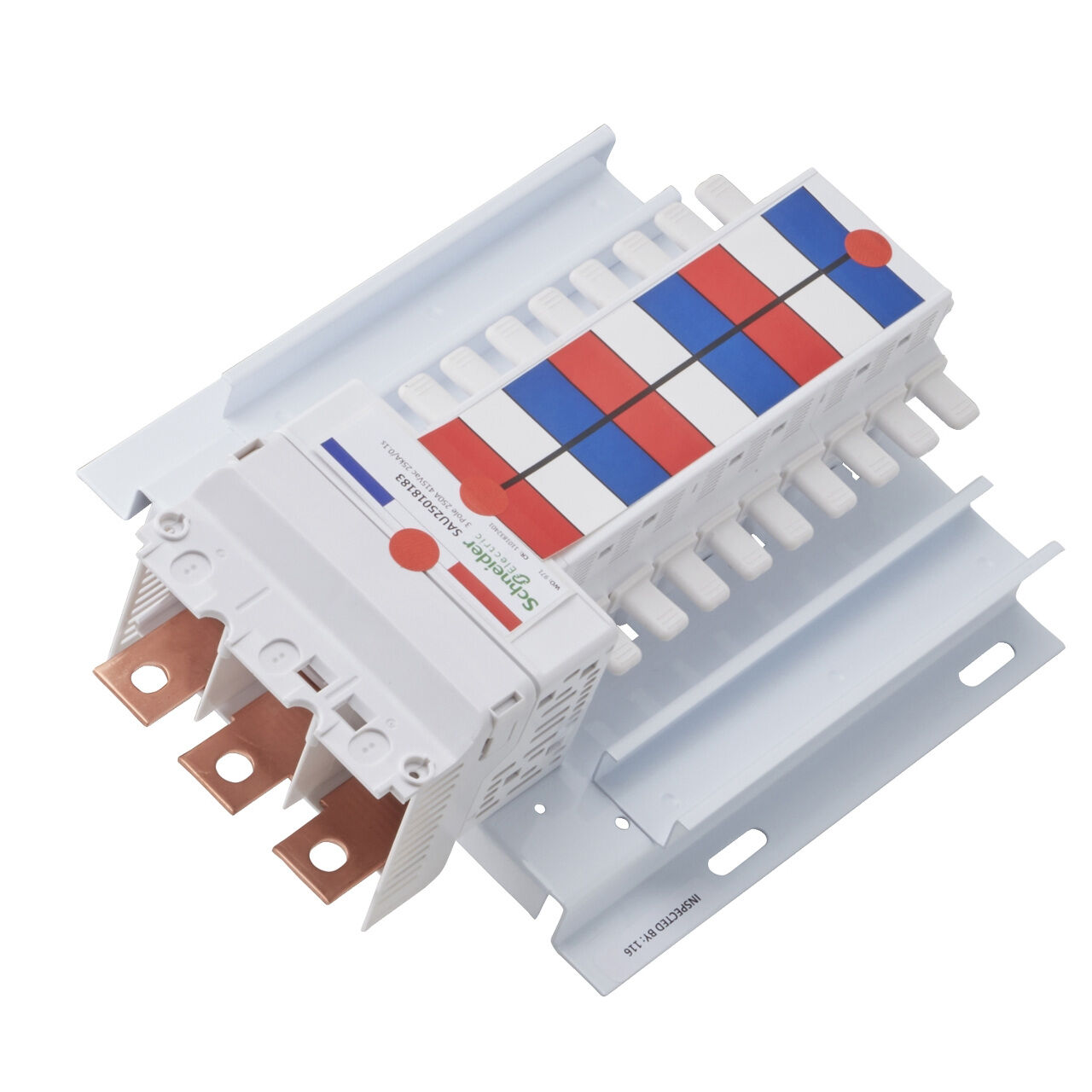

Schneider Electric Acti9 18 Way 3 Phase Distribution Board chassis supports structured power distribution within commercial and industrial electrical installations. The 250A chassis features an 18-pole arrangement with an 18mm pitch, providing a top-feed configuration for integration into compatible Schneider Electric distribution boards.

Key Features

  • 18 Way Configuration: 18-pole chassis provides capacity for circuit distribution within compatible distribution boards.
  • 250A Rated Current: Rated for AC electrical distribution up to 250A.
  • Three Phase Operation: Supports three phase electrical distribution applications.
  • Top Feed Configuration: Connection is positioned at the top of the chassis for incoming supply.
  • 25kA Short-Circuit Withstand: Withstands a short-circuit current of 25kA for 0.1 seconds.
  • 18mm Pitch: Features an 18mm pole and busbar pitch for compatible circuit protection equipment.
  • Acti9 Range: Integrates with compatible Schneider Electric Acti9 distribution board systems.

Suitable for larger circuit distribution requirements, the 18 way chassis combines a 250A rating with a compact top-feed arrangement for integration into compatible Acti9 electrical distribution systems.

Brand Schneider Electric
Range Acti9
Product Type Chassis
Device Application Distribution
Configuration 18 Way, 3 Phase
Rated Current 250A
Network Type AC
Short-Circuit Withstand 25kA for 0.1 seconds
Number of Poles 18
Busbar Pitch 18mm
Connection Location Top
Length 164mm
Width 215mm
SKU SCH.SAU25018183
Model # SAU25018183
Brand Schneider Electric
Shipping Weight 1.7000kg
