Three Phase Circuit Distribution for Commercial Electrical Systems

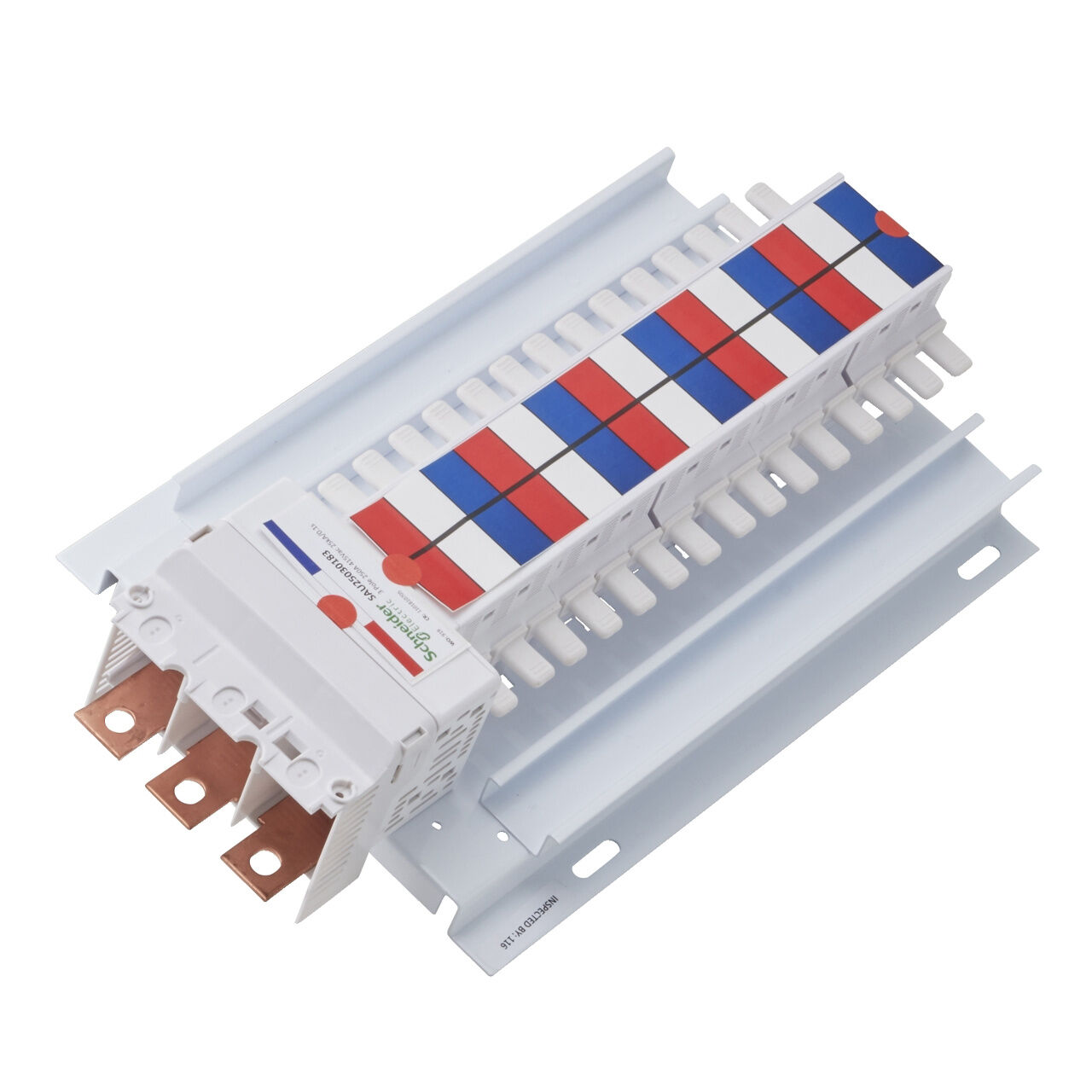

Schneider Electric Acti9 30 Way 3 Phase Distribution Board chassis supports structured power distribution across commercial and industrial electrical installations. Rated at 250A, the chassis features a 30-pole arrangement with an 18mm pitch and top-feed connection, providing increased circuit capacity for integration within compatible Schneider Electric distribution boards.

Key Features

  • 30 Way Configuration: 30-pole chassis provides increased capacity for larger circuit distribution requirements.
  • 250A Rated Current: Rated for AC electrical distribution up to 250A.
  • Three Phase Operation: Supports three phase electrical distribution applications.
  • Top Feed Configuration: Incoming supply connection is positioned at the top of the chassis.
  • 25kA Short-Circuit Withstand: Withstands a short-circuit current of 25kA for 0.1 seconds.
  • 18mm Pitch: Features an 18mm pole and busbar pitch for compatible circuit protection equipment.
  • Acti9 Range: Integrates with compatible Schneider Electric Acti9 distribution board systems.

Providing greater circuit capacity within the Acti9 platform, the 30 way chassis combines a 250A rating with a top-feed arrangement for commercial and industrial power distribution applications.

Brand Schneider Electric
Range Acti9
Product Type Chassis
Device Application Distribution
Configuration 30 Way, 3 Phase
Rated Current 250A
Network Type AC
Short-Circuit Withstand 25kA for 0.1 seconds
Number of Poles 30
Busbar Pitch 18mm
Connection Location Top
Length 272mm
Width 215mm
SKU SCH.SAU25030183
Model # SAU25030183
Brand Schneider Electric
Shipping Weight 2.4600kg
