Three Phase Circuit Distribution for Commercial Electrical Systems

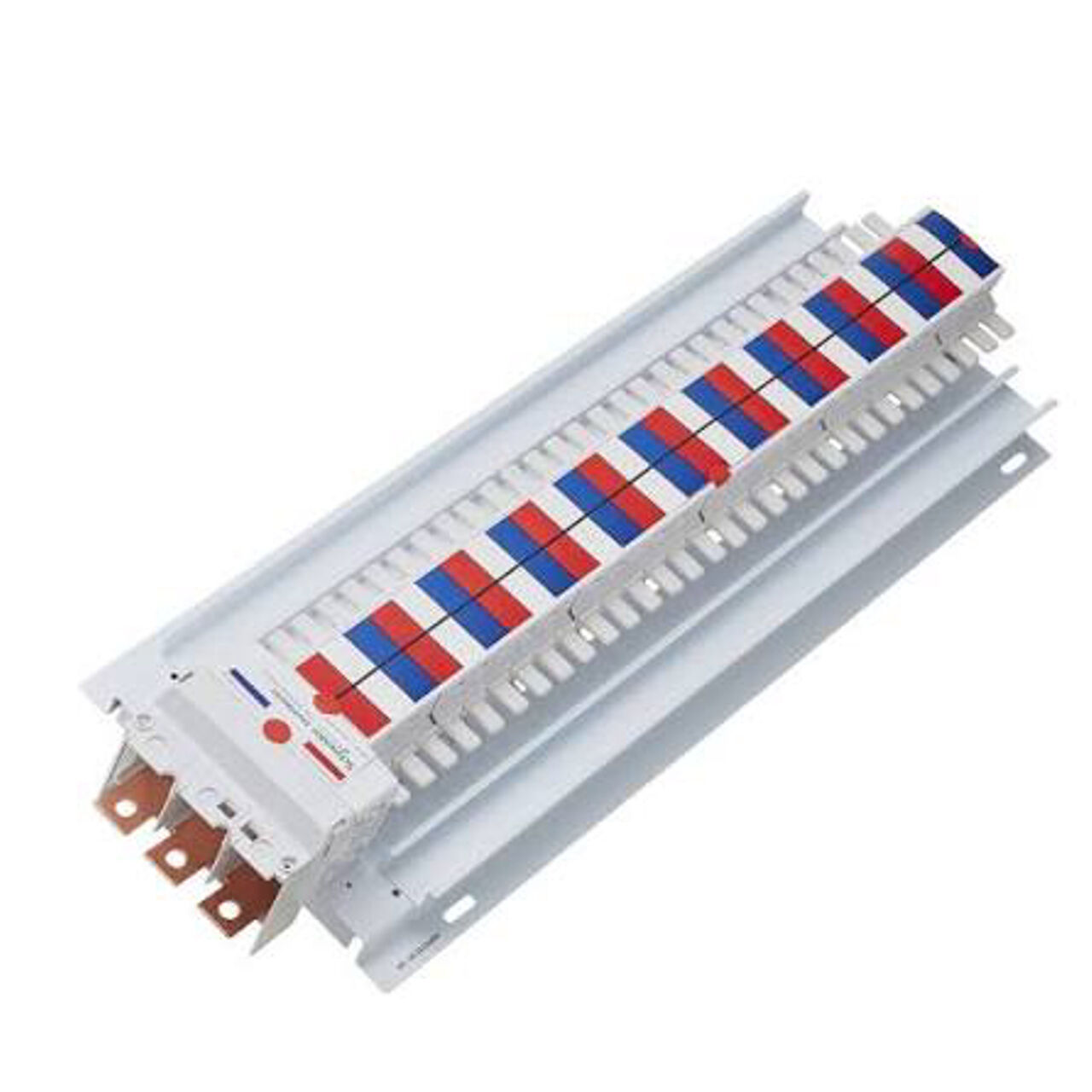

Schneider Electric Acti9 60 Way 3 Phase Distribution Board chassis supports structured power distribution across larger commercial and industrial electrical installations. Rated at 250A, the chassis features a 60-pole arrangement with an 18mm pitch and top-feed connection, providing extensive circuit capacity for integration within compatible Schneider Electric distribution boards.

Key Features

  • 60 Way Configuration: 60-pole chassis provides extensive capacity for larger circuit distribution requirements.
  • 250A Rated Current: Rated for AC electrical distribution up to 250A.
  • Three Phase Operation: Supports three phase electrical distribution applications.
  • Top Feed Configuration: Incoming supply connection is positioned at the top of the chassis.
  • 25kA Short-Circuit Withstand: Withstands a short-circuit current of 25kA for 0.1 seconds.
  • 18mm Pitch: Features an 18mm pole and busbar pitch for compatible circuit protection equipment.
  • Acti9 Range: Integrates with compatible Schneider Electric Acti9 distribution board systems.

Accommodating extensive circuit requirements within the Acti9 platform, the 60 way chassis combines a 250A rating with a top-feed arrangement for larger commercial and industrial power distribution applications.

Brand Schneider Electric
Range Acti9
Product Type Chassis
Device Application Distribution
Configuration 60 Way, 3 Phase
Rated Current 250A
Network Type AC
Short-Circuit Withstand 25kA for 0.1 seconds
Number of Poles 60
Busbar Pitch 18mm
Connection Location Top
Length 542mm
Width 215mm
SKU SCH.SAU25060183
Model # SAU25060183
Brand Schneider Electric
Shipping Weight 4.3900kg
