Reliable Circuit Distribution for Commercial Electrical Installations

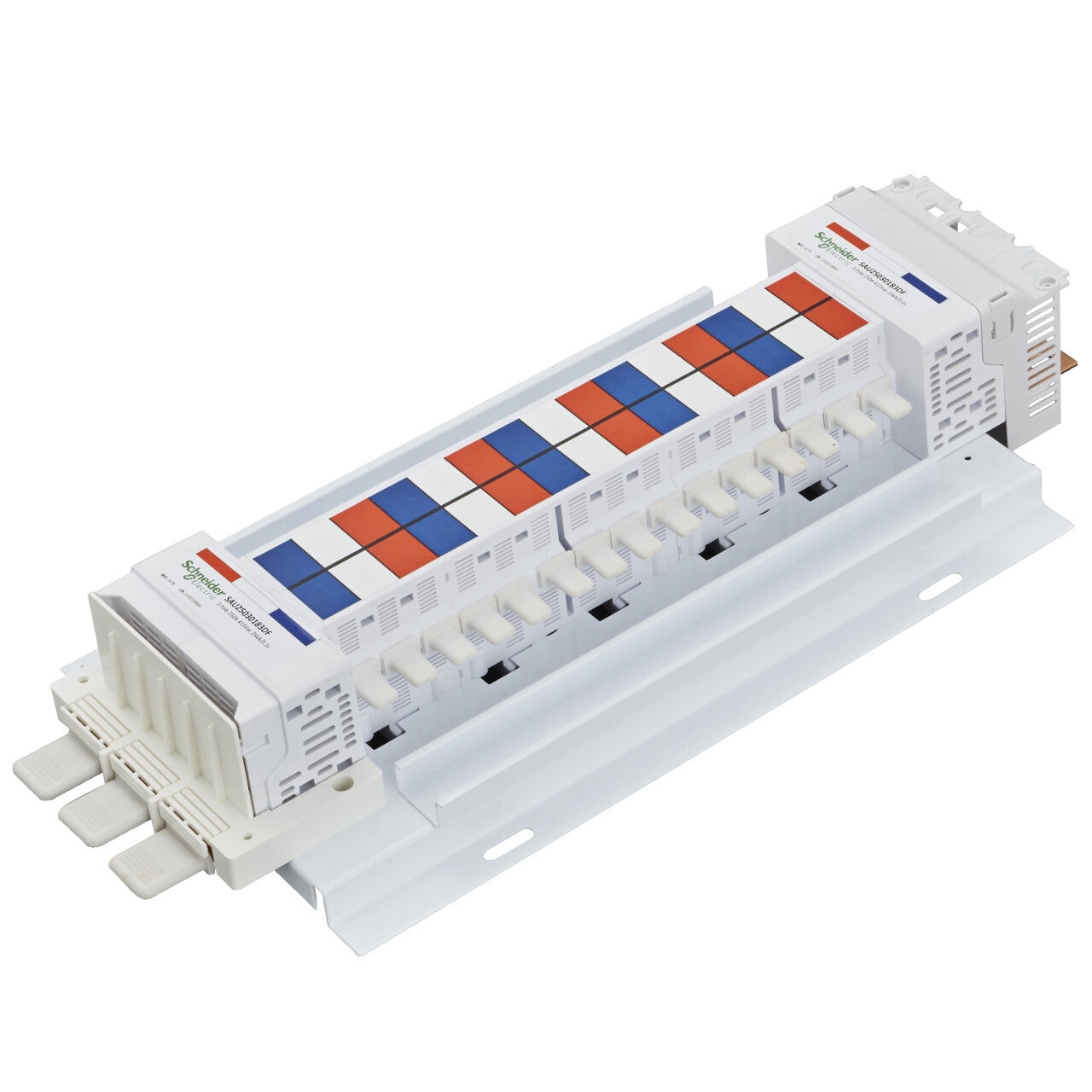

Schneider Electric Insulated Busbar Chassis 250A MCB 30 Pole provides a structured platform for power distribution within compatible Acti9 distribution boards. The three phase chassis supports iC60 MCB and RCBO devices, with a 250A rated current, 18mm busbar pitch and dual-feed connection arrangement to accommodate different switchboard installation requirements.

Key Features

• 30 Pole Configuration: Features 30 poles at an 18mm pitch for compatible circuit protection devices.
• 250A Rated Current: Supports electrical distribution applications with a rated current of 250A.
• Three Phase Operation: Configured for three phase electrical distribution within compatible Acti9 distribution boards.
• MCB and RCBO Compatibility: Supports compatible iC60 miniature circuit breakers and RCBO devices.
• Dual Feed Connection: Allows the chassis to be supplied using its dual-feed connection arrangement.
• 25kA Short-Circuit Withstand: Rated to withstand 25kA for 0.1 seconds.
• 415V AC Rating: Rated for operation at 415V AC, with a rated insulation voltage of 500V.
• AS/NZS 61439 Compliance: Manufactured in accordance with AS/NZS 61439 requirements.

Providing additional circuit capacity through its 30 pole arrangement, the chassis supports compatible MCB and RCBO protection within Acti9 distribution systems while retaining a flexible dual-feed configuration.
