Reliable Circuit Distribution for Commercial Electrical Installations

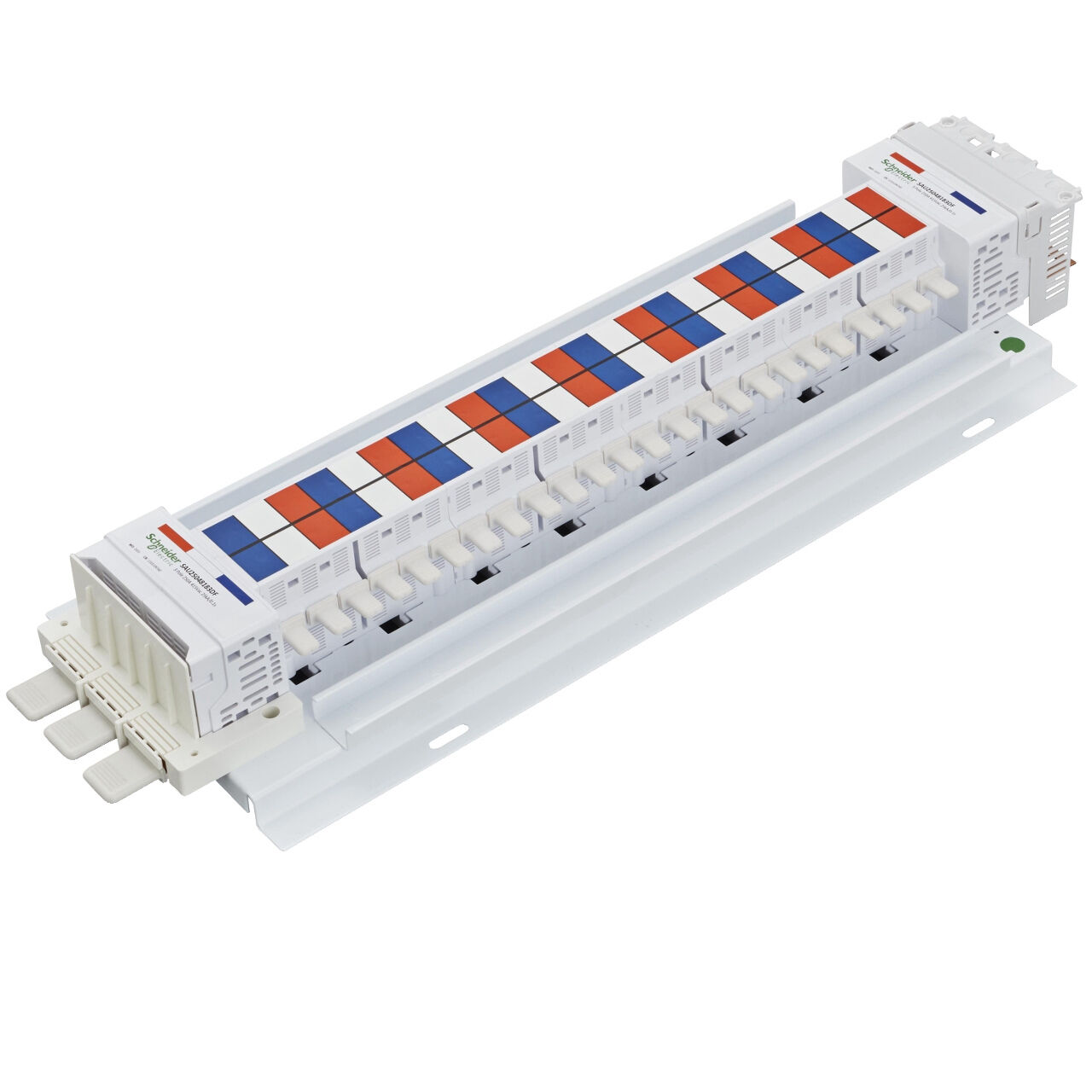

Schneider Electric Insulated Busbar Chassis 250A MCB 48 Pole provides a structured platform for power distribution within compatible Acti9 distribution boards. The three phase chassis supports iC60 MCB and RCBO devices, with a 250A rated current, 18mm busbar pitch and dual-feed connection arrangement to accommodate different switchboard installation requirements.

Key Features

• 48 Pole Configuration: Features 48 poles at an 18mm pitch for compatible circuit protection devices.
• 250A Rated Current: Supports electrical distribution applications with a rated current of 250A.
• Three Phase Operation: Configured for three phase electrical distribution within compatible Acti9 distribution boards.
• MCB and RCBO Compatibility: Supports compatible iC60 miniature circuit breakers and RCBO devices.
• Dual Feed Connection: Allows connection from either end of the chassis to suit different switchboard layouts.
• 25kA Short-Circuit Withstand: Rated to withstand 25kA for 0.1 seconds.
• 415V AC Rating: Rated for operation at 415V AC, with a 500V rated insulation voltage.
• AS/NZS 61439 Compliance: Complies with AS/NZS 61439 requirements for electrical distribution assemblies.

With 48 poles available for circuit protection equipment, the chassis expands distribution capacity while maintaining the 250A rating and dual-feed flexibility of the Acti9 platform.
