Reliable Circuit Distribution for Commercial Electrical Installations

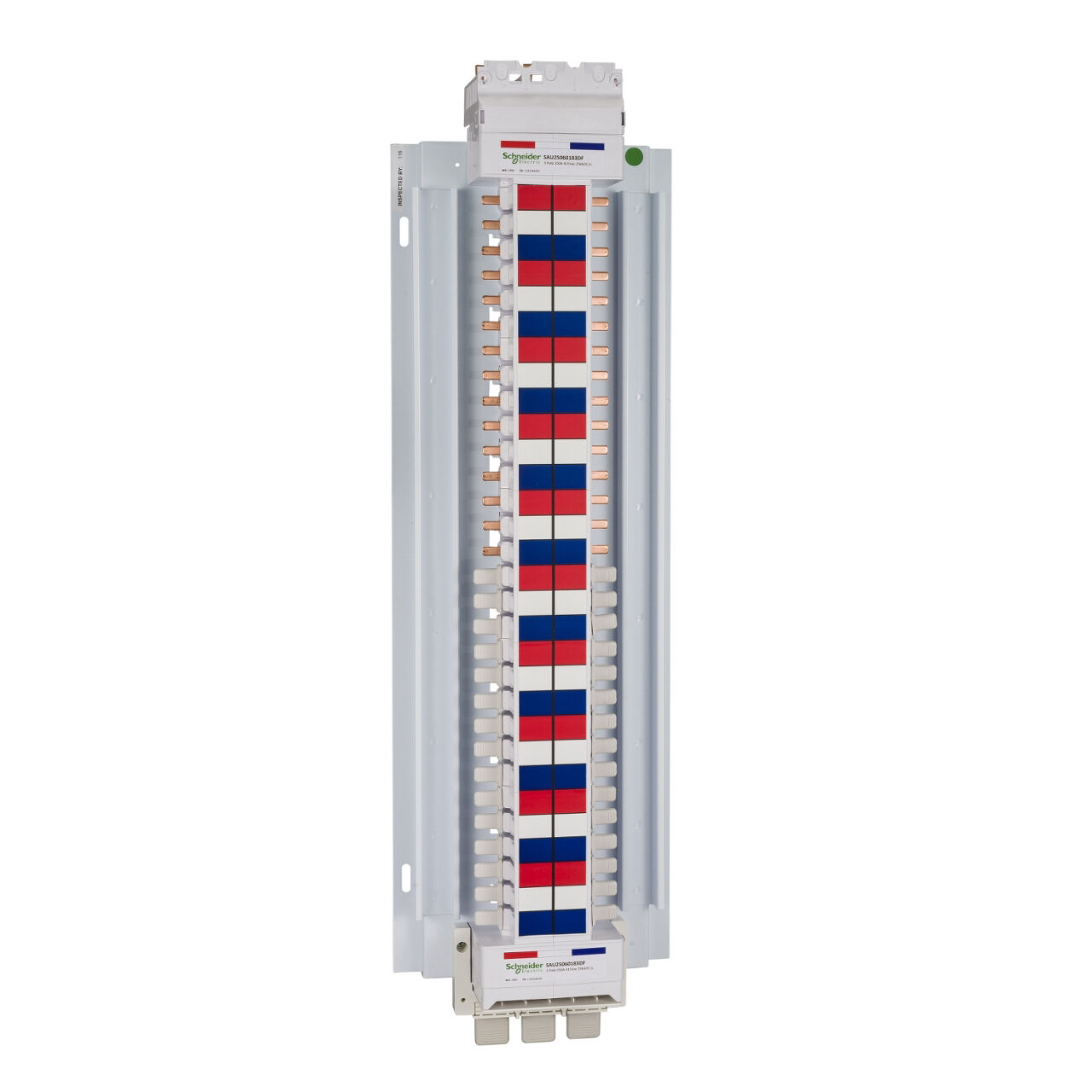

Schneider Electric Insulated Busbar Chassis 250A MCB 60 Pole provides a structured platform for power distribution within compatible Acti9 distribution boards. The three phase chassis supports iC60 MCB and RCBO devices, with a 250A rated current, 18mm busbar pitch and dual-feed connection arrangement for flexible switchboard integration.

Key Features

• 60 Pole Configuration: Features 60 poles at an 18mm pitch for compatible circuit protection devices.
• 250A Rated Current: Supports electrical distribution applications with a rated current of 250A.
• Three Phase Operation: Configured for three phase electrical distribution within compatible Acti9 distribution boards.
• MCB and RCBO Compatibility: Supports compatible iC60 miniature circuit breakers and RCBO devices.
• Dual Feed Connection: Features a dual-feed arrangement to provide flexibility when configuring the incoming supply.
• 25kA Short-Circuit Withstand: Rated to withstand 25kA for 0.1 seconds.
• 415V AC Rating: Rated for operation at 415V AC, with a 500V rated insulation voltage.
• AS/NZS 61439 Compliance: Complies with AS/NZS 61439 requirements for electrical distribution assemblies.

With its 60 pole configuration, the chassis accommodates larger circuit distribution requirements while maintaining compatibility with the Acti9 platform and iC60 circuit protection range.
