SeaFlo Automatic Bilge Pump 24V 750 GPH

The SEAFLO 06 Series 750GPH Automatic Bilge Pump represents a significant advancement in marine safety and efficiency. This automatic submersible boat bilge water pump is designed to offer a comprehensive solution for water removal, with an integrated pump and float switch mechanism that eliminates the need for a separate float switch. The pump activates automatically when the water level rises and deactivates once the water is removed, ensuring your bilge remains dry without constant manual oversight.

Key Features and Benefits:

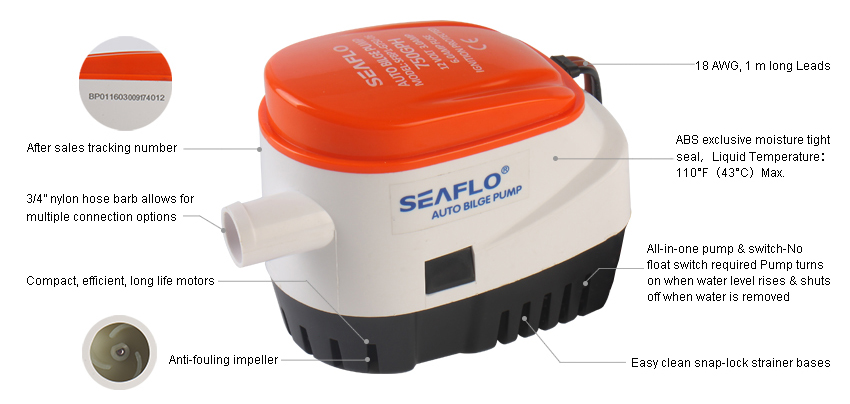

Features and benefits

  • Automatic Operation: Integrated pump and float switch for hands-free operation.
  • High Flow Rate: Efficiently moves 750 gallons per hour, keeping your bilge clear.
  • Compact Design: Easy to install in tight spaces with a compact and efficient motor.
  • Versatile Hose Connection: Comes with a 3/4" nylon hose barb for multiple mounting options.
  • Durability: Features a long-life motor and anti-fouling impeller to resist blockages.
  • Waterproof Seal: ABS construction ensures a moisture-tight seal up to 43°C liquid temperature.
  • Easy Maintenance: Snap-off strainer base for straightforward cleaning.
  • Safe for Marine Environment: Will not activate for oil, preventing unnecessary operation.
  • Warranty: Backed by a 2-year warranty for peace of mind.

Applications: Ideal for marine settings, the SEAFLO 750GPH pump is also suitable for medical, pond, and water research applications, among others. Its all-in-one design simplifies installation and operation, providing reliable and automatic bilge water removal

Dimensions:

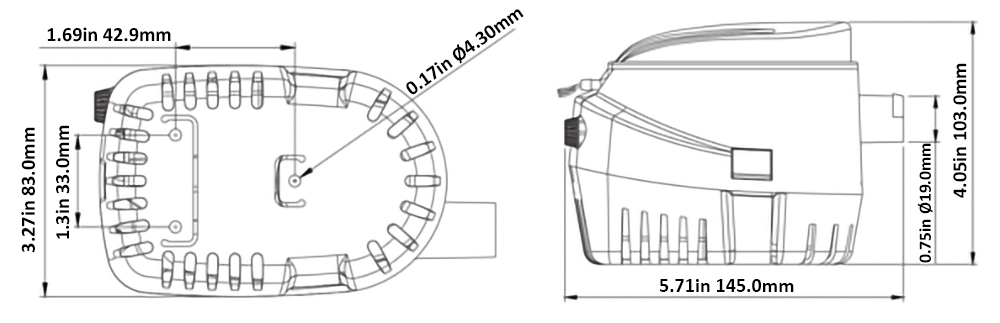

Product dimensions

Package Contents

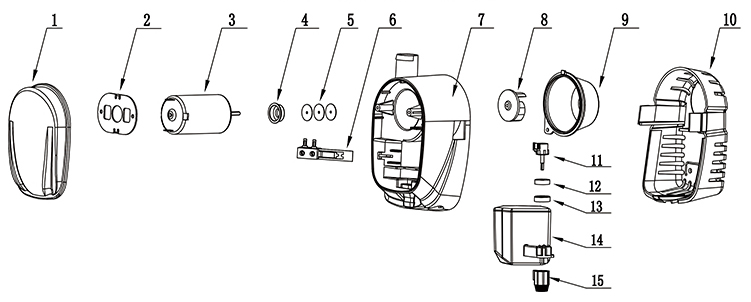

Package contents

Key Description Quantity
1 Pump Cover 1
2 Motor Bracket 1
3 Motor 2
4 Motor Oil Seal 1
5 Wearplate 1
6 Switch Assembly 1
7 Pump Housing 1
8 Impeller 1
9 Impeller Cover 1
10 Strainer 1
11 Rotor 1
12 Round Wearplate 1
13 Oil Seal 1
14 Float 1
15 Knob 1

General Pump Configurations

Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G750-06 676 GPH 12 V 5.0 A 5.0 A 8.2' (2.5 m) 3' (1 m) 3/4" 0.47/0.52 kg
SFBP2-G750-06 660 GPH 24 V 2.9 A 3.0 A 8.2' (2.5 m) 3' (1 m) 3/4" 0.47/0.52 kg

Performance

Voltage(V) Current(A) Flow Head(M)
GPH LPH
OPEN 1.3 660 2498 0
24 1.6 533 2017 0.5
24 1.94 400 1514 1
24 2.31 263 995 1.5
24 2.54 86 325 2
24 2.9 0 0 2.5
SKU SFL.SFBP2-G750-06
Model # SFBP2-G750-06
Brand SeaFlo
Shipping Weight 0.6000kg
Shipping Width 0.156m
Shipping Height 0.116m
Shipping Length 0.092m
Shipping Cubic 0.001665000m3
Unit Of Measure ea
