SeaFlo Baitwell Pump Horizontal 12V 800 GPH
The 05 Series 800GPH Seaflo Baitwell/Livewell Pump sets the standard in high-quality aquatic pump technology. Designed with the angler in mind, this pump is perfect for keeping bait and catch alive with a steady flow of aerated water. SEAFLO's innovation and reliability are evident in this pump's design, integrating advanced features for effortless operation and robust performance.

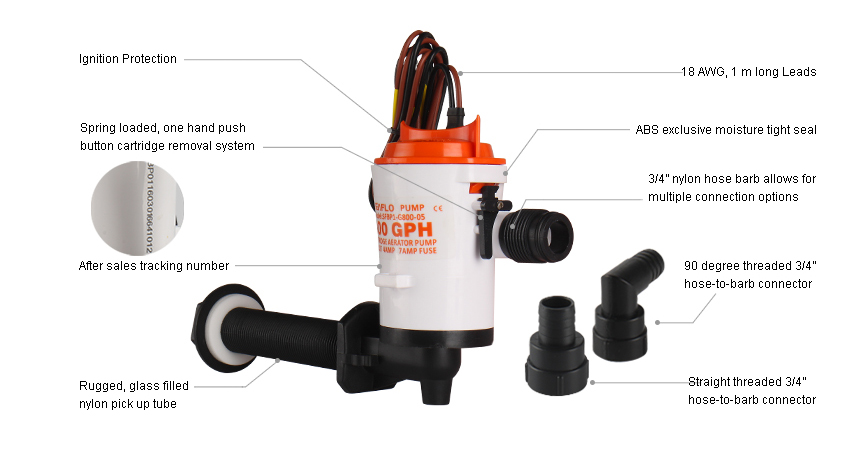

Features and Benefits:
- Innovative Design: Features a quick, one-hand "push button" motor cartridge removal system for easy maintenance, alongside threaded nylon hose barb attachments for versatile hose mounting options.
- Durability: Constructed with a rugged, glass-filled nylon pick-up tube and an ABS exclusive moisture-tight seal to ensure longevity and reliability in marine environments.
- Efficient Operation: Equipped with a water-cooled motor housing and a positive snap motor cartridge locking mechanism, ensuring efficient and secure operation.
- Connection Flexibility: Includes a 3/4" nylon hose barb for multiple connection options, plus both 90-degree and straight threaded 3/4" hose-to-barb connectors.
- High Performance: Capable of running dry for normal workloads with a quiet operation and a stainless steel shaft for corrosion resistance.
Additional Features:
- 2-Year Warranty: Offers peace of mind with a comprehensive two-year warranty.
- Submersible: Fully submersible design with a built-in through-hull feature.
- Temperature Resistant: Can operate up to 110°F (43°C), suitable for various environmental conditions.
Typical Applications:
- Primarily used in fishing to maintain the liveliness of bait and catch through continuous aeration.
General Specifications:
Feature | Specification |
---|---|
Flow Rate | 800 GPH |
Voltage | 12V DC |
Hose Connections | 3/4" Nylon Hose Barb |
Material | Glass-filled Nylon, ABS, Stainless Steel |
Max Temperature | 110°F (43°C) |
Lead Wires | 18 AWG, 1m Long |
Ignition Protection | Yes |
Submersible | Yes |
Dry Run Capability | Yes |

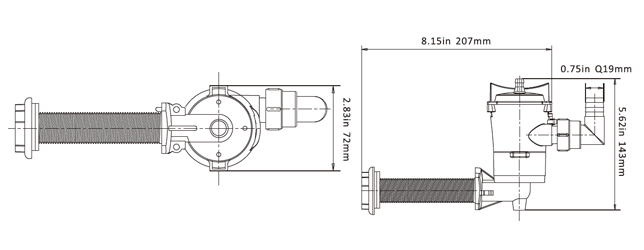

Dimensions:
Designed for both hobbyists and professional anglers, the 05 Series 800GPH Seaflo Baitwell/Livewell Pump is an essential tool for any fishing expedition, ensuring live bait and catch are kept in optimal conditions

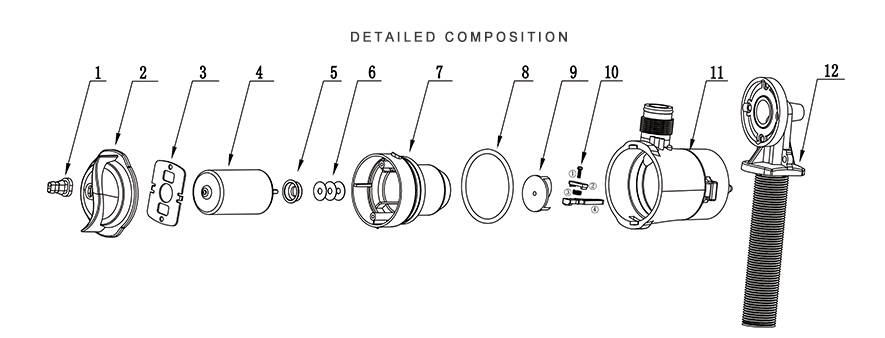

Key | Description | Quantity |
1 | Wire Buckle | 1 |
2 | Pump Cover | 1 |
3 | Motor Bracket | 1 |
4 | Motor | 1 |
5 | Seal Base | 1 |
6 | Seal 1 | 1 |
7 | Motor Cover | 1 |
8 | Seal 2 | 3 |
9 | Impeller | 1 |
10 | Spring Knob | 1 |
11 | Pump Housing | 1 |
12 | 90 Degree Threaded Hose | 1 |
Tapping Screw | 1 | |
Tablet Button | 1 | |
Spring | 1 | |
Button | 1 |
Standard Pump Configurations
Model | Flow Rate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
SFBP1-G800-05 | 704 GPH | 12 V | 4.0 A | 7.2 A | 8.9' (2.7 m) | 3' (1 m) | 3/4" | 0.4/0.5 kg |
Performance
Voltage(V) | Current(A) | Flow | Head(M) | |
GPH | LPH | |||
OPEN | 3.08 | 704 | 2664 | 0 |
12 | 3.64 | 623 | 2358 | 0.5 |
12 | 4.14 | 505 | 1911 | 1 |
12 | 4.96 | 271 | 1026 | 1.5 |
12 | 5.53 | 155 | 587 | 2 |
12 | 6.42 | 78 | 295 | 2.5 |
12 | 6.8 | 0 | 0 | 2.7 |
SKU | SFL.SFBP1-G800-05 |
Model # | SFBP1-G800-05 |
Brand | SeaFlo |
Shipping Weight | 0.8000kg |
