SeaFlo Bilge Pump 4700GPH 12V
SEAFLO 01 Series 4700GPH Bilge Pump: a high-efficiency, non-automatic pump for marine and various applications. Features durable motors, easy maintenance, and a 2-year warranty.
SKU: SFL.SFBP1-G4700-01 | MPN: SFBP1-G4700-01
SAVE $81.22 (20%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
SeaFlo Bilge Pump 4700GPH 12V
The SEAFLO 01 Series 4700GPH Bilge Pump is a non-automatic, high-capacity pump designed for a variety of applications, including marine, medical, pond management, and water research. Its heavy-duty motor and high-efficiency design make it an ideal solution for rapid water transfer in demanding environments.

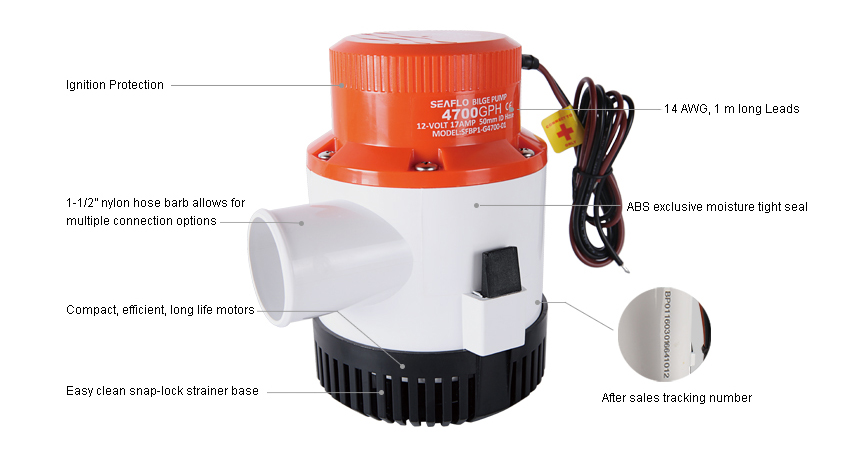

Features and Benefits:
- High Efficiency: Offers high capacity output with a 4700GPH flow rate, ensuring quick and efficient water removal.
- Durability: Equipped with compact, efficient, and long-life motors that stand up to demanding applications.
- Easy Maintenance: Features a quick-release strainer and a snap-lock strainer base for straightforward cleaning.
- Versatile Installation: Comes with a 2" nylon hose barb for multiple connection options, accommodating diverse plumbing setups.
- Reliable Operation: Traditional operation by switch or float switch, with ignition protection and entirely submersible design for safe use in marine environments.
- Safety and Quality: Meets or exceeds RoHS, SGS, and ISO standards, with ABS-exclusive moisture-tight seal and marine-grade blocked wiring.
- Extended Warranty: Offers peace of mind with a 2-year warranty and after-sales tracking number for support.
General Specifications:
Feature | Specification |
---|---|
Flow Rate | 4700GPH |
Voltage | 12V |
Hose Barb | 2" nylon |
Wire Leads | 14 AWG, 1m long |
Temperature Limits | 110°F (43°C) |
Motor | Sealed efficient, long life |
Shaft Material | Stainless steel |
Protection Features | Anti-airlock, exclusive moisture-tight seals |
Typical Applications:
- Marine: Ideal for boats up to 60ft, providing efficient bilge water removal.
- Medical & Water Research: Supports water sampling and liquid transfer in laboratory settings.
- Pond & Solar Water Systems: Enhances water circulation in ponds and solar water systems.
The SEAFLO 01 Series 4700GPH Bilge Pump is your reliable partner for handling high-volume water transfer needs, combining power, efficiency, and durability in a compact design.

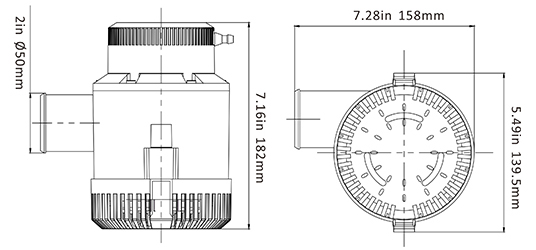

Dimensions:

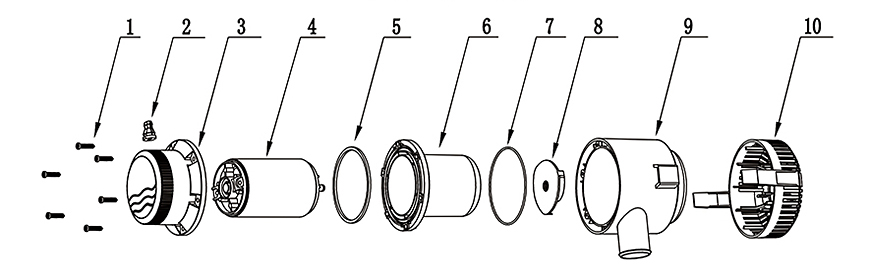

Package Contents
Key | Description | Quantity |
---|---|---|
1 | Tapping Screw | 6 |
2 | Wire Buckle | 1 |
3 | Pump Cover | 1 |
4 | Motor | 1 |
5 | Seal 1 | 1 |
6 | Motor Cover | 1 |
7 | Seal 2 | 1 |
8 | Impeller | 1 |
9 | Pump Housing | 1 |
10 | Strainer | 1 |
STANDARD PUMP CONFIGURATIONS
Model | Flow Rate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
---|---|---|---|---|---|---|---|---|
SFBP1-G4700-01 | 4451 GPH | 12 V | 32.1 A | 26.0 A | 26.2' (8 m) | 3' (1 m) | 2" | 2.10/2.37 kg |
PERFORMANCE
Voltage(V) | Current(A) | Flow | Head(M) | |
---|---|---|---|---|
GPH | LPH | |||
OPEN | 14.6 | 4451 | 16844 | 0 |
12 | 16.2 | 4011 | 15179 | 1 |
12 | 18.5 | 3657 | 13839 | 2 |
12 | 20.1 | 2741 | 10373 | 3 |
12 | 22.6 | 1966 | 7440 | 4 |
12 | 25.2 | 831 | 3145 | 5 |
12 | 27.4 | 405 | 1533 | 6 |
12 | 30.9 | 136 | 515 | 7 |
12 | 32.1 | 0 | 0 | 8 |
SKU | SFL.SFBP1-G4700-01 |
Model # | SFBP1-G4700-01 |
Brand | SeaFlo |
Shipping Weight | 2.5000kg |
Shipping Width | 0.163m |
Shipping Height | 0.235m |
Shipping Length | 0.155m |
Shipping Cubic | 0.005937000m3 |
Unit Of Measure | ea |
