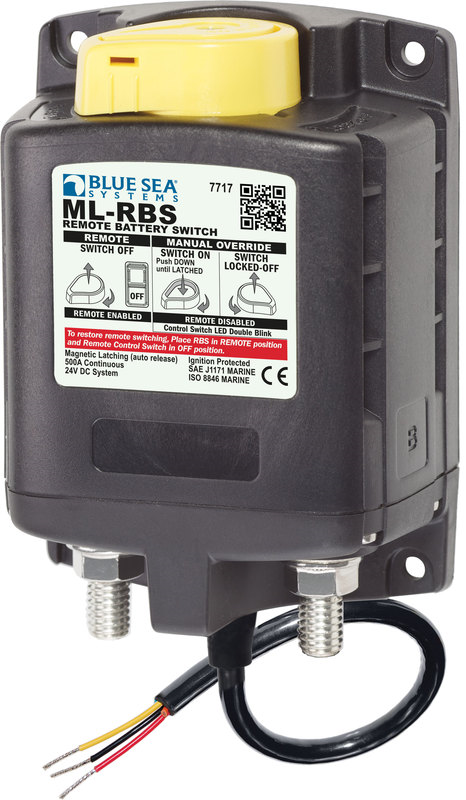

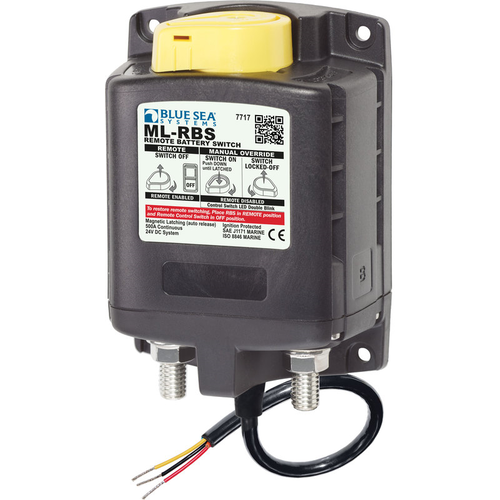

Blue Sea Solenoid ML 500A 24V RBS SPST with manual control

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7∕ 8" (22 mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.

Features:

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7∕ 8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

ML-Series Remote Control Contura Switch not included - see BSS.2155 if required
