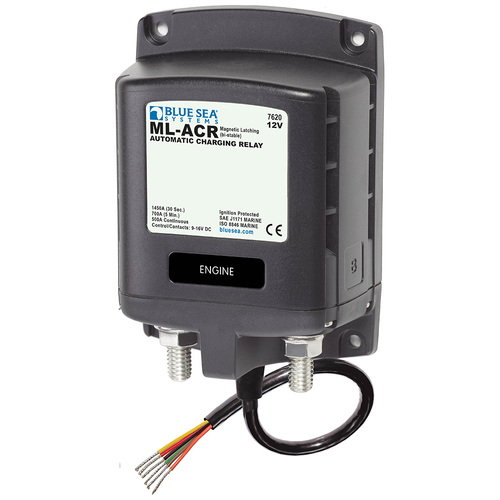

Blue Sea Solenoid ML-ACR Automatic Charging Relay - 12V DC 500A
ML-Series Automatic Charging Relays (Magnetic Latch) - ML-Series Heavy Duty Automatic Charging Relay
- Availability:
- SKU: BSS.7620
- Manufacturer: Blue Sea
- MPN:
- Shipping Weight: 0.93kg
Related Products
Blue Sea Switch Contura SPDT ON-OFF-ON RGRemote Control Contura Switches - Remote Control Contura Switch
BSS.2146
$30.92 20% OFF RRP $38.60

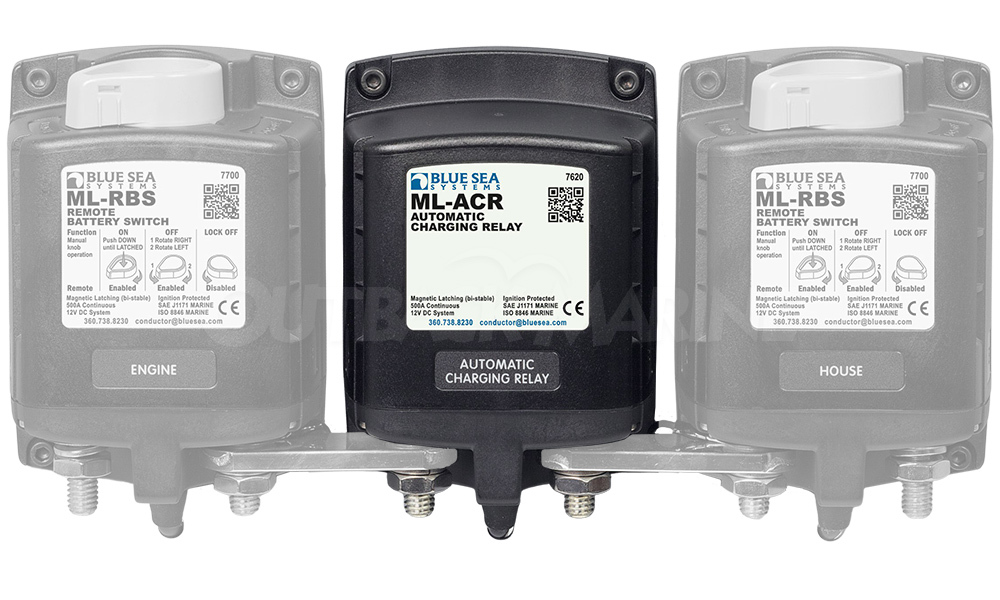

Blue Sea Link Bus ACRBattery Switch Accessories - ML-Series Paralleling Link Bus
BSS.9160
$21.34 20% OFF RRP $26.70
ML-Series Automatic Charging Relays (Magnetic Latch) - ML-Series Heavy Duty Automatic Charging Relay
500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine
Features
- Automatically manages the charging of two large battery banks
- Allows paralleling of battery banks for emergency starting
- 500 Ampere continuous rating to support high-output alternators
- Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states and draws moderate current for very short time when changing state
- Dual sensing—senses charge on both battery banks
- Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
- Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
- Senses charging on two battery banks
- LED output to remotely indicate when batteries are combined isolated in voltage lockout or in Start or Engine isolation
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Silver alloy contacts provide high reliability for switching live loads
- Label recesses for circuit identification
Does not include ML-Series Remote Control Contura Switch - see BSS.2146 if required
(BSS.7620)
