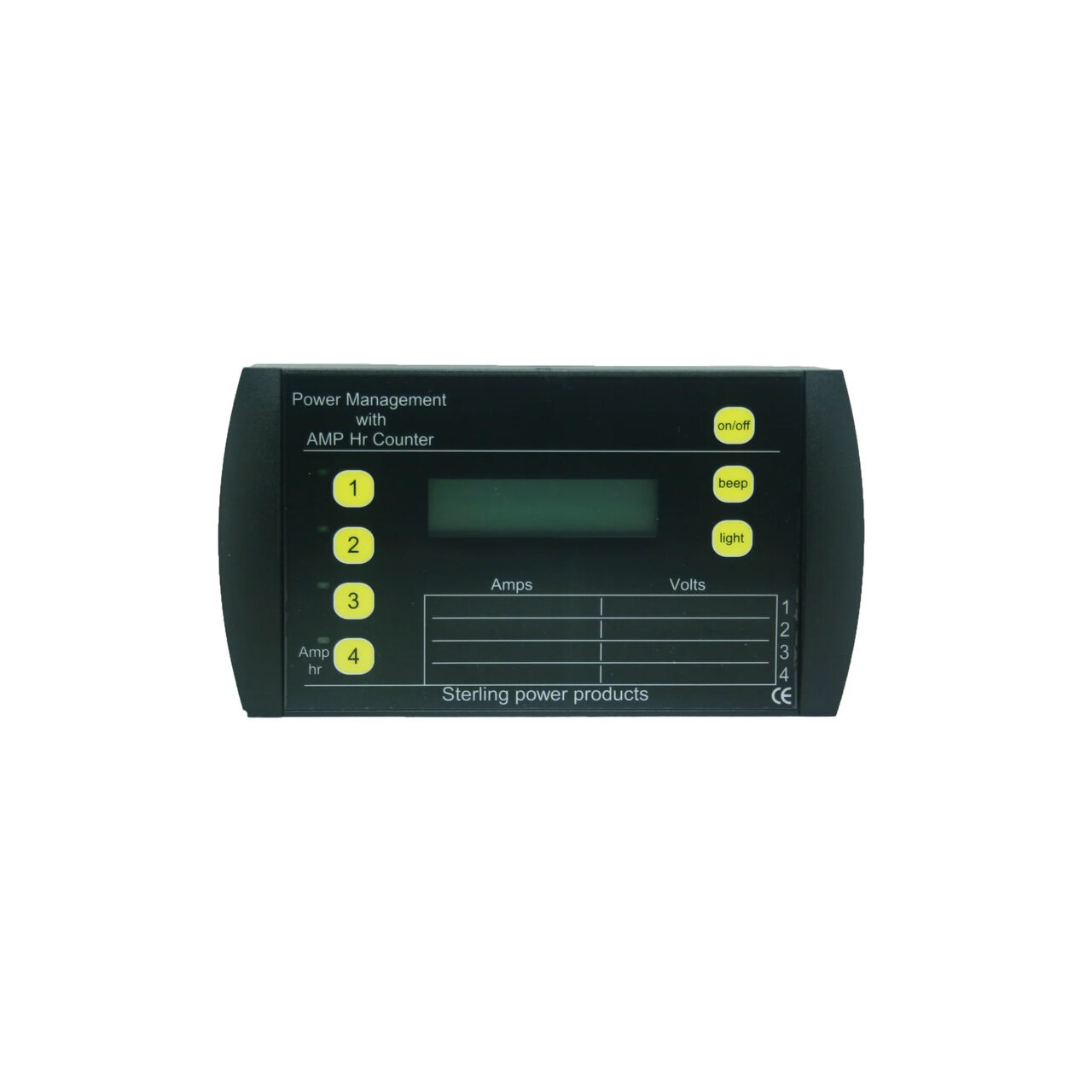

Comprehensive Electrical Monitoring for Advanced Marine Power Systems

The Power Management Panel provides complete visibility over your vessel’s electrical performance, ensuring safe, efficient, and informed power usage. Designed for marine environments, it displays multiple current and voltage readings simultaneously while including an automatic amp-hour counter to track battery charge and discharge cycles. The software-driven interface enables accurate, real-time monitoring for maintenance and troubleshooting without voltage drop or interference.

Key Features

• Comprehensive Monitoring: Displays four independent current and four voltage readings with a dedicated amp-hour counter.
• Accurate Measurement: Operates via 100 mV shunts, enabling precise current measurement without heavy-duty cabling interference.
• Flexible Installation: Supports both positive and negative cable shunt placement and offers flush or surface mounting options.
• High Readability: LED backlighting ensures clear visibility in bright sunlight, low light, or night conditions.
• Low Power Consumption: Draws only 0.5 mA when off and 0.7 mA when on, optimising onboard energy use.

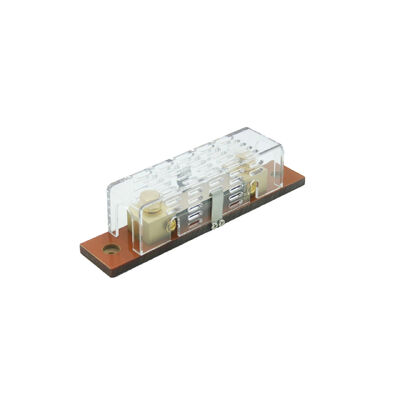

• Scalable System: Includes one 200 A brass shunt, with optional 200 A or 400 A shunts available for higher current capacity.
• Reliable Performance: Safe for surge currents over 1000 A and provides ±1% measurement accuracy.

Ideal for maintaining dependable onboard electrical performance and identifying faults quickly and accurately.
