Blue Sea 9003e e-Series On Off Battery Switch
e-Series Battery Switches - e-Series Battery Switch Single Circuit ON-OFF
- Availability:
- SKU: BSS.9003e
- Afd: No AFD
- Positions: ON-OFF
- Poles: Single Pole
- Manufacturer: Blue Sea
- MPN: 9003EB
- Barcode: 632085900359
- Shipping Weight: 0.59kg
Recommended Accessories
Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.
e-Series Battery Switches - e-Series Battery Switch Single Circuit ON-OFF
Features
Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats

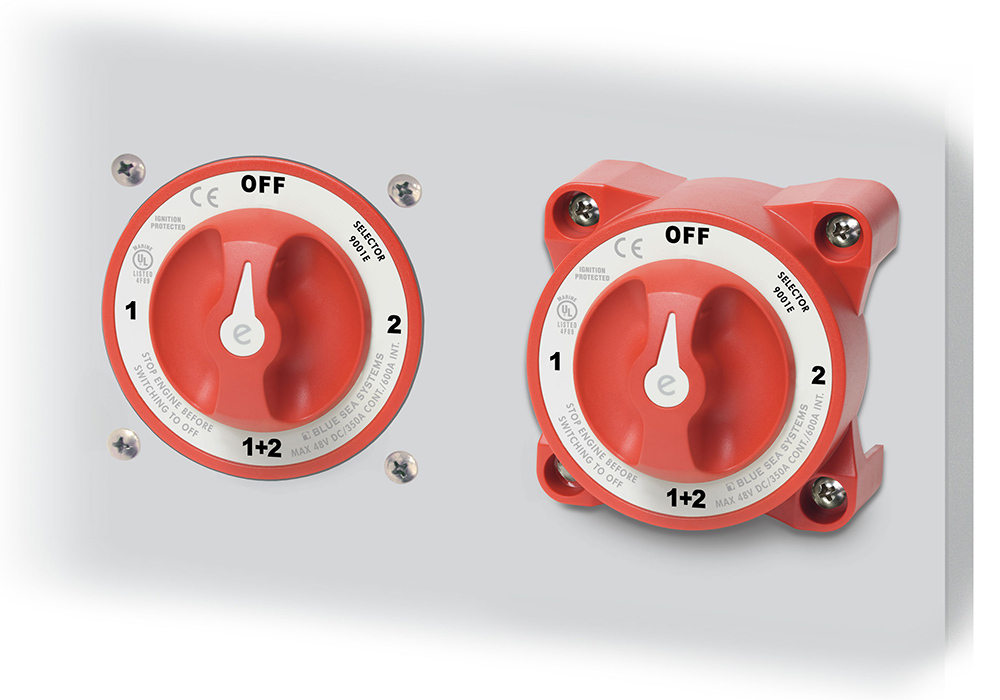

- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches

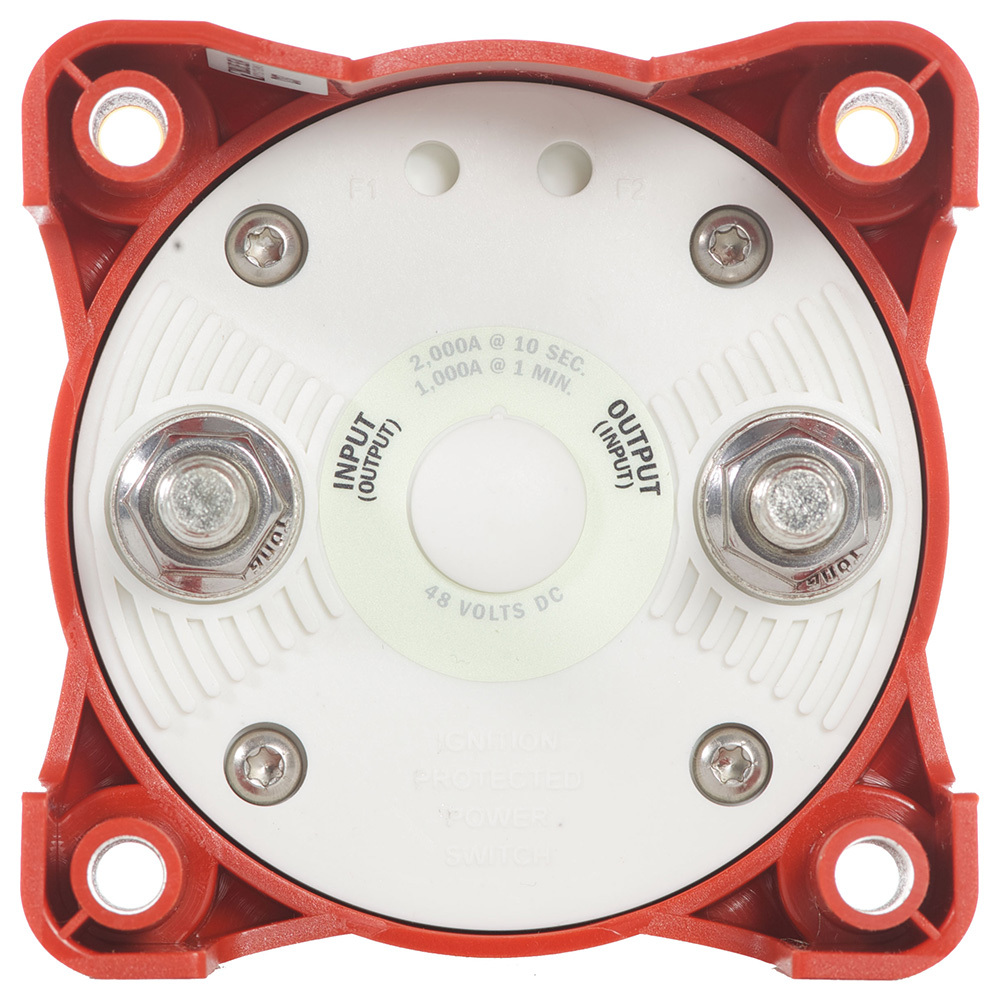

- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Tactile textures indicate knob position by feel only
Switch set to ON
(BSS.9003e)
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 30 sec | 1200A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.95Lb (0.43 Kg) |
| Weight | 1.30lb (0.59 kg) |
