Blue Sea 9004e e-Series On-Off Battery Switch with AFD

e-Series Battery Switches - e-Series Battery Switch Single Circuit ON-OFF

  • Availability:
  • SKU: BSS.9004e
  • Afd: AFD
  • Positions: ON-OFF
  • Poles: Single Pole
  • Manufacturer: Blue Sea
  • MPN:
  • Shipping Weight: 0.59kg
$92.65 inc GST
$97.50 RRP
SAVE $4.85 (5%)

Recommended Accessories



Insurance
All shipments are covered for loss or damage while in transit up to the point of delivery to the nominated shipping address. Insurance does not cover goods left on your premises under your instruction.

e-Series Battery Switches - e-Series Battery Switch Single Circuit ON-OFF

Features

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches

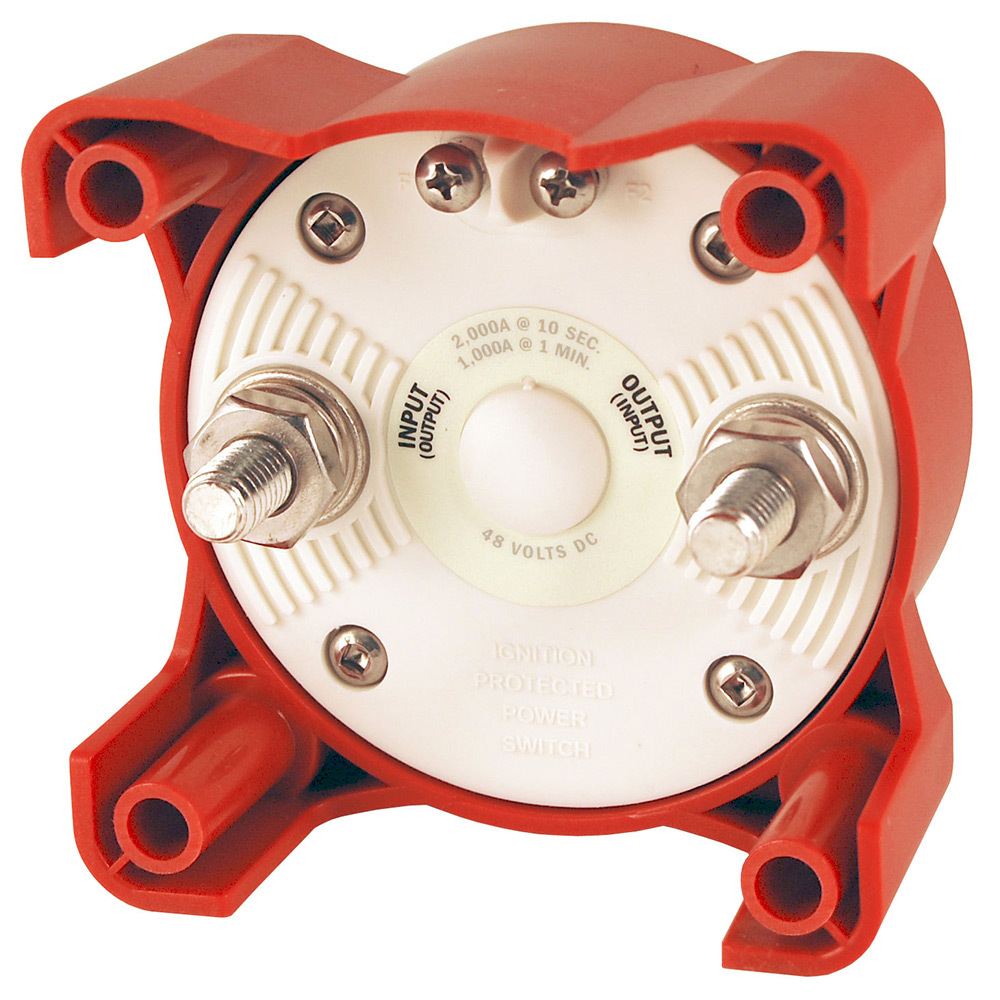

  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only

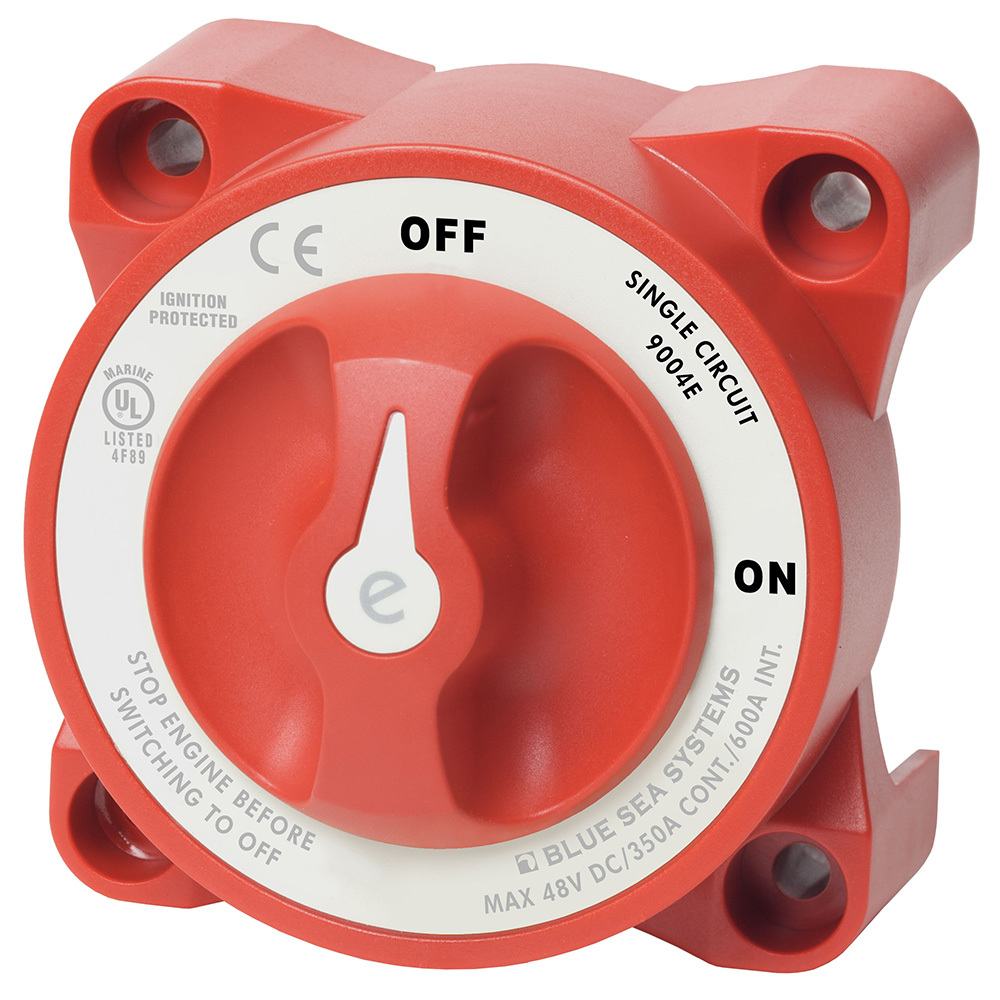

Switch set to ON
9003e Switch set to ON



(BSS.9004e)

Specifications
Switch Type  Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  Yes
Maximum Voltage 48V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  600A (5 min)
Cranking Rating 30 sec  1200A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.95Lb (0.43 Kg)
Weight 1.30lb (0.59 kg)
