High-Performance 5G Router with Dual SIM, PoE and eSIM

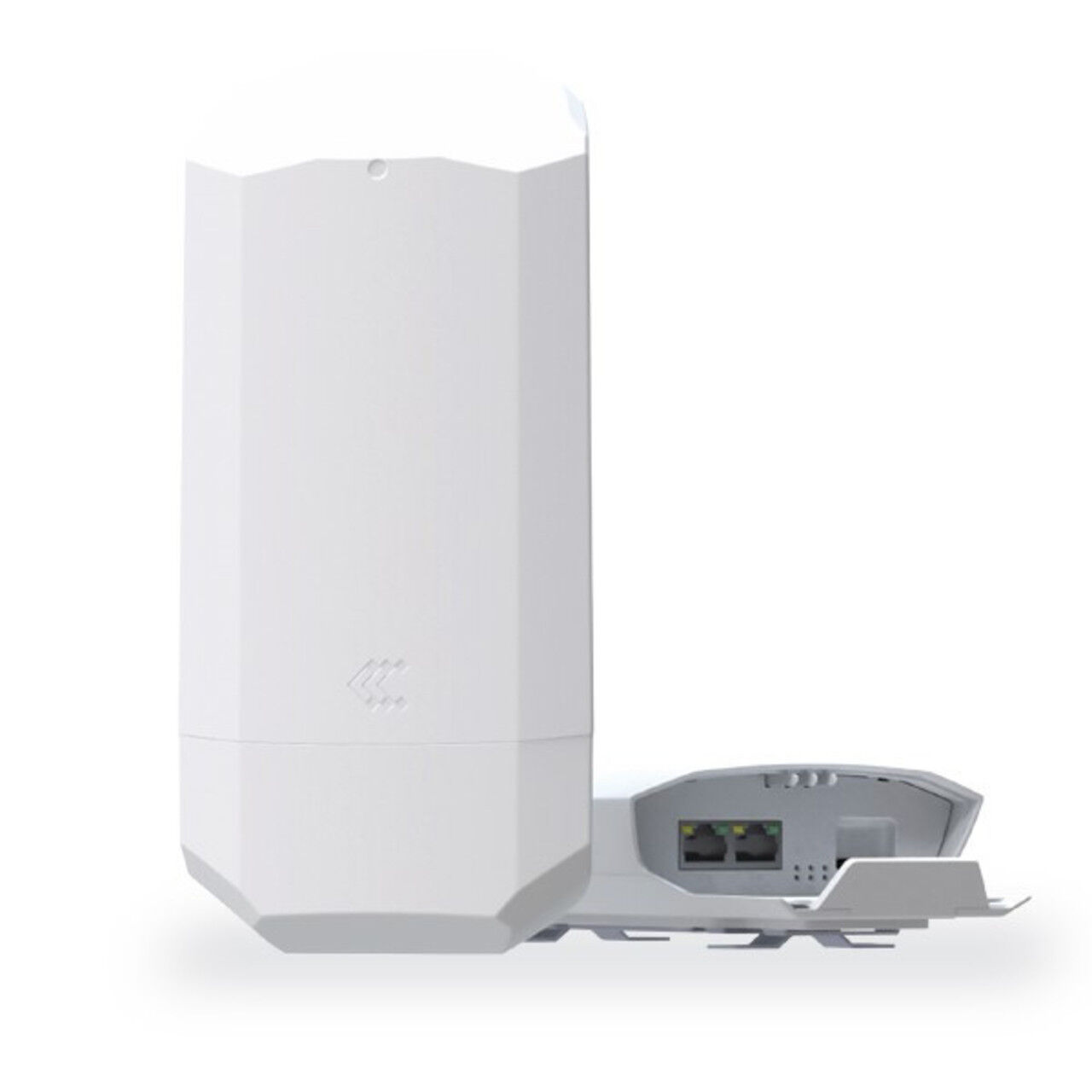

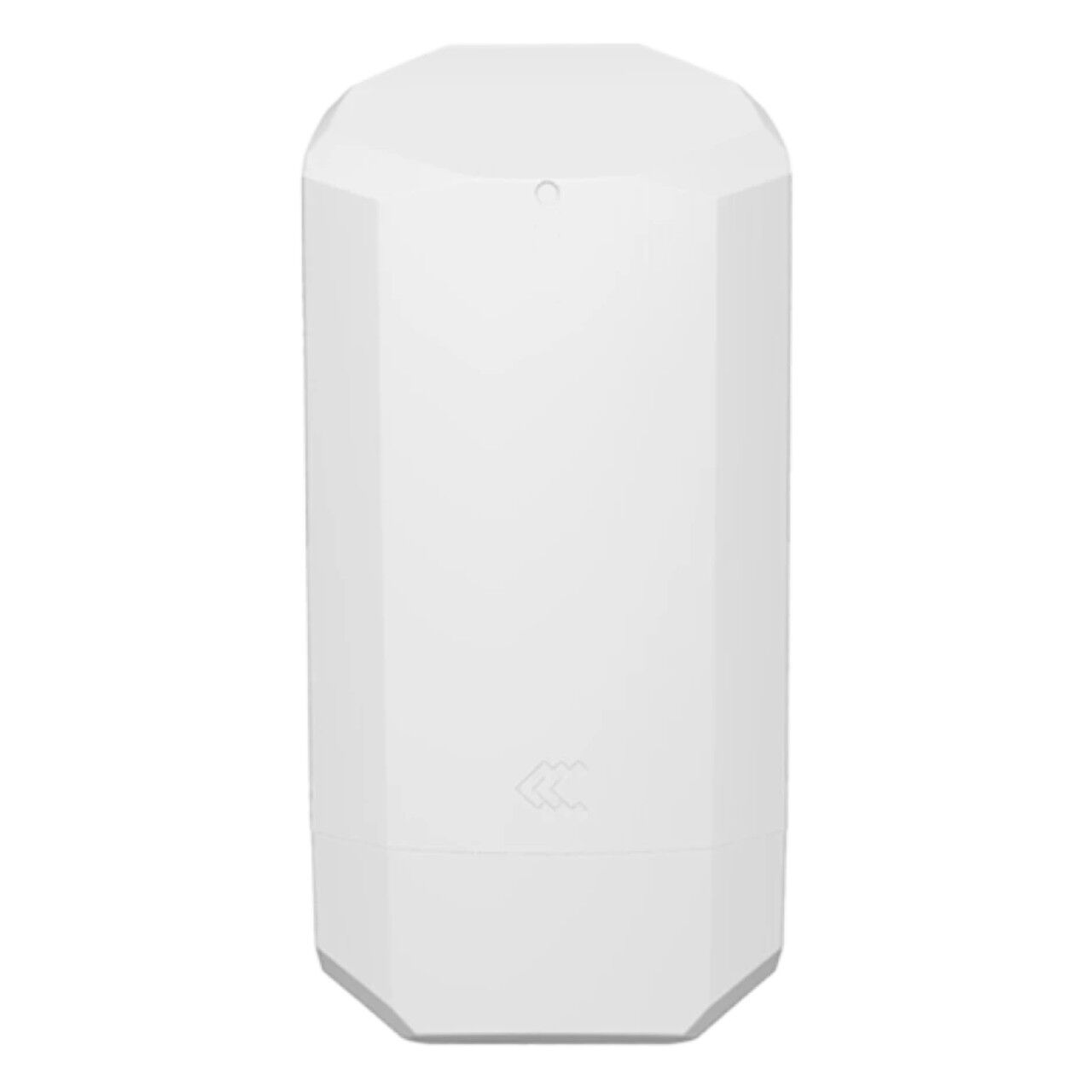

The OTD500 is a powerful outdoor-rated 5G Sub-6 GHz router designed for mission-critical applications. It supports Cat 19 LTE fallback, dual SIM auto-failover, consumer eSIM, PoE input/output, and a full suite of advanced networking features. Built on RutOS with SDK support, it delivers secure connectivity with edge computing capabilities across rugged environments.

Key Features

  • 5G Sub-6Ghz mobile support: Achieves 2.4 Gbps download and 900 Mbps upload speeds; LTE Cat 19 fallback up to 1.6 Gbps.
  • Dual SIM and eSIM: Supports 2 physical SIMs with auto-switching plus up to 7 eSIM profiles for global deployments.
  • PoE-ready Ethernet: Includes 1 PoE input and 1 PoE output (up to 15 W) with dual Gigabit Ethernet ports.
  • Advanced VPN support: Compatible with OpenVPN, WireGuard, IPsec, GRE, DMVPN, Tailscale, and more.
  • Comprehensive security: Features DDOS protection, 802.1x, VLANs, TPM 2.0 module, and web filtering.
  • Industrial-grade OS: Runs RutOS (OpenWrt-based) with API, scripting, and full SDK for firmware customisation.
  • IoT-ready interfaces: Native support for Modbus, MQTT, DLMS/COSEM, DNP3, OPC UA and remote scripting.
  • Robust cloud integration: Seamlessly integrates with AWS IoT, Azure IoT, Cumulocity, and Teltonika RMS.
  • Ruggedised outdoor design: IP55-rated housing with industrial plastic enclosure and pole/wall mount bracket.
  • Wide temperature range: Built for -40 °C to 55 °C operation with surge and reverse polarity protection.

The OTD500 delivers carrier-grade connectivity in a compact, rugged package for modern 5G edge networks.

Product Specifications
Mobile Network 5G Sub-6GHz, LTE Cat 19 fallback, 3G support
SIM Support 2 × Mini SIM (2FF), up to 7 eSIM profiles
Ethernet Ports 2 × RJ45 (10/100/1000 Mbps), 1 × PoE In, 1 × PoE Out
PoE Output 15 W max (Alternative B)
VPN Support OpenVPN, WireGuard, IPsec, GRE, Tailscale, DMVPN, and more
Security TPM 2.0, firewall, DDOS protection, VLAN, 802.1x, filtering
IoT Protocols Modbus, MQTT, DLMS/COSEM, OPC UA, DNP3, JSON-RPC
Cloud Platforms RMS, AWS IoT, Azure IoT, Cumulocity, ThingWorx
Operating System RutOS (OpenWrt-based), SDK and scripting supported
CPU MediaTek dual-core 880 MHz (MIPS1004Kc)
Memory 256 MB DDR3 RAM, 256 MB NAND + 16 MB NOR Flash
Power Input 42.5 – 57.0 VDC (PoE or RJ45), surge and polarity protected
Power Consumption Idle: <2.5 W, Max: <9 W, PoE Max: <24 W
Antenna 4 × internal omnidirectional (617–5000 MHz), gain 4.9 dBi
Dimensions 110 × 49.3 × 235 mm
Weight 385 g
Operating Temperature -40 °C to 55 °C
Ingress Protection IP55
Certifications CE, RCM, UKCA, CB, EMC, RoHS, REACH
SKU TEL.OTD500
Model # OTD500
Brand Teltonika
Shipping Weight 1.0000kg
Shipping Width 0.011m
Shipping Height 0.024m
Shipping Length 0.050m
Shipping Cubic 0.000013000m3
Unit Of Measure Each
