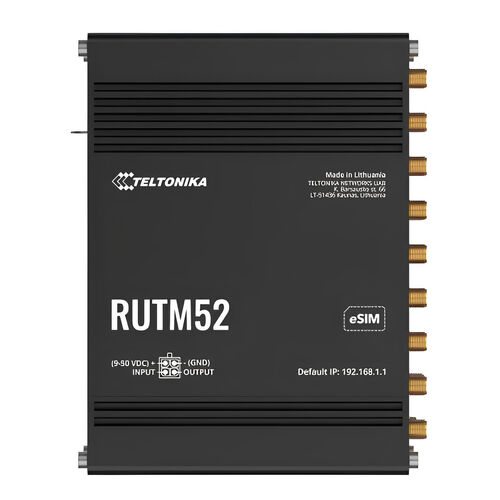

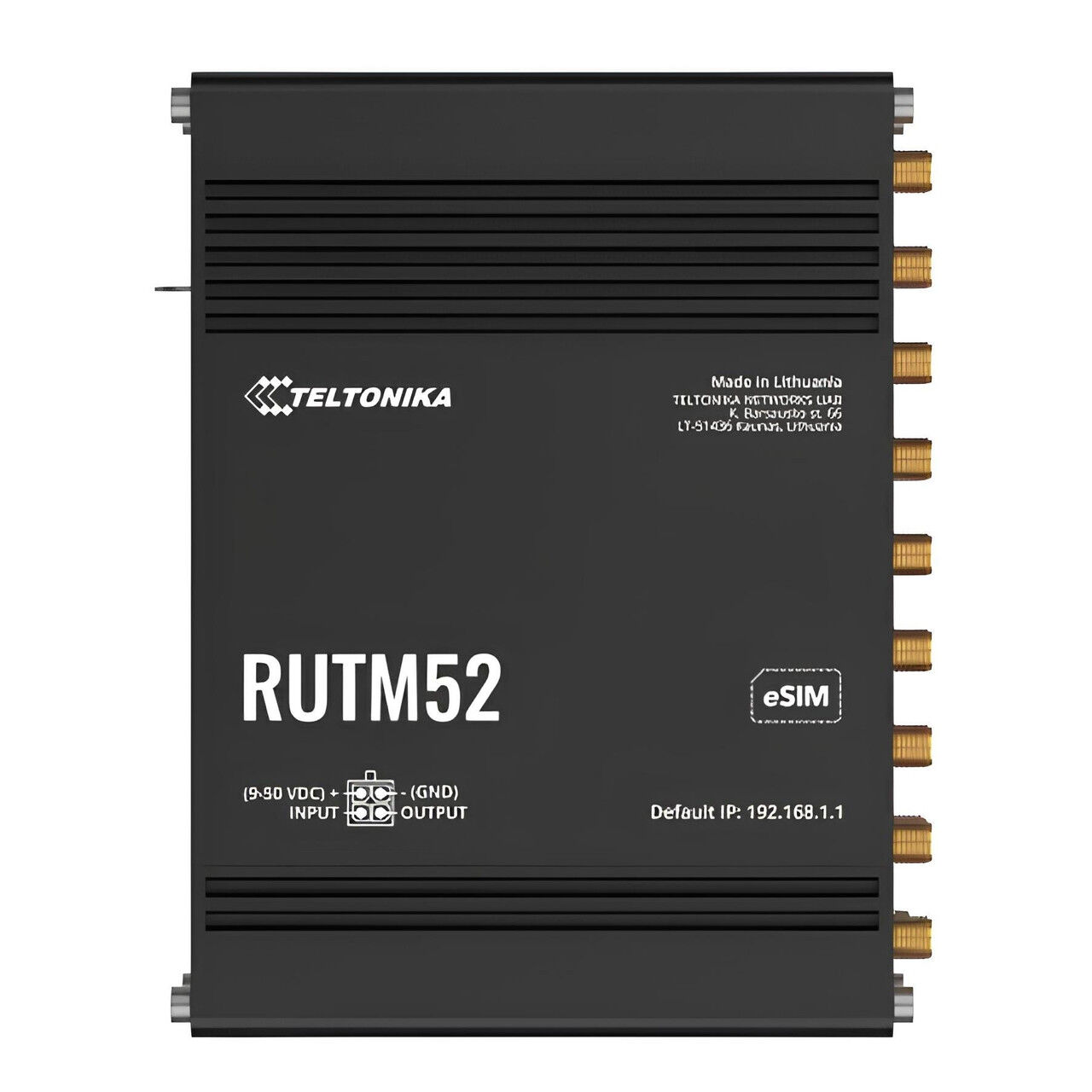

Compact, High-Performance Mobile Router for Industrial Applications

The Teltonika RUTM52 is a powerful and compact mobile router designed to deliver reliable internet connectivity in remote and industrial environments. With support for 4G LTE and Wi-Fi, this device provides high-speed data transfer and versatile connectivity options, ensuring seamless communication for a wide range of IoT and M2M applications. Whether used in fleet management, remote monitoring, or industrial automation, the RUTM52 is built to perform in challenging conditions while ensuring robust security and easy management.

This router is designed to meet the needs of businesses that require constant, high-speed connectivity on the move or in harsh environments. Its durability and compact design make it a great fit for mobile and fixed installations.

Key Features

  • LTE Connectivity: With 4G LTE support, the RUTM52 ensures reliable, high-speed mobile internet access. It also supports fallback to 3G and 2G networks for continued connectivity in remote areas.
  • Dual SIM Functionality: Features two SIM slots with automatic switching for enhanced reliability, ensuring that the router remains connected even if one network fails or experiences weak signal.
  • Advanced Security: Built-in security features, including a firewall, VPN support, and secure remote management, protect against unauthorized access and cyber threats.

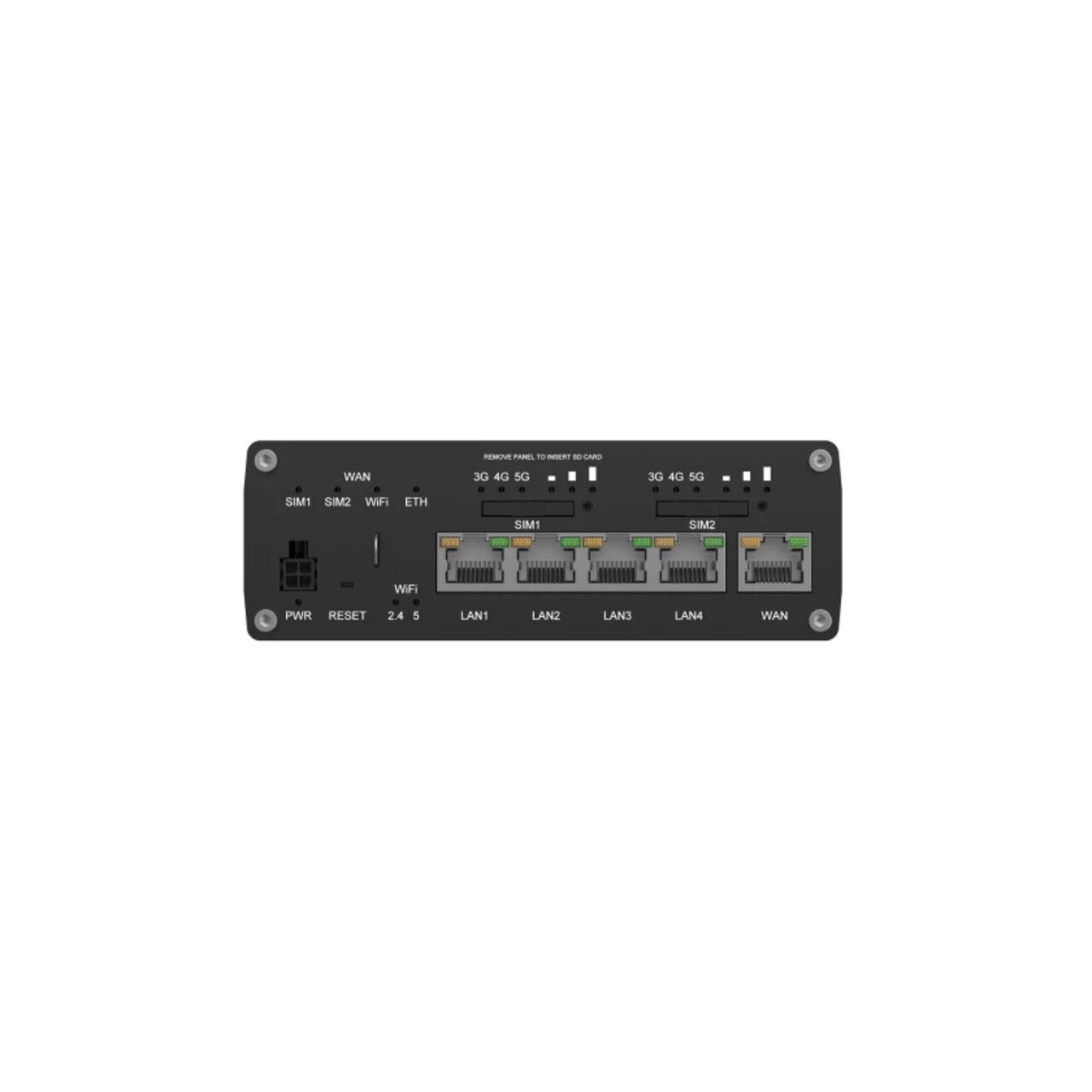

  • Multiple Interfaces: The router includes 1 x WAN port, 4 x LAN ports, and additional digital inputs/outputs, offering flexibility for various devices and applications.
  • Remote Management: The Teltonika RMS (Remote Management System) allows for easy monitoring, configuration, and firmware updates, reducing the need for on-site visits.
  • Rugged Design: The RUTM52 is designed for industrial environments with an IP30 rating, ensuring durability in harsh conditions and maintaining reliable performance over time.

The RUTM52 is a versatile and rugged mobile router, ideal for industries where reliable, high-speed internet connectivity is essential. With its comprehensive features and ease of management, it’s a trusted solution for a variety of applications.

Product Specifications
Mobile Module 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO) 900/600Mbps UL (2x2 MIMO); 4G LTE DL Cat 20 2.0Gbps (4x4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL
3GPP Release Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM Switch 2 SIM cards, auto-switch for weak signal, data limit, roaming, network fail, SIM idle protection
Status IMSI, ICCID, operator, data connection state, network type, bandwidth, signal strength, SINR, and other network metrics
SMS Send/read SMS via HTTP POST/GET, SMS autoreply, SMPP, Email/SMS conversion, scheduled SMS
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list by country or separate operators
Multiple PDN Support for different PDNs for multiple network access
Band Management Band lock, used band status display
SIM PIN Code Management Enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Framed Routing Support for IP network behind 5G UE
Wireless Mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with MU-MIMO, up to 867 Mbps
Wi-Fi Security WPA2-Enterprise, WPA3, AES-CCMP, TKIP, EAP-TLS, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi Users Up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh, fast roaming, Relayd, radio resource measurement (802.11k)
Ethernet WAN 1 x WAN port 10/100/1000 Mbps
Ethernet LAN 4 x LAN ports, 10/100/1000 Mbps
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP), Policy-based routing
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers
Connection Monitoring Ping Reboot, Wget Reboot, LCP and ICMP link inspection
Firewall Port forward, traffic rules, TTL target customization
DHCP Static and dynamic IP allocation, DHCP relay, server configuration
QoS / Smart Queue Management Traffic priority queuing, WMM, 802.11e
Load Balancing Balance Internet traffic over multiple WAN connections
DDNS Supports >25 service providers
DNS over HTTPS Secure DNS resolution via HTTPS
VRF Support Initial VRF support
Traffic Management Real-time monitoring, traffic usage history
SKU TEL.RUTM52
Model # RUTM52
Brand Teltonika
Shipping Weight 0.5600kg
Shipping Width 0.050m
Shipping Height 0.100m
Shipping Length 0.140m
Shipping Cubic 0.000700000m3
Unit Of Measure ea
