Applications: Pleasure Craft, Marine, Vehicle, 4WD, Camper, Caravan/RV, Low Voltage DC Applications

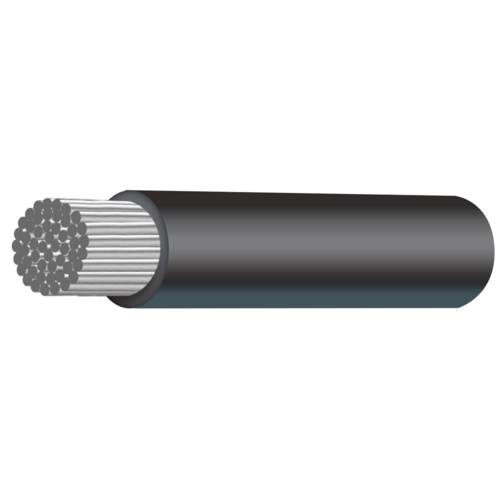

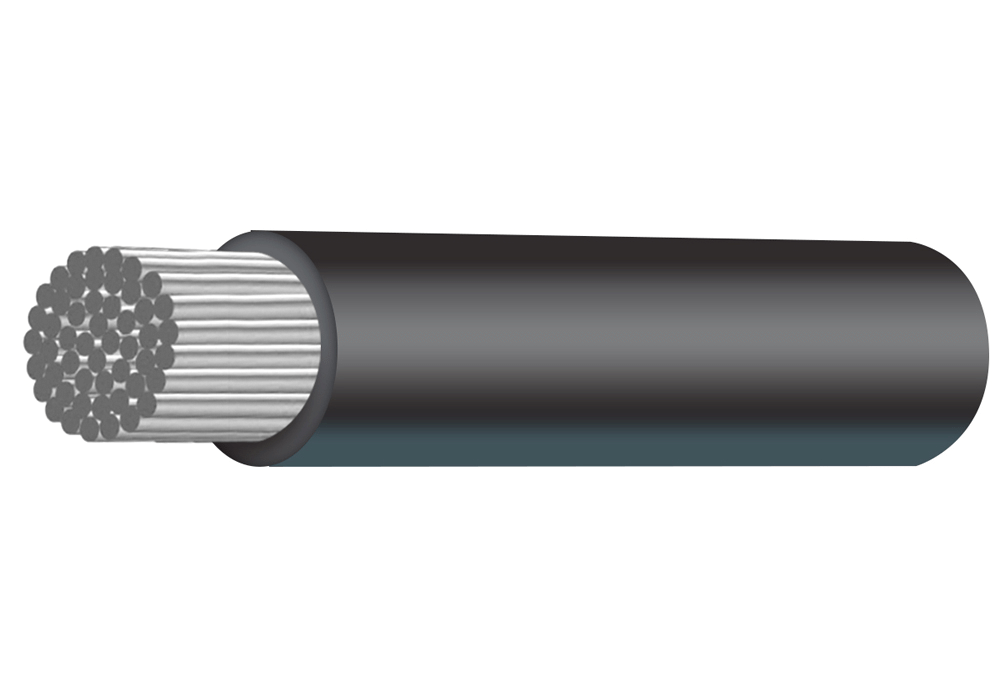

Conductor: TINNED COPPER WIRE (TCW) to AS/NZS 1125

Insulation: RoHS Compliant

Colours: Black

Max. Roll Length: 30 Metres



Code NEAREST
B&S		 CONDUCTOR
NO/DIA
(mm)		 Nominal
Area
(mm²)		 Insulation
Thickness
(mm)		 *AMP
Rating
JASO D609
at 30°C		 Electrical
Resistance
at 20°C
(ohm/km)		 Nominal
O.D.
(mm)		 Mass
(kg/100m)
MBS119203 6 168/0.32 13.5 1.1 103 1.42 7.2 15.6

* AMP RATING: TO JASO D609 derating factors apply



Derating Factors for Bundling of Single Core Cables
No of Cables
1
2
3
4
5
6 to 7
8 to 10
11 to 12
Factor
1
0.8
0.7
0.6
0.55
0.5
0.45
0.4



Derating Factors for Ambient Temperatures °C
Temperature
30
40
50
60
70
Factor
1.00
0.90
0.76
0.60
0.45



SKU TYC.MBS119203-BK-M
Model # UP-XXXD/1C6R
Brand Tycab
Shipping Weight 0.1600kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000750000m3
Unit Of Measure m
