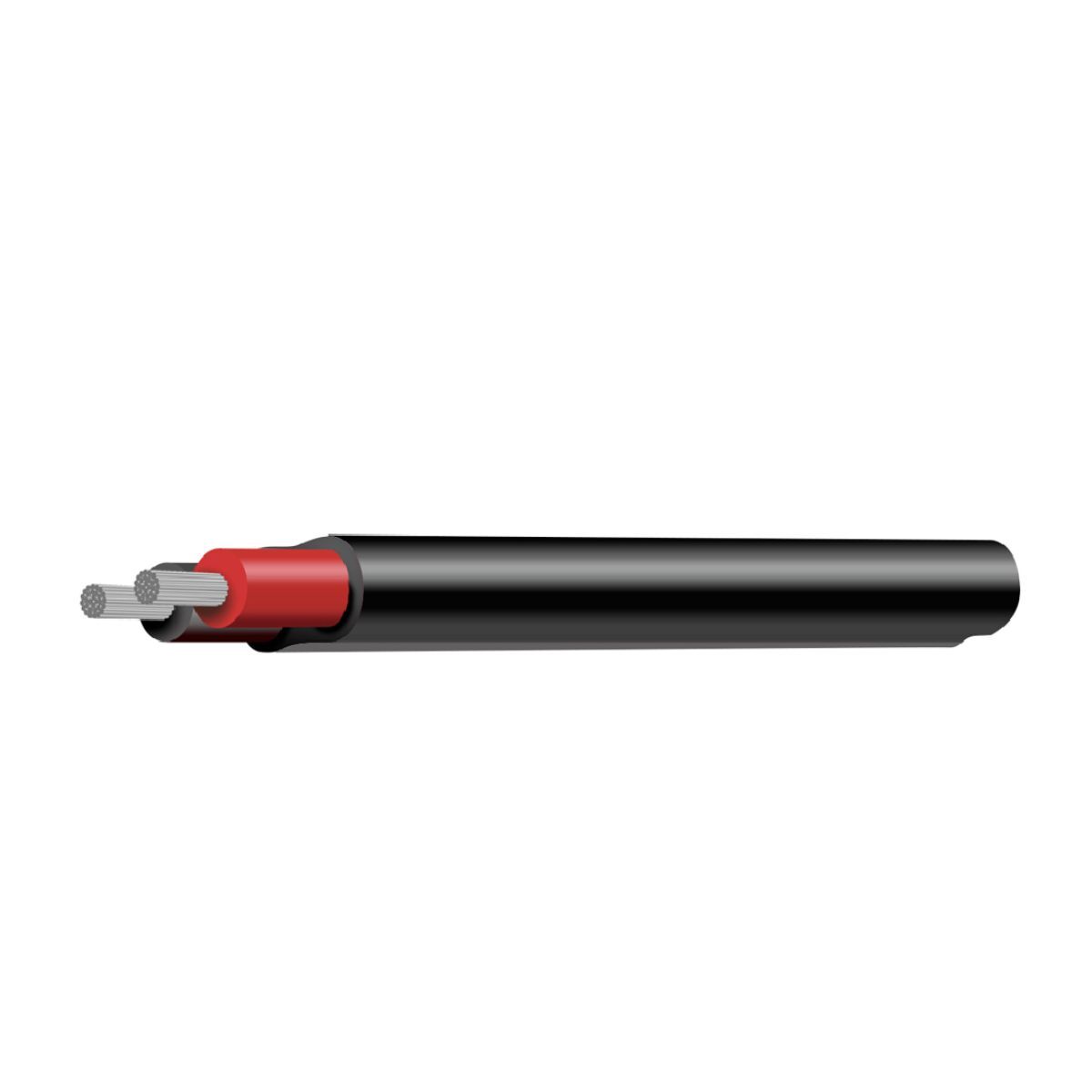

Applications: Pleasure Craft, Marine, Vehicle, 4WD, Camper, Caravan/RV, Power & Solar Low Voltage DC Applications

Conductor: TINNED COPPER WIRE (TCW) to AS/NZS 1125

Insulation: RoHS Compliant 5V90 P.V.C. to AS/NZS 3808

Core Colours: Red & Black

Sheath Colour: Black



Code CONDUCTOR
NO/DIA(mm)		 NEAREST
B&S		 Nominal
Area
(mm²)		 Insulation
Thickness
(mm)		 Sheath
Thickness
(mm)		 *AMP
Rating
JASO D609
at 30°C		 Electrical
Resistance
at 20°C
(ohm/km)		 Nominal
O.D.
(mm)		 Mass
(kg/100m)
MWS296032 96/0.32 8 7.7
Commonly referred as 10mm² cable		 0.9 0.8 59 2.43 7.1 x 12.5 22



* AMP RATING: TO JASO D609 derating factors apply



Derating Factors for Bundling of Single Core Cables
No of Cables

1

2

3

4

5

6 to 7

8 to 10

11 to 12
Factor

1

0.8

0.7

0.6

0.55

0.5

0.45

0.4



Derating Factors for Ambient Temperatures °C
Temperature

30

40

50

60

70
Factor

1.00

0.90

0.76

0.60

0.45



SKU TYC.MWS296032-BK-30M
Model # MWS296032
Brand Tycab
Shipping Weight 10.9000kg
Shipping Width 0.180m
Shipping Height 0.180m
Shipping Length 0.260m
Shipping Cubic 0.008424000m3
Unit Of Measure ea
