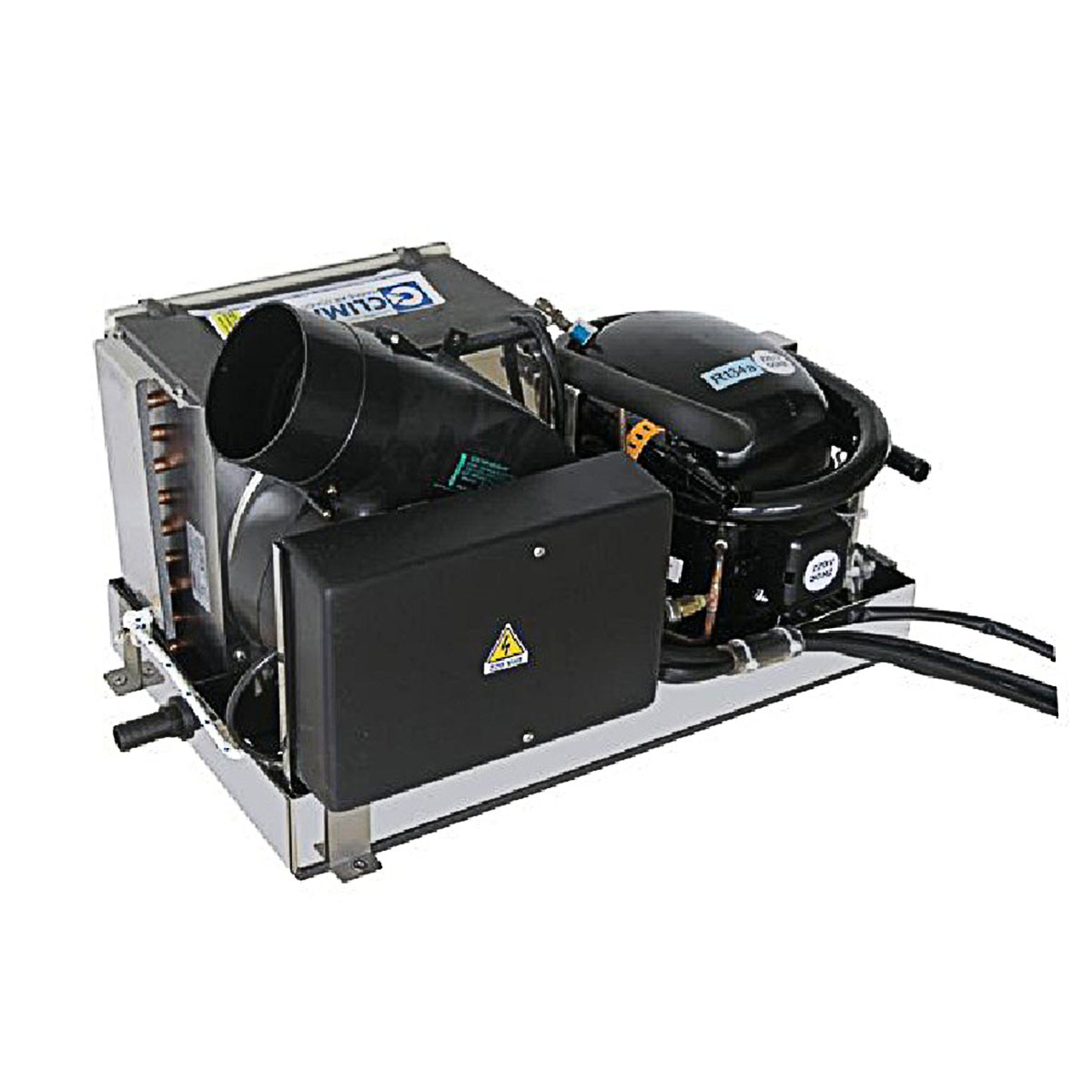

Veco Compact 5 Rc 230/1/50 MK3

The Compact 5RC air conditioner, part of the specially designed marine Compact range, offers exceptional cooling and heating capabilities for marine environments. This model stands out with its water-cooled condenser, compact and unobtrusive design, and quiet yet powerful operation. Utilizing environmentally friendly R410A refrigerant, it ensures efficient cooling without harming the ozone layer.

Features

• Reverse Cycle Technology: Functions as a heat pump, providing both cooling and heating options. Also available in cold-only or electrically heated versions.
• Marine-Specific Design: Tailored for marine use with a water-cooled system for optimal efficiency.
• Quiet Operation: Engineered to operate quietly, enhancing onboard comfort.
• Compact Size: Dimensions of 520 mm (L) x 300 mm (W) x 295 mm (H) and a weight of 30 Kg, making it suitable for space-constrained areas.
• High Airflow: Delivers a maximum airflow of 230 m³/h through a 100 mm duct size.
• Technical Specifications:
  • Phase Type: Single-phase
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Cooling Capacity: 5000 BTU/h
  • Heating Capacity: 4500 BTU/h

Advantages

• Broad Range: Offers independent air conditioning systems from 3500 to 27000 BTU/h.
• Eco-Friendly: Uses R410A refrigerant, which is non-toxic and ozone-layer friendly.
• Efficient Cooling: Enhanced heat exchange and lower pressure drop for more efficient operation.
• User-Friendly: Comes with a pre-wired electrical box and movable fan for ease of use.
• Condensation Management: Features a threaded brass condensate drain and anti-condensation tray with the Dry Pan system.
• Effective Heat Exchange: Boasts a high-efficiency ultra-fine gas-air cooler.

The Compact 5RC is ideal for single-room or adjacent area conditioning on boats, offering a perfect blend of efficiency, environmental consideration, and powerful performance. For diverse needs, additional models are available in our marine air conditioners catalogue

THIS PRODUCT MUST BE INSTALLED BY A LICENSED ELECTRICIAN
