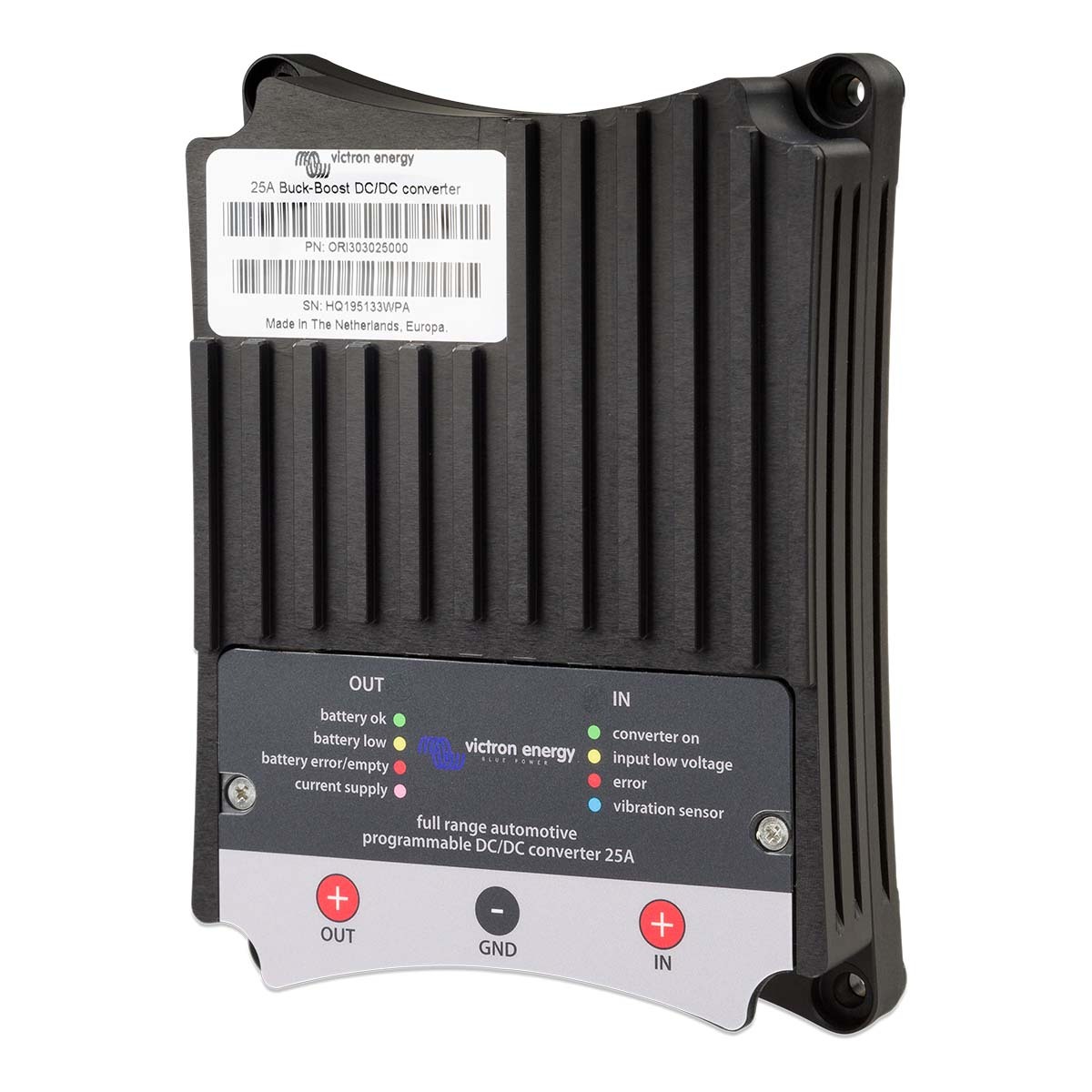

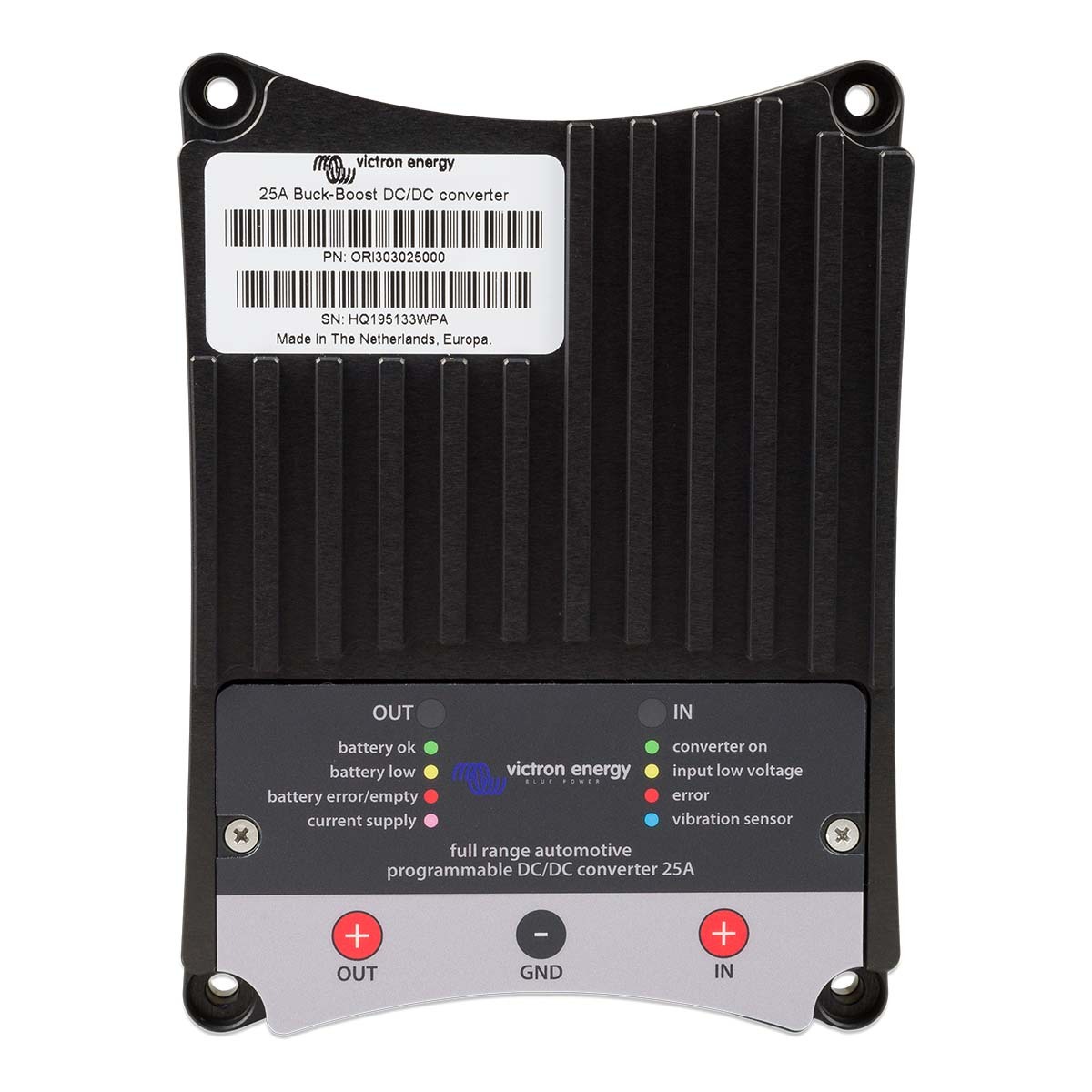

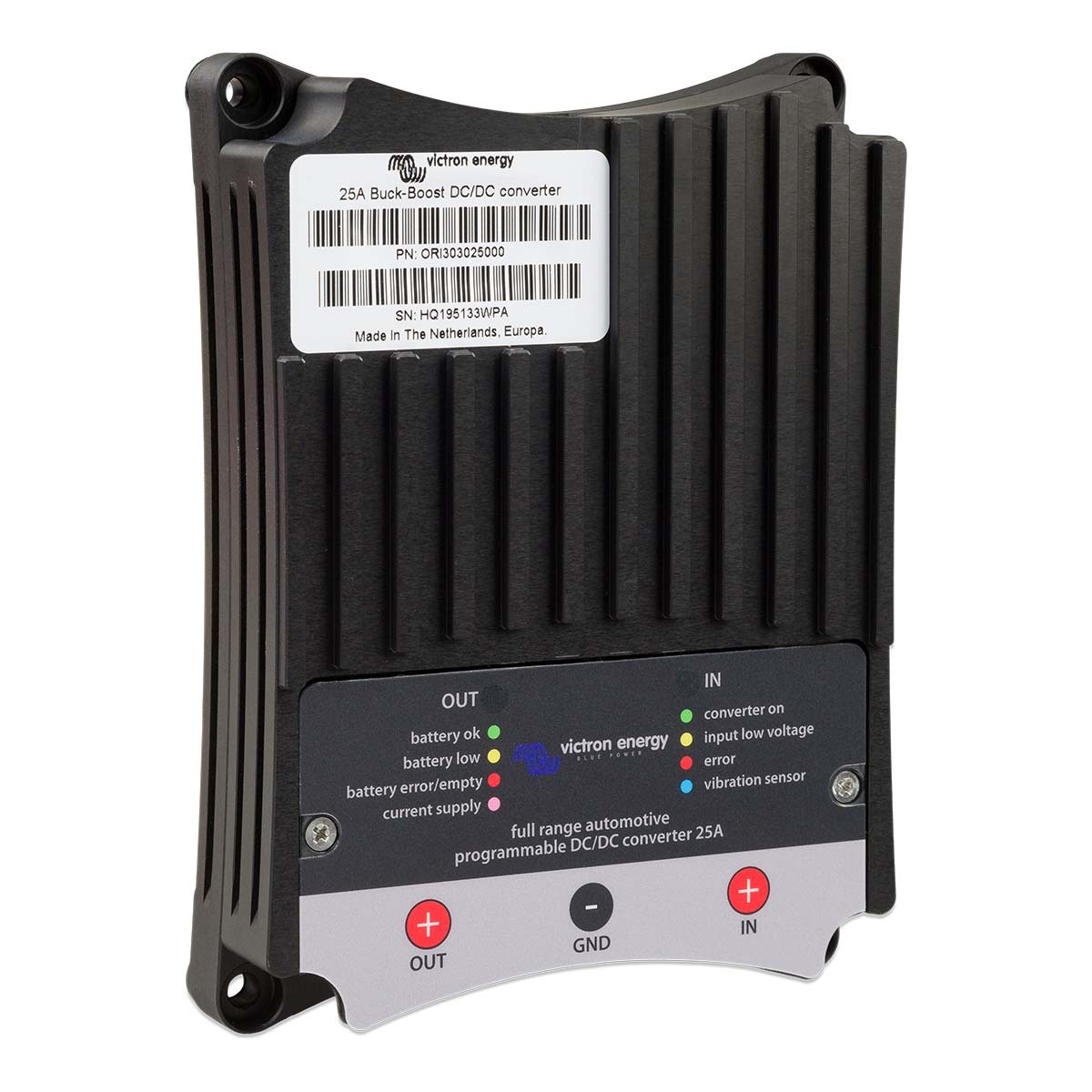

Victron 25A Buck-Boost DC/DC converter

The Victron 25A Buck-Boost DC/DC Converter is an advanced solution for charging 12V or 24V service batteries in vehicles equipped with intelligent dynamo systems, such as those with regenerative braking, Euro 5, and Euro 6 engines. This converter is essential in modern vehicles where the onboard electronics may not provide a consistent charging current.

Key Features:

  • Smart Charging: Adjusts to provide the correct charging voltage regardless of high or low input voltages.
  • Engine Running Detection: Prevents deep discharge of the starting battery, with activation via an engine detection system or programmable input (D+, CAN bus, or (+)15 connection).
  • Fully Programmable: User-friendly PC application for easy customization.
  • Versatility: Compatible with 12V, 24V, and 12/24V systems, adaptable for different vehicle alternators and batteries.
  • Charge & Input Current Limiter: Output current is regulated based on user settings and the converter's maximum temperature limit.
  • LED Indicators: Provide input and output status, including voltage thresholds and temperature.

LED Indications:

  • Green: Normal operation or battery voltage.
  • Yellow/Red: Voltage issues or over temperature.
  • Purple: Converter active.
  • Blue: Engine running detection or low input voltage status.

This converter ensures optimal battery charging, maintaining the health of your service battery while accommodating the complexities of modern vehicle electrical systems

Feature 25A 50A 100A
Input Voltage Range 10-30V
Under Voltage Threshold 10V
Output Voltage Range 10-30V
Maximum Charge Current (12V) 25A 50A 100A
Maximum Charge Current (24V) 15A 25A 50A
Power Consumption (Power Save Mode) 7 mA
'On' Threshold Voltage > 2V
Maximum Input Voltage 30V
Output Voltage if Activated Vpinout = Vin
Maximum Current per Pin Ipinout = 1A
Operating Temperature Range -25 to +60°C
Weight 0.6kg 1.4kg 4.1kg
Dimensions 165 x 120 x 30mm 213 x 120 x 30mm 288 x 162 x 95mm
SKU VIC.ORI303025000
Model # ORI303025000
UPC/EAN 8719076035909
Brand Victron Energy
Shipping Weight 1.1000kg
Shipping Width 0.210m
Shipping Height 0.045m
Shipping Length 0.140m
Shipping Cubic 0.013230000m3
