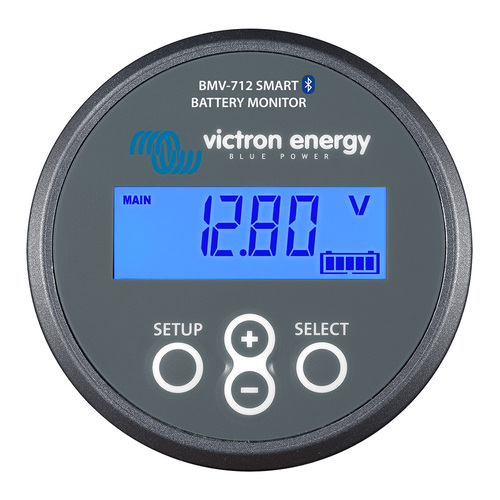

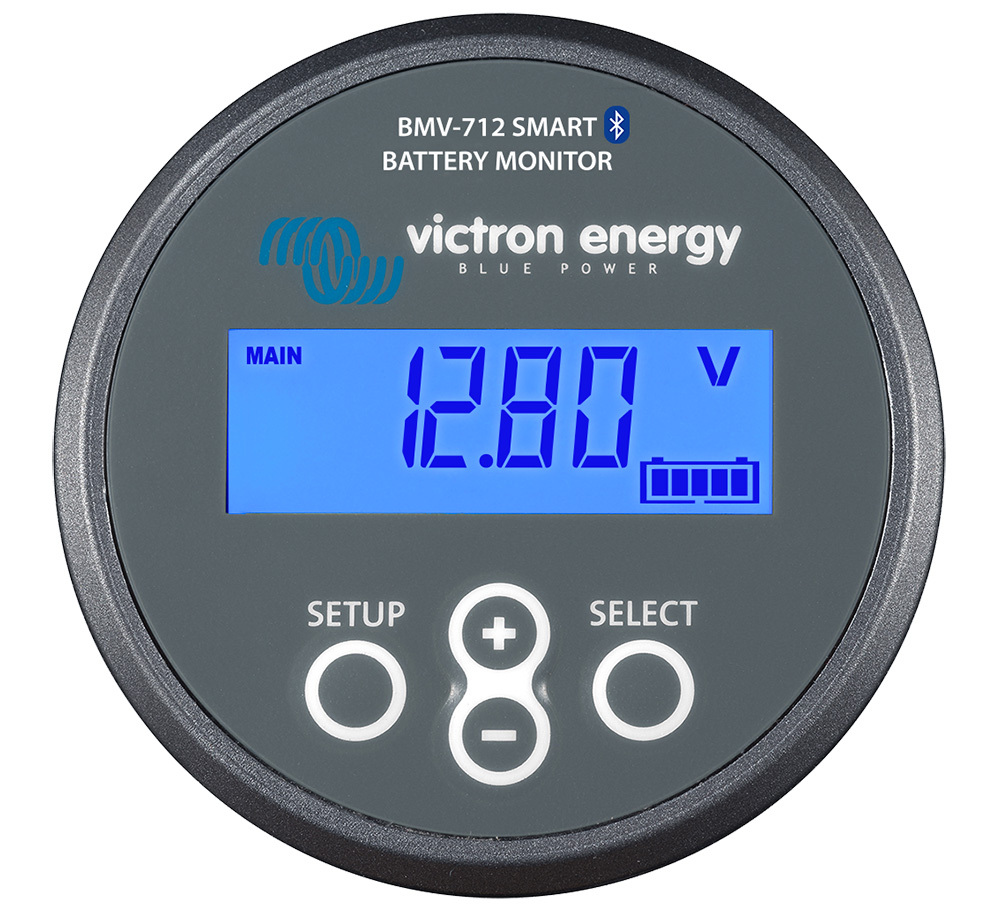

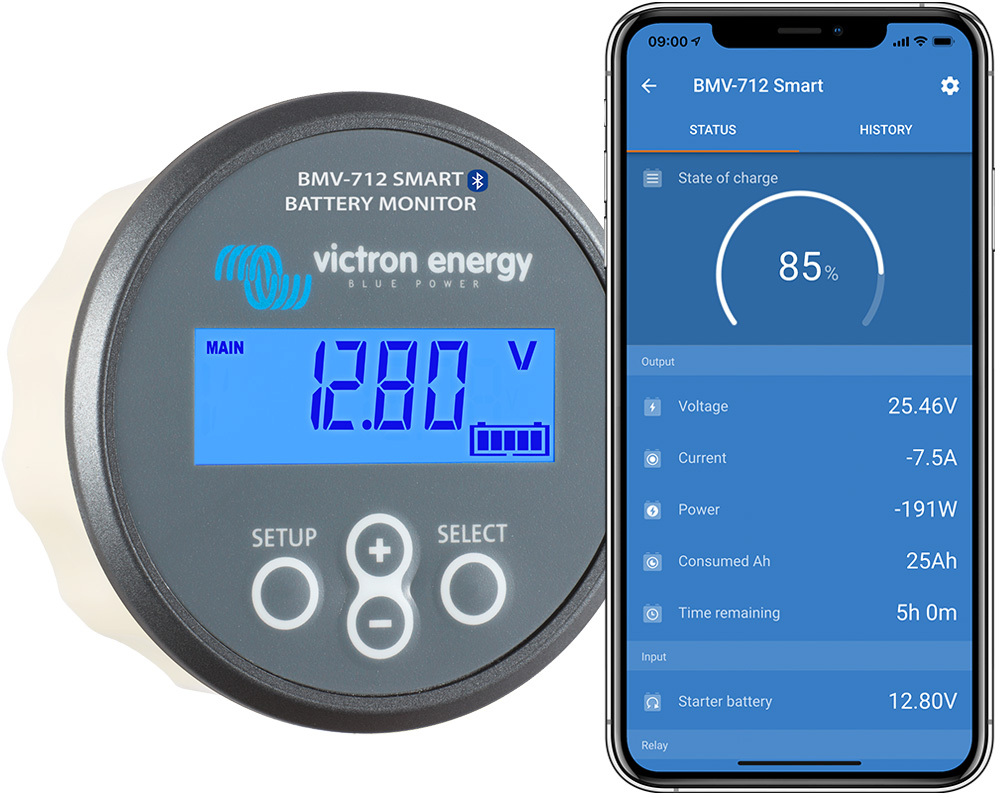

The BMV-712 is the latest high precision battery monitor from Victron. The BMV-712 monitors voltage and current of a single battery bank and calculates power, state-of-charge and time-to-go. It also features an additional voltage input that can be used to measure an auxiliary or starter battery voltage, midpoint voltage or temperature with the optional temperature sensor. Data can be transferred to smartphones or computers with the inbuilt bluetooth module and external alarms can be triggered with the relay contact.

Installation is simply a case of connecting the supplied shunt in the negative battery cable, mounting the monitor in a 52mm diameter hole and connecting the wires. An optional wall enclosure is available if surface mounting is preferred.



Whats in the box?

  • BMV 712 battery monitor
  • 500A shunt and adapter board
  • 10m cable to connect shunt to BMV
  • 2x Positive voltage sense wire with fuse



Product Videos:

Introduction to the BMV-712 Smart



Sync settings for Lithium batteries - BMV-712 Smart



How to set up a Victron BMV Battery Monitor for lead and lithium batteries



Battery Monitor BMV-712 Smart
Supply voltage range 6,5 - 70 VDC
Current draw, back light off < 1mA
Input voltage range, auxiliary battery 6,5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50°C (-40 - 120°F)
Measures voltage of second battery, or
temperature, or midpoint		 Yes
Temperature measurement range -20 +50°C
VE.Direct communication port Yes

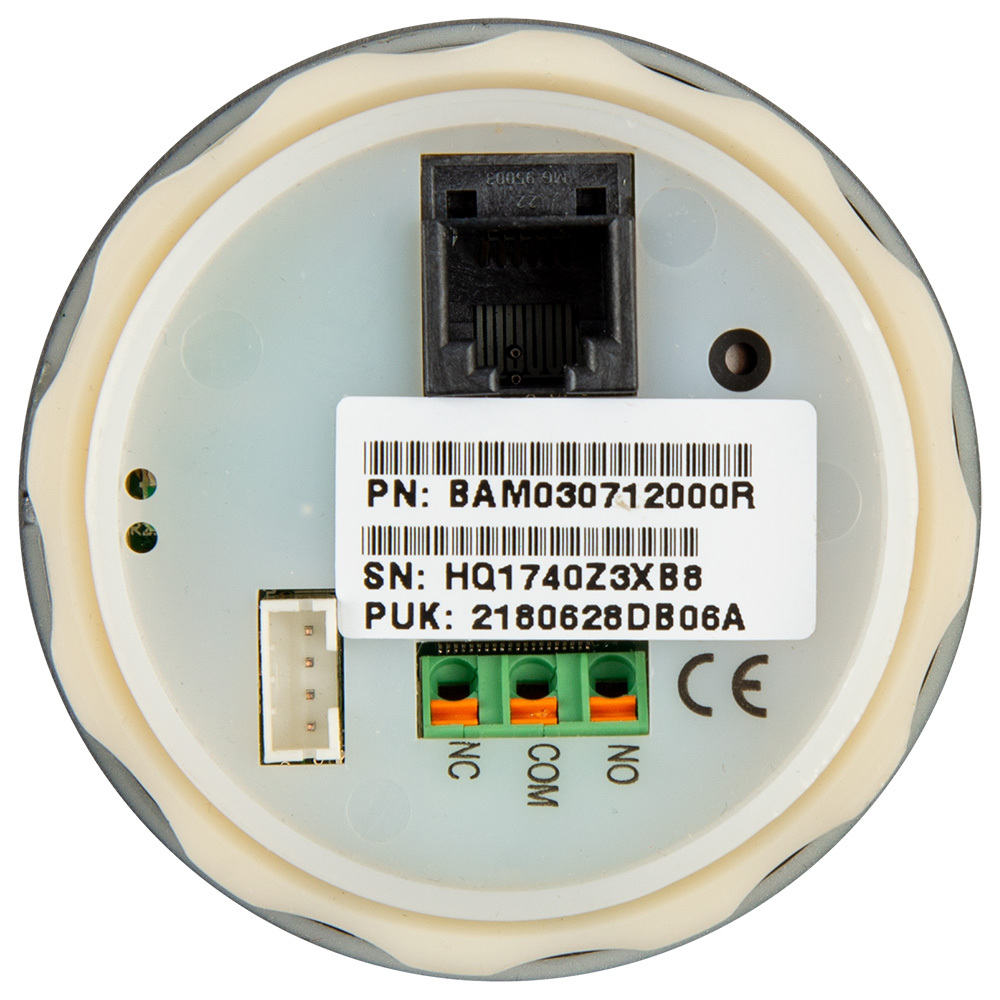

Bistable relay 60V / 1A normally open (function can be inverted)
RESOLUTION & ACCURACY (with a 500 A shunt)
Current ± 0,01A
Voltage ± 0,01V
Amp hours ± 0,1 Ah
State of charge (0 – 100%) ± 0,1%
Time to go ± 1 min
Temperature (0 - 50°C or 30 - 120°F) ± 1°C/°F
Accuracy of current measurement ± 0,4%
Accuracy of voltage measurement ± 0,3%
INSTALLATION & DIMENSIONS
Installation Flush mount
Front 63mm diameter
Front bezel 69 x 69mm (2.7 x 2.7 inch)
Body diameter and depth 52mm (2.0 inch) and 31mm (1.2 inch)
Protection category IP55 (not intended for outdoor use)
STANDARDS
Safety EN 60335-1
Emission / Immunity EN 55014-1 / EN 55014-2
Automotive ECE R10-4 / EN 50498
ACCESSORIES

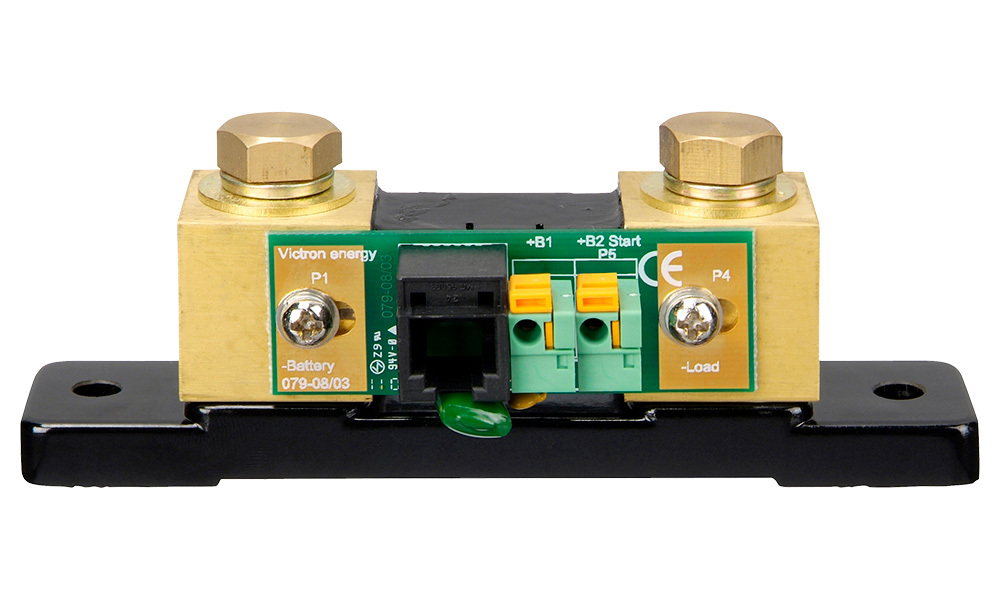

Shunt (included) 500A / 50mV
Cables (included) 10 meter 6 core UTP with RJ12 connectors,
and cable with fuse for ‘+’ connection
Temperature sensor Optional (VIC.ASS000100000)
SKU VIC.BAM030712000R
Model # BAM030712000R
UPC/EAN 8719076037798
Brand Victron Energy
Shipping Weight 1.3300kg
Shipping Width 0.230m
Shipping Height 0.280m
Shipping Length 0.070m
Shipping Cubic 0.004508000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.

Victron 5 Year Warranty Badge
