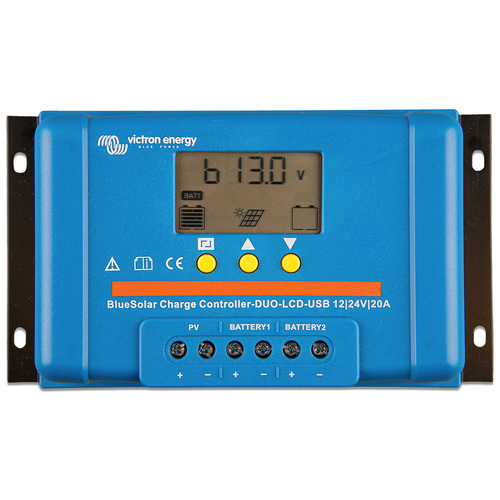

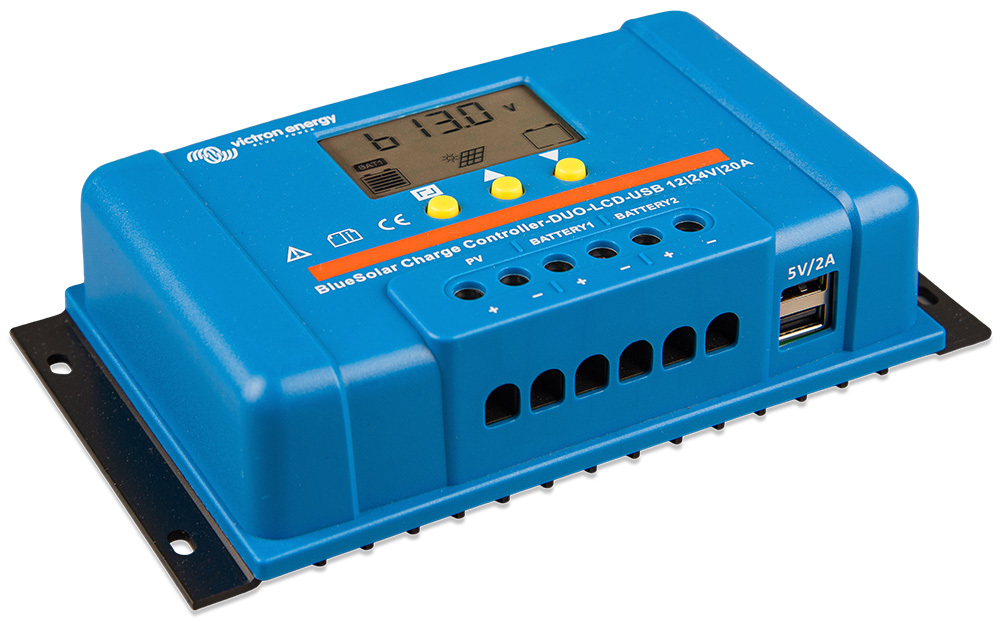

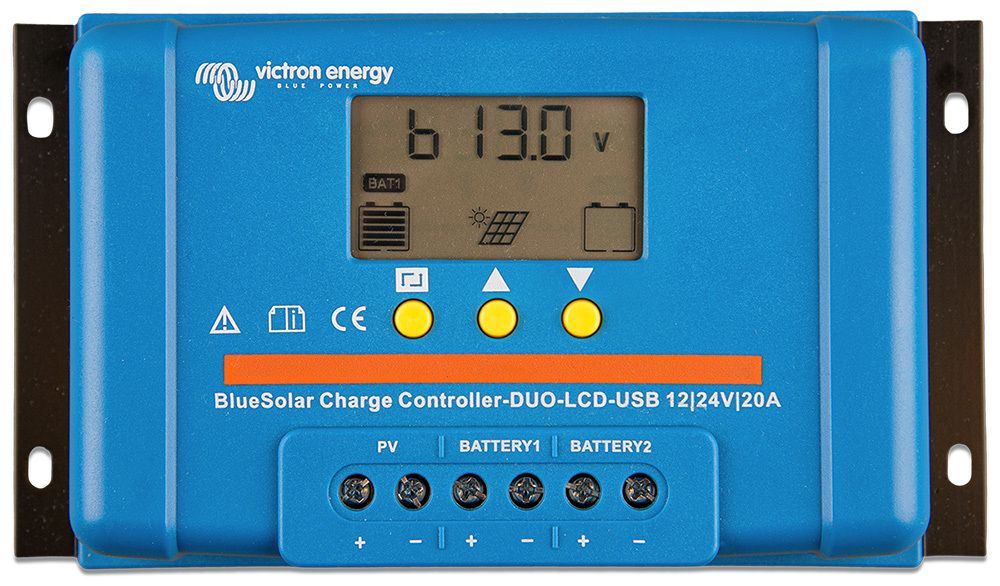

BlueSolar PWM Charge Controller (DUO) LCD & USB

Features:

  • Liquid Crystal Display for status monitoring and set-up
  • Two 5 Volt USB outputs (2A Max combined)
  • Lighting control function, fully programmable
  • Three stage battery charging (bulk, absorption, float), fully programmable
  • Load output with low voltage and manual disconnect (programmable)
  • Load output protected against over load and short circuit
  • Protected against reverse polarity connection of the solar panels and/or battery

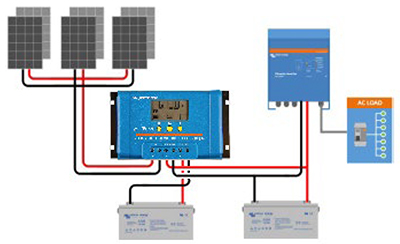

  • Charges two separate batteries. For n>example, the starter battery and the service battery of a boat or mobile home.
  • Programmable charge current ratio
  • Programmable battery charge algorithm. Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS)
  • External Temperature sensor included



SKU VIC.SCC010020060
Model # SCC010020060
UPC/EAN 8719076046219
Brand Victron Energy
Shipping Weight 0.5000kg
Shipping Width 0.058m
Shipping Height 0.120m
Shipping Length 0.210m
Shipping Cubic 0.001461600m3
Unit Of Measure ea
Assembled Length 0.210m
Assembled Height 0.120m
Assembled Width 0.058m

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
